The M-LYNX-702W provides maximum versatility with multiple inputs and Waveform/Vectorscope display. All functions are available through professional front panel controls as well as remote operation via an RJ-45 Ethernet port. Standard power and tally connections as well as a logical menu structure make this display an easy choice for custom system designs.

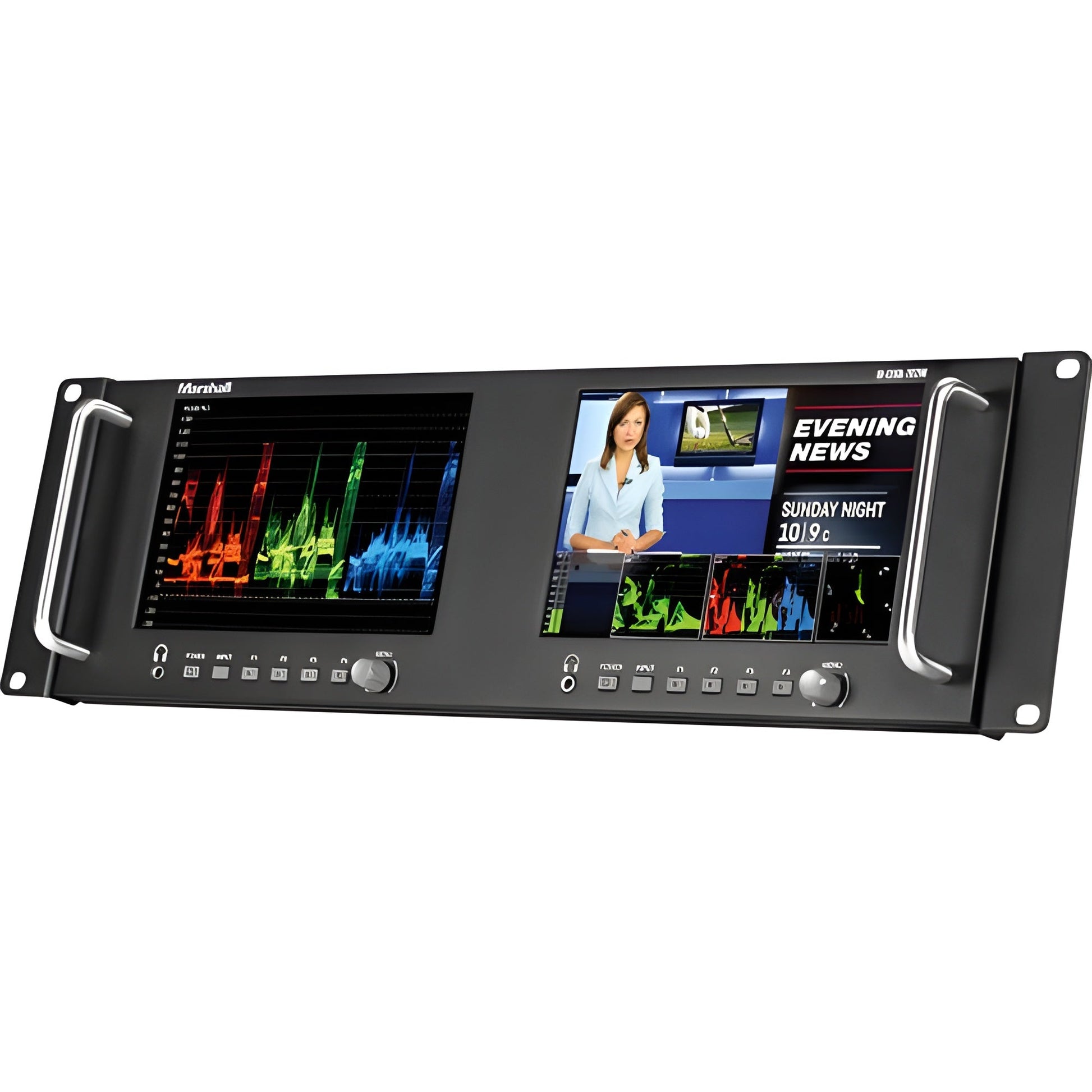

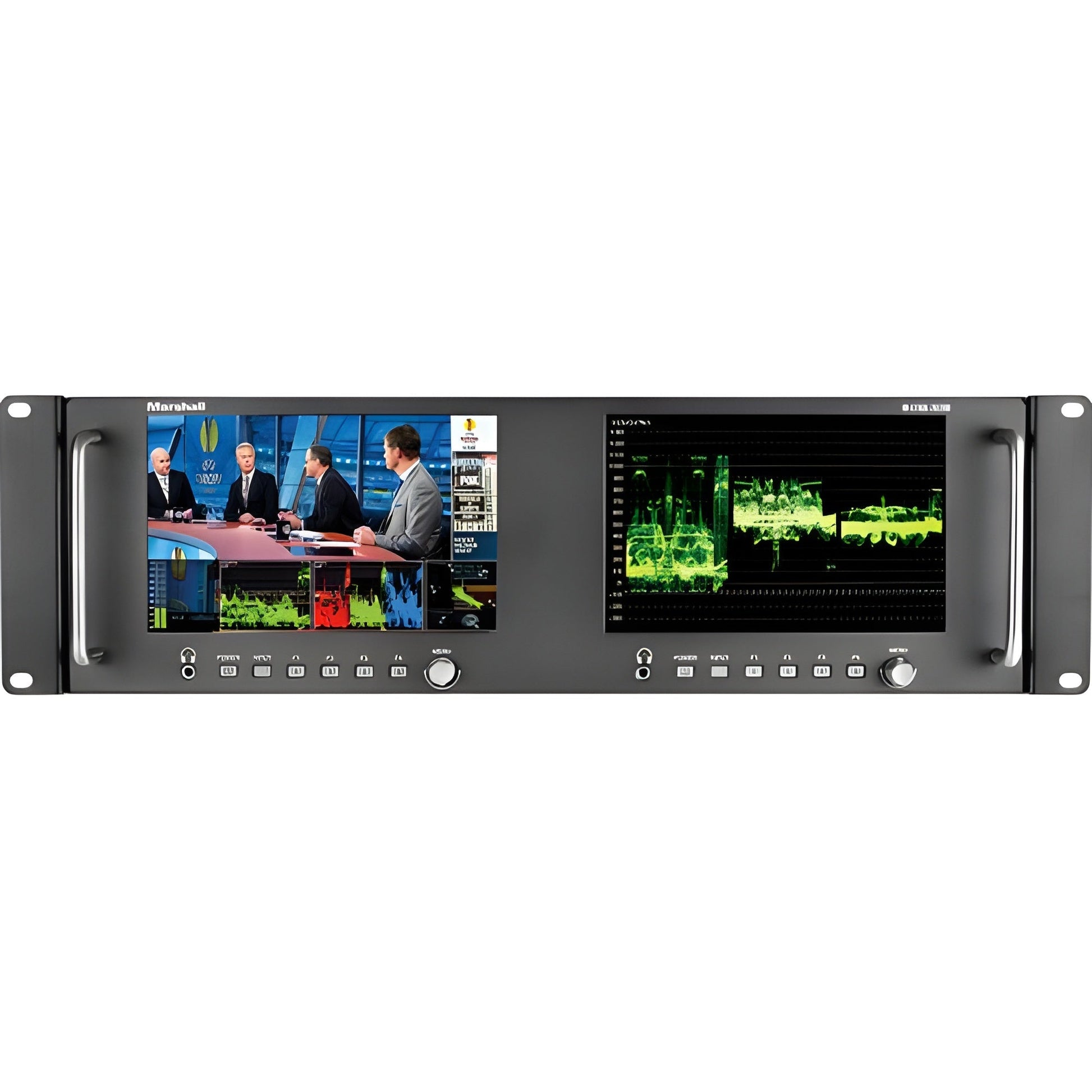

The M-LYNX-702W has two 7-inch monitors, 3RU high, each with 16:9 aspect ratio, a screen resolution of 1280x800 and a viewing angle of 178 degrees. The monitors come complete with audio de-embedding and monitoring via front panel headphone jacks and built-in LED tally indicators (Red, Green, Yellow).Special features include: waveform, vector, selectable markers, 1:1 pixel mapping, over scan and H/V delay modes, P-P, and ability to view individual colors.

• Dual 7", 1200 x 800 Resolution Panels
• 3G-SDI, HDMI, Component, Composite Input
• Supports SDI and HDMI Embedded Audio
• Unbalanced Analog Audio Input

Features

• High resolution 1280 x 800, bright, colorful display with no-compromise input selections for each screen

• Digital inputs: HDMI, 3GSDI with loop-through (auto selects HDSDI/SDI)

• Analog inputs: Component and Composite with loop-through

• Special features

• Waveform/Vector, Peaking Filter, Selectable markers, 1:1 pixel mapping, Over scan and H/V delay modes, P-P, View individual colors

• Audio de-embedding and monitoring via front panel headphone jacks

• Built-in LED tally indicators (Red, Green, Yellow)

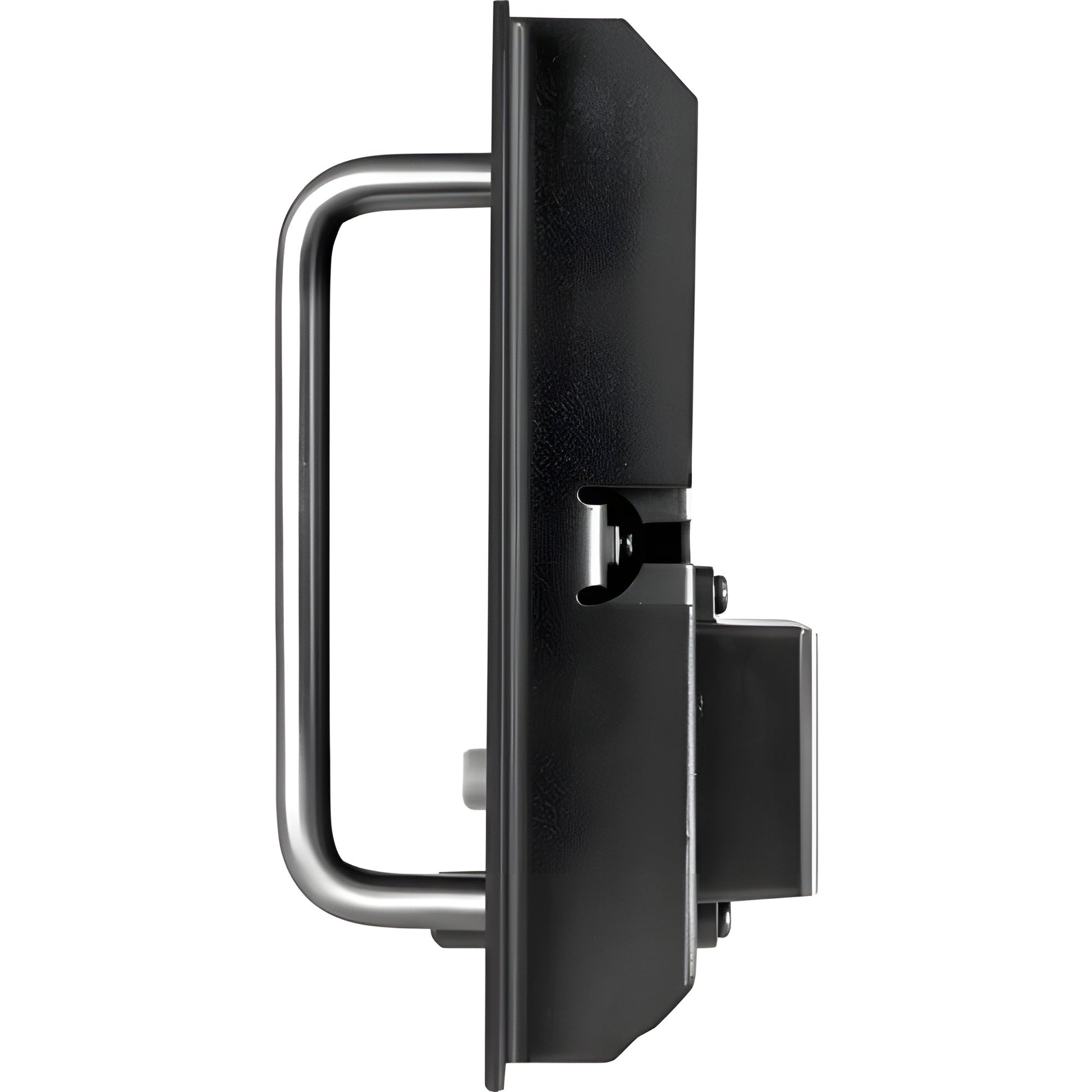

• Slim design and 3RU size

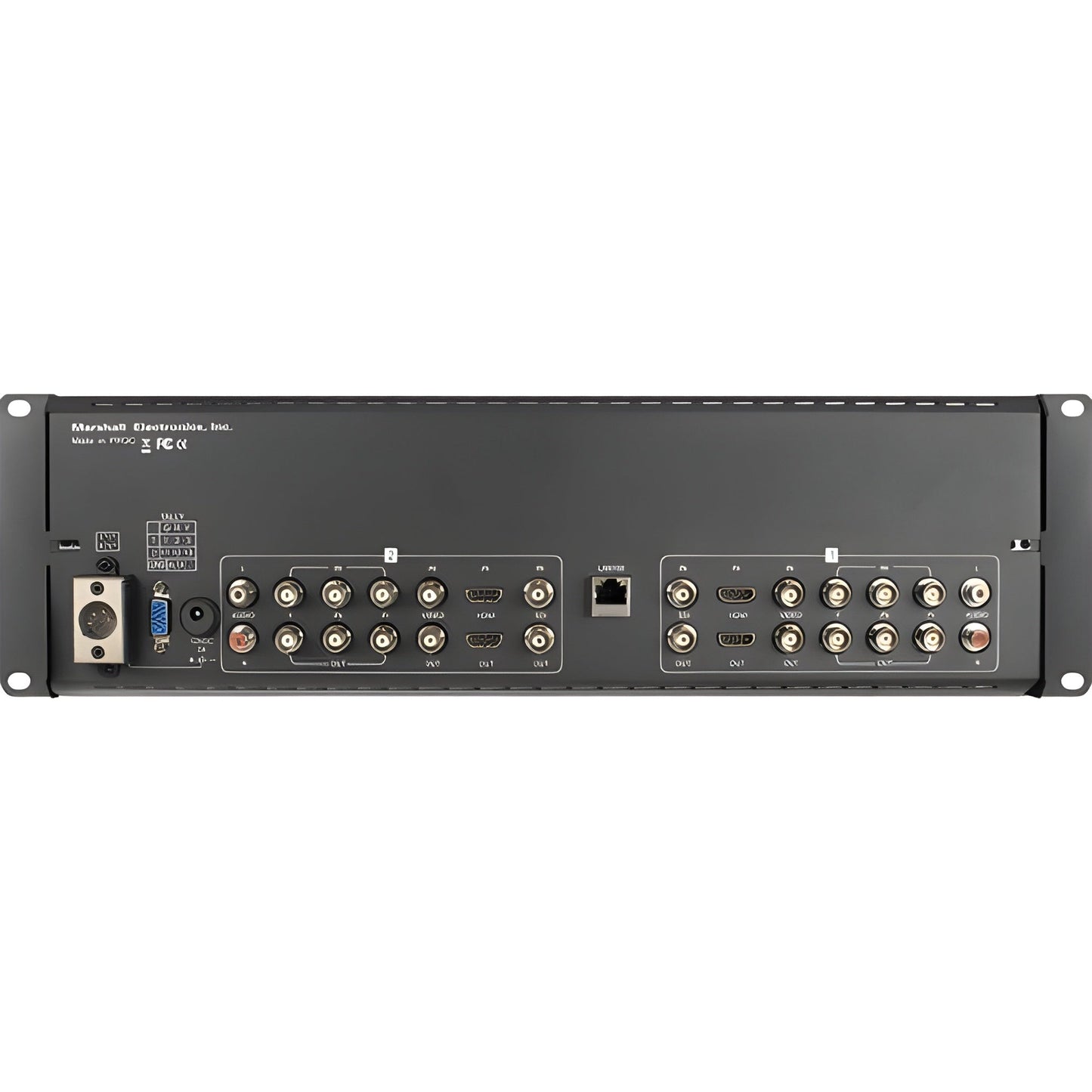

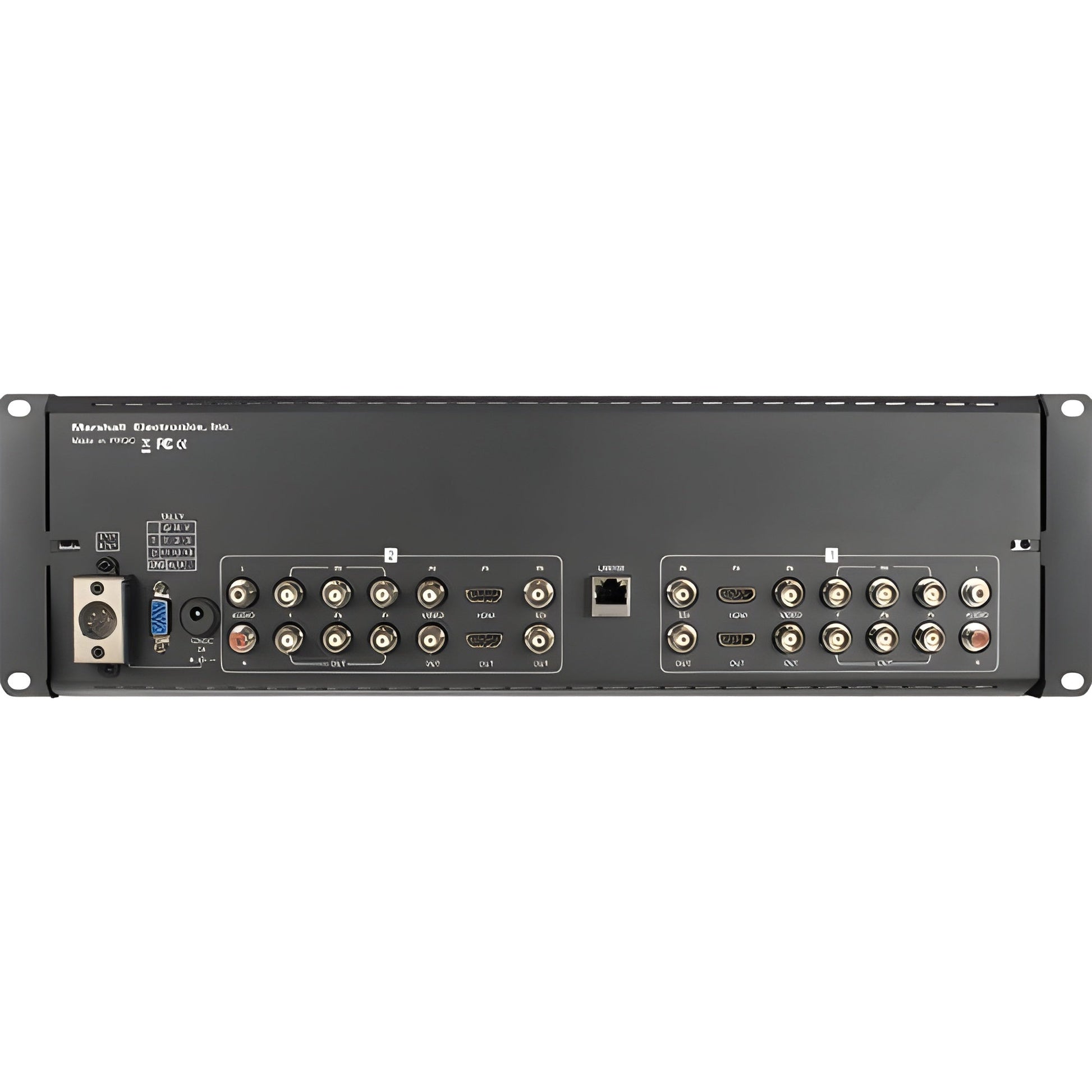

• Power using included 12-volt supply or use standard 4-pin XLR

• Selectable English and Spanish on-screen displays

What Our Experts Think

• Dual 7" Display: Offers two 7" monitors, allowing you to monitor two video signals simultaneously for efficient workflow in live production environments.
• Multiple Input Options: Supports HDMI, 3G-SDI, Component, and Composite inputs, making it compatible with a wide range of video sources.
• High-Resolution Display: Provides clear and detailed images for accurate monitoring, ensuring that you can trust what you see on screen.
• Rack-Mountable Design: Perfect for integrating into your studio or broadcast setup with a compact, space-saving design for easy mounting in a standard 19" rack.
• Durable & Reliable: Built to handle the demands of professional broadcast environments, offering long-lasting durability for consistent use.
• Versatile Monitoring: Ideal for video production, live events, or broadcast studios where multi-input and simultaneous monitoring is essential.

Q&A

Q: What is the Marshall M-LYNX-702W?
A: The Marshall M-LYNX-702W is a dual 7-inch rack-mountable monitor designed for professional video production, featuring HDMI, 3G-SDI, component, and composite inputs for versatile connectivity.

Q: Who is this monitor for?
A: Perfect for broadcast engineers, production studios, and video professionals who need a reliable, multi-input monitoring solution in a rack-mounted form factor.

Q: What inputs does the M-LYNX-702W support?
A: It supports HDMI, 3G-SDI, component, and composite inputs, providing flexibility to connect to a variety of video sources.

Q: How is this monitor used in production setups?
A: With dual 7-inch displays, it allows users to monitor multiple video feeds simultaneously, making it ideal for live broadcasts, video switching, and on-set monitoring.

Q: What makes the M-LYNX-702W stand out?
A: Its dual screen design, combined with a wide range of input options, makes it a versatile solution for efficient monitoring in professional video production environments.

Maintenance Tips

• Screen Cleaning – Clean the screens regularly using a microfiber cloth and screen-safe cleaner to maintain clear visuals.
• Firmware Updates – Keep the firmware updated to ensure the monitor functions optimally and is compatible with new devices.
• Cable Management – Secure all HDMI, 3G-SDI, component, and composite cables to avoid signal disruptions or physical wear.
• Ventilation – Place the monitor in a well-ventilated area to prevent overheating, particularly during long sessions.
• Surge Protection – Use a surge protector to safeguard the monitor from electrical fluctuations or power surges.
• Handle with Care – Avoid physical impact to prevent damage to the screens or internal components.
• Regular Testing – Test both screens for proper display functionality, ensuring both inputs work as expected.
