Mesa Steam Shower - 500XL

The Ultimate Upgrade To A Luxurious Bathroom Is Here!

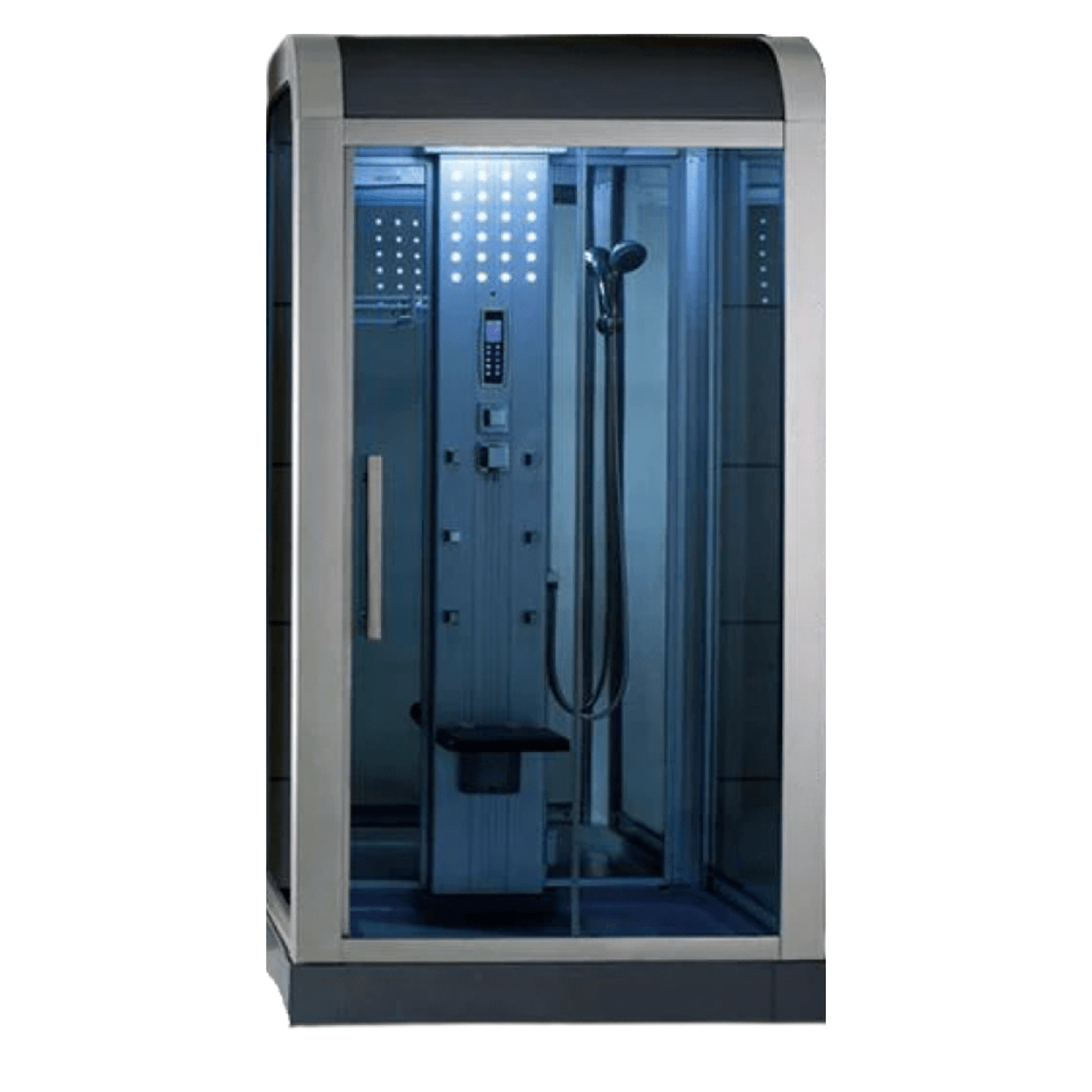

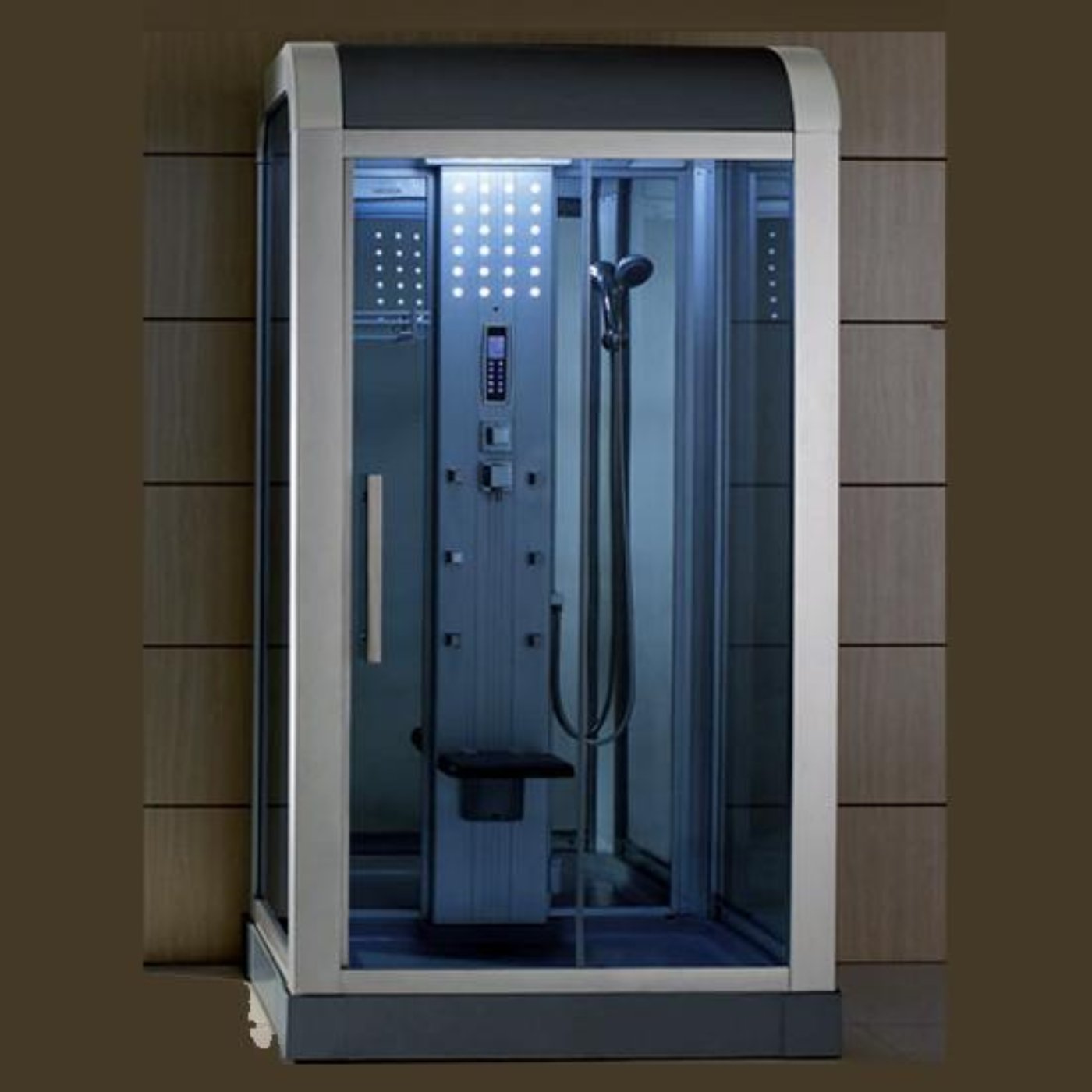

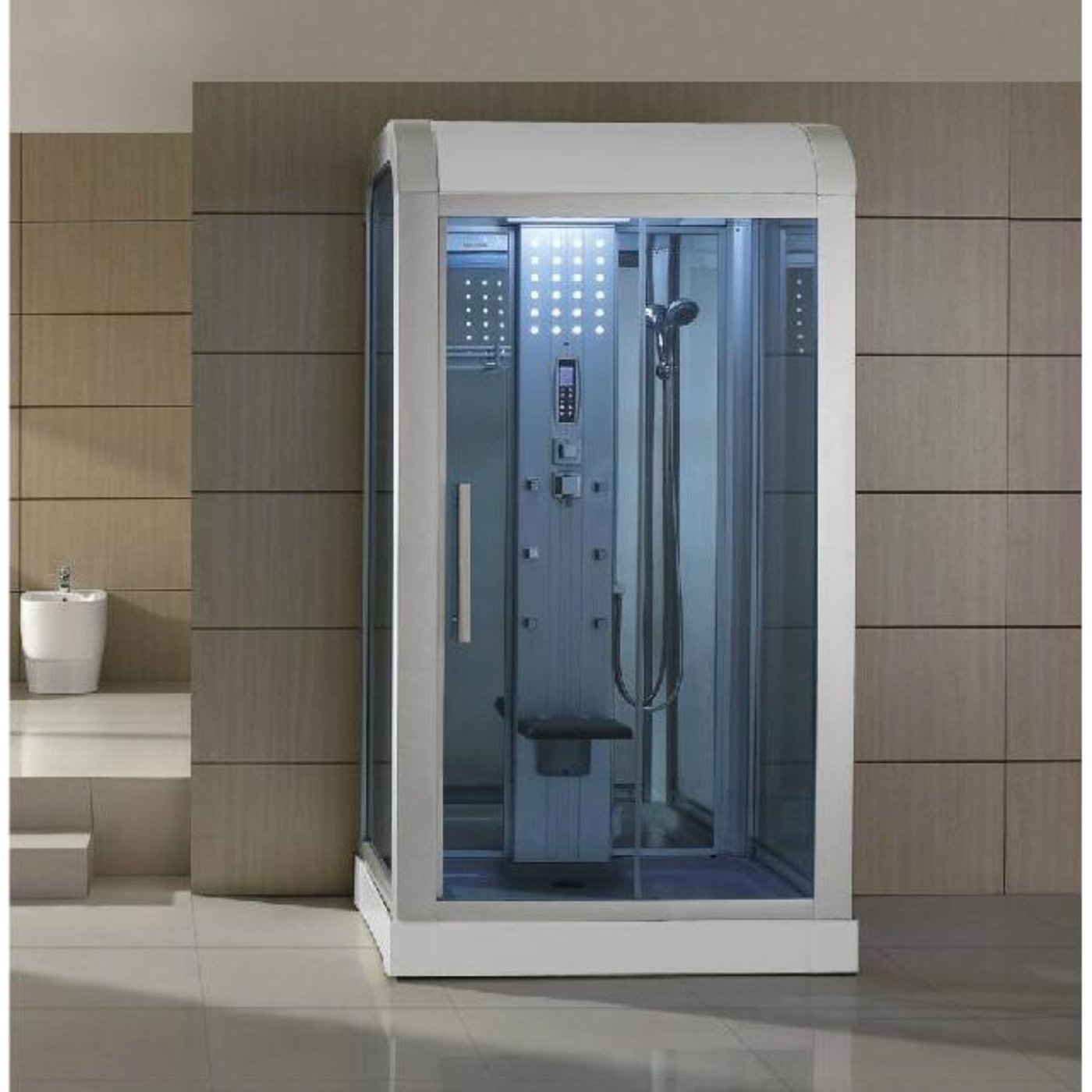

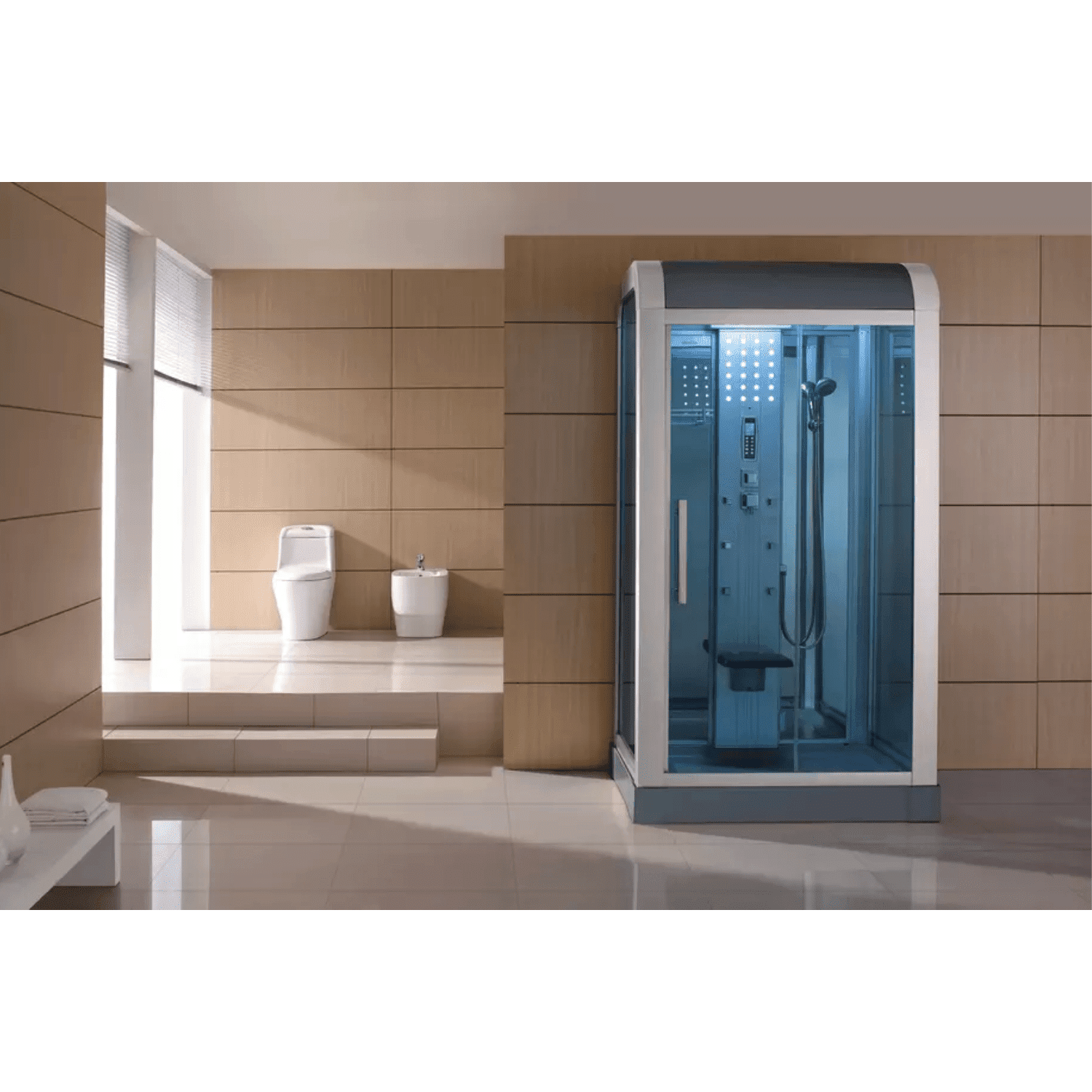

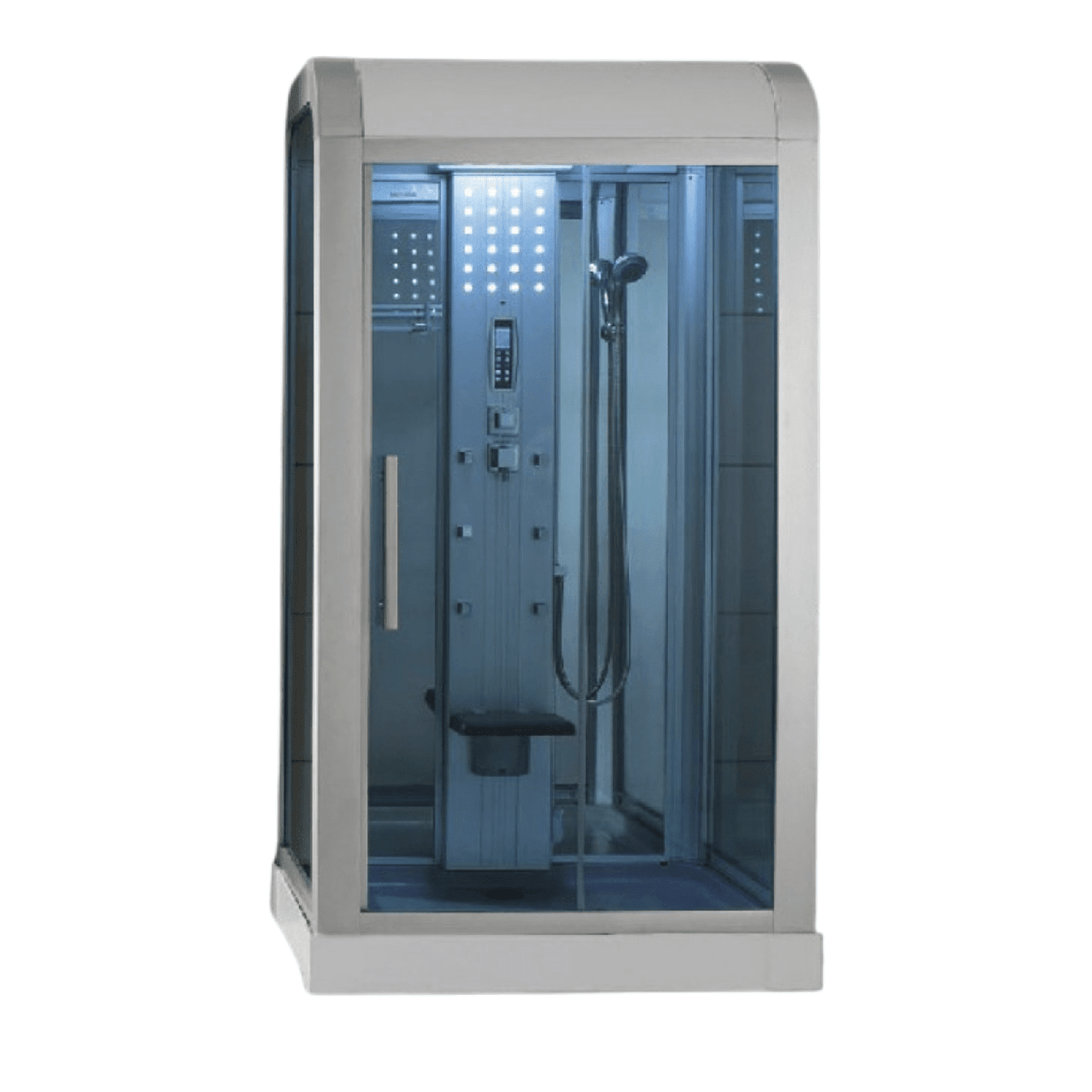

The Mesa 500XL walk-in steam shower is 47" x 35" x 87" with tinted blue glass and an enclosed top. The 500XL can be used as a free-standing unit or corner unit in a finished room.  With its spacious yet simple design, this sophisticated steam shower features chrome columns and hardware, a sliding glass door, and a fold-up seat for additional space.

View the Mesa Steam Shower - 500XL Features below:

• Includes A Flexible Drain Hose. This means putting your drain anywhere you want

• Dimensions: 47" x 35" x 87" ( Add 2" for ventilation exhaust pipe)

• 220V ETL Certified

• 220v with a 20amp dual pole breaker GFCI Breaker for the steam shower.

• 3KW Steam Generator (premounted on the backside).

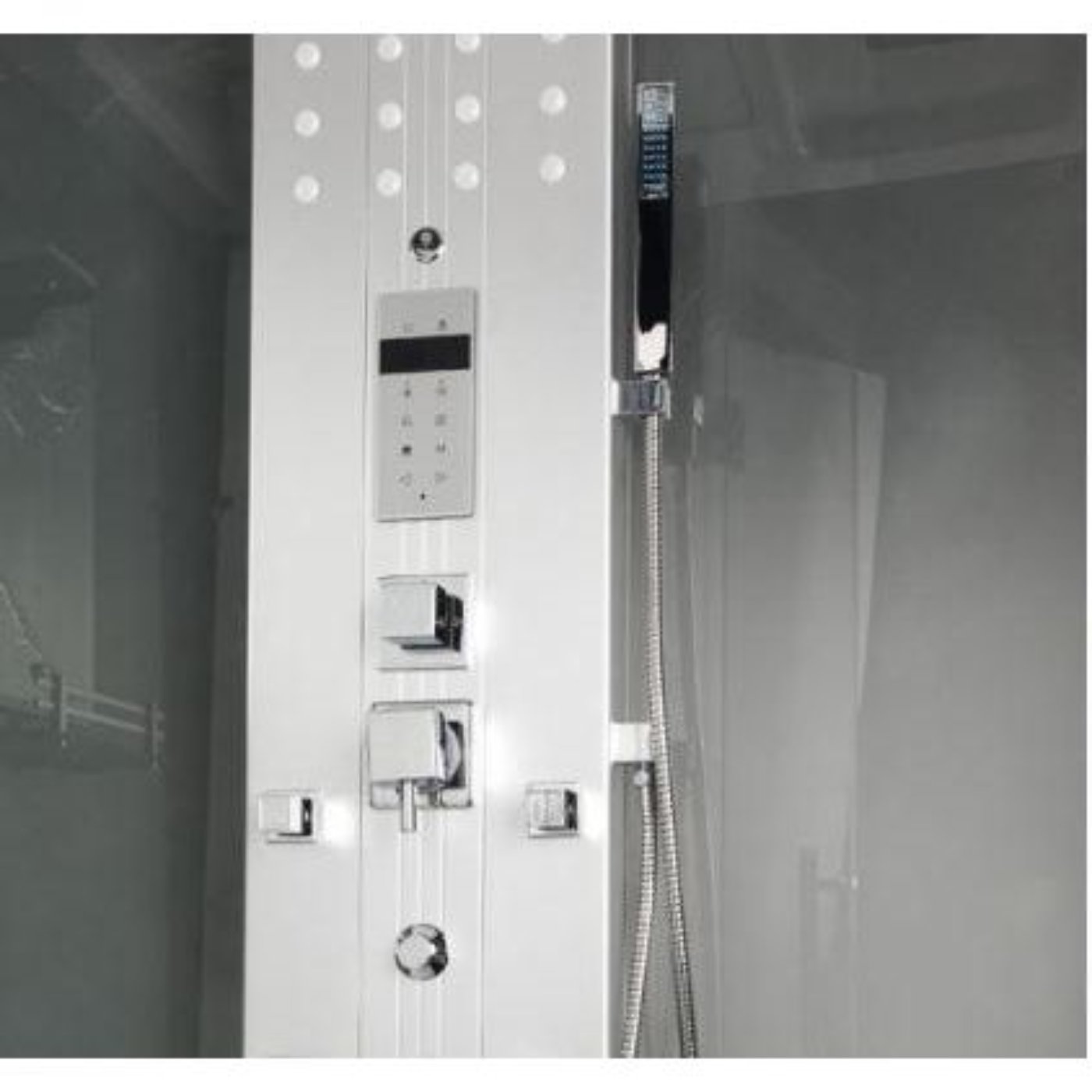

• 6 Acupuncture Water Body Jets

• Adjustable Handheld Shower Head

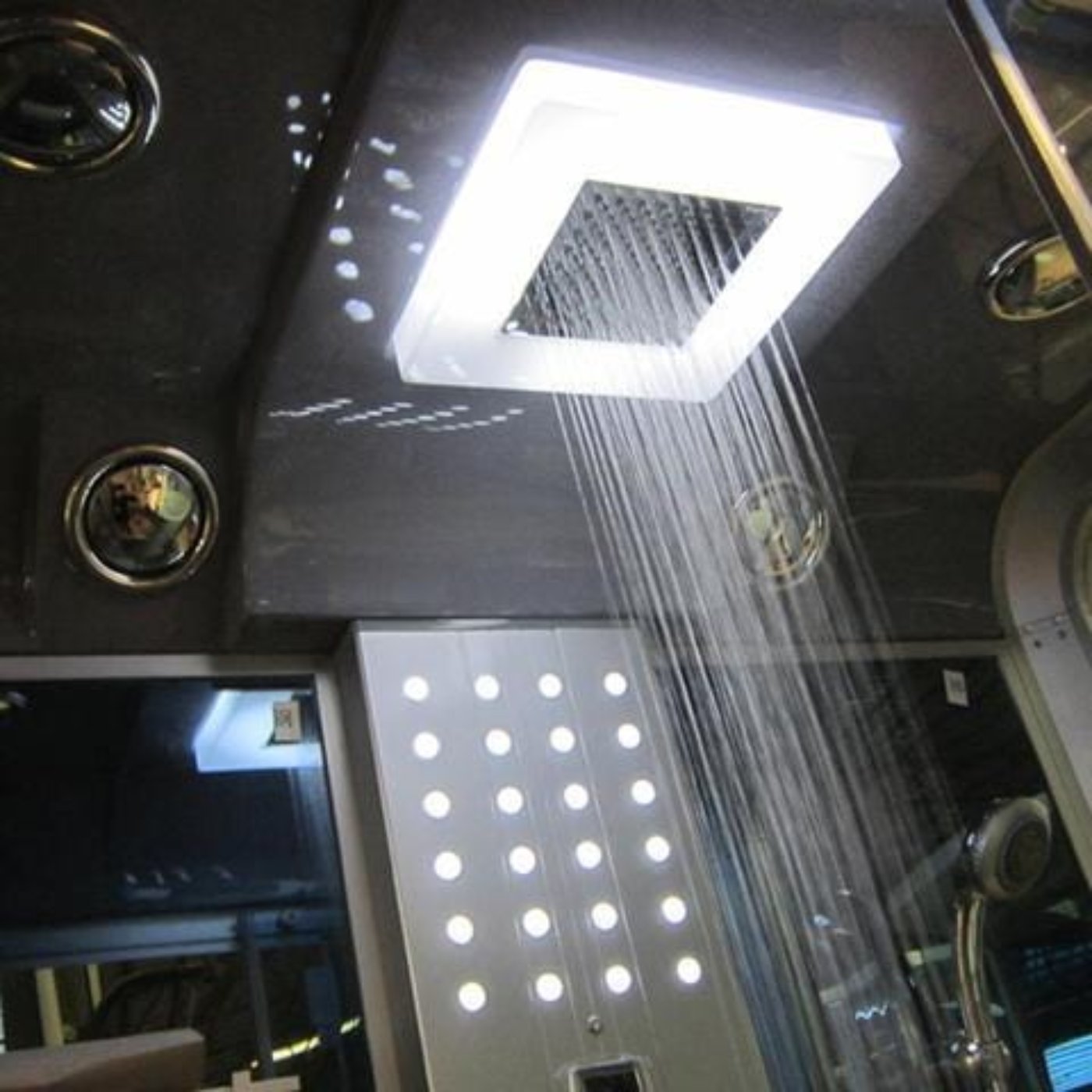

• Rainfall Shower Head

• FM Radio

• Tempered Blue Glass

• Ozone Sterilization System

• Blue LED Mood Lighting

• Tempered Glass

• Temperature Sensor

• Ventilation Fan

• Enclosed Top

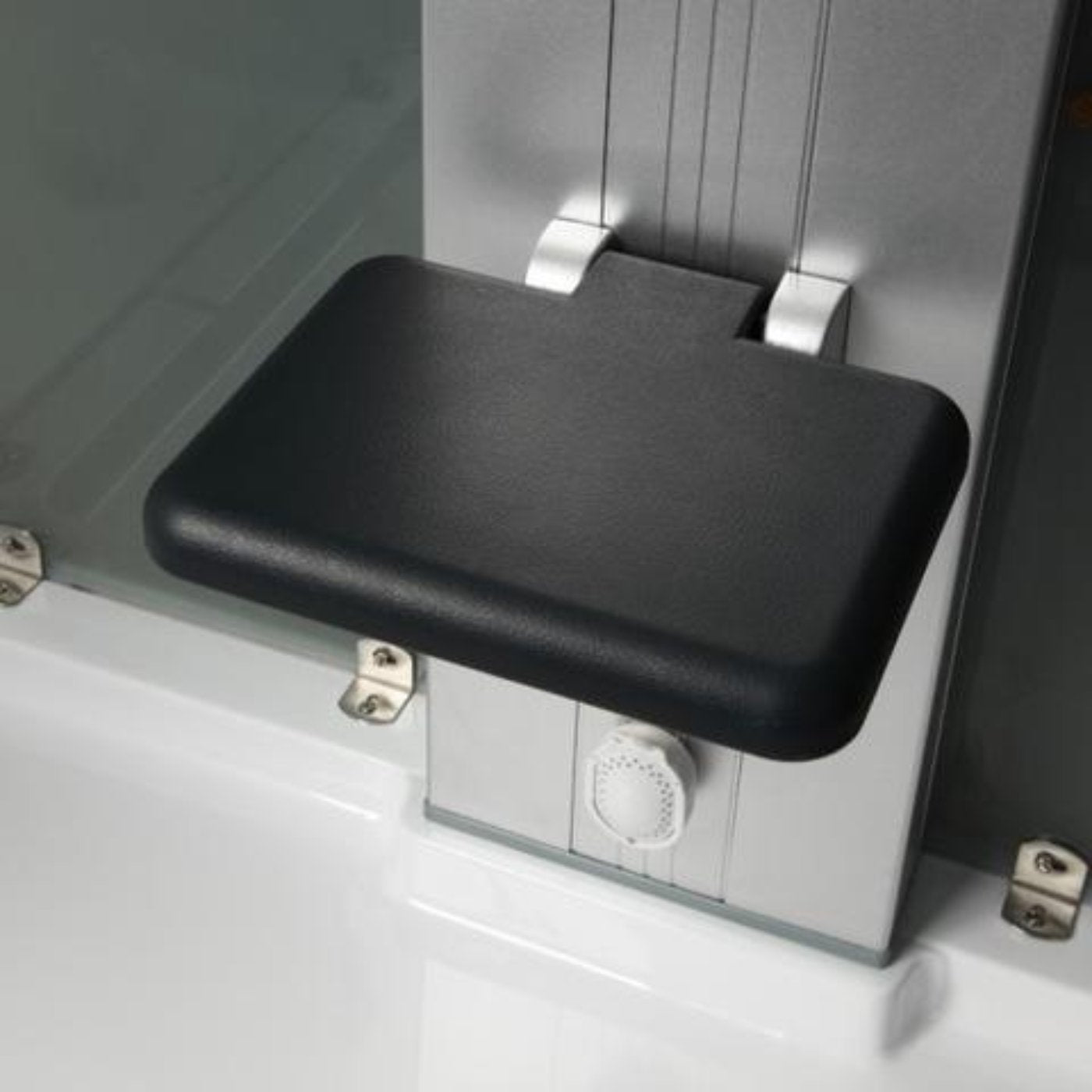

• Fold-Up Seat

Spec Sheet



Warranty

All steam showers carry a (7) seven-year structural warranty against manufacturer defects. The structural warranty protects the structure of the steam shower from peeling, fading, delaminating, or cracking. Structural components include acrylic panels, shower pan, ceiling, and glass panels. All steam shower parts carry a (1) one-year guarantee against defects.

Does the unit come in one piece or in panels?

All units come in panels. The great thing about our Stand Alone Steam Showers is that they are pre-assembled with pre-drilled holes. You can move any of the units through a standard 32" doorway for easy access into remodeled homes, basements, and other unique situations.

Can I fit the parts through a standard doorway?

Yes, all units can fit through a standard 32" doorway. Even units with a whirlpool tub will fit through any space larger than 26".

What type of Electrical Connection and Breaker will I need?

(1) 220v with a 20amp dual pole breaker GFCI Breaker for the steam shower.

(1) 220v with a 20amp dual pole breaker GFCI Breaker for the heat pump

I would like to place it on the second floor, will there be a weight problem?

The unit is about 500 lbs.+water and your weight, and that is definitely a case-by-case type question. Please consult your contractor based on the weights we have provided.

What does the inline heat pump do?

The inline Heat Pump is attached to the water pump, and the heat pump will maintain the water temperature in the tub portion of the unit.

How many HOT/COLD Connections are required?

Regardless of the number of showerheads, all units have one hot/cold connection.

Where is the HOT/COLD Connection located?

The connection is located behind the shower hot/cold controls which differ per unit. Normally the hot/cold is about 30" from the floor on the back of the unit. Flex hoses are included for easy hookups no matter where your current hot/cold is located. Refer to the listing page of each steam shower for the exact location which can be seen in the diagrams towards the bottom of the page.

Where is the steam generator located?

The steam generator is located underneath the tub and on certain units, it is placed on the back of the unit. All generators are mounted to the frame or screwed to the back of the unit so that they do not take up a room beyond the dimensions of the shower. All of the steam showers will sit flush against the wall.

Do I need an access panel?

The steam showers are designed to be free-standing units so that in case of an issue behind the unit, you can easily slide the unit away from the wall for access. The plumbing and the electrical connections are flexible so that you can easily make this happen. If at all possible, an access panel is a terrific option in case of any future issues.
