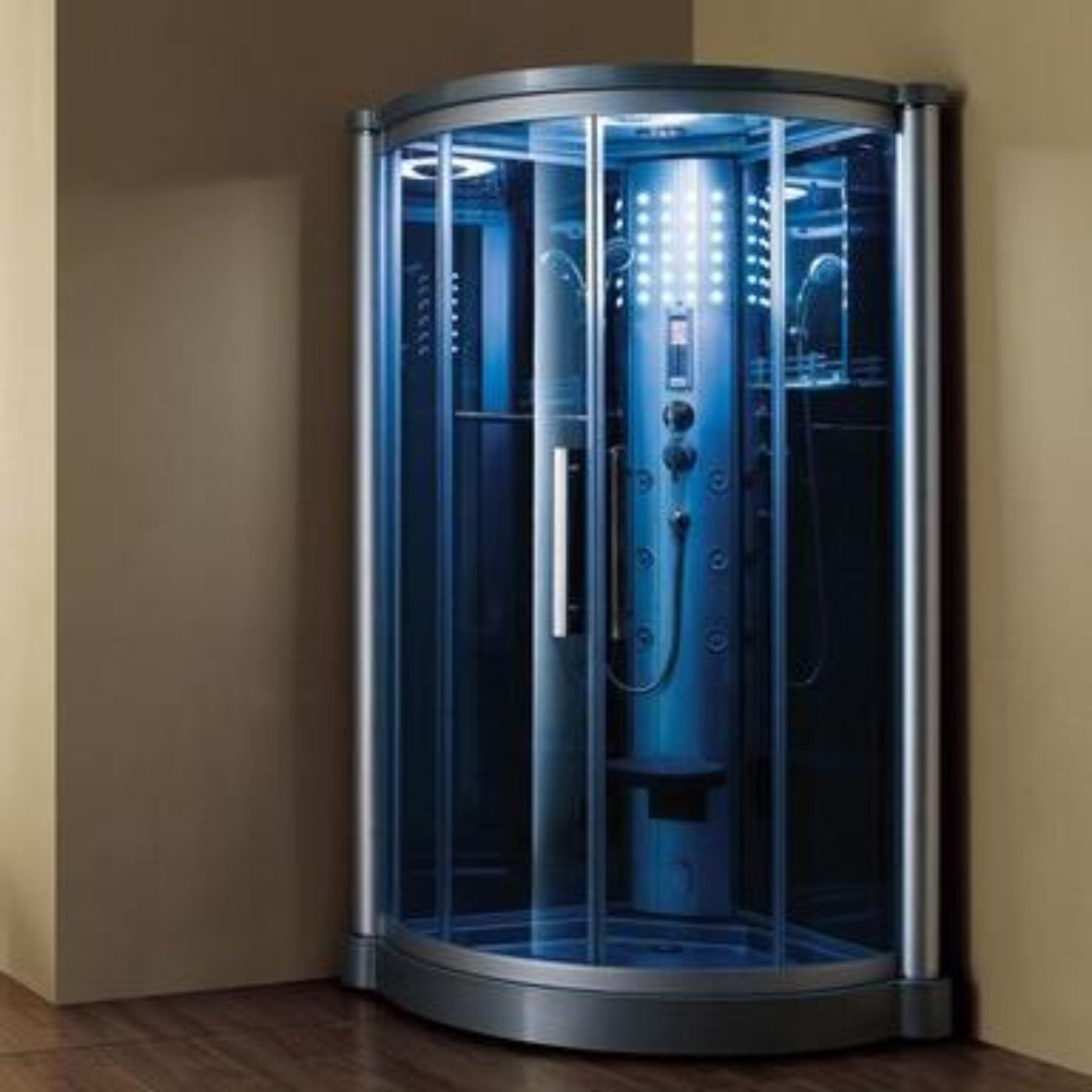

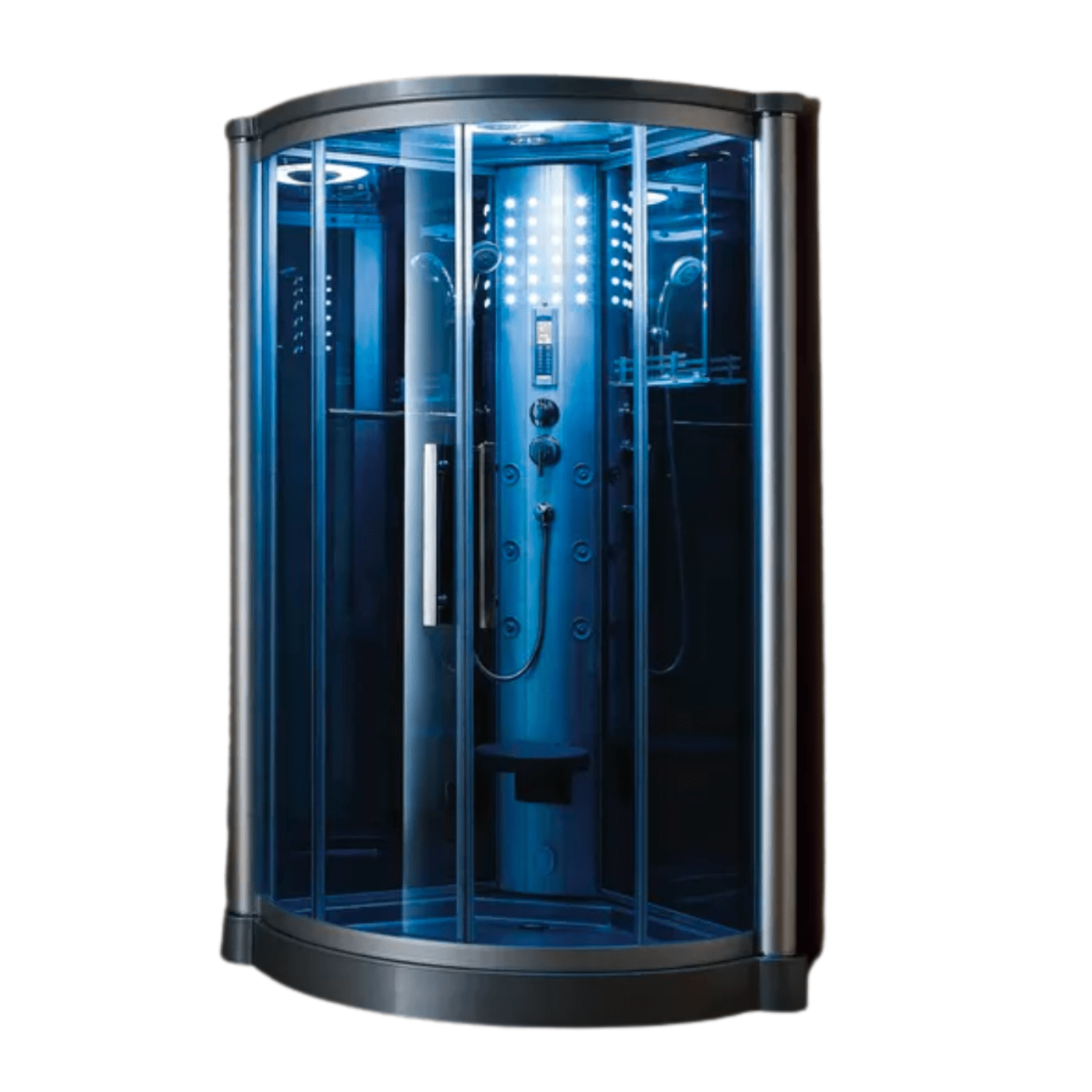

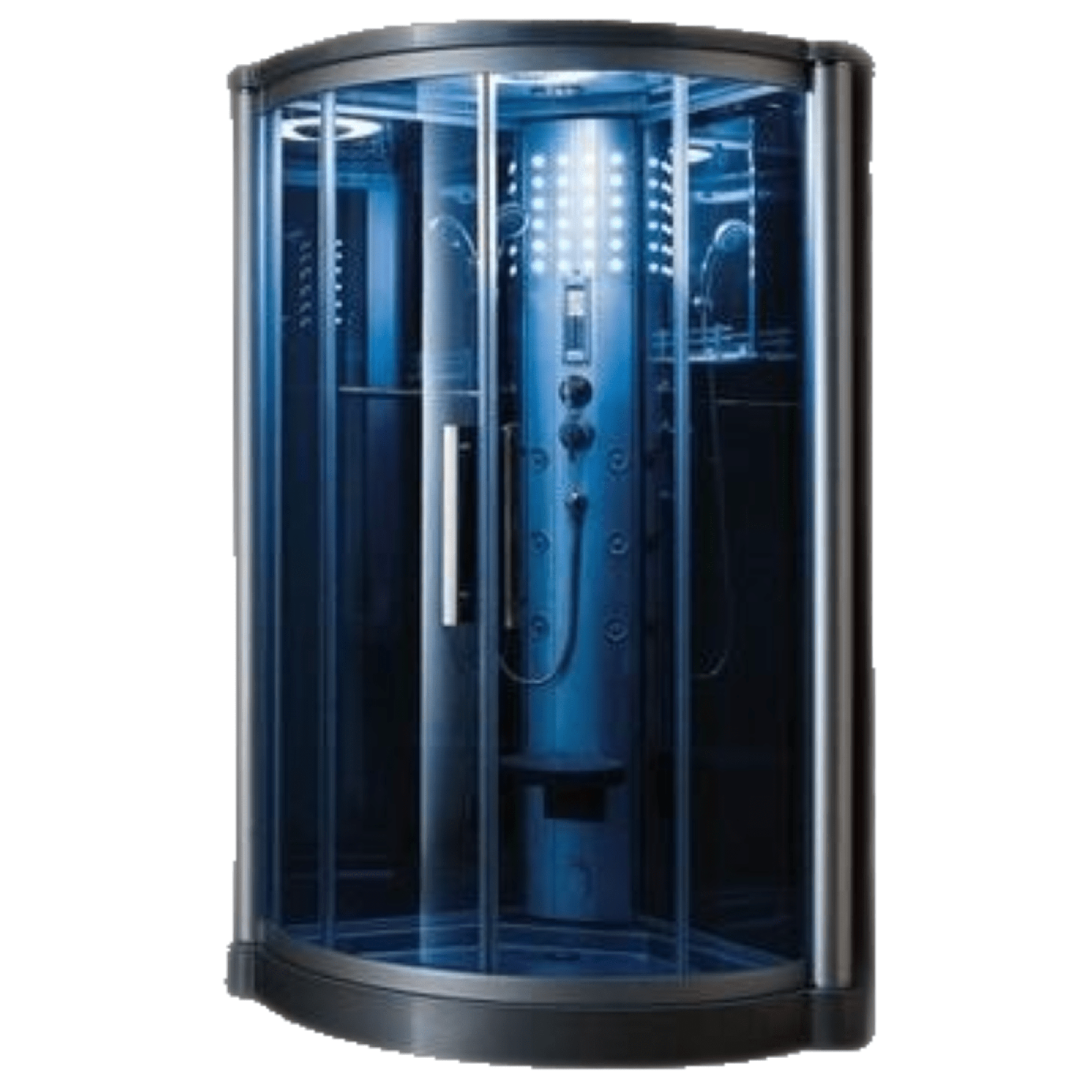

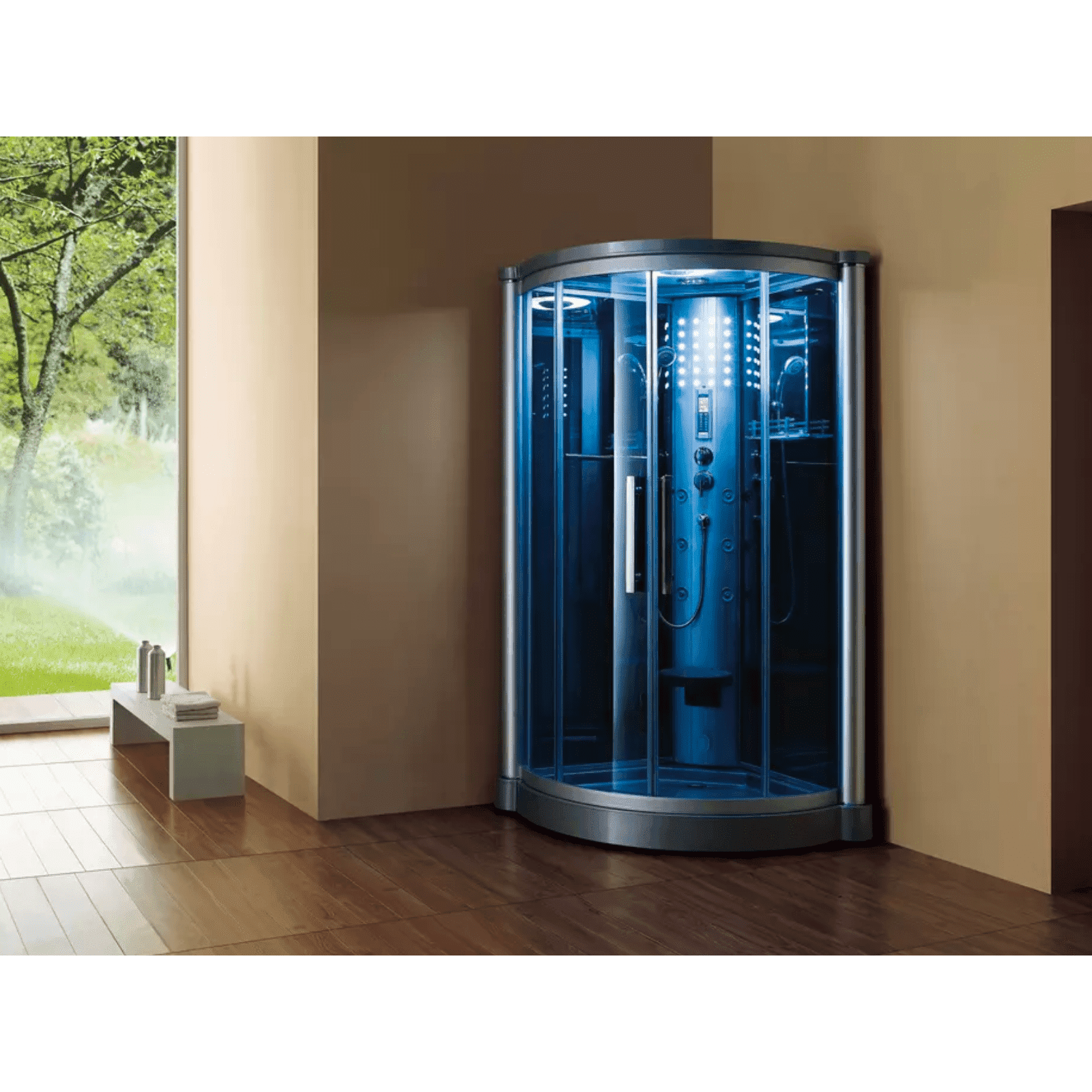

The Mesa WS-801L corner steam shower unit features tinted blue glass and a space-saving fold-down seat. Includes a 3KW steam generator, rainfall showerhead, and six body jets. The curved glass and chrome trim of the WS-801L steam shower provides an instant upgrade to any modern bathroom.
View the Mesa Steam Shower - Blue Glass - WS-801L Features below:
Includes A Flexible Drain Hose. This means putting your drain anywhere you want!
42"L x 42"W x 85"H (Add 2" for ventilation exhaust pipe)
220V ETL Certified
Electrical requirements (1) 220v with a 20amp dual pole breaker GFCI Breaker for the steam shower.
3KW Steam Generator

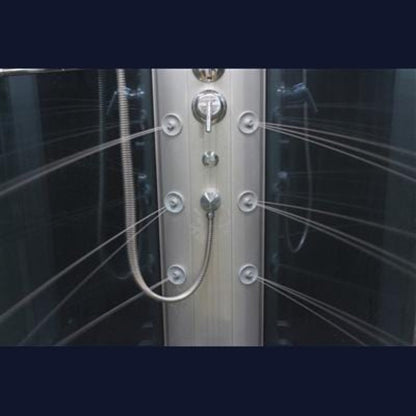

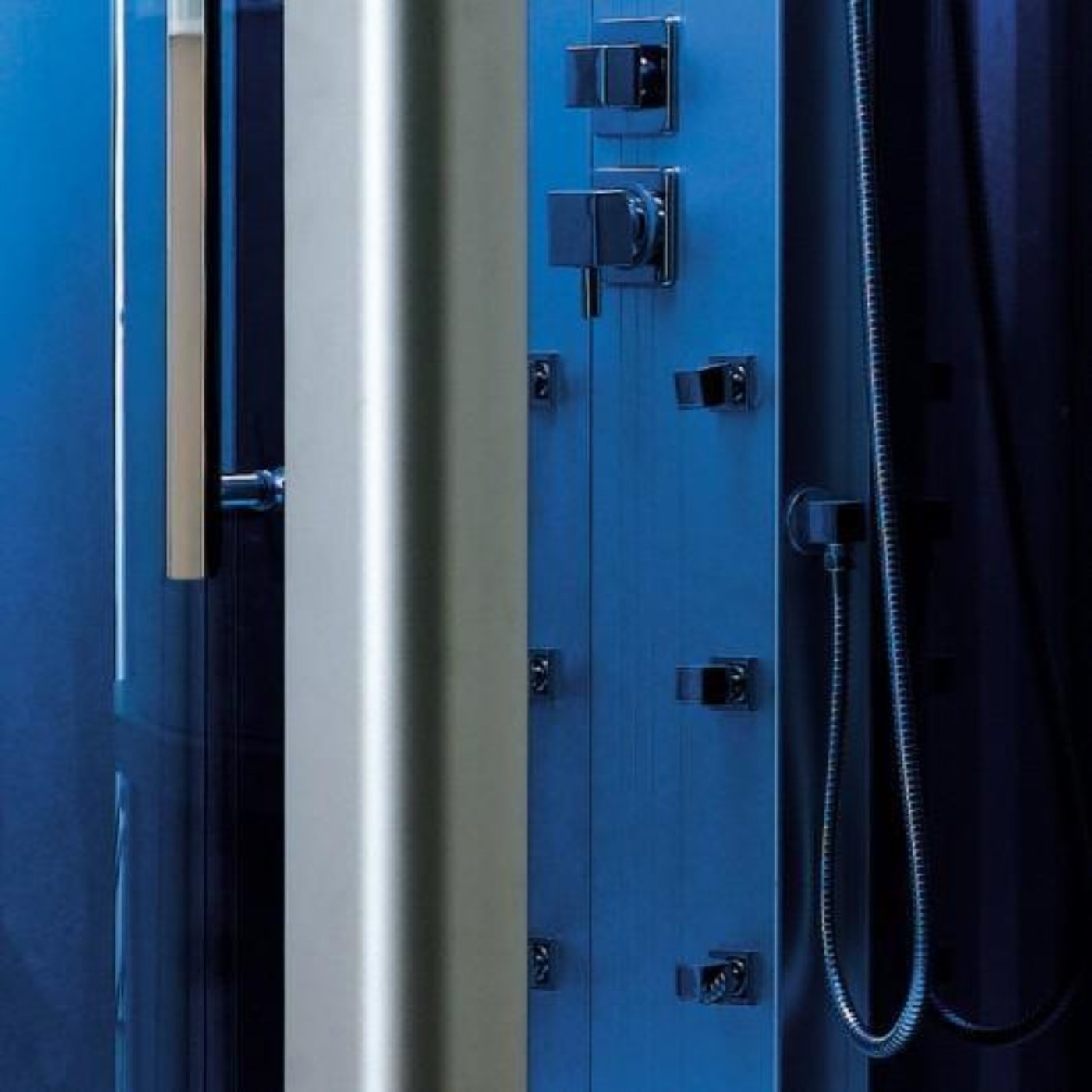

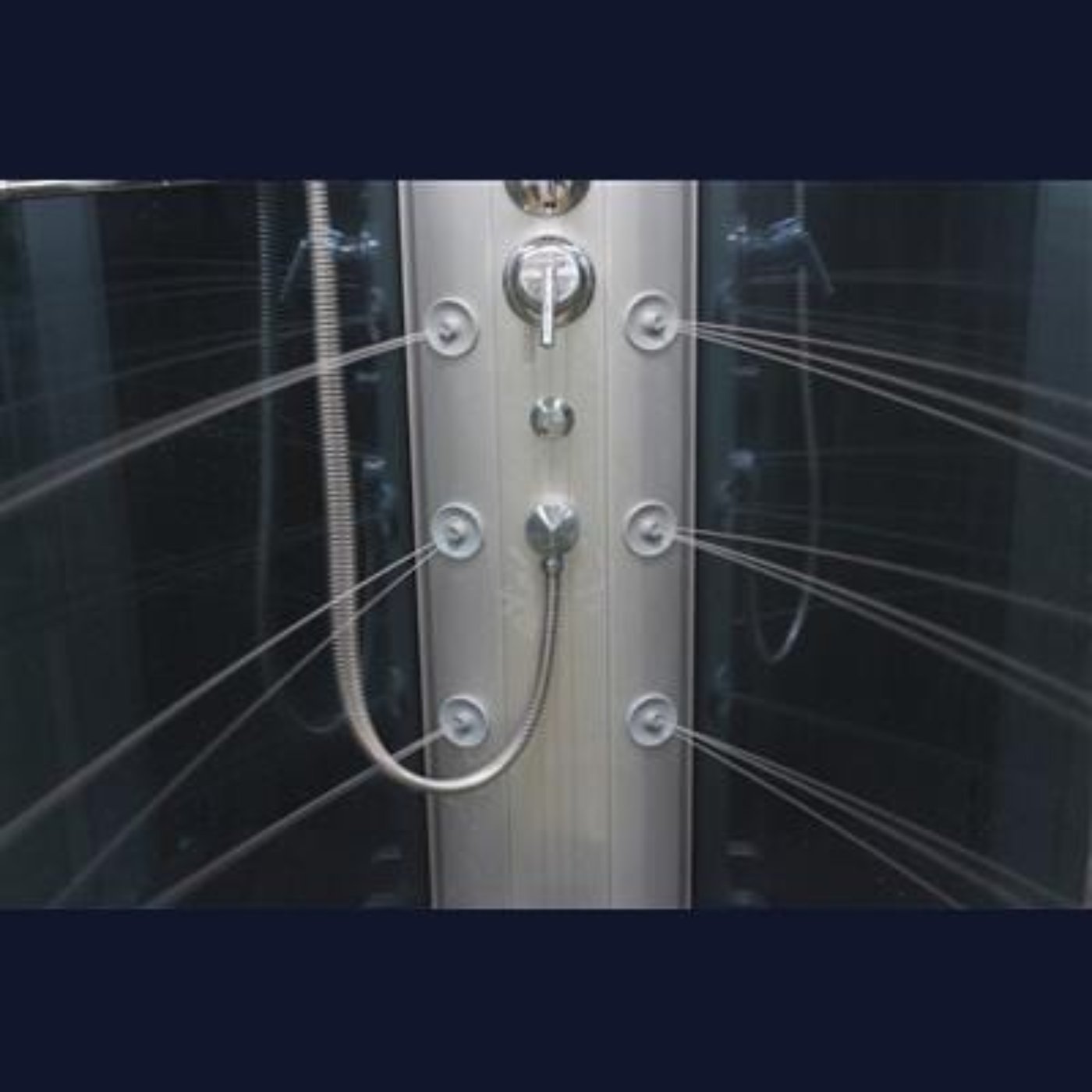

6 Acupuncture Body Jets
Adjustable Handheld Shower Head

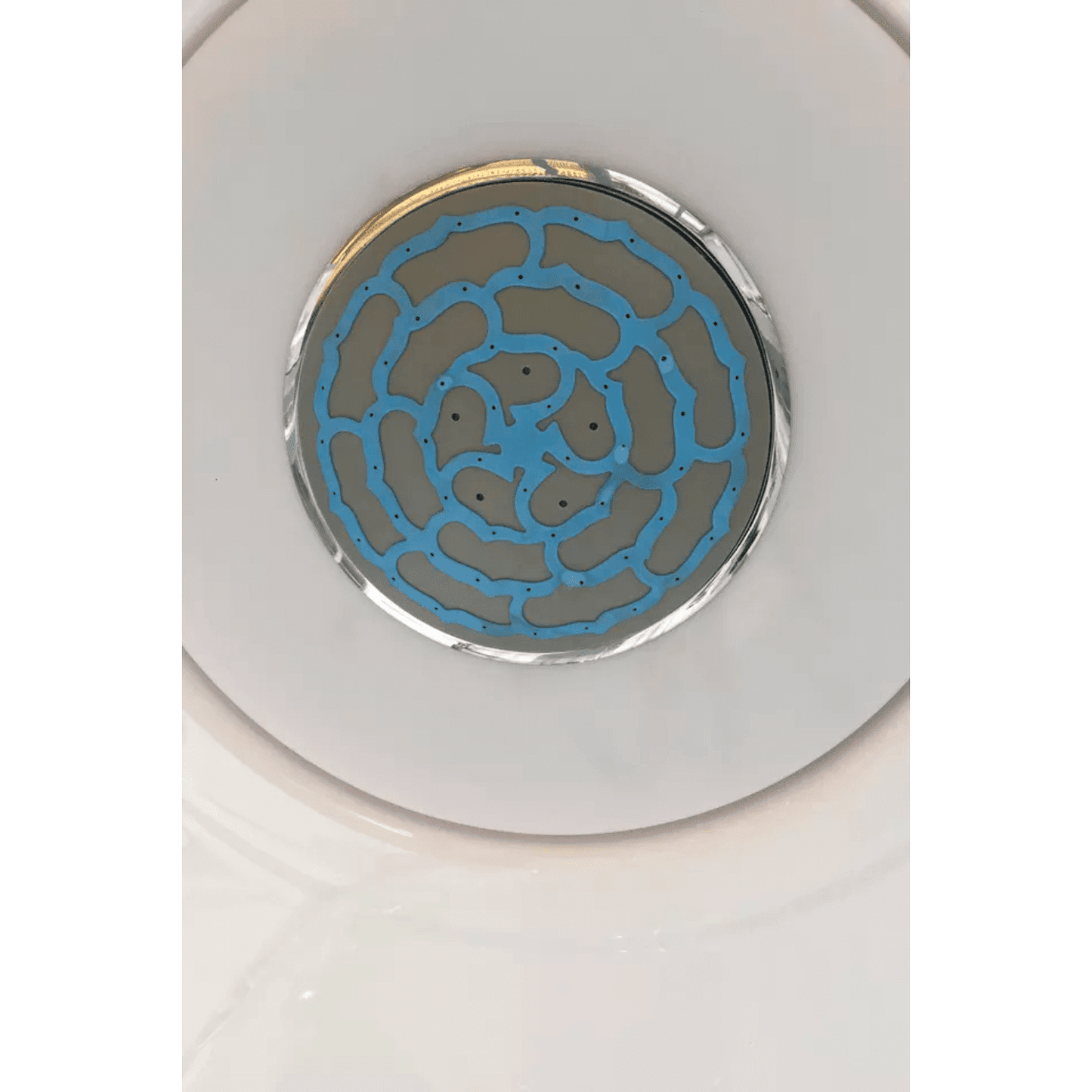

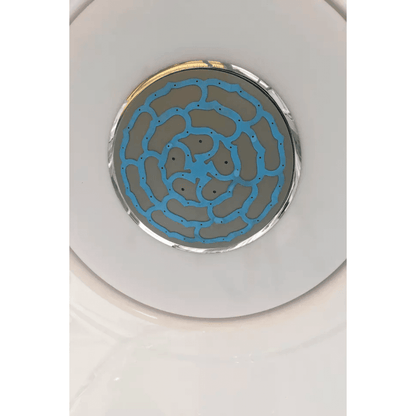

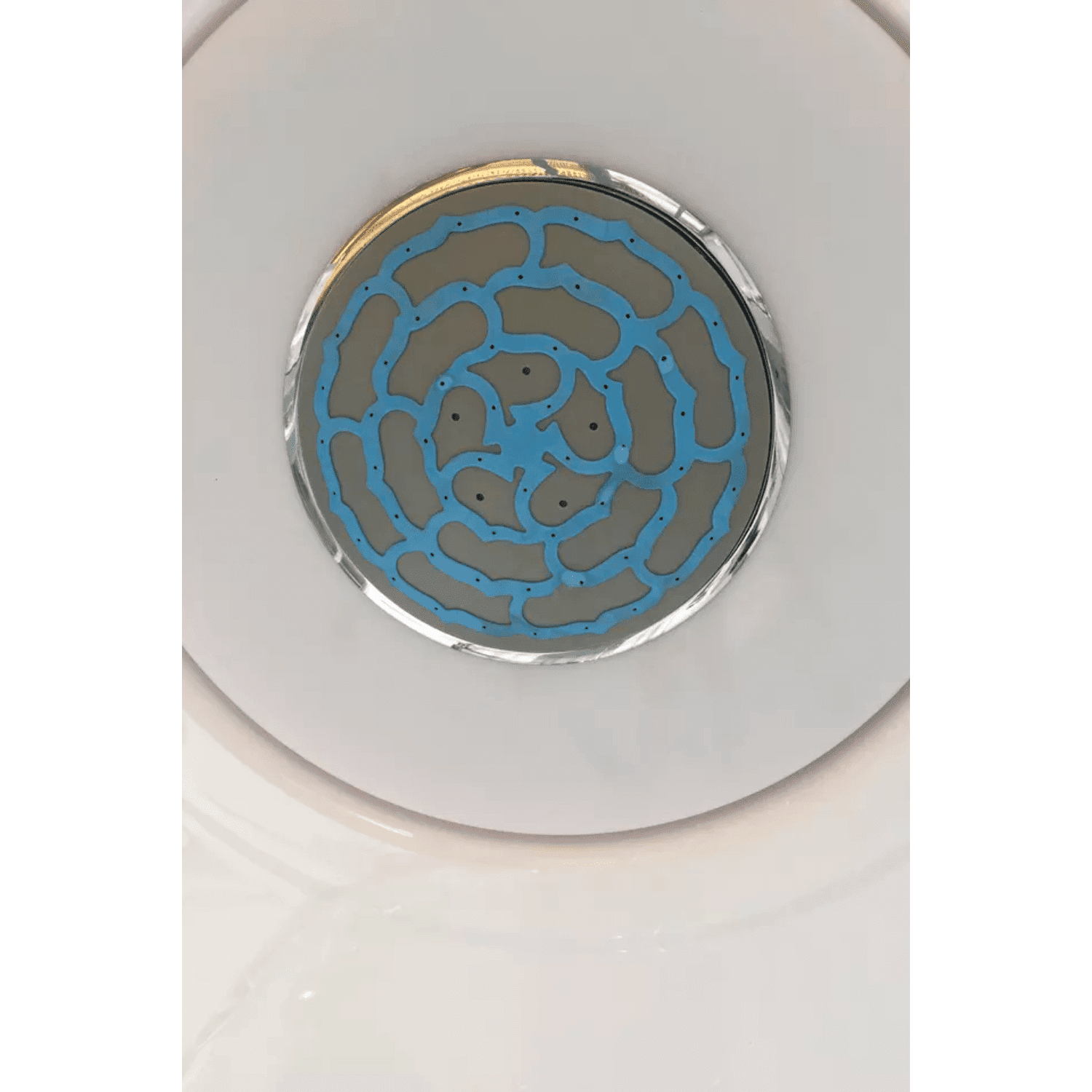

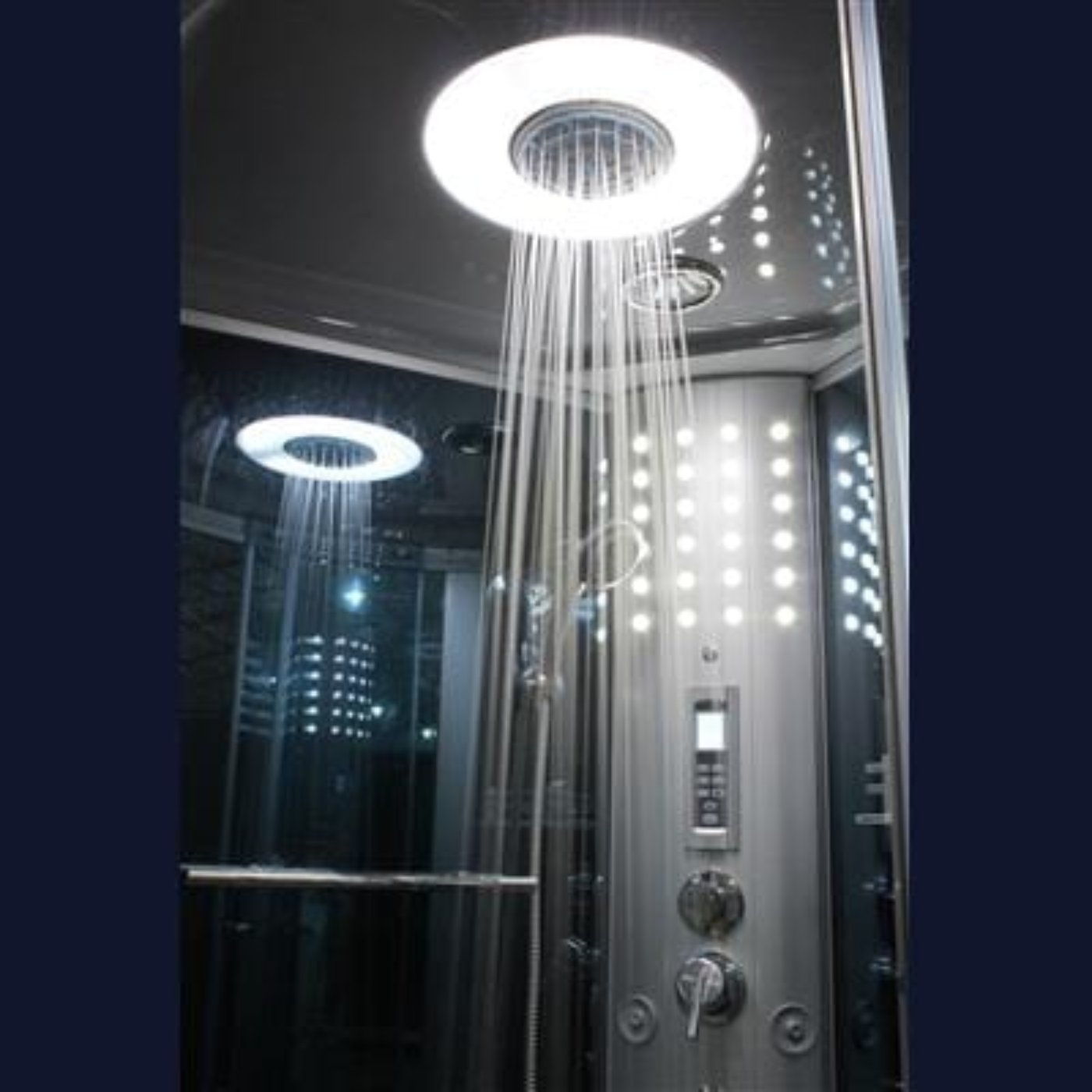

Rainfall Shower Head
FM Radio Built-In
Blue Tinted Glass
Sliding Glass Doors
Fold Up Seating
Ozone Sterilization System

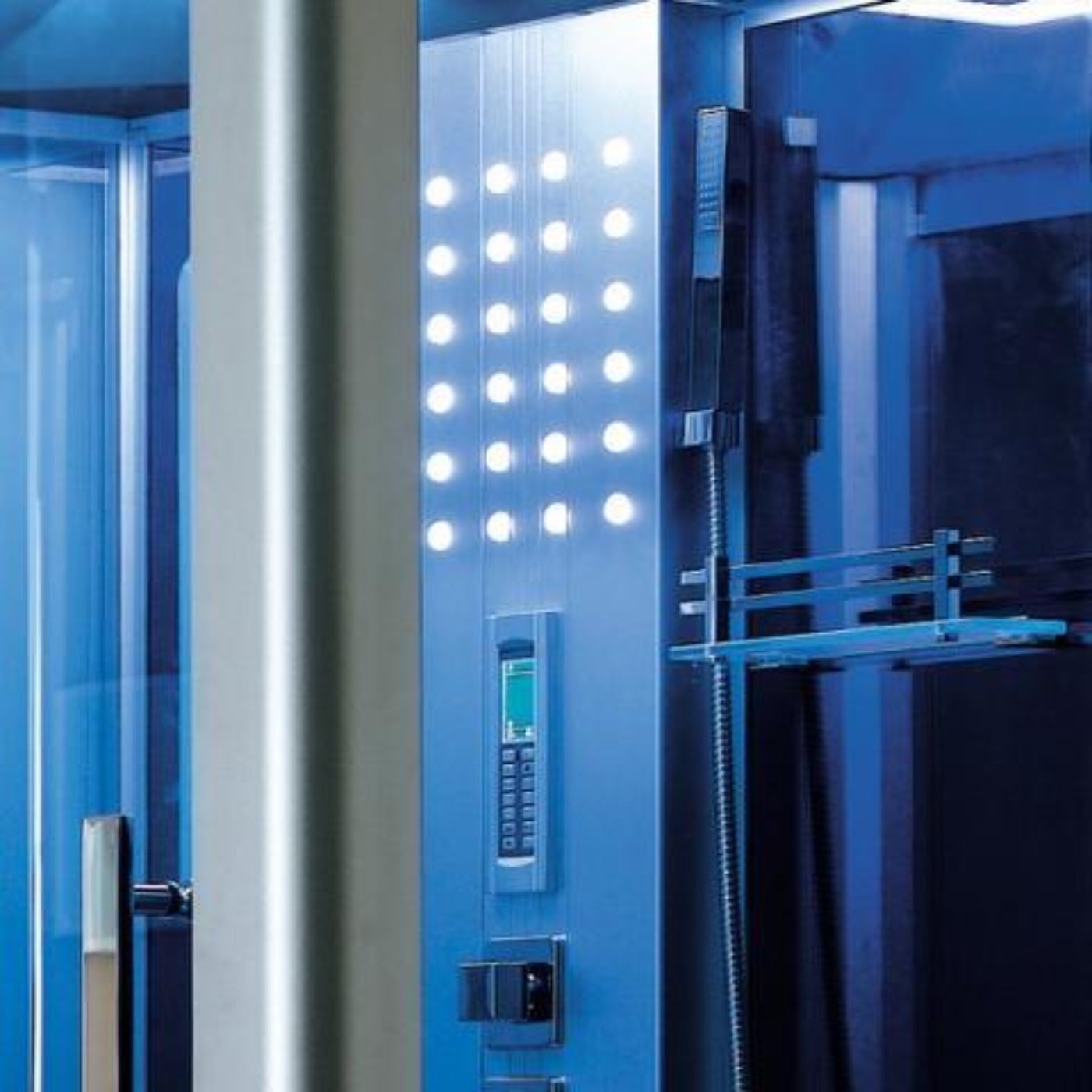

Blue LED Lighting
Blue Tempered Glass
Fold Up Seat
All steam showers carry a (7) seven-year structural warranty against manufacturer defects. The structural warranty protects the structure of the steam shower from peeling, fading, delaminating, or cracking. Structural components include acrylic panels, shower pan, ceiling, and glass panels. All steam shower parts carry a (1) one-year guarantee against defects.
Does the unit come in one piece or in panels?
All units come in panels. The great thing about our Stand Alone Steam Showers is that they are pre-assembled with pre-drilled holes. You can move any of the units through a standard 32" doorway for easy access into remodeled homes, basements, and other unique situations.
Can I fit the parts through a standard doorway?
Yes, all units can fit through a standard 32" doorway. Even units with a whirlpool tub will fit through any space larger than 26".
What type of Electrical Connection and Breaker will I need?
(1) 220v with a 20amp dual pole breaker GFCI Breaker for the steam shower.
I would like to place it on the second floor, will there be a weight problem?
The unit is about 500 lbs.+water and your weight, and that is definitely a case-by-case type question. Please consult your contractor based on the weights we have provided.
How many HOT/COLD Connections are required?
Regardless of the number of showerheads, all units have one hot/cold connection.
Where is the HOT/COLD Connection located?
The connection is located behind the shower hot/cold controls which differs per unit. Normally the hot/cold is about 30" from the the floor on the back of the unit. Flex hoses are included for easy hook ups no matter where your current hot/cold is located. Refer to the listing page of each steam shower for the exact location which can be seen in the diagrams towards the bottom of the page.
Where is the steam generator located?
The steam generator is located underneath the tub and on certain units, it is placed on the back of the unit. All generators are mounted to the frame or screwed to the back of the unit so that they do not take up an room beyond the dimensions of the shower. All of the steam showers will sit flush against the wall.
Do I need an access panel?
The steam showers are designed to be free standing units so that in case of an issue behind the unit, you can easily slide the unit away from the wall for access. The plumbing and the electrical connections are flexible so that you can easily make this happen. If at all possible, an access panel is a terrific option in case of any future issues.
Order shipment preparation takes 3 days. Once shipped orders usually takes 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our shipping policy here.
