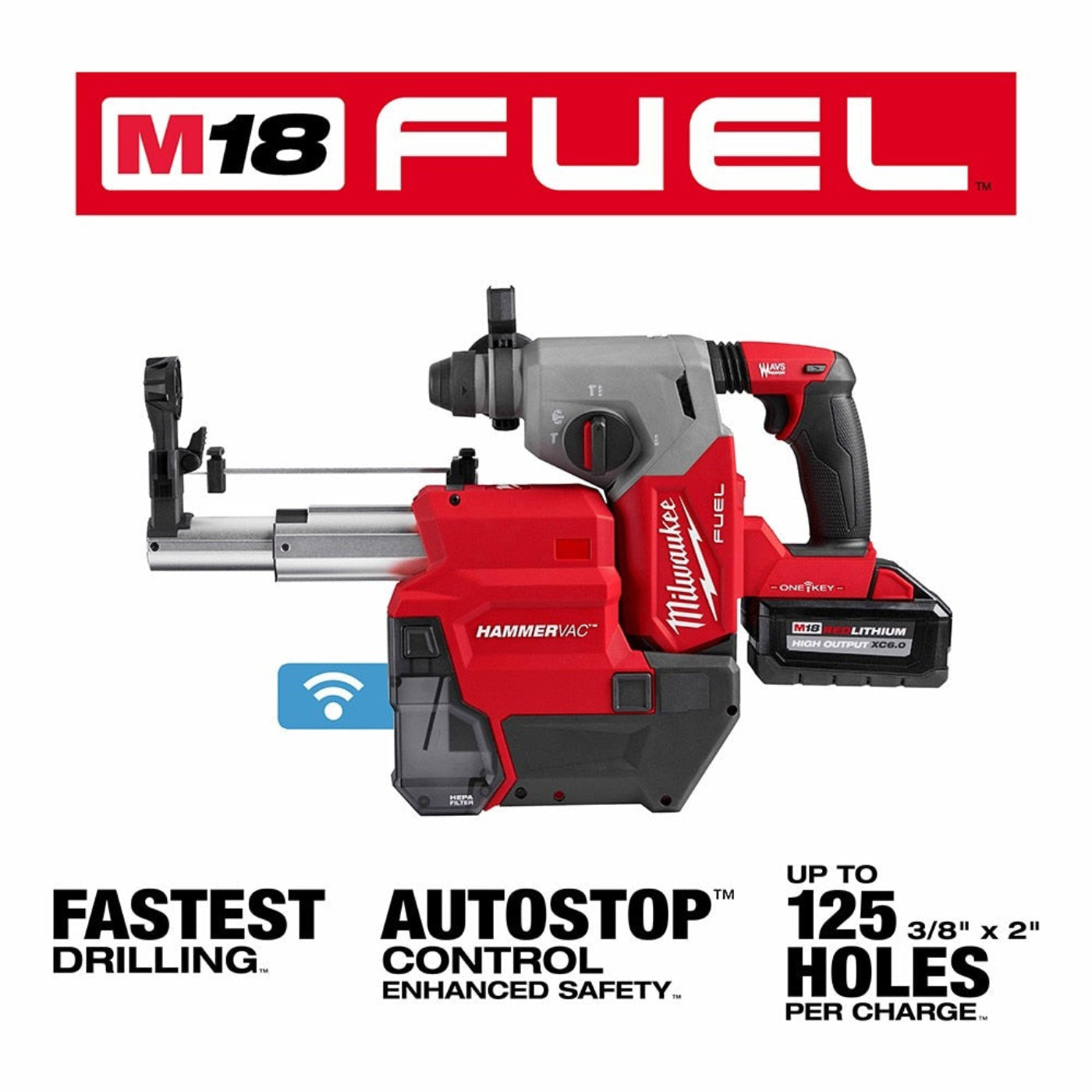

Milwaukee 2914-22DE M18 FUEL 1" SDS Plus Rotary Hammer w/ ONE-KE Dust Extractor Kit - 683345
This cordless 1" SDS Plus rotary hammer with dedicated dust extractor delivers next-generation performance, safety, and productivity for demanding drilling applications. It is the fastest drilling rotary hammer in its class, capable of drilling up to 125 holes (3/8" x 2") per charge when paired with high-output batteries. A powerful brushless motor delivers 2 ft-lbs of impact energy, 1,330 RPM, and 4,800 BPM, providing the speed and power needed for tough jobs.
Enhanced safety features include electronic kickback control that prevents over-rotation during bind-ups. The tool is also compatible with smart technology, allowing users to track, customize, and manage performance across job sites.

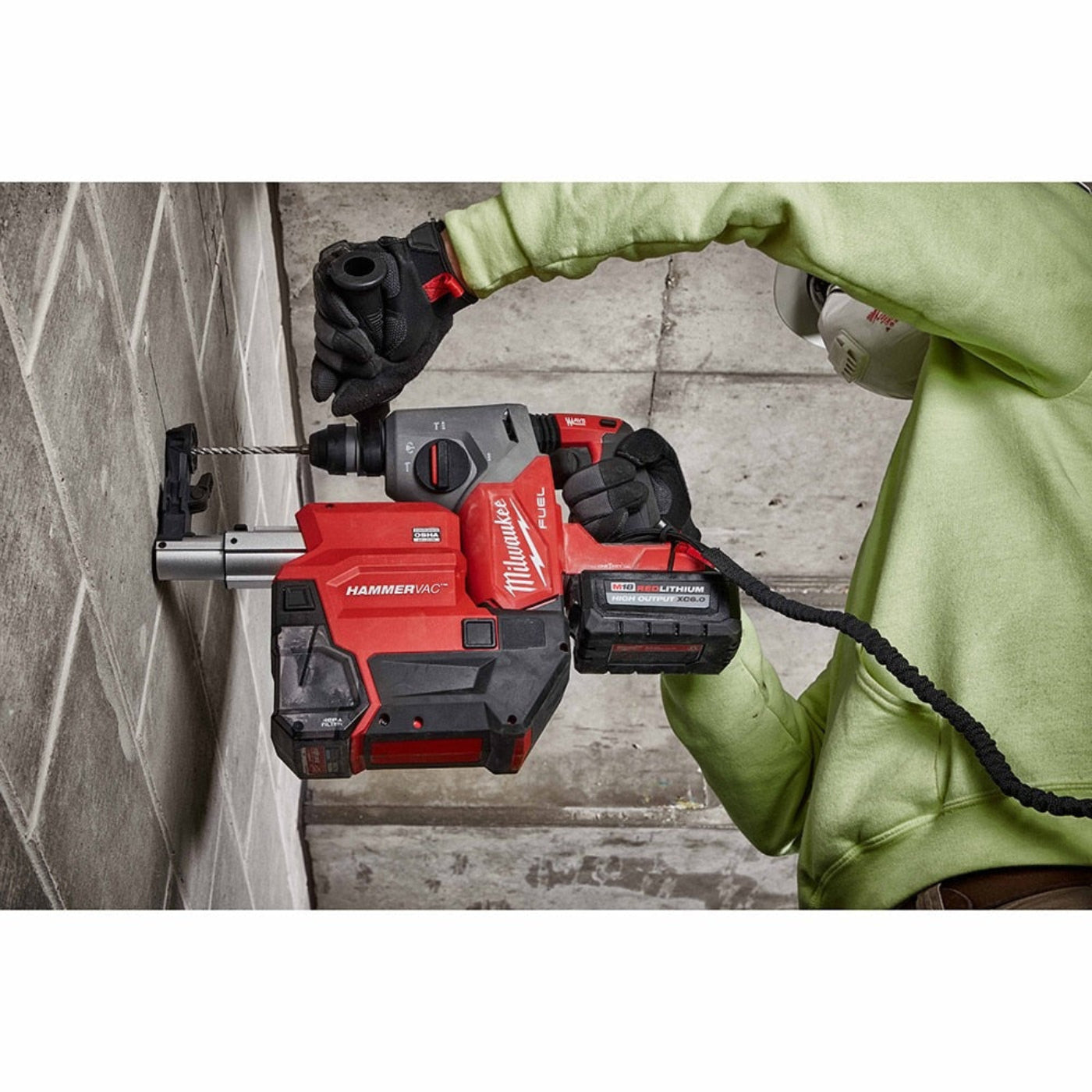

The included dedicated dust extractor connects directly to the rotary hammer, powered by the same battery platform. It uses a replaceable HEPA filter that captures 99.97% of particles greater than 0.3µm, ensuring OSHA Table One compliance when drilling up to 1" diameter and 6" depth. An automatic filter-cleaning mechanism activates after each use, while a built-in depth stop and ruler allow for precise adjustments. The dust box also features a vacuum port for easy dust removal.

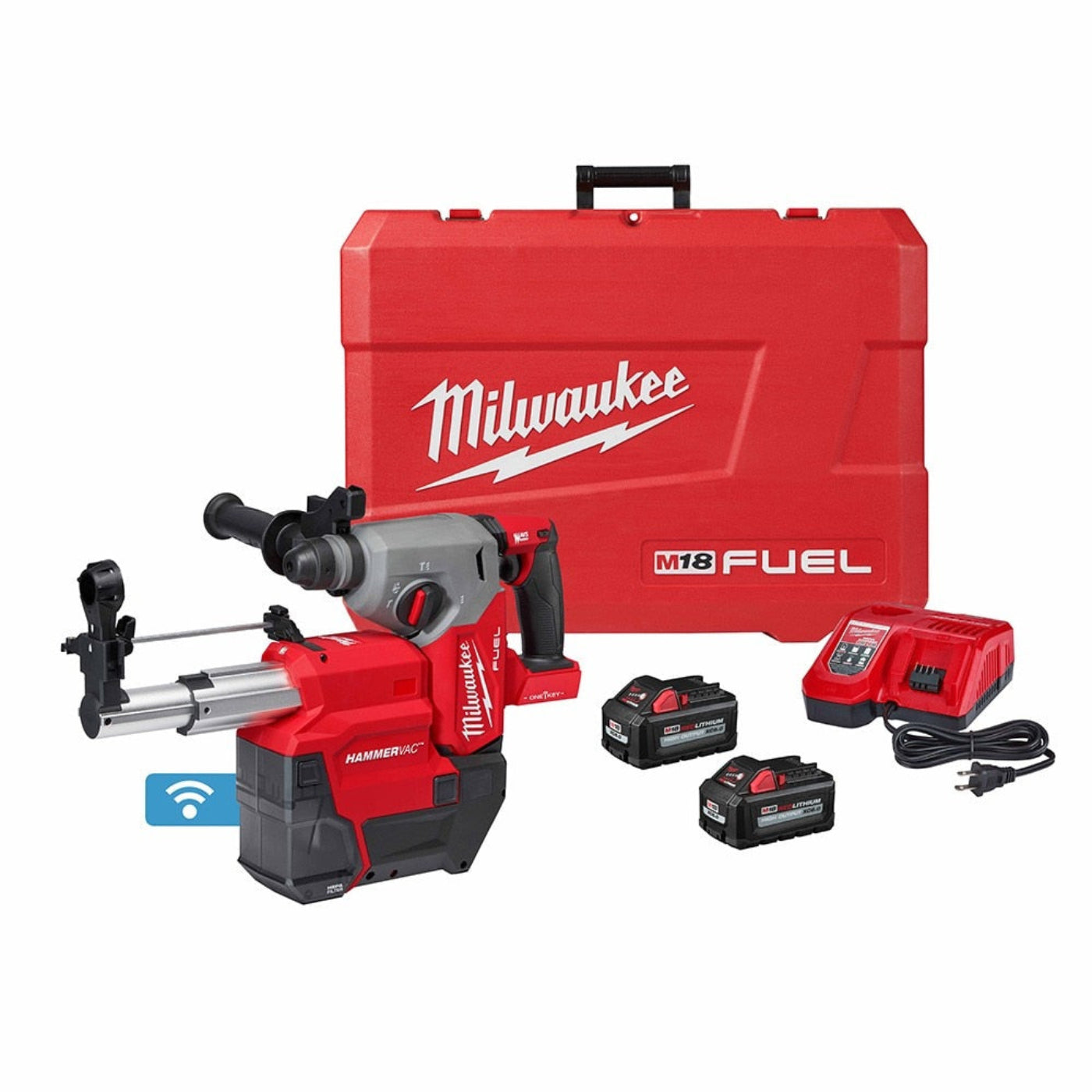

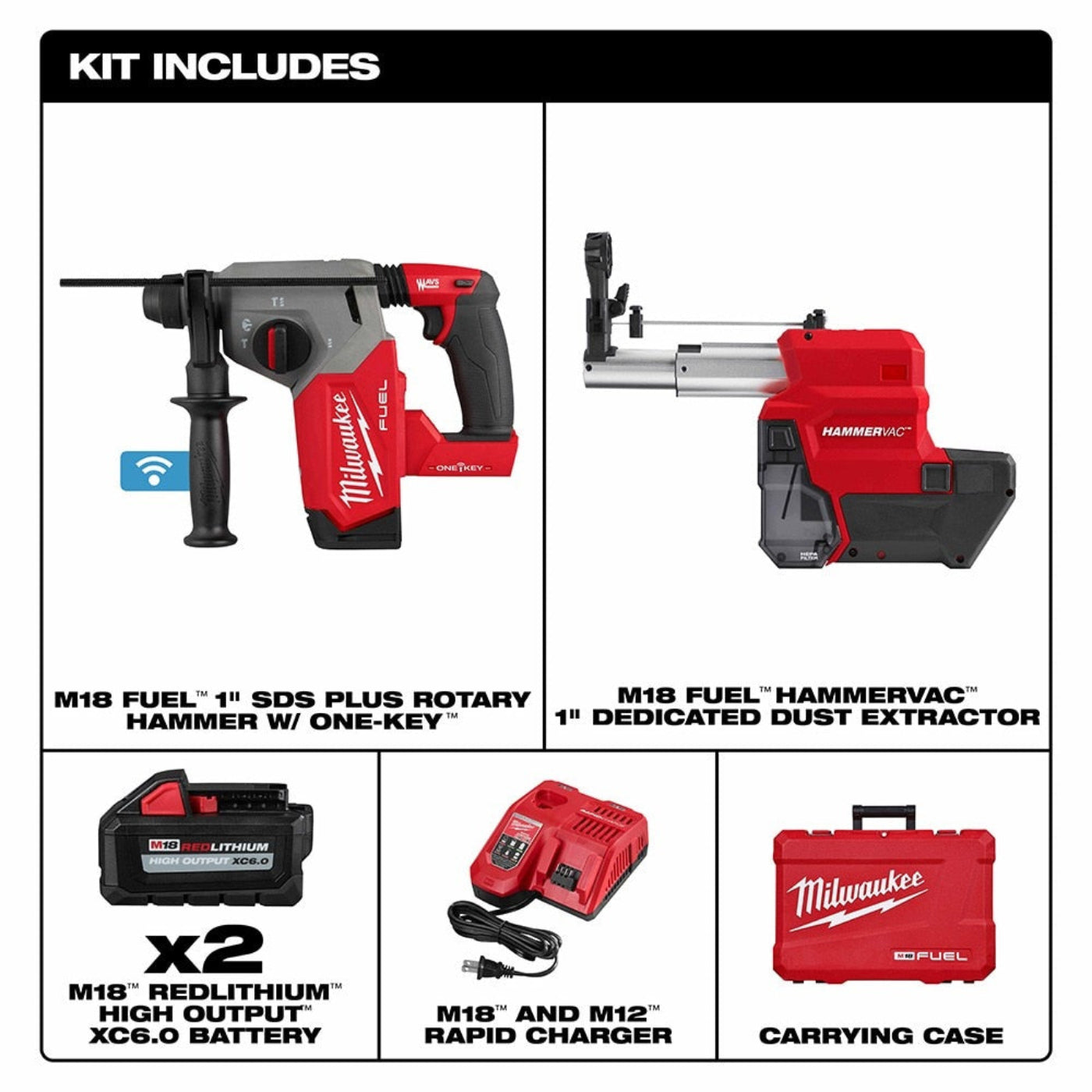

Includes
-
(1) 1" SDS Plus rotary hammer with smart tool compatibility
-
(2) 18V 6.0Ah high-output lithium-ion batteries
-
(1) rapid charger
-
(1) side handle with depth gauge
-
(1) large diameter nozzle
-
(1) small diameter nozzle
-
(1) carrying case

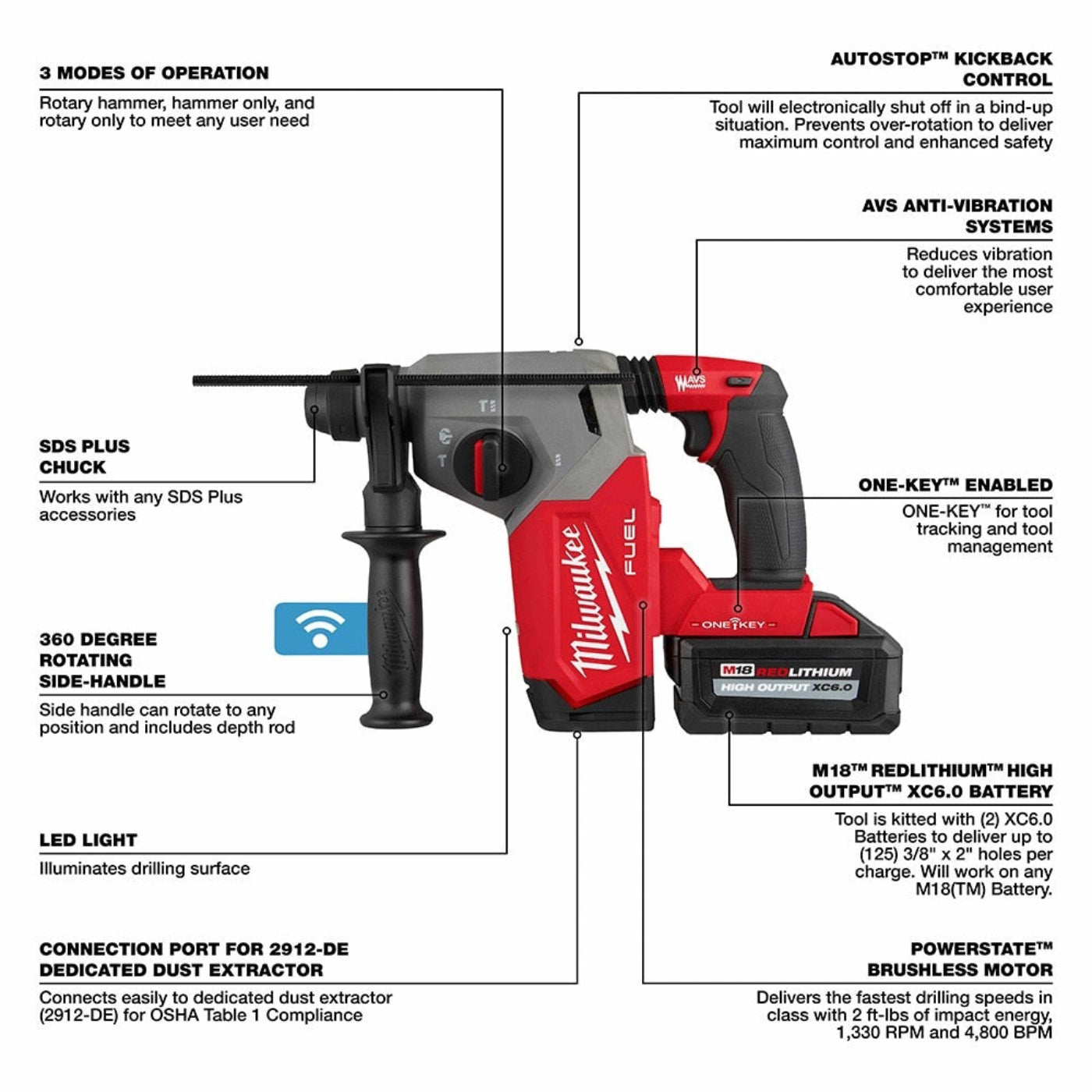

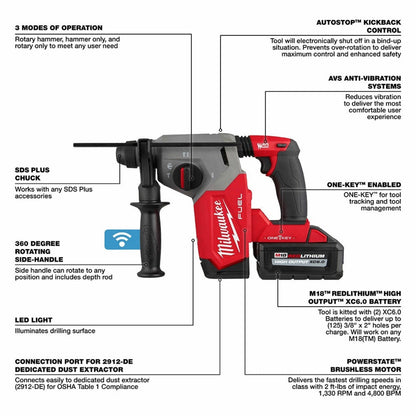

Features
-
Brushless motor delivers 2 ft-lbs of impact energy, 1,330 RPM, and 4,800 BPM
-

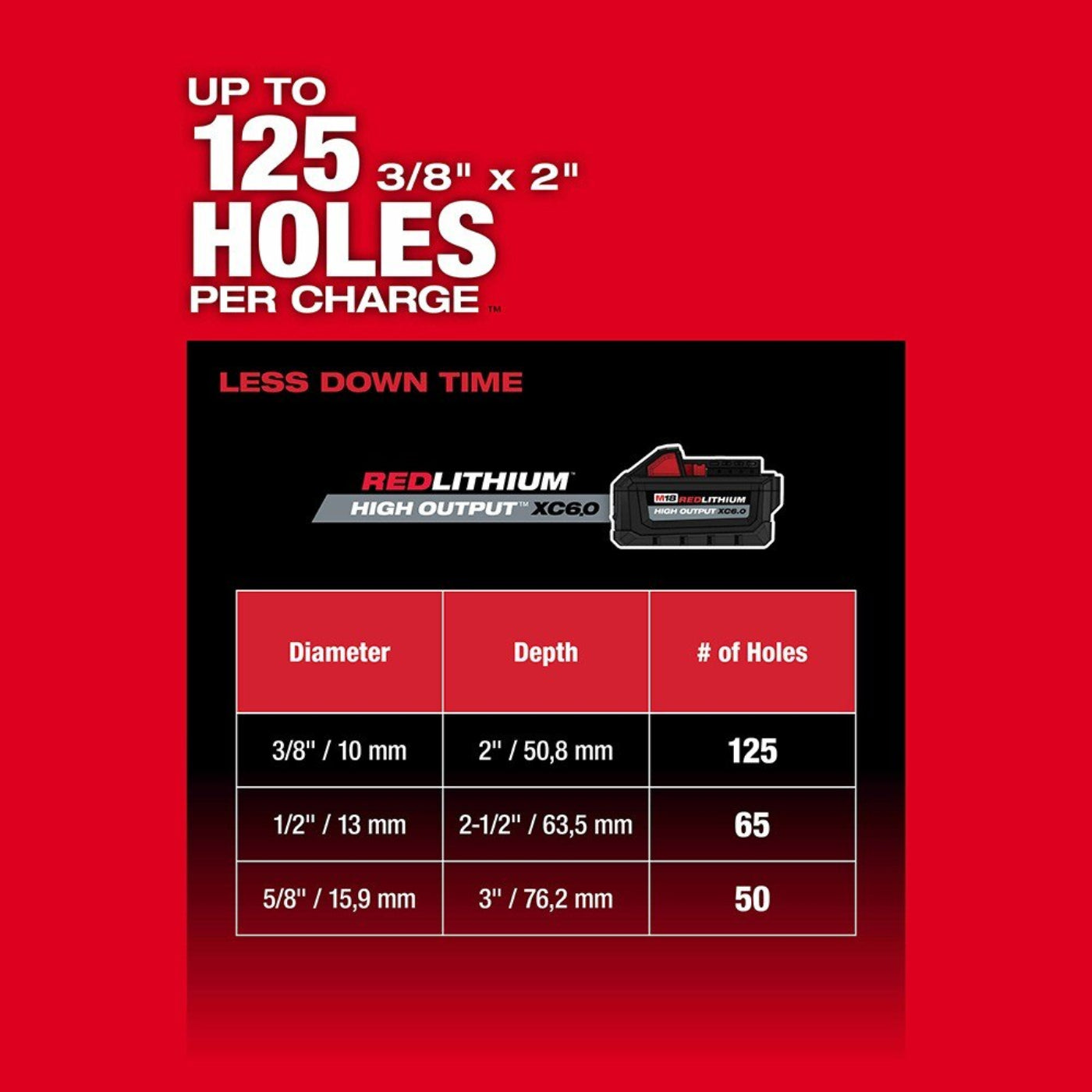

Drills up to 125 holes (3/8" x 2") per charge with high-output 6.0Ah batteries
-
Advanced electronics optimize performance and protect against overload
-

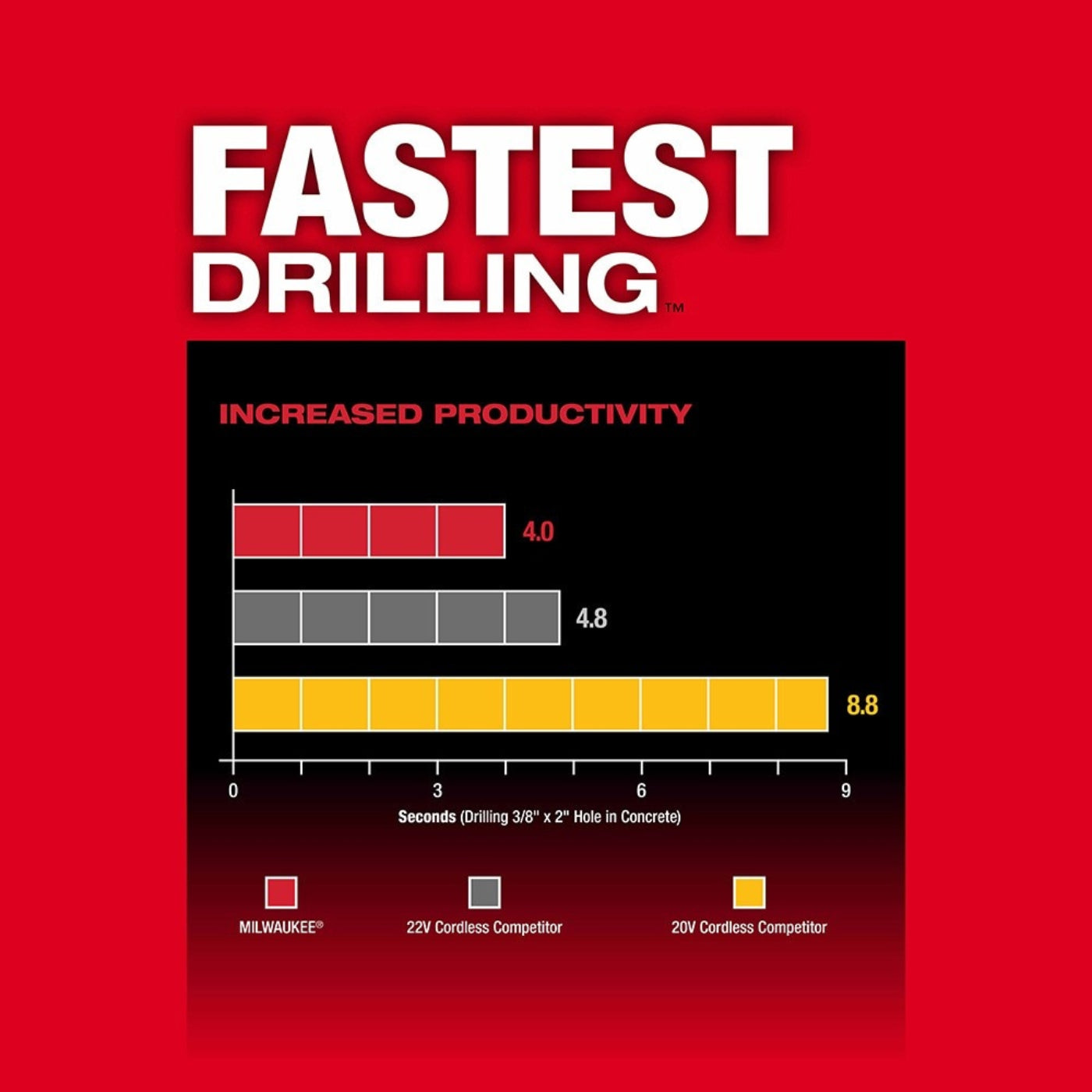

Fastest drilling rotary hammer in its class
-
Electronic kickback control automatically stops tool during bind-up events
-
Anti-vibration system improves comfort and reduces fatigue
-
Three operating modes: rotary hammer, hammer only, and rotation only
-
Smart tool compatibility for tracking and management
-
Dedicated dust extractor with replaceable HEPA filter captures 99.97% of particles >0.3µm
-
OSHA Table One compliant when drilling up to 1" x 6"
-
Automatic filter cleaning after each use for consistent performance
-
Built-in depth stop and ruler for precise drilling adjustments
-
Dust box includes vacuum port for easy emptying
What Our Expert Think
-
Professional-grade 1" SDS Plus rotary hammer designed for drilling and chipping in concrete and masonry
-
Integrated ONE-KEY technology for performance tracking, tool customization, and inventory management
-
Kit includes a dedicated dust extractor (DE) for cleaner, safer operation on the jobsite
-
Powered by (2) M18 REDLITHIUM batteries and charger, delivering strong runtime and productivity
-
Best choice for contractors needing a powerful, connected, and OSHA-compliant drilling solution
Q&A
Q: What’s included in this kit?
A: The kit includes the 2914-20 rotary hammer, dedicated dust extractor, (2) M18 REDLITHIUM batteries, charger, and carrying case.
Q: How powerful is this tool?
A: The 1" SDS Plus hammer delivers the performance needed for heavy-duty drilling and chipping in concrete, with optimized power-to-weight balance.
Q: What’s the benefit of ONE-KEY?
A: It enables torque and performance customization, tool tracking, and digital inventory management.
Q: Is the dust extractor OSHA compliant?
A: Yes — the included dust extractor is designed to meet OSHA silica dust compliance requirements when used properly.
Maintenance Tips
-
Empty and clean the dust extractor regularly to maintain suction efficiency
-
Use SDS Plus bits in good condition for optimal drilling performance
-
Store and charge batteries correctly to maximize service life
-
Inspect the tool housing, chuck, and extractor mount for wear before use
-
Keep ventilation slots clear to prevent overheating during heavy work
