Minelab CTX 3030 Metal Detector with carbon fiber shaft.

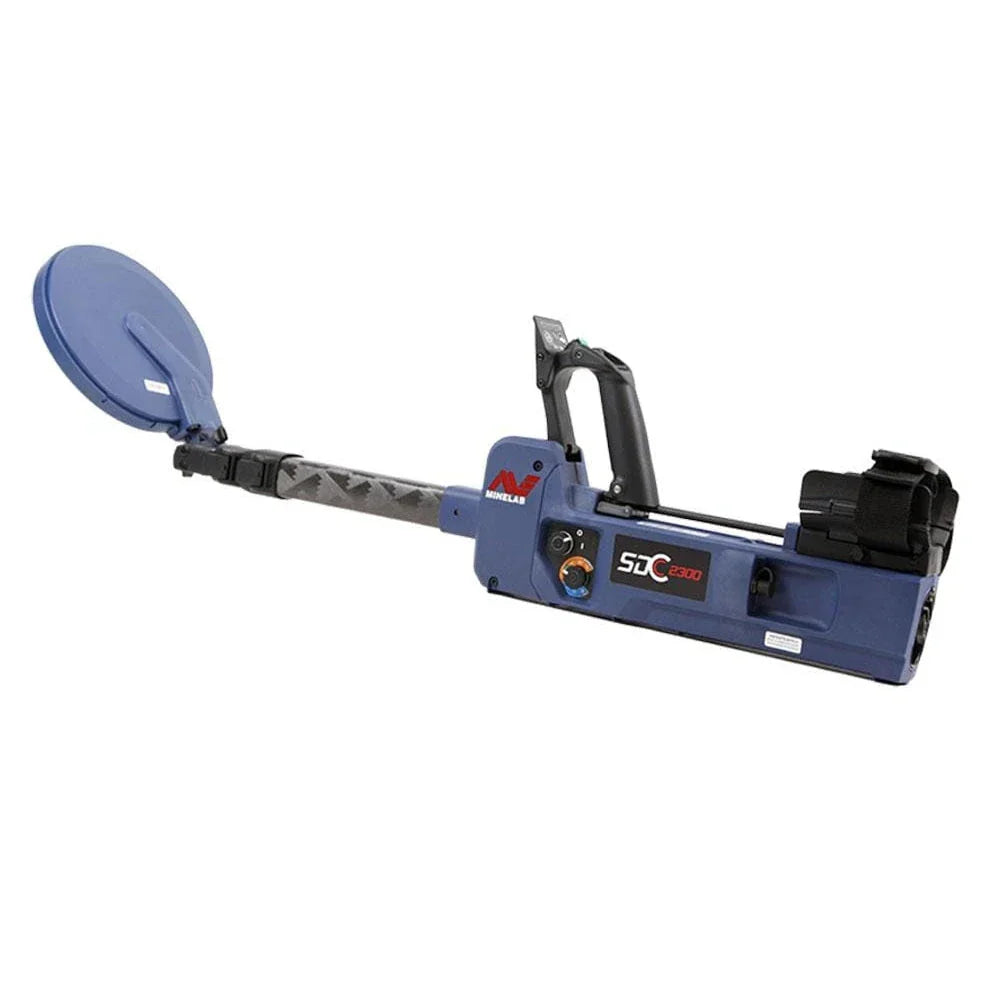

The Minelab SDC-2300 is a compact high performance mid-range gold detector perfect for chasing down elusive sub-gram nuggets on land & underwater.
MPF TECHNOLOGY
MPF (Multi Period Fast) technology incorporates extremely fast Pulse Induction switching between Transmit (Tx) and Receive (Rx) detector signals. Therefore minimal residual transmit signal is present during the receive cycle, enabling clear sharp detection of very small gold.
QUALITY DESIGN
The SDC 2300’s mechanical platform has been designed and tested to military standards. Our R&D experts have selected high quality materials and ensured the product is easy to maneuver and operate.
COMPACT
Folds to small portable size, 8.5” (216mm) by 15.7” (400mm). Fits into carry-on luggage and most backpacks.
WATERPROOF CAPABILITY
Fully submersible to 10’ (3m) for detecting riverbeds and shorelines, allowing you to transition with ease from land to water.
RUGGED & ASSEMBLY FREE
Military grade construction, one piece detector designed to perform in the toughest conditions. No assembly required.
EASY PATCH HUNTING
Search quickly and efficiently in hard to reach and remote places to find those elusive gold bearing clustered deposits.
MORE SENSITIVE
The SDC 2300 is very sensitive to small gold scattered in heavily mineralised ground. This gold is often missed by prospectors with both VLF and PI detectors because of the difficult ground conditions and fine gold size. You can now detect the small gold missed in previously searched areas. These small gold finds can lead the way to new patches and bigger gold deposits.
AUDIO DISCRIMINATION
The SDC 2300 gold detector audio response provides discrimination in the form of pitch and tone when the coil passes over ferrous or non-ferrous targets, similarly with amplitude and duration for shallow and deep targets. A louder, shorter sound will indicate a shallow target while a quieter, broader sound will indicate the presence of a deep, large target. A target that sounds off multiple times each swing will invariably be a near-surface or surface target.
Specifications
| Specification |
Details |
| Application |
Gold Prospecting (waterproof 10ft) |
| Technology |
MPF |
| Frequency/Transmission |
Pulse Induction, Multi Period Fast (MPF) |
| Coil (standard) |
8" Monoloop |
| Audio Output |
Built-in speaker & Koss waterproof headphones (not supplied) |
| Headphones Supplied |
Koss 100 ohm headphones (supplied) |
| Visual Display |
LED lights |
| Backlight |
- |
| Product ID |
231505 |
| USB Connectivity |
- |
| Memory |
- |
| Depth Indication |
- |
| Detect Modes |
Normal (1-5 Sensitivity range) & Salt (1-3 Sensitivity range) |
| Discrimination |
- |
| Timings |
- |
| Audio tone |
Low, High |
| Audio Type |
- |
| Ground Balance |
Automatic Ground Tracking (AGT) Fast Ground Balance |
| Ground Balance Type |
Automatic Ground Tracking (AGT) Fast Ground Balance |
| Trash Density |
- |
| Pinpoint |
- |
| Sensitivity Adjust |
Normal (1-5 Sensitivity range) & Salt (1-3 Sensitivity range) |
| Tune / Noise Cancel |
Automatic scanning |
| Threshold |
9 audio levels |
| Target Volume Adjust |
- |
| Battery |
4 x C-cell 1.2V 5000mAh Rechargeable (supplied with charger) 1.5V Alkaline (not supplied) |
| Low battery alert |
visual LED indicator |
| Length |
Extended: 1500mm (59.1") Collapsed: 400mm (15.7”) |
| Weight |
2.3kg (5.1lbs) |
| Warranty |
3 years control box & coil |
Package includes
- Minelab SDC 2300 Metal Detector

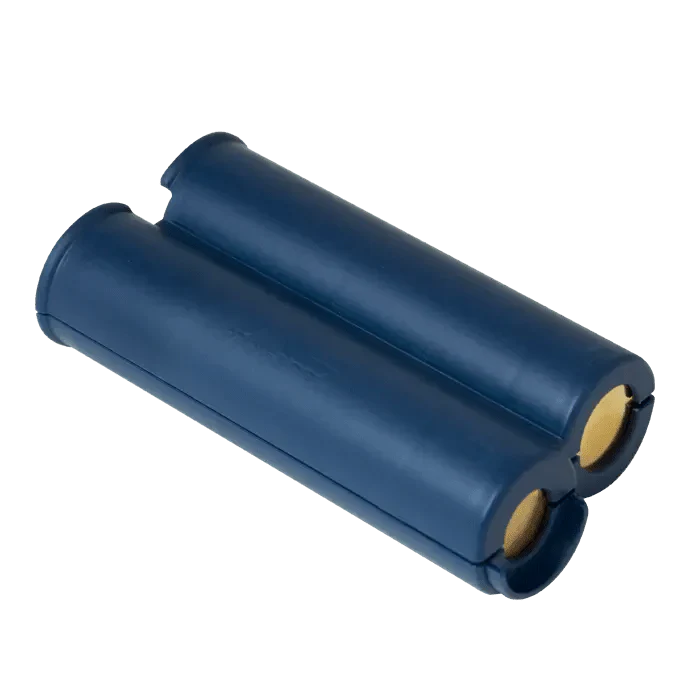

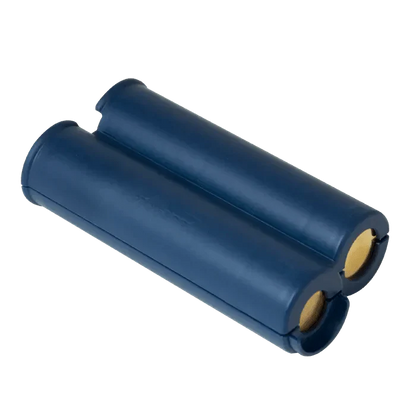

- Additional Minelab SDC Li-Ion Battery Pack
What Our Experts Think
The Minelab SDC-2300 Metal Detector with an additional rechargeable Li-Ion battery is a premium choice for gold prospecting and treasure hunting. Here's what makes it exceptional:
-
High Sensitivity: Detects even the smallest gold nuggets in highly mineralized or difficult terrains.
-
Compact & Portable: Collapsible design makes it easy to transport and store, perfect for on-the-go treasure hunting.
-
Waterproof Capability: Fully submersible up to 10 feet (3 meters), ideal for detecting in rivers, streams, and beaches.
-
Easy Operation: Simple controls and automatic ground balancing for beginners and professionals alike.
-
Rugged Build: Military-grade construction ensures durability in harsh environments.
-
Rechargeable Li-Ion Battery: Includes an additional rechargeable battery for extended detection sessions without interruptions.
-
Multi-Purpose: Suitable for gold prospecting, relic hunting, and general metal detection.
-
Minelab Technology: Powered by Minelab's MPF (Multi-Period Fast) technology for fast, accurate, and deep target identification.
Q&A
Q: What is the Minelab SDC-2300 Metal Detector?
A: The Minelab SDC-2300 is a compact, waterproof, high-performance metal detector designed for locating small gold nuggets in challenging terrains.
Q: What are its key features?
A: Features include compact folding design, military-grade construction, pulse induction technology, waterproof capability up to 10 feet, and exceptional sensitivity for gold detection.
Q: What does the additional rechargeable Li-ion battery offer?
A: The extra Li-ion battery ensures extended detecting sessions, providing convenience and longer operational time in the field.
Q: Is it suitable for beginners?
A: Yes, the SDC-2300’s intuitive controls make it user-friendly for both beginners and experienced prospectors.
Q: Why choose the Minelab SDC-2300?
A: Its rugged design, portability, and precision make it ideal for gold prospecting in remote and difficult locations.
Q: What is included in the package?
A: The package includes the SDC-2300 metal detector, an additional rechargeable Li-ion battery, charger, and essential accessories for immediate use.
Maintenance Tips
-
Clean After Use: Wipe the metal detector and coil with a damp cloth to remove dirt and debris. Avoid harsh chemicals that may damage components.
-
Protect the Coil: Use a coil cover to prevent scratches or damage. Remove the cover occasionally to clean underneath.
-
Battery Care: Fully charge the Li-Ion batteries before use. Avoid overcharging or exposing batteries to extreme temperatures.
-
Inspect Connections: Regularly check all cable connections and fittings for wear or damage to ensure proper functionality.
-
Storage: Store the metal detector and batteries in a cool, dry place. Ensure the batteries are partially charged if storing for extended periods.
-
Update Firmware: Check for firmware updates periodically to keep the detector operating at peak performance.
-
Field Protection: Use the supplied carry bag or protective case to prevent damage during transport or storage.
