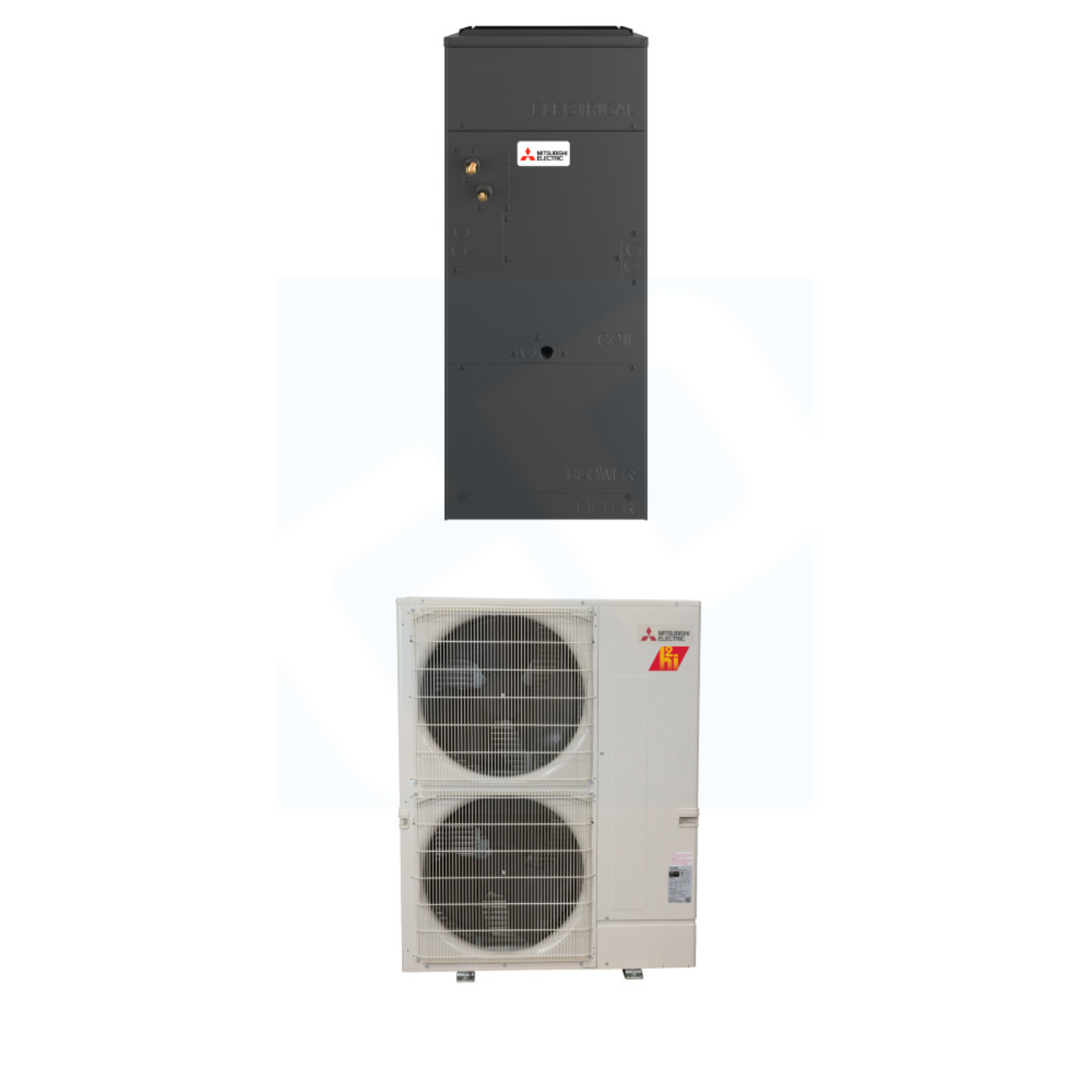

Mitsubishi Electric SVZ-AP48NL & SUZ-AK48NLHZ 48,000 BTU 18.1 SEER2 Multi-Position Ducted Air Handler Hyper-Heating H2iSystem - R454B - SVZAP48NL/SUZAK48NLHZ
The Mitsubishi SVZ-AP48NL & SUZ-AK48NLHZ is a powerful 48,000 BTU ducted heat pump system designed to deliver robust year-round comfort in large residential or light commercial spaces. Equipped with Hyper-Heating INVERTER(H2i) technology, it provides 100% heating capacity down to 5°F and continues heating operation down to -13°F, with guaranteed restart at -22°F. This makes it ideal for cold-climate applications requiring reliable performance even in extreme winter conditions.
The SVZ-AP48NL indoor air handler supports multi-position installation and selectable static pressure for tailored airflow, while fiberglass-free insulation improves efficiency and reduces condensation. A unique blow-through design simplifies coil maintenance, and the positive pressure cabinet ensures air leakage of less than 1% at 1.0 in.WG.
The SUZ-AK48NLHZ outdoor unit features Blue Fin anti-corrosion coating, a built-in base pan heater, high-performance grooved piping, and Hot-Start Technology to prevent cold air drafts at startup. With inverter-driven capacity control, Joint Lap DC Motor technology, and Pulse Amplitude Modulation, this system achieves superior efficiency, durability, and whisper-quiet performance.
Features
Hyper-Heating INVERTER(H2i)
Delivers full rated heating capacity down to 5°F, operates effectively to -13°F, and guarantees restart at -22°F.
Multi-Position Installation
Configurable for horizontal (left/right) or vertical (upflow/downflow) installs. CMA-1 kit recommended for downflow condensate management.
Quiet Operation
Indoor sound levels as low as 45 dB(A) and outdoor operation at 60–62 dB(A), comparable to normal conversation.
Durable Outdoor Design
Blue Fin anti-corrosion coating, built-in base pan heater, and reverse-cycle defrost ensure long-term reliability in harsh conditions.
Energy Efficient
SEER2 18.1, EER2 9.4, HSPF2 (Region IV) 8.5, COP up to 3.4 at 47°F, with efficient heating maintained at subzero temperatures.
Advanced Control Options
Compatible with Mitsubishi Comfort App, third-party interfaces, wired and wireless controllers, optional humidifier, and ERV integration.
Positive Pressure Cabinet & Static Pressure Control
Selectable static pressure (0.30, 0.50, 0.80 in.WG) with air leakage below 1%, ensuring airflow efficiency and customization.
Unique Blow-Through Design
Simplifies coil cleaning by allowing access when the blower is removed.
Included Components
Indoor Unit: SVZ-AP48NL
Outdoor Unit: SUZ-AK48NLHZ with built-in base pan heater
Optional Accessories: Electric heat kits, humidifier control, ERV integration, mounting accessories, wired/wireless controllers.
Ideal For
Homeowners and businesses in colder climates seeking a high-performance ducted system with superior heating capabilities. The SVZ-AP48NL & SUZ-AK48NLHZ combination ensures reliable Hyper-Heating, efficiency, and quiet comfort in demanding conditions.
What Our Experts Think
-
48,000 BTU multi-position ducted system ideal for large residential or light-commercial spaces.
-
Hyper-Heating INVERTER (H2i) provides full heating capacity at 5°F and reliable operation down to –13°F.
-
Guaranteed restart at –22°F ensures consistent performance in extreme cold climates.
-
Flexible multi-position air handler supports horizontal or vertical duct installations.
-
Energy-efficient 18.1 SEER2 rating lowers operational costs while providing year-round comfort.
Q&A
-
Q: What size area is suitable for this system?
A: Ideal for large rooms or multi-zone spaces requiring up to 48,000 BTU.
-
Q: Can it heat efficiently in cold climates?
A: Yes, maintains full heating at 5°F and continues operation to –13°F.
-
Q: What installation options are available?
A: Multi-position air handler supports flexible ducted setups.
-
Q: What refrigerant does it use?
A: R454B, a low-GWP, eco-friendly refrigerant.
Maintenance Tips
-
Inspect and clean filters monthly to maintain airflow and efficiency.
-
Schedule annual professional maintenance for refrigerant levels and performance.
-
Keep outdoor unit free of debris to ensure optimal operation.
-
Check ductwork and connections periodically for leaks.
-
Ensure condensate lines remain clear to prevent water damage.
