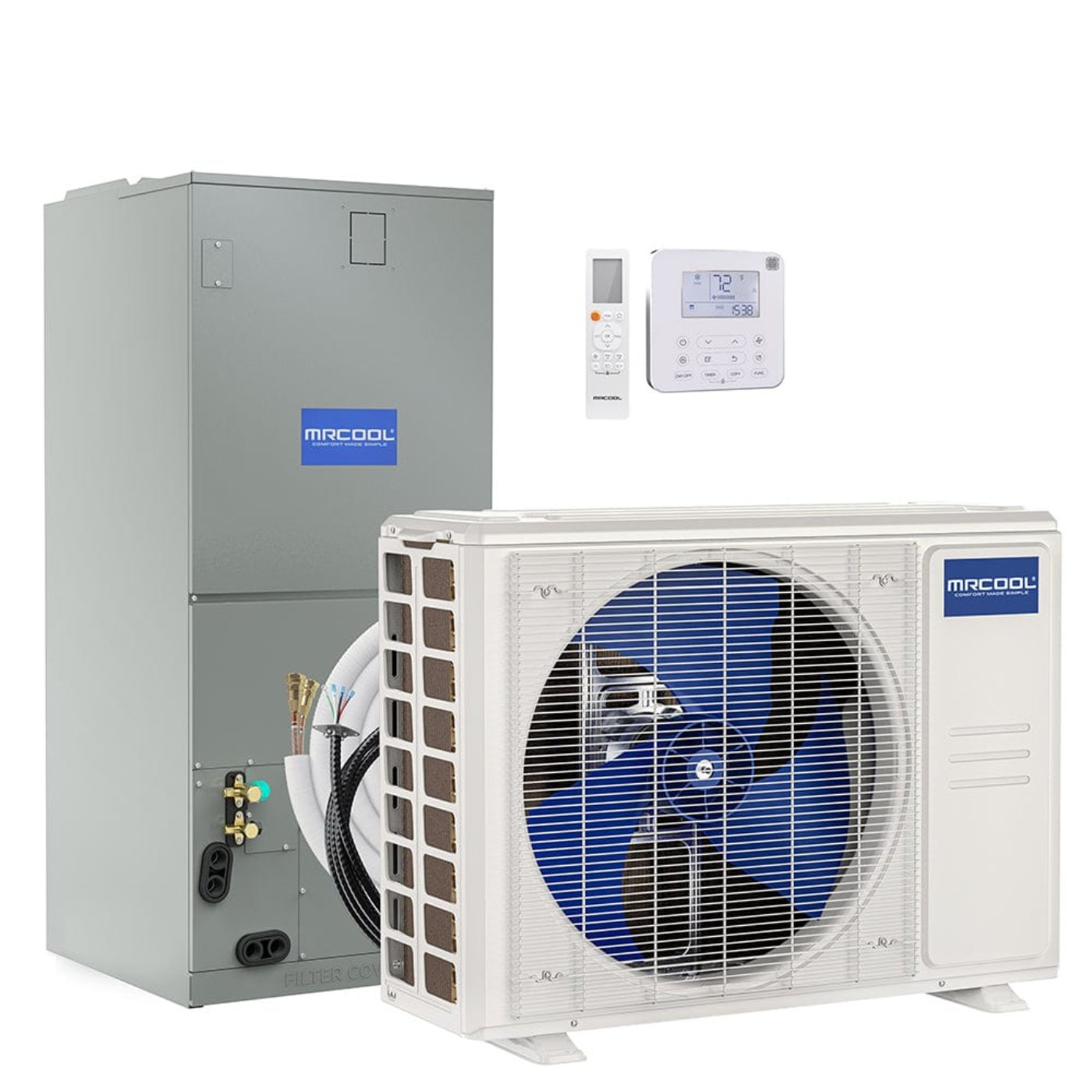

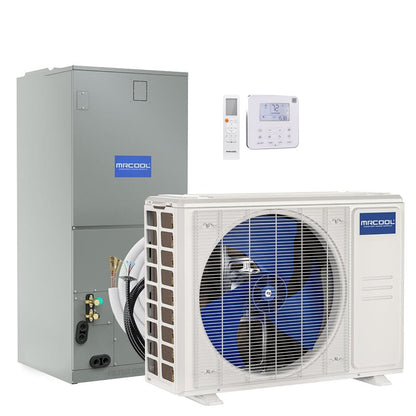

MRCOOL 30K BTU 18.5 SEER Ducted Air Handler and Condenser with 25 ft. Pre-Charged Line Set, CENTRAL-30-HP-230-25

by MRCOOL
SKU CENTRAL-30-HP-230-25
Save 5% Save 5%
Original price $3,585.40
Original price $3,585.40 - Original price $3,585.40
Original price $3,585.40
Current price $3,406.99
$3,406.99 - $3,406.99
Current price $3,406.99
  • CLEARANCE SALE.

  • ITEMS LEFT.

  • PEOPLE are also watching that product.


Whether You Need A New Installation, An Air Conditioner Replacement, Preventive Maintenance, Indoor Air Quality Enhancement Or Emergency Repairs, We Guarantee Excellent Service At A Fair Price.

If you’ve been having to choose between comfort and savings because of an old HVAC system, why not enjoy both with the MRCOOL 30k BTU up to 18.5 SEER Central Ducted DC Inverter Heat Pump System? You’ll be able to enjoy the temperatures you want throughout 1,250 square feet. This efficient and affordable comfort solution could save money and time, because it comes with a 25 foot MRCOOL pre-charged line set, which can be easily plugged into the fittings of the air handler and the condenser. This system can be installed virtually anywhere. This multi-position air handler is able to be installed in an upflow, downflow, horizontal left or horizontal right airflow configuration.

Enjoy your comfort completely guilt-free, because the variable speed condenser can help you save money as it runs. Identify error codes on the handler’s panel or on the thermostat to maintain your system. The use of filters also ensures clean, crisp air throughout your home. Enjoy total peace of mind thanks to a 10 year parts warranty, as well as a 10 year service warranty, so you don’t have to shell out lots of money in a panic in the unlikely event that something goes wrong. Choose comfort by choosing the MRCOOL 30k BTU 18.5 SEER Central Ducted DC Inverter Heat Pump System.

Key Features

  • High Static. The Central Ducted Air Handler is made to accommodate high static requirements for manufactured and modular homes.

  • Multi-Positional. The unit is compatible with upflow, counterflow, downflow and horizontal configurations.

  • Thermostat and Remote Included. Wired thermostat (.78 in x 4.72 in x 4.72in) has a variety of options to keep your home the temperature you want!

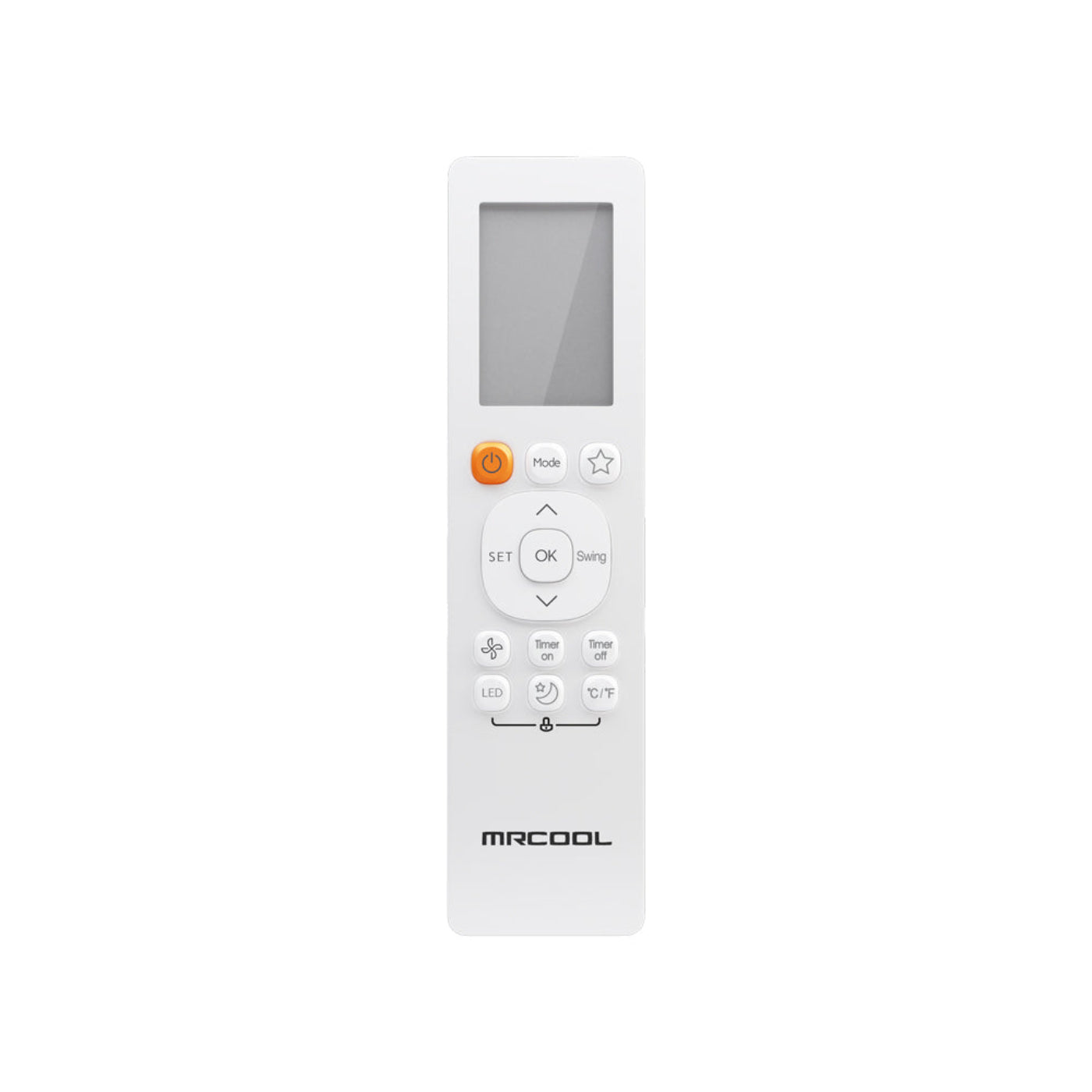

  • Follow Me Function. The Central Ducted Unit will track the air temperature around you using the remote to ensure you receive maximum comfort.

  • 10 year parts and labor warranty. This system comes with a Standard 10-year parts and labor warranty and 10-year compressor warranty.

  • Optional heating kit available

  • R-410A environmentally friendly refrigerant

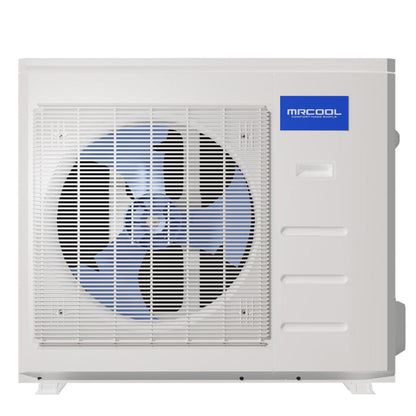

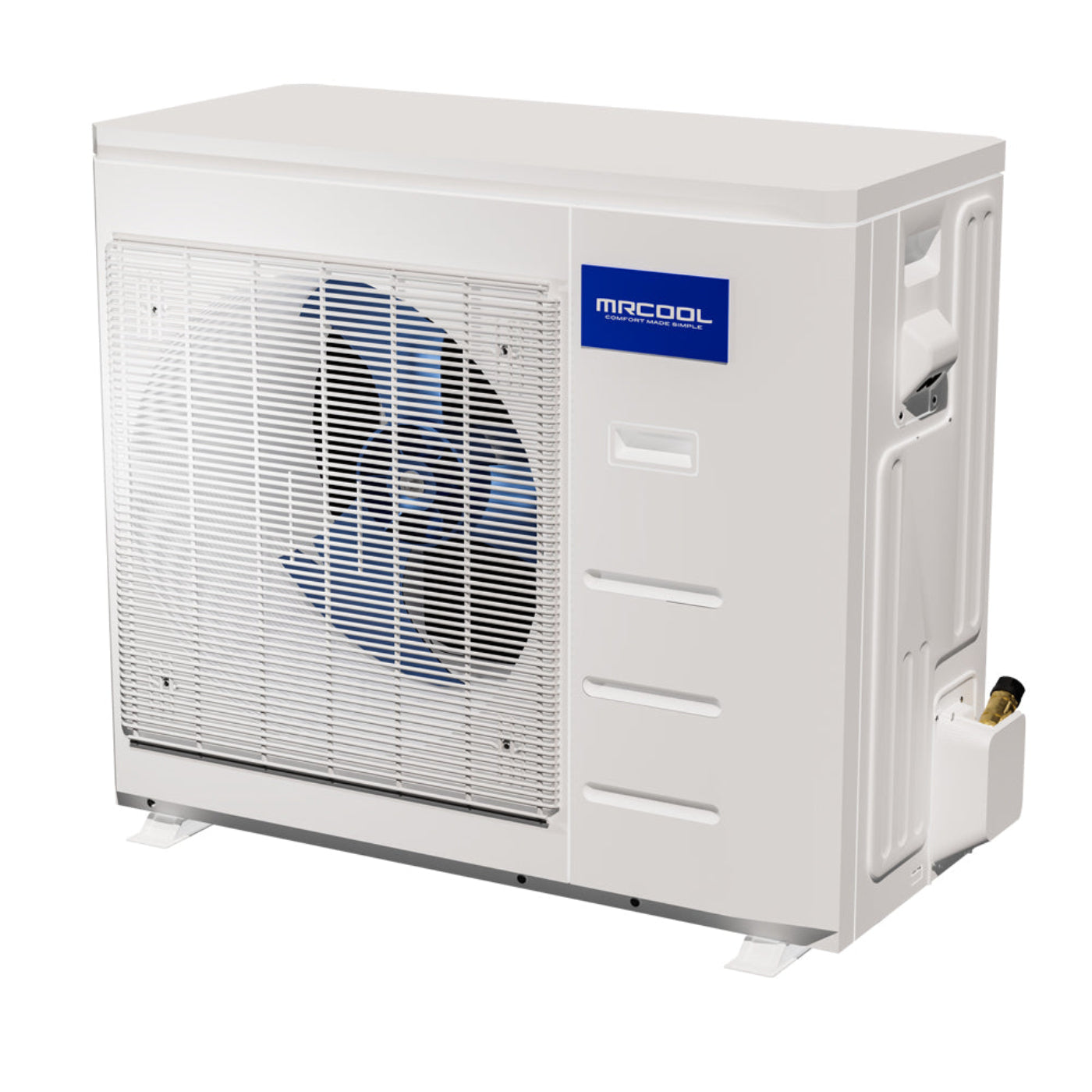

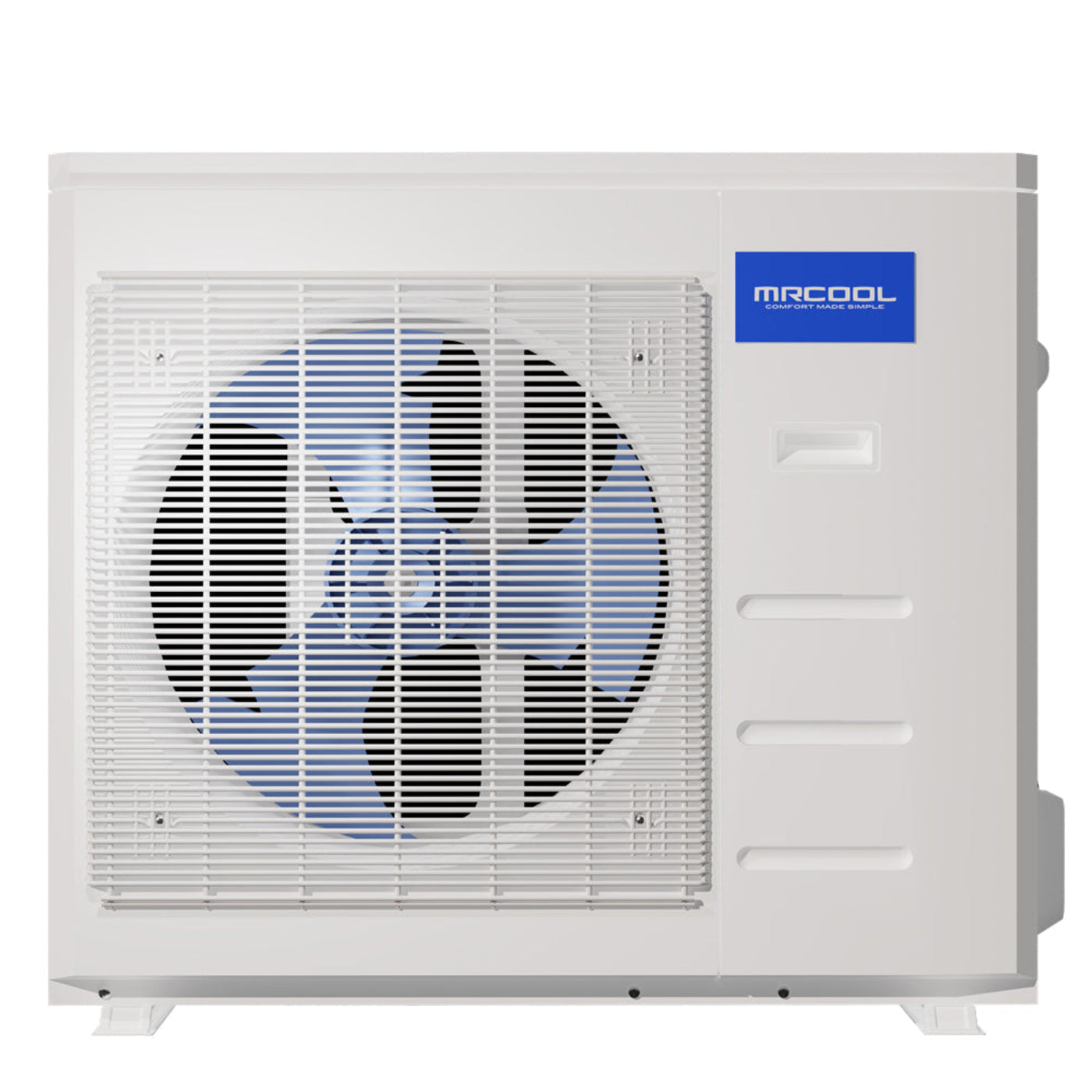

    Condenser Dimensions 37.24"W x 16.14"D x 31.89"H
    Condenser Weight 146.39 lbs

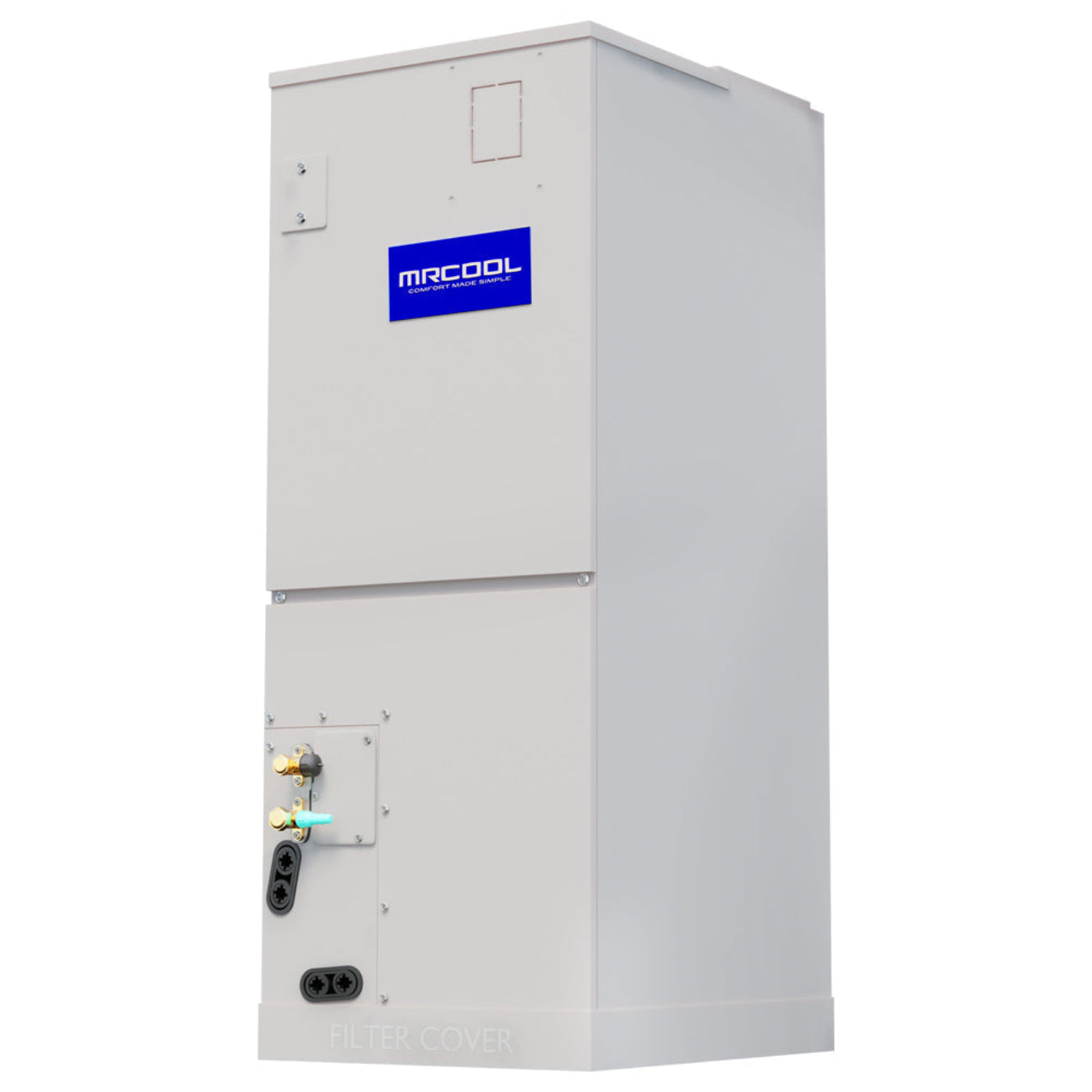

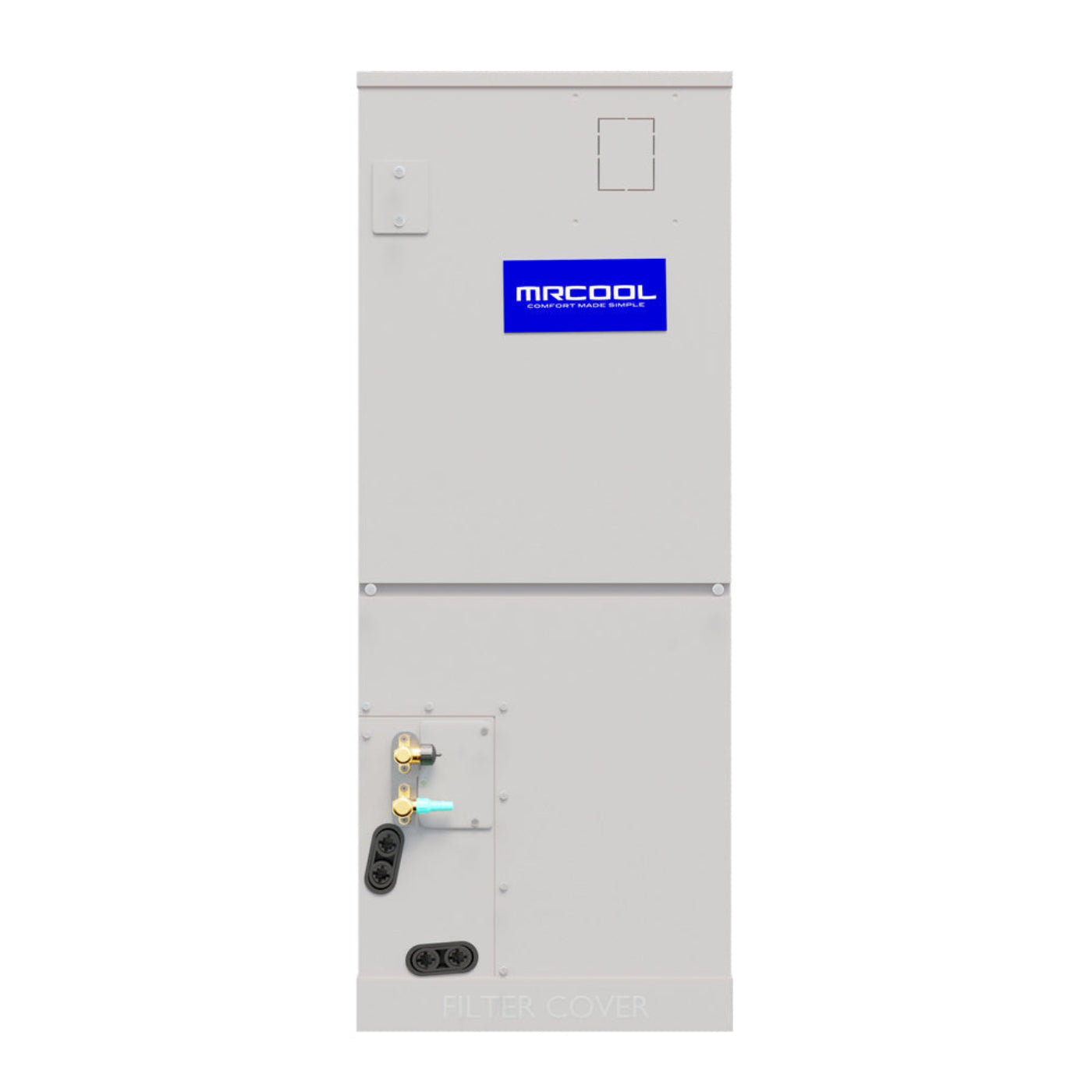

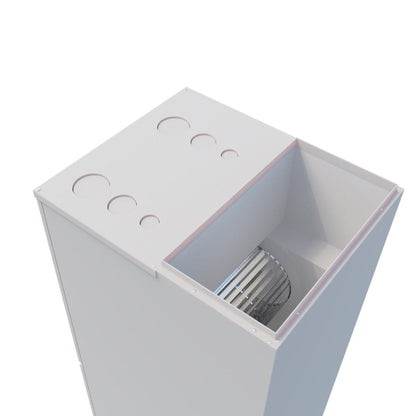

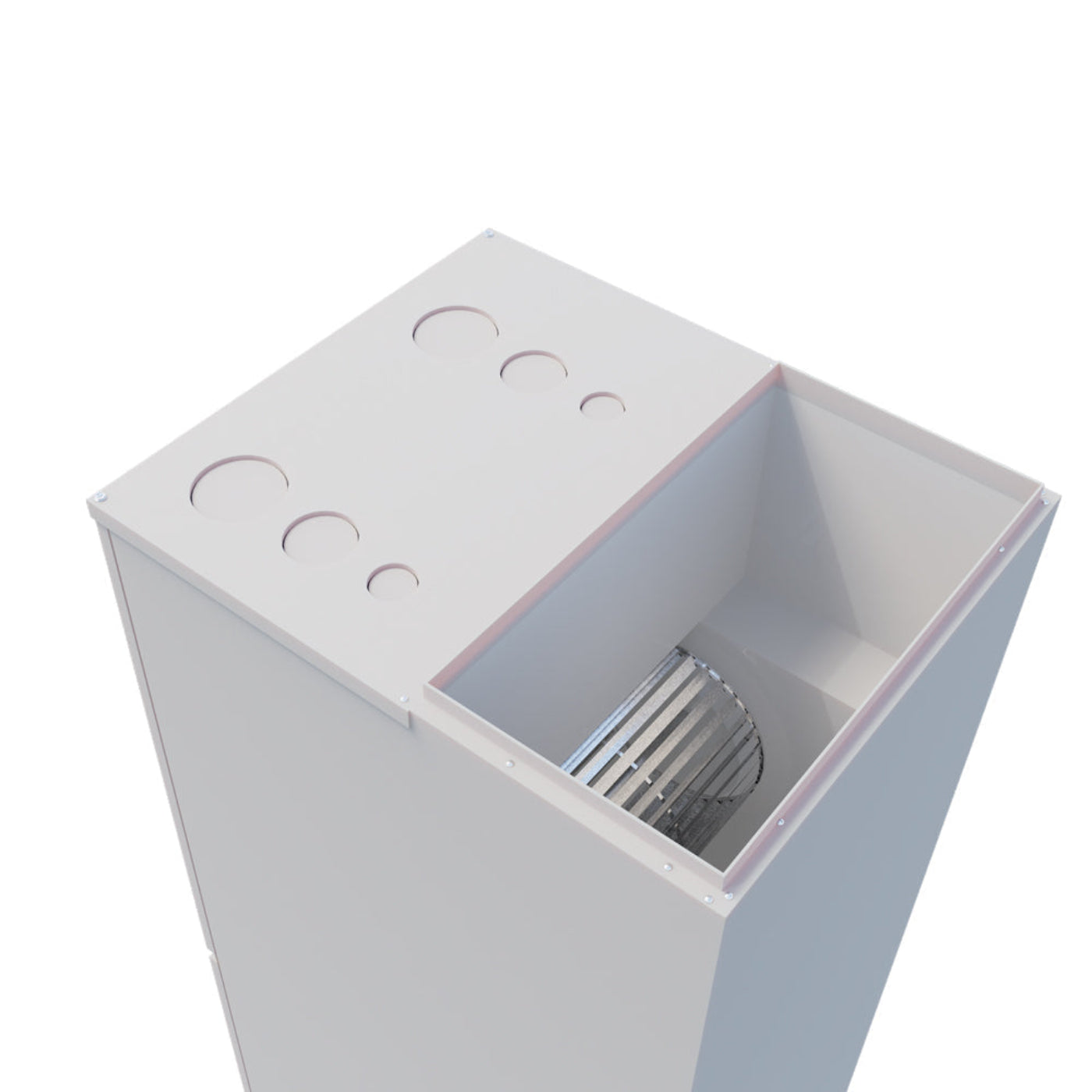

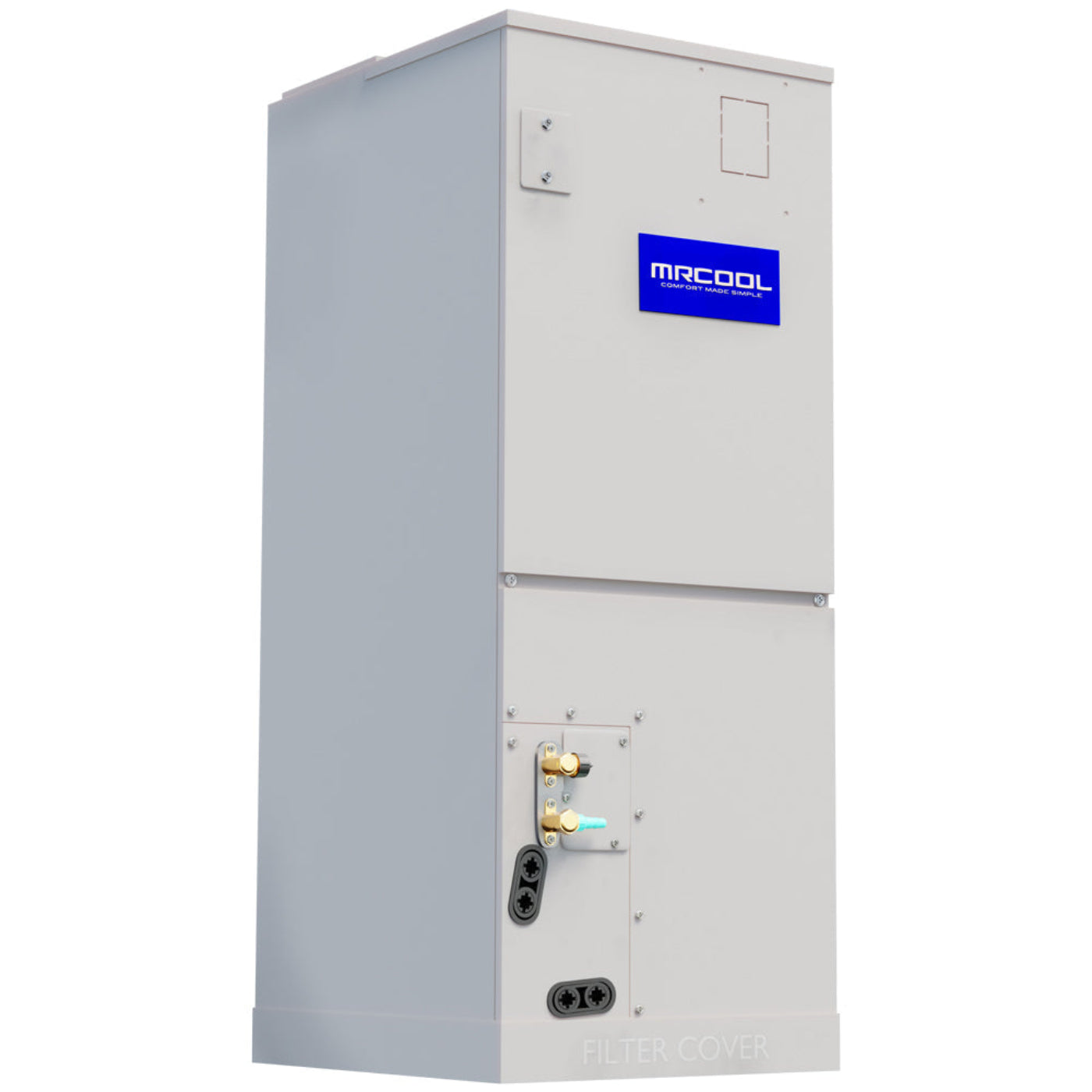

    Air Handler Dimensions 21.02"W x 21.02"D x 49.02"H
    Air Handler Weight 128.53 lbs
    SEER 18.5
    EER 10.3
    HSPF hspf4/hspf5: 9.5/8
    CFM 894.12/805.88/711.76
    Cooling Capacity 30,000 BTU
    Heating Capacity 30,000 BTU
    Voltage Requires a minimum of 208-230V/60HZ/40A (please check your home meets this electrical requirement prior to purchase)
    Phase 1
    Cycle 60 Hz
    Max Fuse Breaker 40
    Min Circuit Ampacity 25
    Color Gray
    Rate Load 0.65
    Zone Capacity 1
    Coverage Area 1,250 square feet
    Refrigerant Type R410A
    Refrigerant Volume 111.11 oz
    Decibel Rating 46.5/43/39.5
    Decibel Rating Low 39.5
    Decibel Rating High 46.5
    Air Flow Direction Multi-position
    Min Ambient Cool 5~122F
    Min Ambient Heat 5~75.2F
    Lineset Included Yes
    Lineset Length 25ft
    Liquid Line Size 3/8 in
    Suction Line Size 5/8in
    Compressor Motor Type Rotary
    Condenser Fan Motor RPM 1150/1050/900/850
    Filter Type Replaceable
    Auxiliary Heater Included No
    Auxiliary Heater Available Yes
    Auxiliary Heater Sizes 5kw, 8kw,10kw, 15kw
    Adjustable Thermostat Yes
    Modes Fan
    Sleep
    Auto Cool
    Includes Remote
    Battery
    App Compatibility No
    Certificates AHRI
    Warranty 10 years parts and labor


    Order shipment preparation takes 3 days. Once shipped orders usually takes 2 weeks to be delivered. These are estimations; can be delayed for reasons beyond our control. You can always contact us to know the exact time once you placed an order with us. Have a look at our
