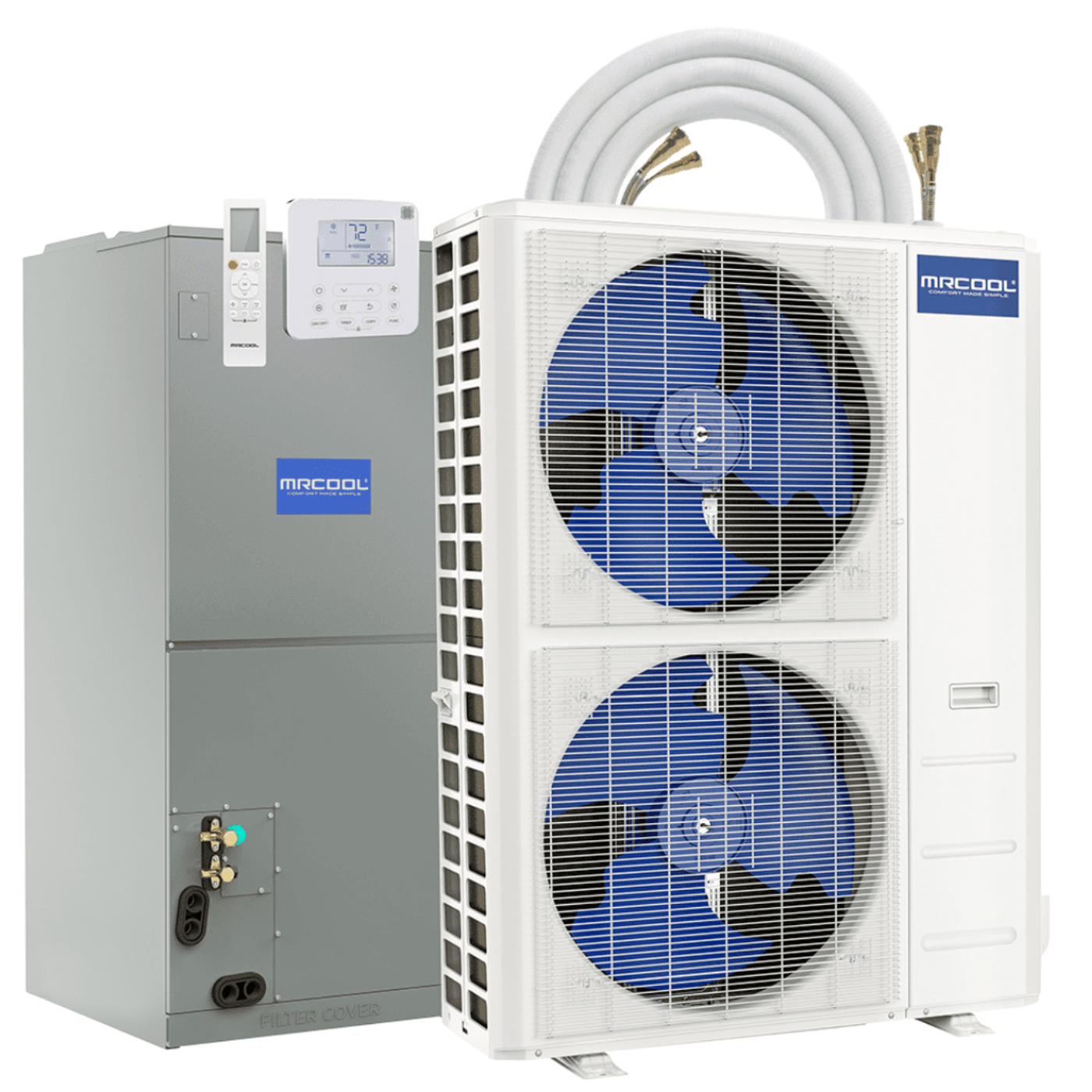

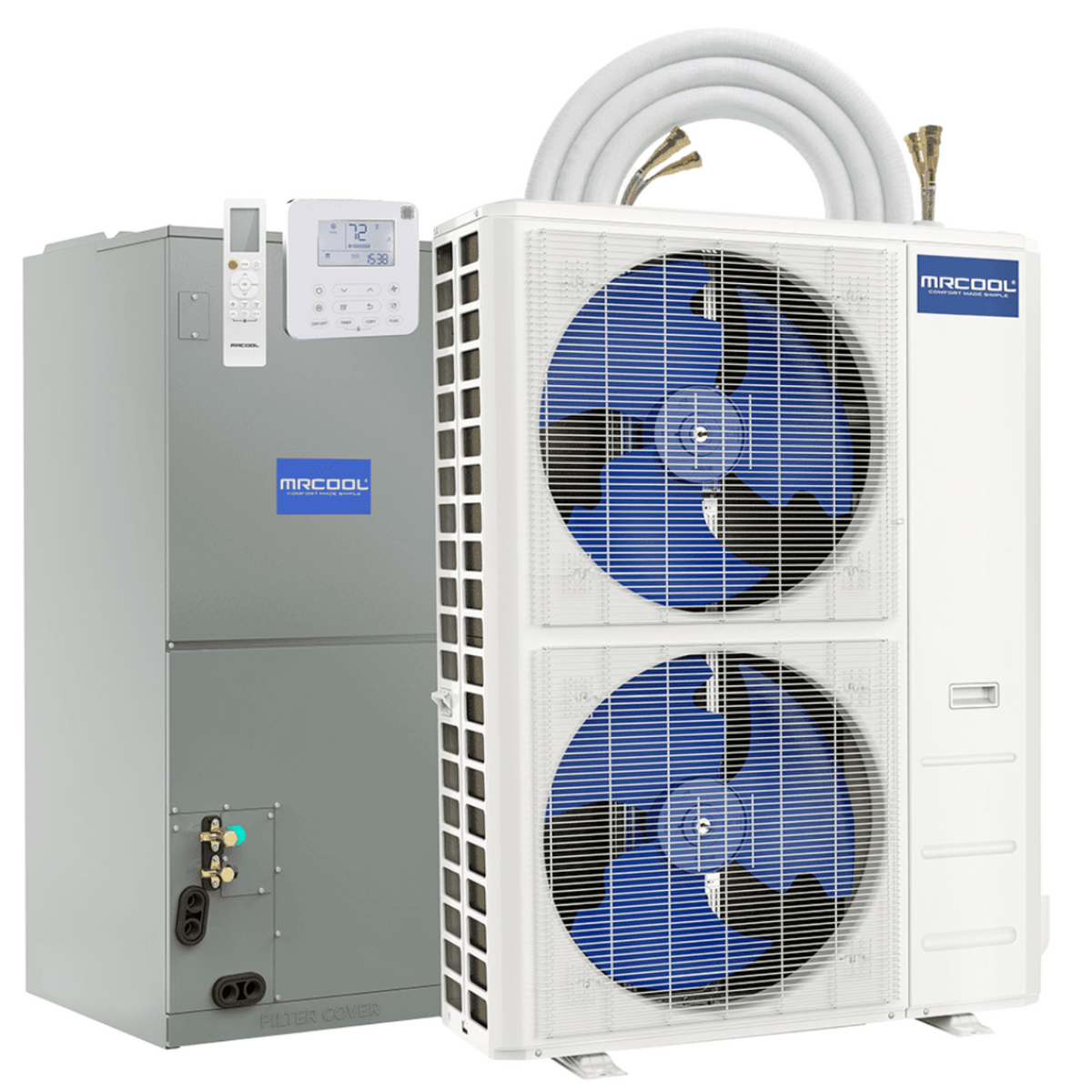

MRCOOL 60K BTU 18 SEER Central Ducted Air Handler, Condenser, 35 Foot Lineset, CENTRAL-60-HP-230-35

MRCOOL 60K BTU 18 SEER Central Ducted Air Handler, Condenser, 35 Foot Lineset, CENTRAL-60-HP-230-35

by MRCOOL
SKU CENTRAL-60-HP-230-35
Save 5% Save 5%
$5,064.00
$5,064.00 - $5,064.00
$5,064.00
$4,810.99
$4,810.99 - $4,810.99
$4,810.99

  • CLEARANCE SALE.

  • ITEMS LEFT.

  • PEOPLE are also watching that product.


Whether You Need A New Installation, An Air Conditioner Replacement, Preventive Maintenance, Indoor Air Quality Enhancement Or Emergency Repairs, We Guarantee Excellent Service At A Fair Price.

Choose the affordable MRCOOL 60k BTU up to 18 SEER Central Ducted DC Inverter Heat Pump System for the most efficient, consistent, and complete comfort you could experience. This system can heat and cool up to 2500 square feet, so your entire home can be covered in the precise temperature that you deserve. This system is able to accommodate any installation requirements you might have, because it is a multi-position unit that can operate in an upflow, downflow, horizontal left or right configuration. You’ll save money as this system provides you comfort, because the variable speed condenser works hard to provide the temperature you want and save energy.

This system is equipped with the MrCool® No-Vac® Quick Connect® 35' line set. The panel on the handler as well as the thermostat allow you to identify any error codes. You won’t have to worry if something goes wrong, because this system is covered by a 10 year parts warranty and a 10 year service warranty. If you want to feel true comfort without sacrificing your savings, get the MRCOOL 60k BTU 18 SEER Central Ducted DC Inverter Heat Pump System.

Key Features:

  • High Static. The Central Ducted Air Handler is made to accommodate high static requirements for manufactured and modular homes.

  • Multi-Positional. The unit is compatible with upflow, counterflow and horizontal configurations.

  • Thermostat and Remote Included. Wired thermostat (.78 in x 4.72 in x 4.72in) has a variety of options to keep your home the temperature you want!

  • Follow Me Function. The Central Ducted Unit will track the air temperature around you using the remote to ensure you receive maximum comfort.

  • 10 year parts and labor warranty. This system comes with a Standard 10-year parts and labor warranty and 10-year compressor warranty.

  • Optional heating kit available

  • R-410A environmentally friendly refrigerant

    Condenser Dimensions 37.48"W x 16.34"D x 52.48"H
    Condenser Weight 217.15 lbs
    Air Handler Dimensions 21.02"W x 24.49"D x 52.99"H
    Air Handler Weight 164.02 lbs
    SEER 18
    EER 10.3
    HSPF hspf4/hspf5: 9.2/7.6
    CFM 1582.35 / 1358.82 / 1135.29
    Cooling Capacity 57,000 BTU
    Heating Capacity 60,000 BTU
    Voltage Requires a minimum of 208-230V/60HZ/60A (please check your home meets this electrical requirement prior to purchase)
    Phase 1
    Cycle 60 Hz
    Max Fuse Breaker 60
    Min Circuit Ampacity 34
    Color Gray
    Rate Load 2.4
    Zone Capacity 1
    Coverage Area 2,500 square footage
    Refrigerant Type R410A
    Refrigerant Volume 172.84 oz
    Decibel Rating 52.5/49/44
    Decibel Rating Low 44
    Decibel Rating High 52.5
    Air Flow Direction Multi-position
    Min Ambient Cool 5~122F
    Min Ambient Heat 5~75.2F
    Lineset Included Yes - includes a 35' lineset
    Liquid Line Size 3/8 in
    Suction Line Size 7/8 in
    Compressor Motor Type Rotary
    Condenser Fan Motor RPM 900/850/650
    Filter Type Replaceable
    Auxiliary Heater Included No
    Auxiliary Heater Available Yes
    Auxiliary Heater Sizes 10kw,15kw, 20kw
    Adjustable Thermostat Yes
    Modes Fan
    Sleep
    Auto Cool
    Includes Remote
    Battery
    App Compatibility No
    Certificates AHRI
    Warranty 10 years parts and labor


    Order shipment preparation takes 3 days. Once shipped orders usually takes 2 weeks to be delivered. These are estimations; can be delayed for reasons beyond our control. You can always contact us to know the exact time once you placed an order with us. Have a look at our
