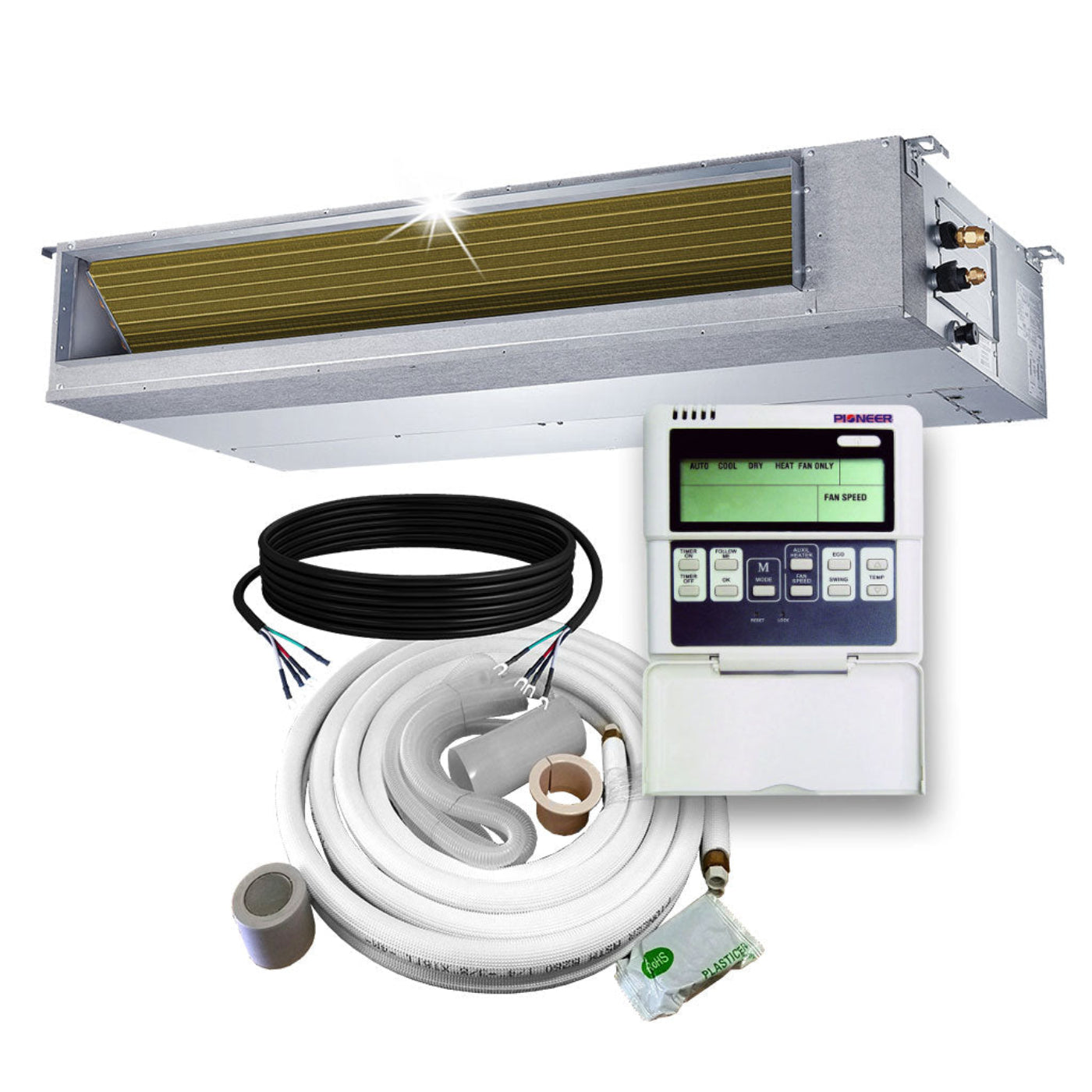

Pioneer Multi Zone 12,000 BTU Quantum Series Concealed Ducted Indoor Section Split Inverter++ Air Conditioner Heat Pump 230V - RB012GMFILDFHD-10

Pioneer Multi Zone 12,000 BTU Quantum Series Concealed Ducted Indoor Section Split Inverter++ Air Conditioner Heat Pump 230V - RB012GMFILDFHD-10

Multi Zone Split Concealed Ducted Horizontal Split Air Conditioning and Heating System (Indoor Section Only). Variable Speed DC Inverter Operation Mode: Cooling and Heating. Capacity: 12,000 BTU/Hr. (1 Ton). Total capacity of the matched indoor units may exceed the available outdoor unit capacity by up to 35% Electrical Specification: 208-230 VAC, 1 Phase, 60 Hertz. Customizable length copper line set with flare connections come with this indoor unit.

Compatible Outdoor Units

Matching outdoor units need to be selected and purchased separately. To purchase a multi split system, first determine the outdoor unit required among the outdoor units we offer as follows:

• Dual Zone: YN020GMFI22M2E
• Triple Zone: YN030GMFI22M3E
• Quad Zone: YN040GMFI22M4E
• Quint Zone: YN050GMFI22M5E

Included

• Indoor Unit
• Wireless Remote Control
• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual


Manuals

• Matching Table
• Specification Table
• Series Disassembly Guide

What our Experts Think

• Concealed comfort for ducted zones
  The Pioneer Multi Zone 12,000 BTU Quantum Series Concealed Ducted Indoor Section is designed to fit hidden above ceilings or in attics, delivering conditioned air through ductwork—perfect for spaces where visible units aren’t ideal.

• Efficient performance with inverter technology
  Variable‑speed DC inverter operation provides precise temperature control, quieter cycling, and smoother comfort delivery compared with fixed‑speed units.

• Balanced cooling & heating capacity
  Rated at 12,000 BTU (≈1 ton) for both cooling and heating, this indoor unit suits rooms of ≈350–450 sq ft when paired with a properly matched outdoor condenser.

• Compatible with multi‑zone outdoor units
  Works with dual, triple, quad, or quint‑zone outdoor condensers, allowing flexible multi‑room climate control in multi‑split systems.

• Quiet, unobtrusive airflow
  Indoor noise levels are modest across fan speeds, keeping operation comfortable without distracting sound in living areas or workspaces.

• Includes essentials for indoor use
  Includes indoor unit, wireless remote, installation manual, leak guard sealer, and warranty, with optional duct/line kit add‑ons for installation

Q&A

Q: What room size is this 12,000 BTU ducted mini split ideal for?
A: Perfect for medium rooms (approx. 400–500 sq. ft.), such as offices, bedrooms, or living areas requiring a concealed ceiling installation.

Q: Does it provide both cooling and heating?
A: Yes, this inverter++ heat pump delivers efficient year-round cooling and heating.

Q: Is this unit part of the Quantum Series?
A: Yes, designed for the Pioneer Quantum Series with advanced inverter++ technology for precise climate control.

Q: What voltage does it require?
A: Designed for 208–230V single-phase power.

Q: What is included with the indoor section?
A: Includes the concealed ducted indoor section; compatible outdoor condenser required for full system operation.

Q: How energy-efficient is this unit?
A: Inverter++ technology maximizes energy efficiency and reduces operating costs.

Q: Does it support Wi-Fi or smart control?
A: Wi-Fi support may be available with compatible modules for remote operation and scheduling.

Q: How quiet is the indoor unit?
A: Operates quietly, typically 30–40 dB, ideal for offices, bedrooms, or living spaces.

Q: What comfort features are included?
A: Turbo mode, ECO mode, sleep mode, self-cleaning, auto restart, timer, and multi-directional airflow for consistent comfort.

Q: Is professional installation required?
A: Yes, professional installation is required to connect the indoor section with a compatible outdoor condenser and ductwork.

Maintenance Tips

• Clean washable air filters every 2–4 weeks – Maintains optimal airflow and inverter efficiency for 400–600 sq ft areas

• Run self-clean function regularly – Prevents mold, bacteria, and odor buildup inside the concealed ducted indoor unit

• Keep indoor & outdoor units free of dust and debris – Ensures consistent airflow and peak heat exchange

• Check and clear condensate drain line – Prevents leaks and ceiling/floor damage

• Maintain 2–3 ft clearance around outdoor unit – Supports efficient cooling/heating performance

• Inspect refrigerant lines annually – Ensures leak-free operation and reliable capacity

• Use ECO, Sleep & Wi-Fi smart modes – Reduces compressor wear and lowers energy consumption

• Schedule yearly professional servicing – Maximizes inverter efficiency and extends system lifespan
