Omcan USA 46098 Trento Sausage Stuffers - USA 46098

Omcan USA 46098 Trento Sausage Stuffers - USA 46098

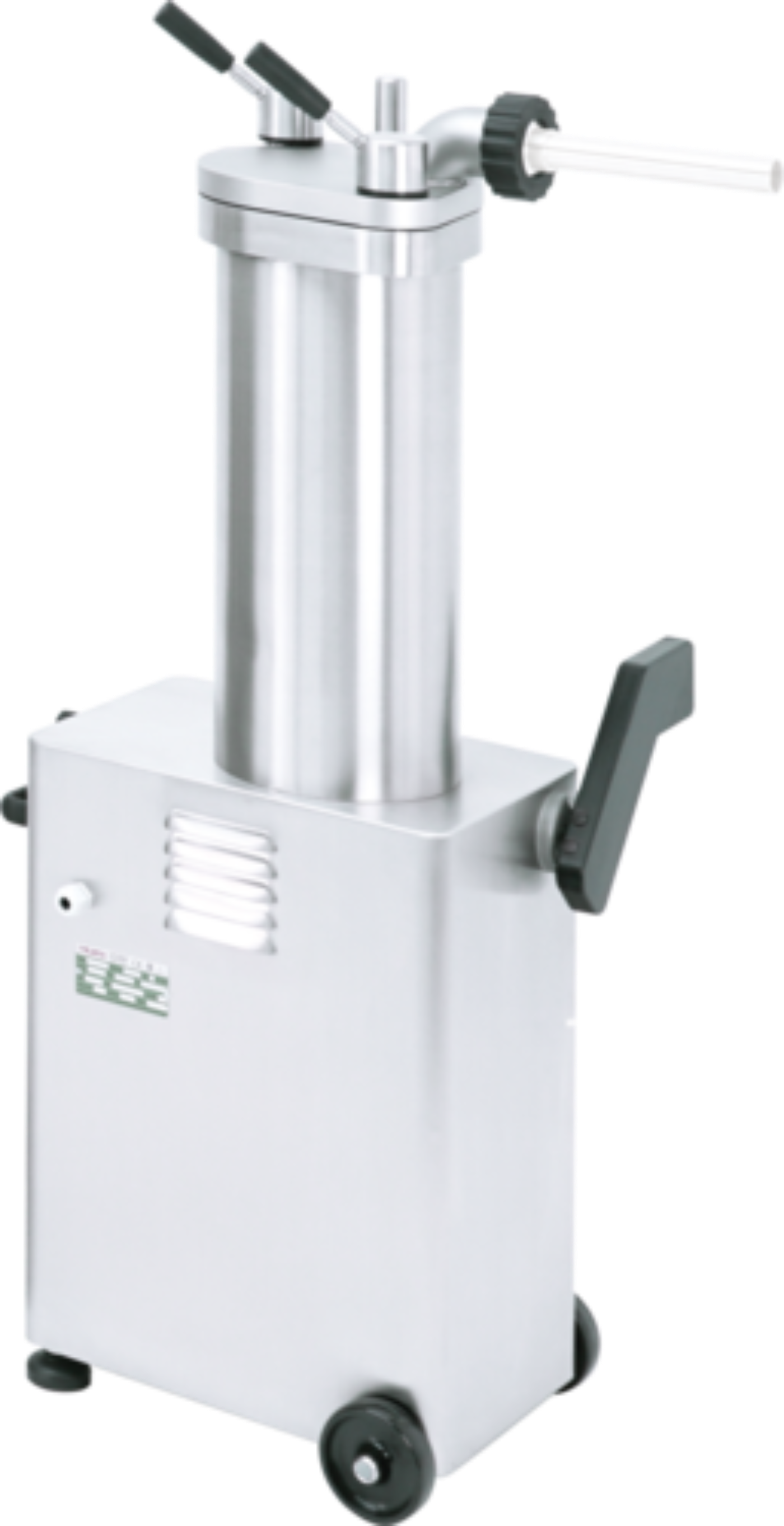

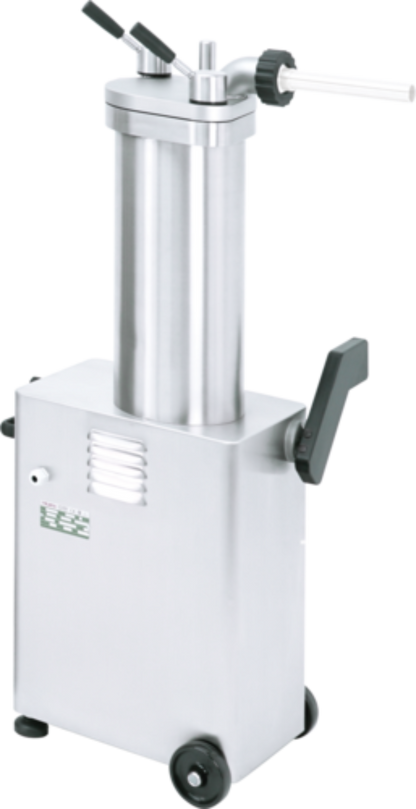

(SS-ES-0026-FS) Trento Hydraulic Piston Sausage Stuffer, automatic, vertical, 26 lbs. (12 kg) capacity, fixed barrel (cylinder), includes automatic piston decompression, independent oil reservoir, piston wrench, 14mm, 20mm & 30mm transparent spouts, stainless steel, 1 HP, 220v/60/1-ph, 0.75kW, 5.0 amps, QPS (shipped on pallet)

Specifications

What our Experts Think

• High Capacity: Accommodates up to 26 lbs (12 kg) of meat, making it ideal for medium to large-scale operations.

• Hydraulic Operation: Uses a hydraulic piston system to ensure consistent pressure for smooth and efficient sausage stuffing.

• Durable Construction: Features a stainless steel barrel and bottom, offering long-lasting durability and easy cleaning.

• User-Friendly Design: Comes with an ergonomic knee lever, adjustable speed control, and a pressure gauge for precise operation.

• Enhanced Safety: Includes an automatic knee lever lock that prevents accidental operation until the piston reaches the lower position.

• Portability: Designed with two wheels and a handle, making it easy to move within the workspace.

• Versatile Nozzles: Includes three transparent nozzles (14mm, 20mm, and 30mm), allowing for different sausage sizes and ensuring hygienic stuffing.

• Electrical Specifications: Operates on a 220V, 60Hz, 1-phase electrical system with a 750W motor drawing 5 amps.

• Compact Dimensions: Measures 21" (W) x 19" (D) x 49" (H) and weighs 265 lbs, fitting into most commercial kitchen setups.

Q&A

Q: What is the capacity of the Omcan USA 46098 Trento Sausage Stuffer?
A: The stuffer has a meat capacity of 26 lbs (11.8 kg) and a barrel capacity of 14.2 L (3.7 gal).

Q: What are the power specifications?
A: It operates on a 1 HP (0.75 kW) motor with a 5-amp draw, requiring a 220V, 60Hz, single-phase electrical supply.

Q: What are the dimensions and weight?
A: The unit measures 21" W x 19" D x 49" H and weighs approximately 265 lbs (120 kg).

Q: What features does the Omcan USA 46098 offer?
A: It includes an ergonomic knee lever, reversible operating direction, removable lid with adjustable lock nuts, speed control, pressure gauge, adjustable anti-vibration feet, and a fully stainless steel barrel bottom with a water draining outlet for easy cleaning.

Q: What nozzles are included?
A: The stuffer comes with 14mm, 20mm, and 30mm transparent nozzles, designed for maximum hygiene without edges.

Maintenance Tips

• Clean After Each Use: Thoroughly clean the barrel, lid, and nozzles with warm, soapy water. Make sure to dry everything completely to prevent rust.

• Lubricate Components: Apply food-safe lubricant to the green lid gasket and black piston gasket to reduce friction and wear.

• Check Hydraulic Oil: Regularly check the hydraulic oil level using the dipstick and top it up as needed to ensure smooth piston movement.

• Replace Worn Gaskets: If you notice leaks or reduced performance, replace the green lid gasket and black piston gasket.

• Annual Maintenance: Change the hydraulic oil and inspect the oil filter every 2,500–5,000 service hours for continued efficiency.
