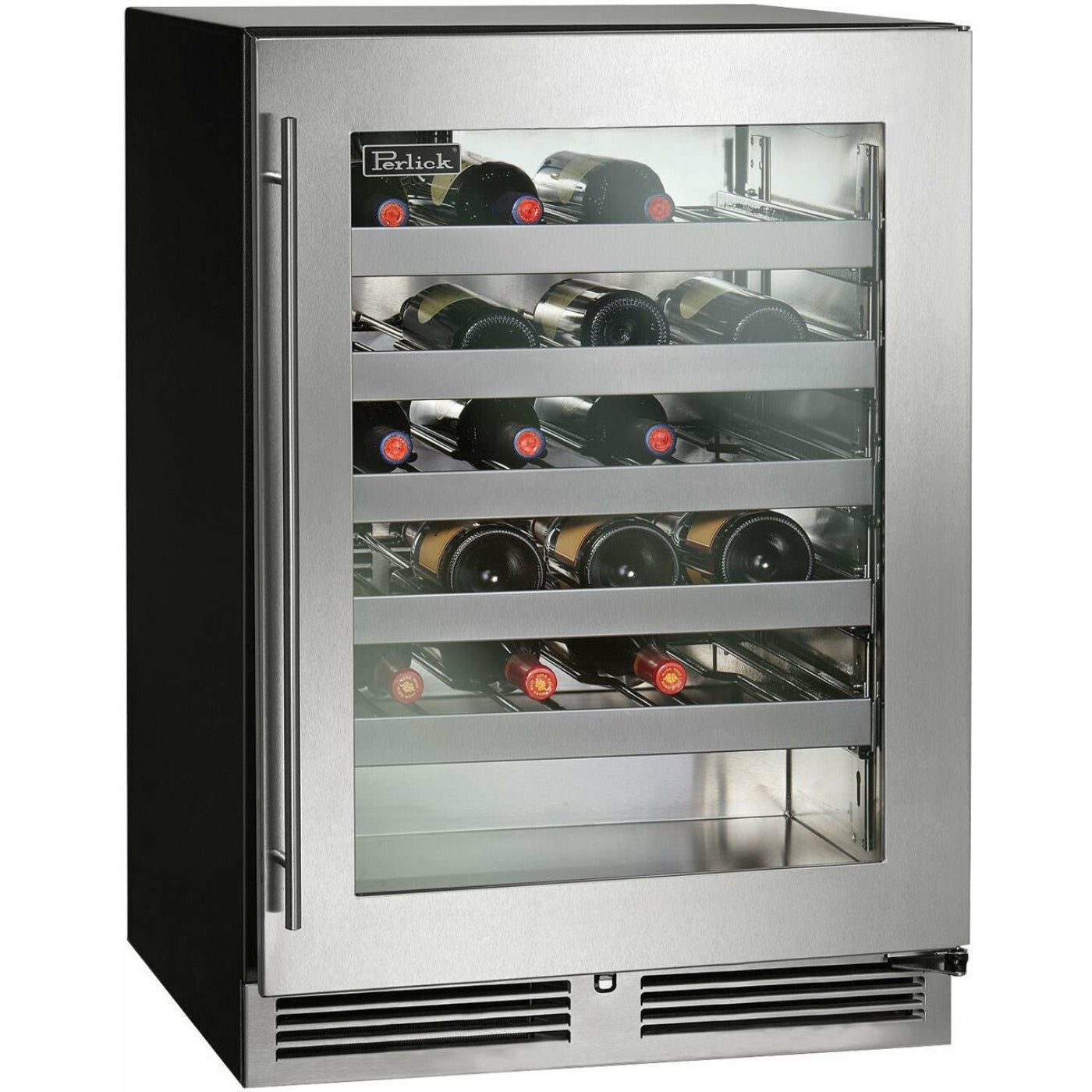

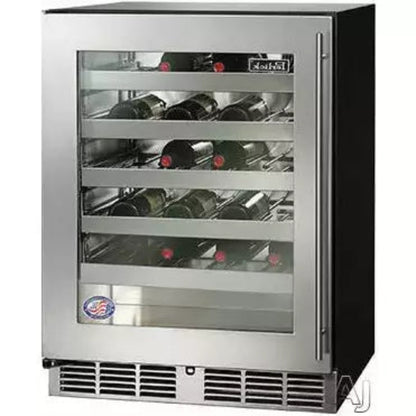

Perlick 24" Wine Reserve w/ Fully Integrated Glass Door, ADA Compliant with 32 Bottle Capacity - HA24WB-4-4
24 Inch Undercounter Wine Reserve
Wine Reserve is a favorite for homes and light commercial venues, such as hotels and temporary luxury residences, as well as for aging-in-place design locations. The spacious interior has a storage capacity of 4.8 cu. ft. to store up to 32 bottles of wine, with room to store additional bottles underneath. It is UL Listed and equipped with a door alarm for added security. It features LED lighting, 5-full-extension wine shelves, a digital thermostat, stainless steel interior, and stainless steel ball-bearing glides.
Features
LED Light
- Selectable blue or white LED lighting.
 Stainless Steel Glides
- The stainless steel ball-bearing glides provide smooth movement of shelves.
 Door Alarm
- Audible door alarm warns the user if the door is held open.
 Stainless Steel Interior
- Commercial-grade all stainless steel interior provides superior durability and easy cleaning; black vinyl exterior for built-in applications.
 Compressor
- Variable speed compressor minimizes sound; up to 30% quieter than competitors.
 800 BTU/hr Capacity
- Delivers commercial-grade cooling performance.
 R600a Natural Refrigerant
- Offers maximum energy efficiency with zero ozone depletion potential.
 Bottle Capacity
 Additional Features
 4.8 cu. ft Capacity
- Storage for up to 32 bottles of wine on the shelves plus extra storage on the floor of the unit.
 Full-Extension Shelves
- Provides faster and safer product access with no reaching in the back of the cabinets; stainless steel wine shelves will not absorb odors over time.
 Specifications
| Category |
Details |
| Commercial / Residential |
Residential |
| Indoor / Outdoor |
Indoor |
| Undercounter |
Yes |
| Interior Capacity |
4.8 cu. ft. |
| Bottle Capacity |
32 wine bottles |
| Construction & Design |
|
| Category |
Details |
| Back Finish |
Galvanized Steel |
| Interior Material |
Stainless Steel |
| Top Finish |
Stainless Steel |
| Sides Finish |
Black Vinyl |
| Number of Doors |
1 |
| Field Reversible Door |
Yes |
| Leveling Legs |
Yes |
| Shelving Material |
Vinyl-coated |
| Full-Extension Pull-Out Shelving |
Yes |
| Lighting Type |
LED |
| Lighting Color |
White or Blue |
| Performance |
|
| Category |
Details |
| Thermostat |
Digital |
| Temperature Range |
45° – 65°F |
| Refrigerant Type |
R600a |
| Defrost Type |
Off Cycle (Automatic) |
| Energy-Efficient / Eco-Friendly Design |
Yes |
| NSF Approved for Open Food Storage |
Yes |
| Electrical Specifications |
|
| Category |
Details |
| Electrical Supply |
115V AC / 60 Hz / 1 Ph |
| Running Load Amps |
2.2 A |
| Electrical Connection |
Cord Connected |
| Cord Plug Type |
NEMA 5-15P (3-Prong) |
| Cord Length |
6 ft. |
| Defrost Initiation |
Automatic |
Dimensions and Weight
Door Swing Clearance: Â
24 15/16"
Shipping Weight: Â
181 lb.
What our Experts Think
-
Perfect Size & Capacity: Compact 24" width stores up to 32 bottles, ideal for ADA-compliant spaces.
-
Elegant Fully Integrated Glass Door: Showcases your collection with a sleek, seamless built-in design.
-
Optimal Wine Care: Precise temperature and humidity controls preserve wine quality and flavor.
-
Energy Efficient: Designed for low energy consumption without sacrificing performance.
-
Durable Construction: High-quality materials ensure long-lasting use.
Q&A
Q: How many bottles can the Perlick HA24WB-4-4 hold?
A: It has a 32-bottle capacity.
Q: Is this wine reserve ADA compliant?
A: Yes, it meets ADA standards for accessibility.
Q: What type of door does this model have?
A: It features a fully integrated glass door for a sleek, modern design.
Q: What are the dimensions of this unit?
A: The wine reserve is 24 inches wide, perfect for compact spaces.
Q: Is this wine reserve suitable for residential or commercial use?
A: It is designed for both home and commercial applications.
Maintenance Tips
-
Clean glass door with a non-abrasive glass cleaner to keep clarity and shine.
-
Dust condenser coils every 3 months to ensure efficient cooling.
-
Wipe interior surfaces and door gaskets regularly to maintain airtight seal and prevent odors.
-
Clear drain pan monthly to avoid water buildup.
-
Avoid overcrowding to maintain proper airflow and consistent wine storage temperature.
