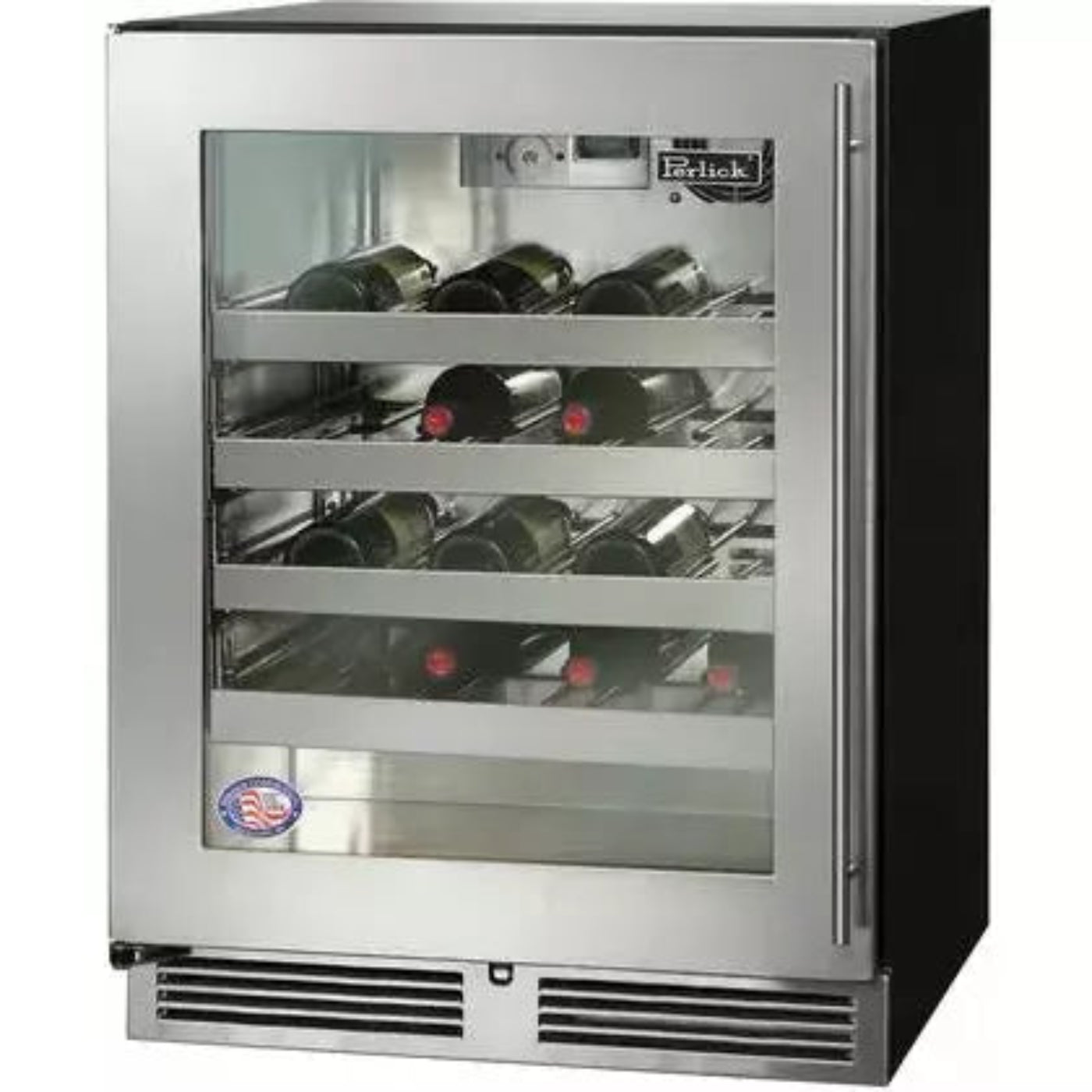

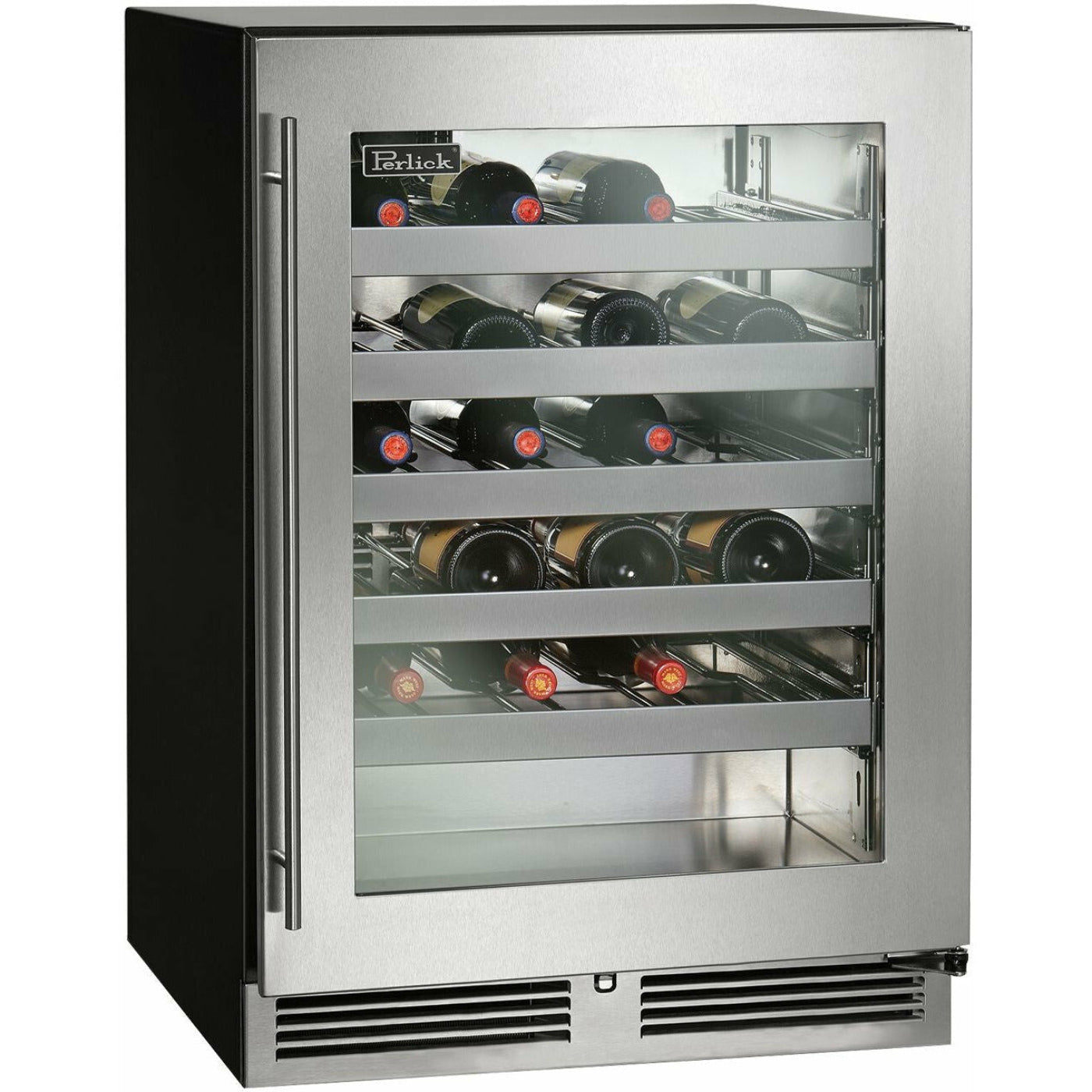

Perlick 24" Wine Reserve w/ Stainless Steel Glass Door, ADA Compliant with 32 Bottle Capacity - HA24WB-4-3
24 Inch Undercounter Wine Reserve
Wine Reserve is a favorite for homes and light commercial venues, such as hotels and temporary luxury residences, as well as for aging-in-place design locations. The spacious interior has a storage capacity of 4.8 cu. ft. to store up to 32 bottles of wine, with room to store additional bottles underneath. It is UL Listed and equipped with a door alarm for added security. It features LED lighting, 5-full-extension wine shelves, a digital thermostat, stainless steel interior, and stainless steel ball-bearing glides.
Features
LED Light
- Selectable blue or white LED lighting.
Stainless Steel Glides
- The stainless steel ball-bearing glides provide smooth movement of shelves.
Door Alarm
- Audible door alarm warns the user if the door is held open.
Stainless Steel Interior
- Commercial-grade all stainless steel interior provides superior durability and easy cleaning; black vinyl exterior for built-in applications.
Compressor
- Variable speed compressor minimizes sound; up to 30% quieter than competitors.
800 BTU/hr Capacity
- Delivers commercial-grade cooling performance.
R600a Natural Refrigerant
- Offers maximum energy efficiency with zero ozone depletion potential.
Bottle Capacity
Additional Features
4.8 cu. ft Capacity
- Storage for up to 32 bottles of wine on the shelves plus extra storage on the floor of the unit.
Full-Extension Shelves
- Provides faster and safer product access with no reaching in the back of the cabinets; stainless steel wine shelves will not absorb odors over time.
Specifications
| Commercial / Residential |
Residential |
| Indoor / Outdoor |
Indoor |
| Undercounter |
Yes |
| Back Finish |
Galvanized Steel |
| Interior Material |
Stainless Steel |
| Top Finish |
Stainless Steel |
| Sides Finish |
Black Vinyl |
| Interior Capacity |
4.8 cu. ft. |
| Bottle Capacity |
32 wine bottles |
| Thermostat |
Digital |
| Full Extension Pull-Out Shelving |
Yes |
| Shelving Material |
Vinyl-coated |
| Lighting Type |
LED |
| Lighting Color |
White or Blue |
| Leveling Legs |
Yes |
| Number of Doors |
1 |
| Field Reversible Door |
Yes |
| Refrigerant Type |
R600a |
| Temperature Range |
45°–65°F |
| Energy-efficient, Eco-friendly Design |
Yes |
| NSF Approved for Open Food Storage |
Yes |
| Electrical Specifications |
|
| Category |
Details |
| Electrical Supply |
115 VAC / 60 Hz / 1 Ph |
| Running Load Amps |
2.2 amps |
| Electrical Connection |
Cord Connected |
| Cord Plug Type |
NEMA 3 Prong 5-15P |
| Cord Length |
6' |
| Defrost Initiation |
Automatic |
| Defrost Type |
Off Cycle |
Dimensions and Weight
Door Swing Clearance:
24 15/16"
Shipping Weight:
181 lb.
What our Experts Think
-
Elegant Display: Stainless steel glass door showcases your wine collection with style and protection.
-
ADA Compliant: Designed for easy, accessible use without compromising on premium features.
-
Generous Capacity: Holds up to 32 bottles, perfect for serious collectors in a compact 24" footprint.
-
Precise Climate Control: Maintains ideal temperature and humidity for wine preservation.
-
Quiet Performance: Whisper-quiet operation ensures minimal disturbance.
-
Durable & Stylish: Commercial-grade materials deliver lasting quality and modern aesthetics.
-
Made in the USA: Built with expert craftsmanship for reliability and longevity.
Q&A
Q: How many bottles does the Perlick HA24WB-4-3 Wine Reserve hold?
A: It has a 32-bottle capacity, perfect for wine enthusiasts.
Q: Is this wine reserve ADA compliant?
A: Yes, it meets ADA height requirements at 32" for accessible installation.
Q: What type of door does it feature?
A: It includes a stainless steel-framed glass door for stylish display and durability.
Q: Can it be installed built-in or freestanding?
A: Yes, it supports both built-in and freestanding setups.
Q: What temperature range does it offer?
A: It provides precise digital control with temperatures between 38°F and 65°F, ideal for wine storage.
Q: Is it energy efficient and quiet?
A: Yes, it uses a commercial-grade, whisper-quiet compressor with eco-friendly R600a refrigerant.
Maintenance Tips
-
Clean stainless steel frame with a soft cloth and stainless-safe cleaner to prevent fingerprints and corrosion.
-
Use a gentle glass cleaner on the door to maintain crystal-clear visibility.
-
Wipe interior shelves monthly to avoid dust and residue buildup.
-
Check door seals regularly to ensure a tight seal for proper humidity and temperature control.
-
Avoid overcrowding bottles to maintain optimal airflow and temperature consistency.
-
Vacuum rear vents every 3–6 months to keep the cooling system efficient.
-
Monitor temperature and humidity settings to preserve wine quality.
-
Ensure proper clearance around the unit for ventilation and ADA compliance.
