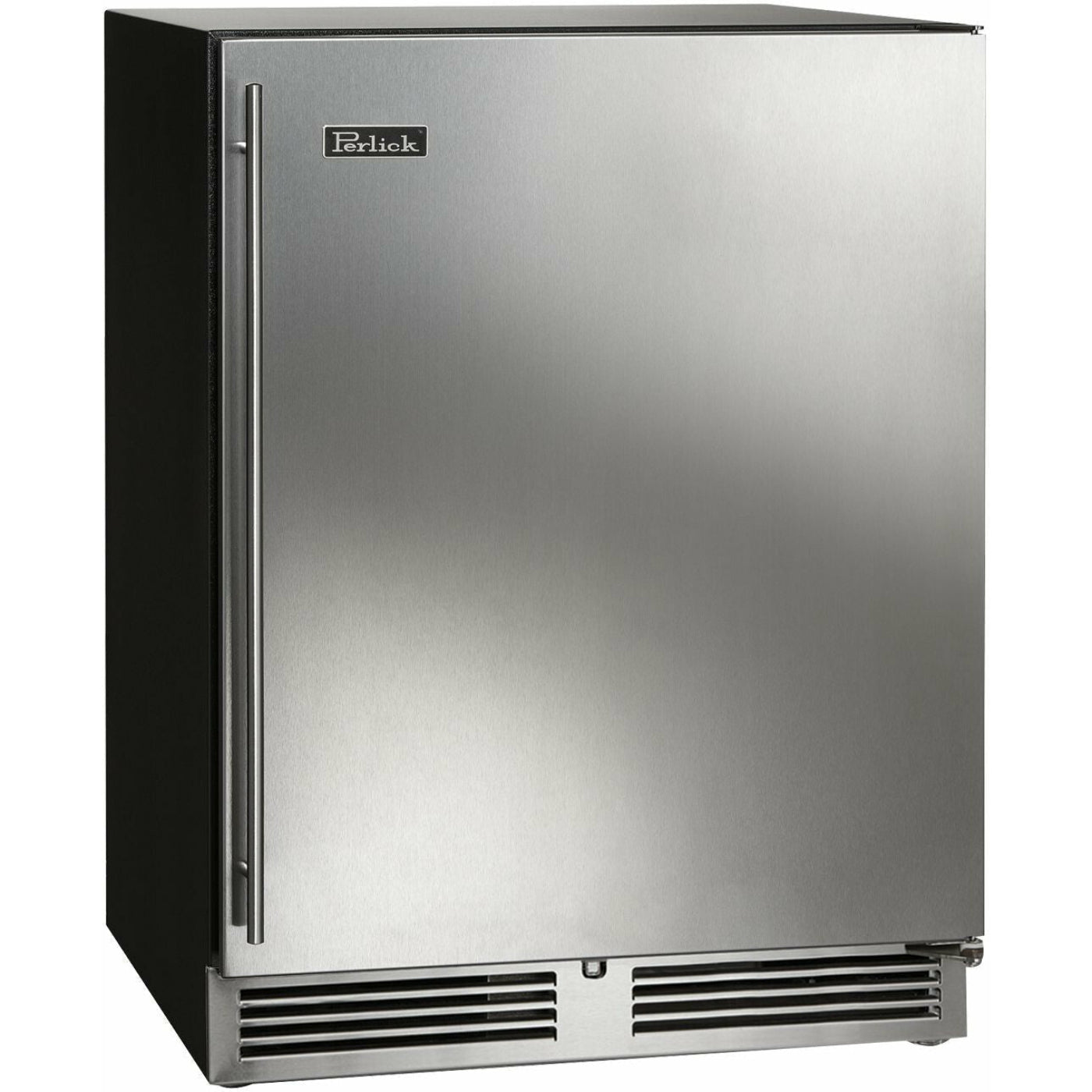

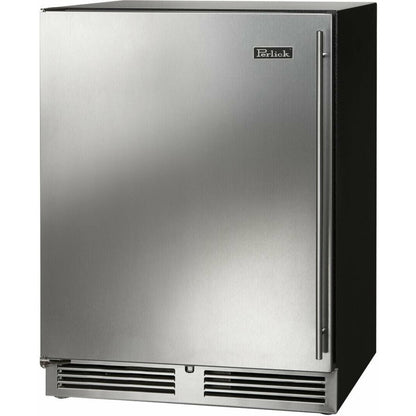

Perlick 24" Wine Reserve w/ Stainless Steel Solid Door, ADA Compliant with 32 Bottle Capacity - HA24WB-4-1
24 Inch Undercounter
Wine Reserve is a favorite for homes and light commercial venues, such as hotels and temporary luxury residences, as well as for aging-in-place design locations. The spacious interior has a storage capacity of 4.8 cu. ft. to store up to 32 bottles of wine, with room to store additional bottles underneath. It is UL Listed and equipped with a door alarm for added security. It features LED lighting, 5-full-extension wine shelves, a digital thermostat, stainless steel interior, and stainless steel ball-bearing glides.
Features
LED Light
- Selectable blue or white LED lighting.
Stainless Steel Glides
- The stainless steel ball-bearing glides provide smooth movement of shelves.
Door Alarm
- Audible door alarm warns the user if the door is held open.
4.8 cu. ft Capacity
- Storage for up to 32 bottles of wine on the shelves plus extra storage on the floor of the unit.

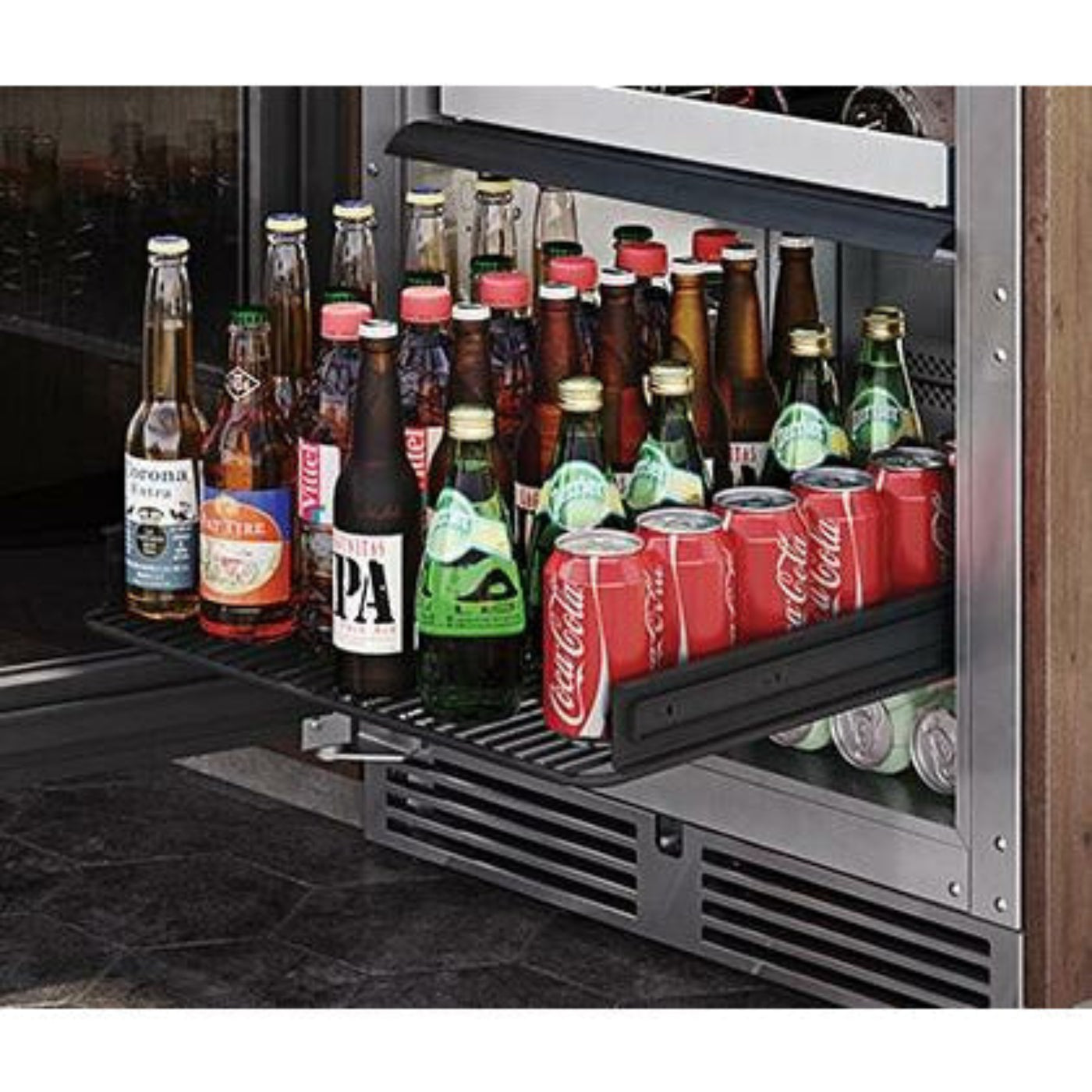

Full-Extension Shelves
- Provides faster and safer product access with no reaching in the back of the cabinets; stainless steel wine shelves will not absorb odors over time.
Stainless Steel Interior
- Commercial-grade all stainless steel interior provides superior durability and easy cleaning; black vinyl exterior for built-in applications.
Compressor
- Variable speed compressor minimizes sound; up to 30% quieter than competitors.
800 BTU/hr Capacity
- Delivers commercial-grade cooling performance.
R600a Natural Refrigerant
- Offers maximum energy efficiency with zero ozone depletion potential.
Bottle Capacity
Additional Features
Specifications
| Commercial / Residential |
Residential |
| Indoor / Outdoor |
Indoor |
| Undercounter |
Yes |
| Back Finish |
Galvanized Steel |
| Interior Material |
Stainless Steel |
| Top Finish |
Stainless Steel |
| Sides Finish |
Black Vinyl |
| Interior Capacity |
4.8 cu. ft. |
| Bottle Capacity |
32 wine bottles |
| Thermostat |
Digital |
| Full Extension Pull-Out Shelving |
Yes |
| Shelving Material |
Vinyl-coated |
| Lighting Type |
LED |
| Lighting Color |
White or Blue |
| Leveling Legs |
Yes |
| Number of Doors |
1 |
| Field Reversible Door |
Yes |
| Refrigerant Type |
R600a |
| Temperature Range |
45°–65°F |
| Energy-efficient, Eco-friendly Design |
Yes |
| NSF Approved for Open Food Storage |
Yes |
| Electrical Specifications |
|
| Category |
Details |
| Electrical Supply |
115 VAC / 60 Hz / 1 Ph |
| Running Load Amps |
2.2 amps |
| Electrical Connection |
Cord Connected |
| Cord Plug Type |
NEMA 3 Prong 5-15P |
| Cord Length |
6' |
| Defrost Initiation |
Automatic |
| Defrost Type |
Off Cycle |
Dimensions and Weight
Door Swing Clearance:
24 15/16"
Shipping Weight:
181 lb.
What our Experts Think
-
Perfect Size & Capacity: Compact 24" width with room for 32 wine bottles, ideal for ADA-compliant spaces.
-
Elegant Stainless Steel Solid Door: Offers a sleek, modern look while protecting wine from light exposure.
-
Optimal Wine Storage: Maintains precise temperature and humidity for long-term preservation.
-
Energy Efficient: Designed to minimize energy use while ensuring consistent performance.
-
Durable Construction: Built with premium materials for reliable, long-lasting use.
-
User-Friendly: ADA compliant with intuitive controls for effortless operation.
Q&A
Q: What is the bottle capacity of the Perlick HA24WB-4-1 Wine Reserve?
A: It holds up to 32 wine bottles.
Q: Is this wine reserve ADA compliant?
A: Yes, it meets ADA accessibility standards.
Q: What type of door does this model have?
A: It features a stainless steel solid door for a sleek, professional look.
Q: What are the dimensions of this wine reserve?
A: The unit is 24 inches wide, perfect for compact spaces.
Q: Is this wine reserve designed for home or commercial use?
A: It’s suitable for both residential and commercial settings.
Maintenance Tips
-
Clean stainless steel door with a soft cloth and stainless steel cleaner to prevent smudges.
-
Dust condenser coils every 3 months for optimal cooling performance.
-
Wipe interior and door gaskets regularly to maintain airtight seal and prevent odors.
-
Check and clear drain pan monthly to avoid water buildup.
-
Avoid overcrowding to ensure proper airflow and consistent temperature for wine preservation.
