Pioneer® 18,000 BTU 20.5 SEER2 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System Full Set 230V

Overview

Summary

• Ultra High Efficiency Inverter++ ceiling cassette split heat pump system
• Cooling capacity: 16,000 BTU/H with 20.5 SEER2 / 12.5 EER2 efficiency
• Heating capacity: 19,000 BTU/H with 10.5 HSPF2 / 2.78 COP2 efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Ceiling Compact Cassette Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• Energy-Star Certified
• AHRI Estimated Annual Operating Costs:
• Cooling: $103.00
• Heating: $356.00

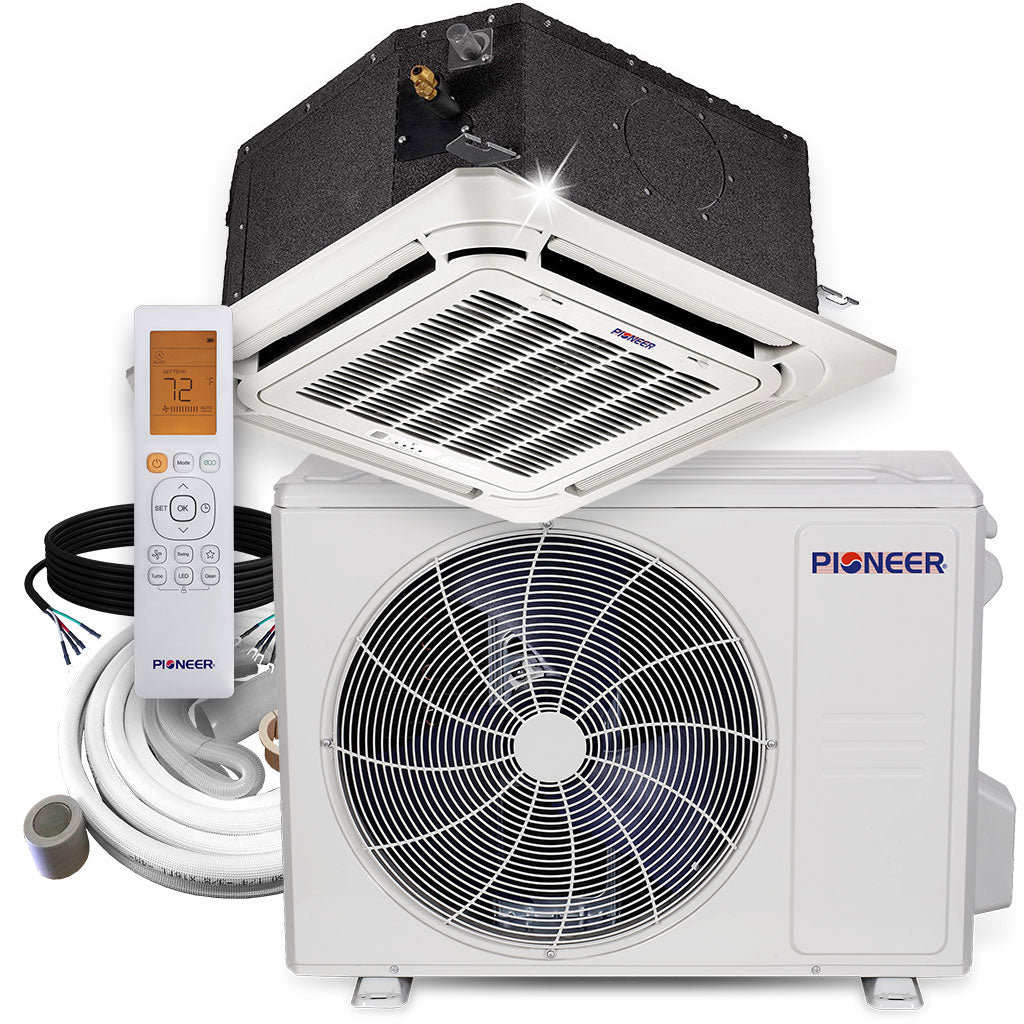

What's Included

• Indoor Unit
• Outdoor Unit
• Panel
• Wireless Remote Control
• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Our Guarantee

• 5 year parts limited warranty
• 5 year compressor limited warranty

Features

Technical Information

Certifications

Performance Data

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Rated Capacity: 16,000 BTU/h
• Cooling Capacity Range: 5,600~16,000 BTU/h
• Cooling SEER2: 20.5 BTU/W.h
• Cooling EER2: 12.5 BTU/W.h
• Heating Rated Capacity: 19,000 BTU/h
• Heating Capacity Range: 7,700~19,000 BTU/h
• Heating HSPF2: 10.5 BTU/W.h
• Refrigerant Type: R410a
• Suitable Area: 400~650 Sq.F

Indoor Unit Data

• Model: CB018GMFILCFHD
• Air Flow (Hi/Med/Lo): 365 / 310 / 265 CFM
• Sound Level (Hi/Med/Lo): 43.0 / 38.5 / 34.5 dB(A)
• Net Dimensions (WDH): 22.5 x 22.5 x 10.3 Inches
• Carton Dimensions (WDH): 25.8 x 25.8 x 11.5 Inches
• Net / Gross Weight: 35.7 / 47 Lbs

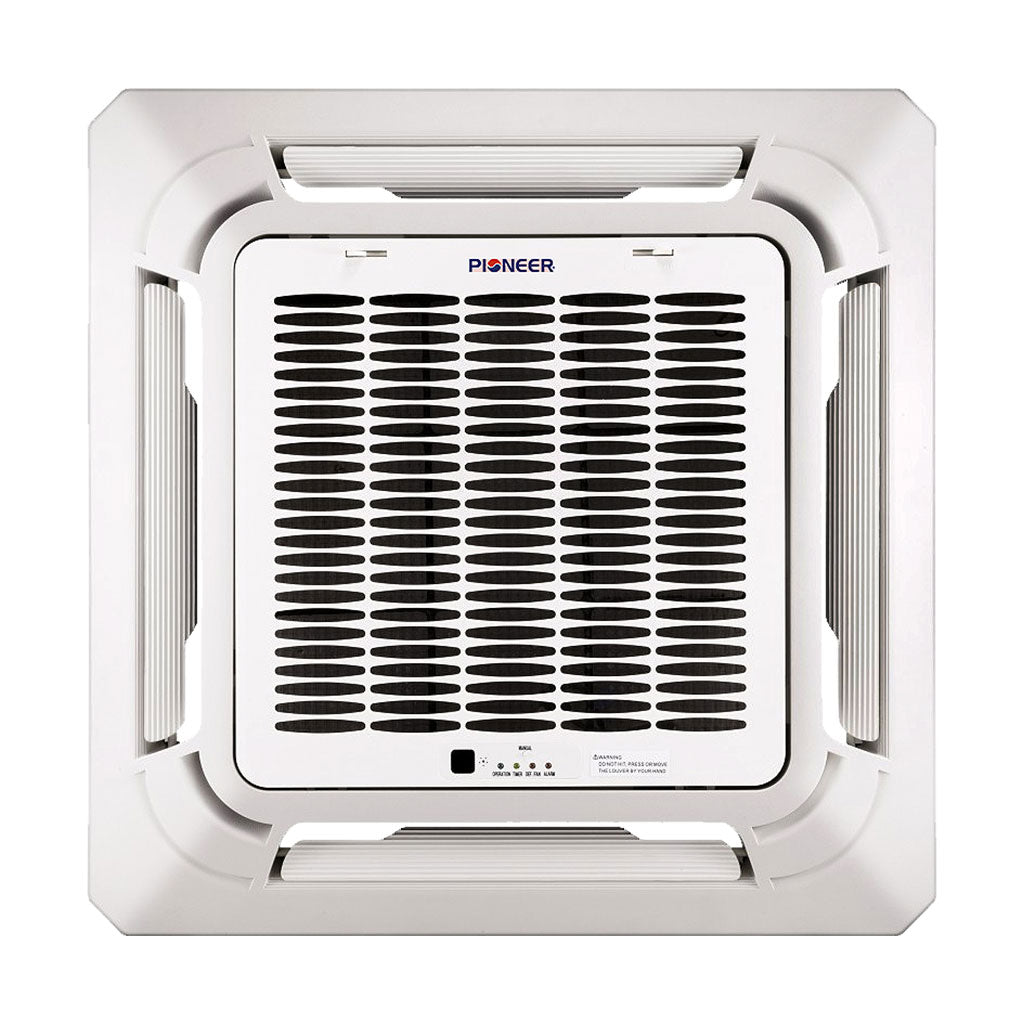

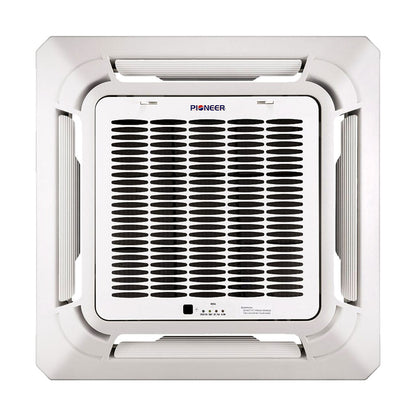

Panel Data

• Net Dimensions (WDH): 25.5 x 25.5 x 2.0 Inches
• Carton Dimensions (WDH): 28.0 x 28.0 x 5.0 Inches
• Net / Gross Weight: 5.5 / 9.9 Lbs

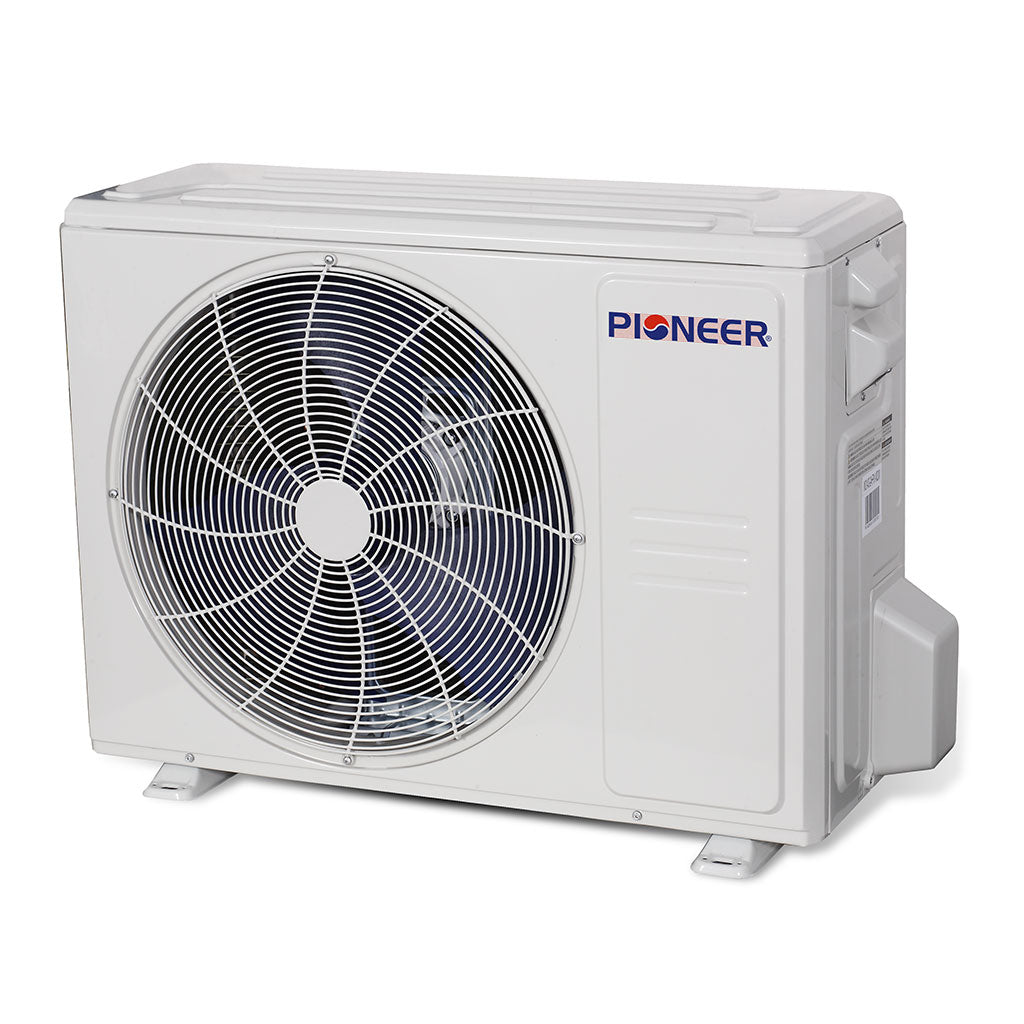

Outdoor Unit Data

• Model: YN018GMFI22RPE
• Sound Level: 59.0 dB(A)
• Net Dimensions (WDH): 35.0 x 13.5 x 26.5 Inches
• Carton Dimensions (WDH): 39.2 x 15.6 x 29.2 Inches
• Net / Gross Weight: 94.4 / 101 Lbs
• Breaker Needed: 20A (double-pole)

Manuals & Downloads

• Series Technical Brochure
• Series User Manual
• Series Installation Manual
• Series Service Manual
• Series Disassembly Guide
• CYB018GMFILCAD Submittal Sheet
• AHRI Certificate
• Energy Guide
