Overview
Summary
-

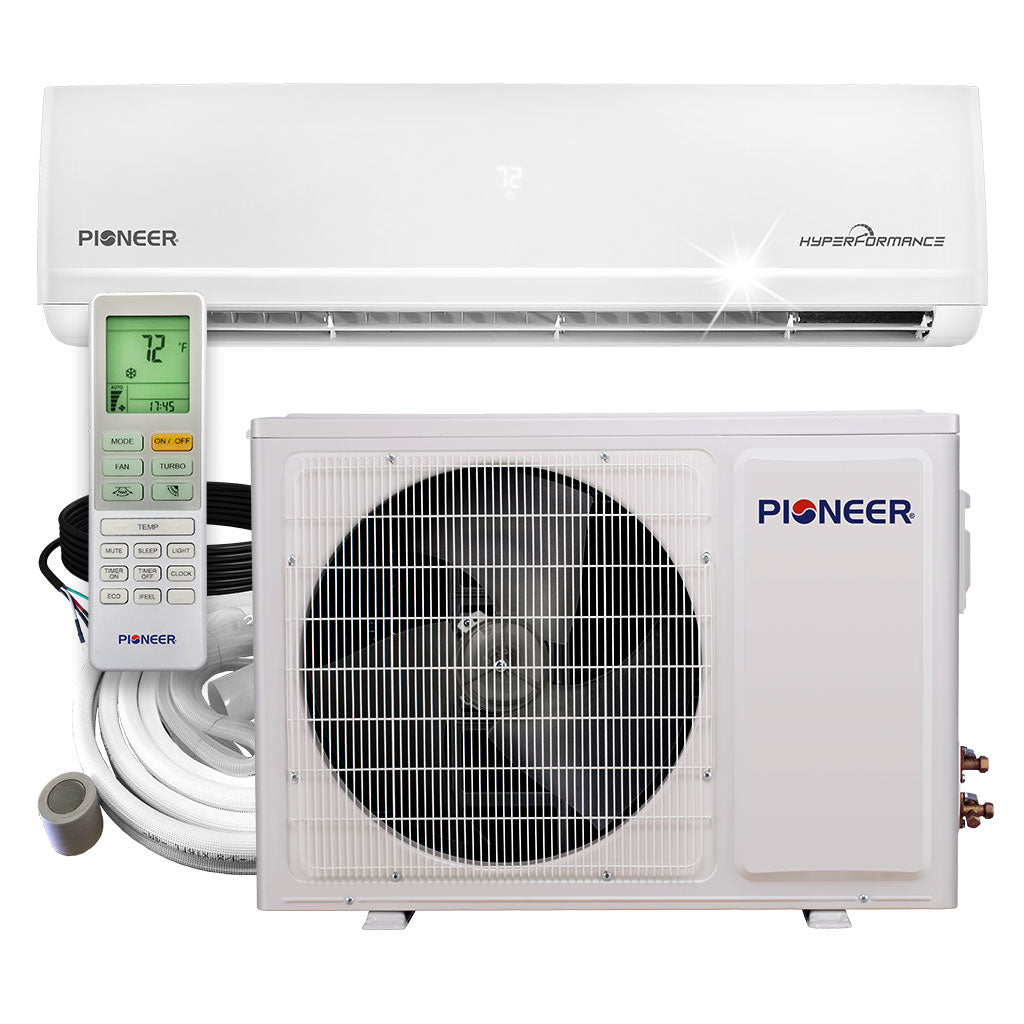

Ultra Low Ambient Hyperformance™ Ductless Mini Split Hyper Heat Pump System
- Cooling capacity: 12,000 BTU/H (1 Ton) with 23.5 SEER2 / 12.7 EER2 efficiency
- Heating capacity: 12,000 BTU/H (1 Ton) with 9.5 HSPF2 / 3.74 COP efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
-
Hyper Heat Unit (Continues heating in -22°F weather)
- Wireless Internet Access Included (Via Free Smartphone App)
[[SERIES]]
What's Included
- Indoor Unit
- Outdoor Unit

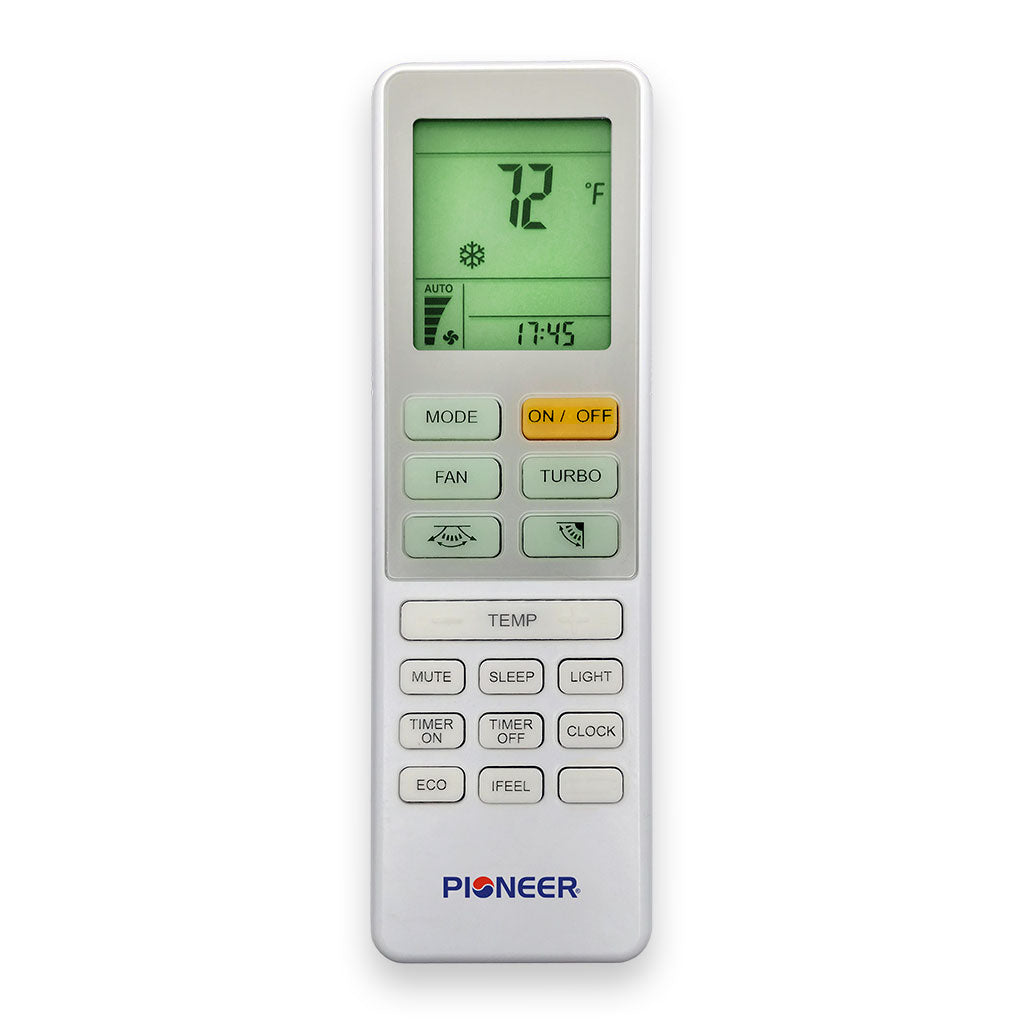

- Wireless Remote Control (with wall holder and batteries)
- Internet Control Module

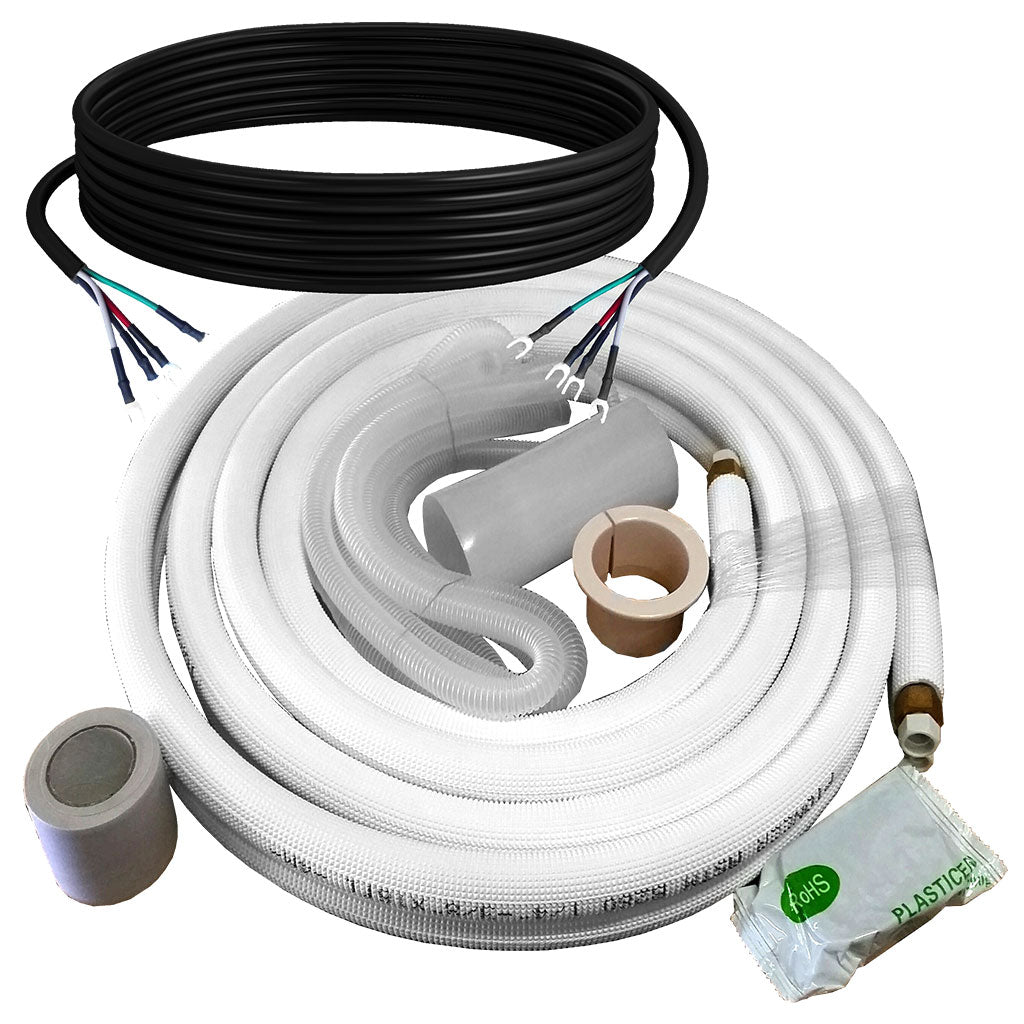

- Copper Lines*
- Signal Cable Between Units*
- Drain for Indoor/Outdoor*
- Wall Passage Sleeve*
- Putty for Wall Hole*
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
*If ordered with an installation kit
Our Guarantee
-
5 years Warranty for Parts (Extendable to up to 7 years)
-
5 years for Compressor (Extendable to up to 10 years)
Features
[[FEATURES]]
Technical Information
Performance Data
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Rated Capacity (BTU/hr): 12,000 (3,000 ~ 14,000)
-
Rated Power Input (Cooling): 940W
-
Rated Current (Cooling): 4.3A
-
Cooling SEER2: 23.5 BTU/W.h
-
Cooling EER2: 12.7 BTU/W.h
-
Heating Rated Capacity (BTU/hr): 12,000 (3,000 ~ 16,000)
-
Rated Power Input (Heating): 940W
-
Rated Current (Heating): 4.3A
-
Heating HSPF2 (Region IV/V): 11 / 9.5 BTU/W.h
-
Heating C.O.P.2 (47°F/5°F): 3.74 / 1.98 W/W
-
Refrigerant Type/Weight: R410A/1.18kg
-
Recommended Application Area: 200~550 Sq.Ft

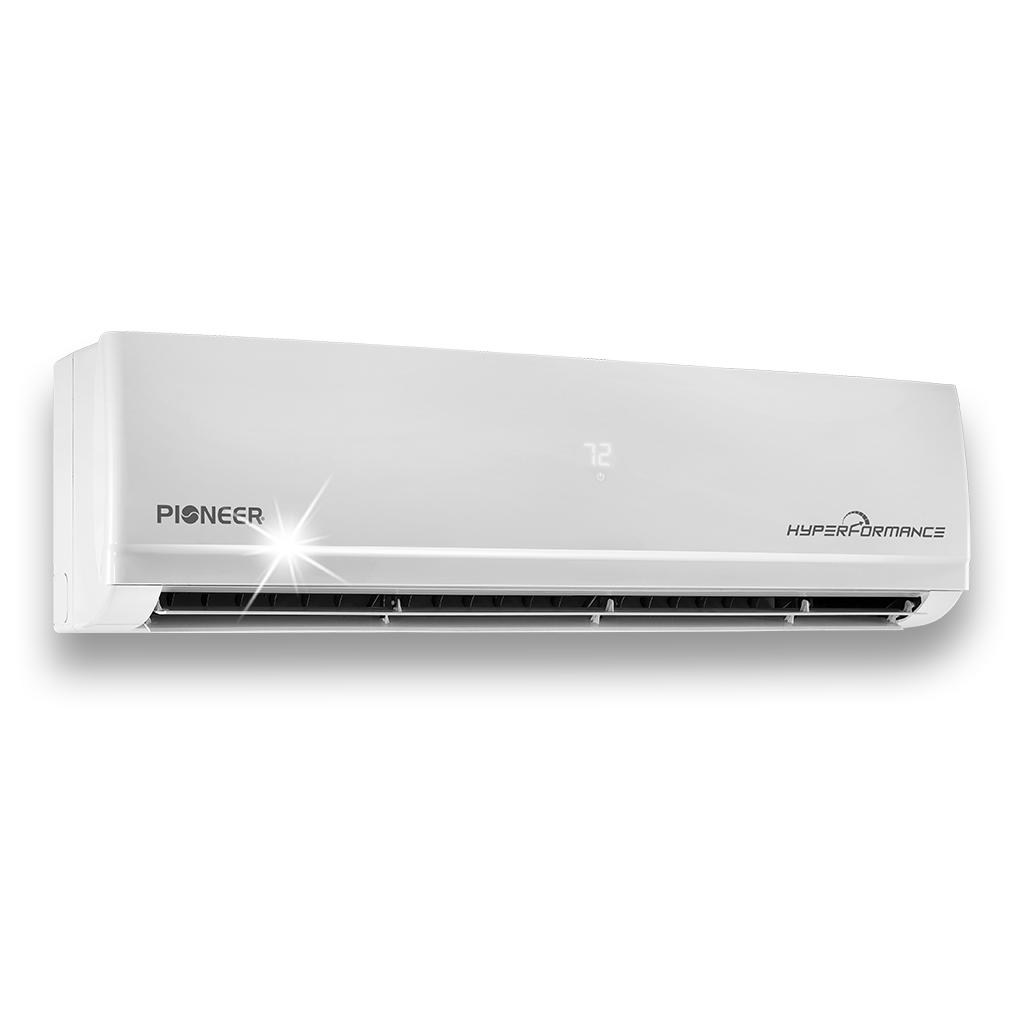

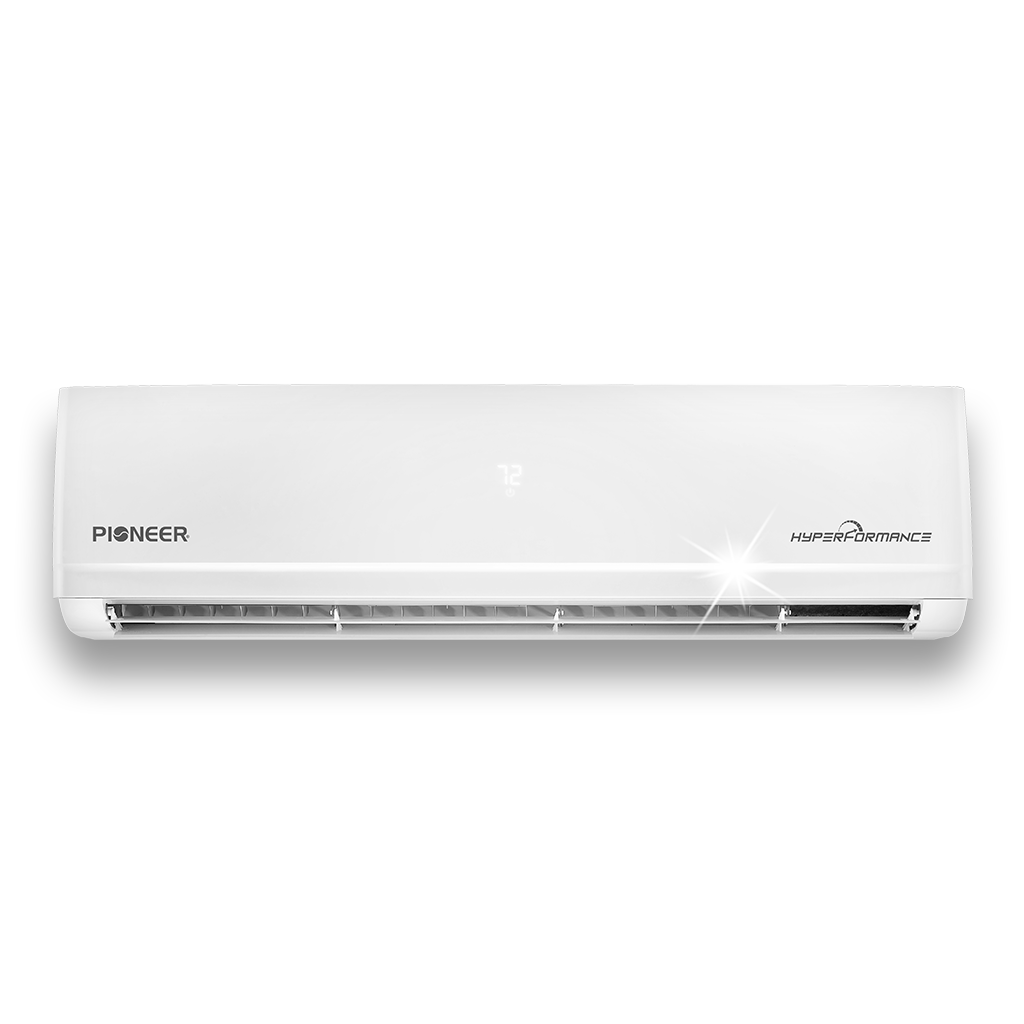

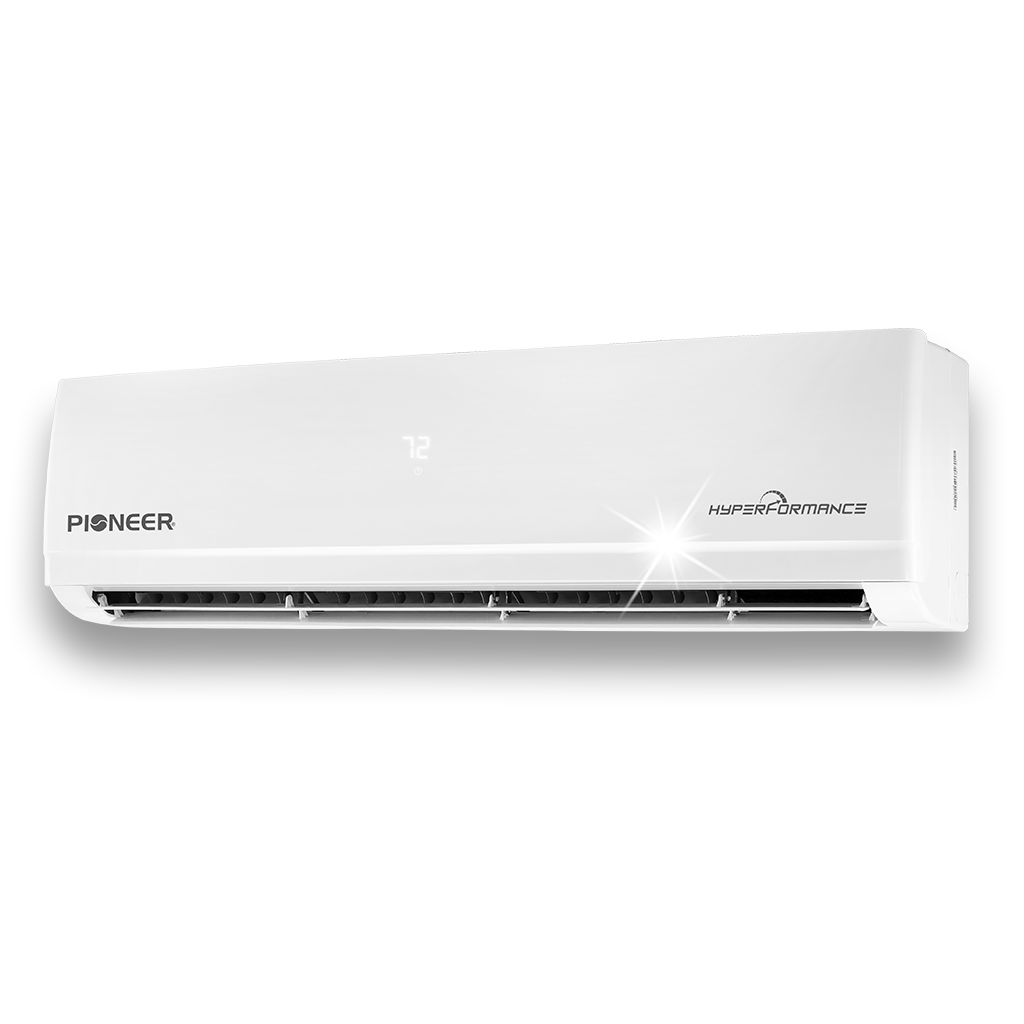

Indoor Unit Data
-
Part Number: WF012GHFI25HLH
-
Air Flow (Hi/Med/Lo): 377 / 324 / 253 CFM
-
Sound Level (Turbo/Hi/Med/Lo/Mute): 42/40/36/32/29 dB(A)
-
Net Dimensions (WDH): 33-1/2 x 8-1/8 x 10-5/8 Inches
-
Carton Dimensions (WDH): 35-1/2 x 10-1/4 x 13-1/8 Inches
-
Net / Gross Weight: 18.7 / 23.1 Lbs

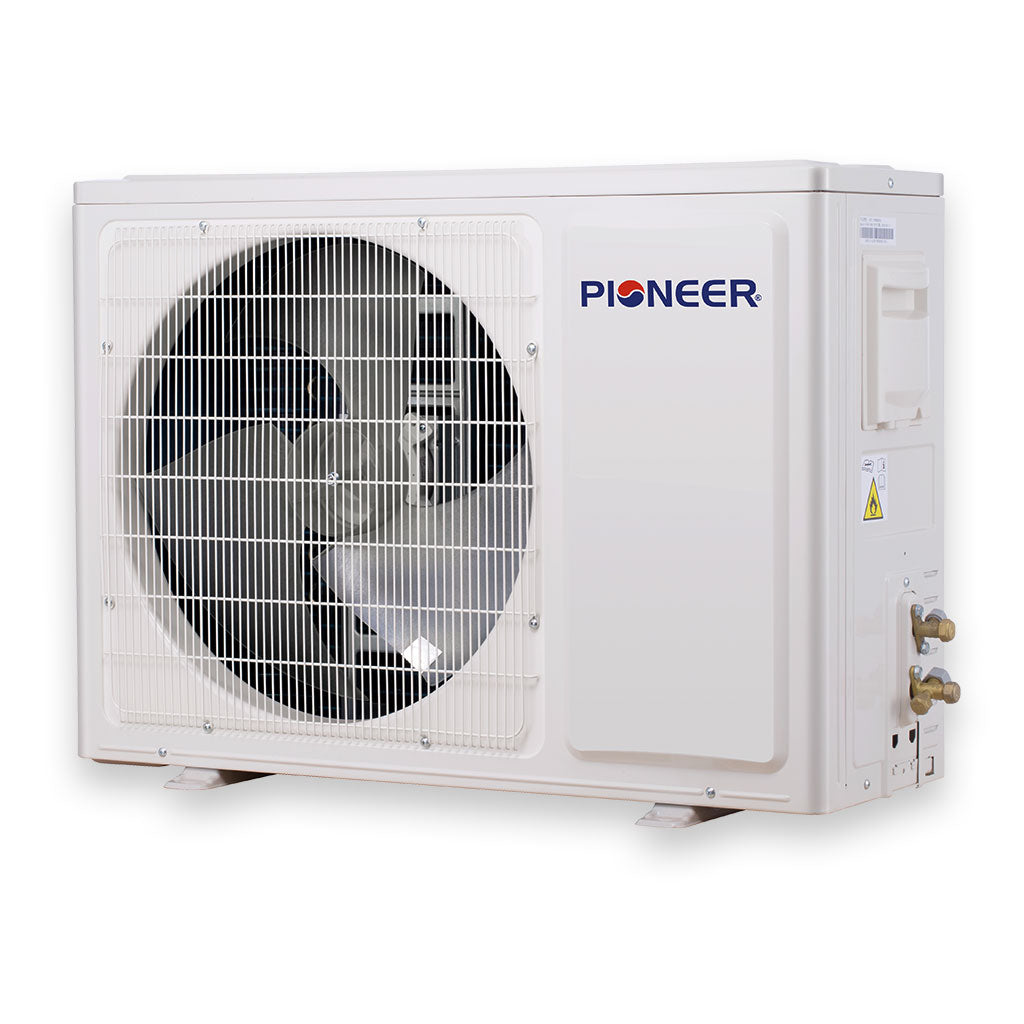

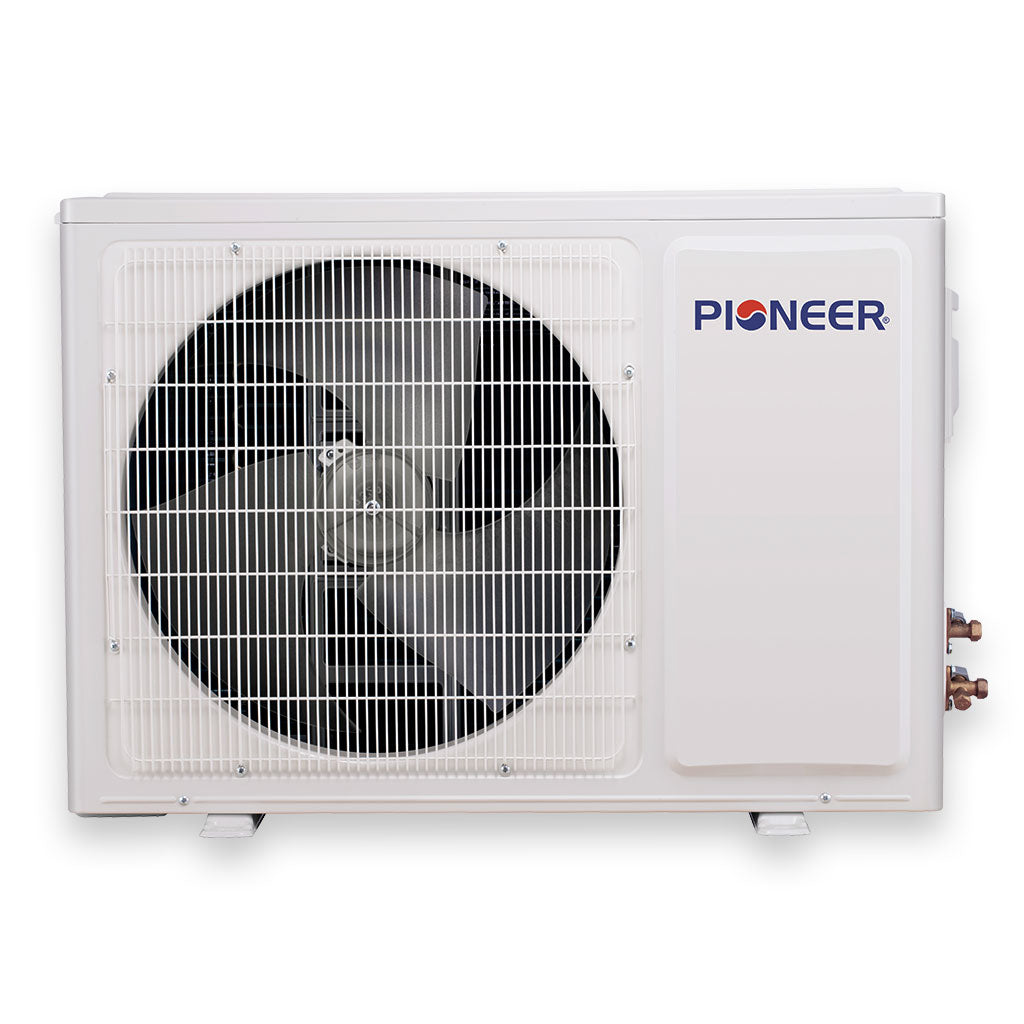

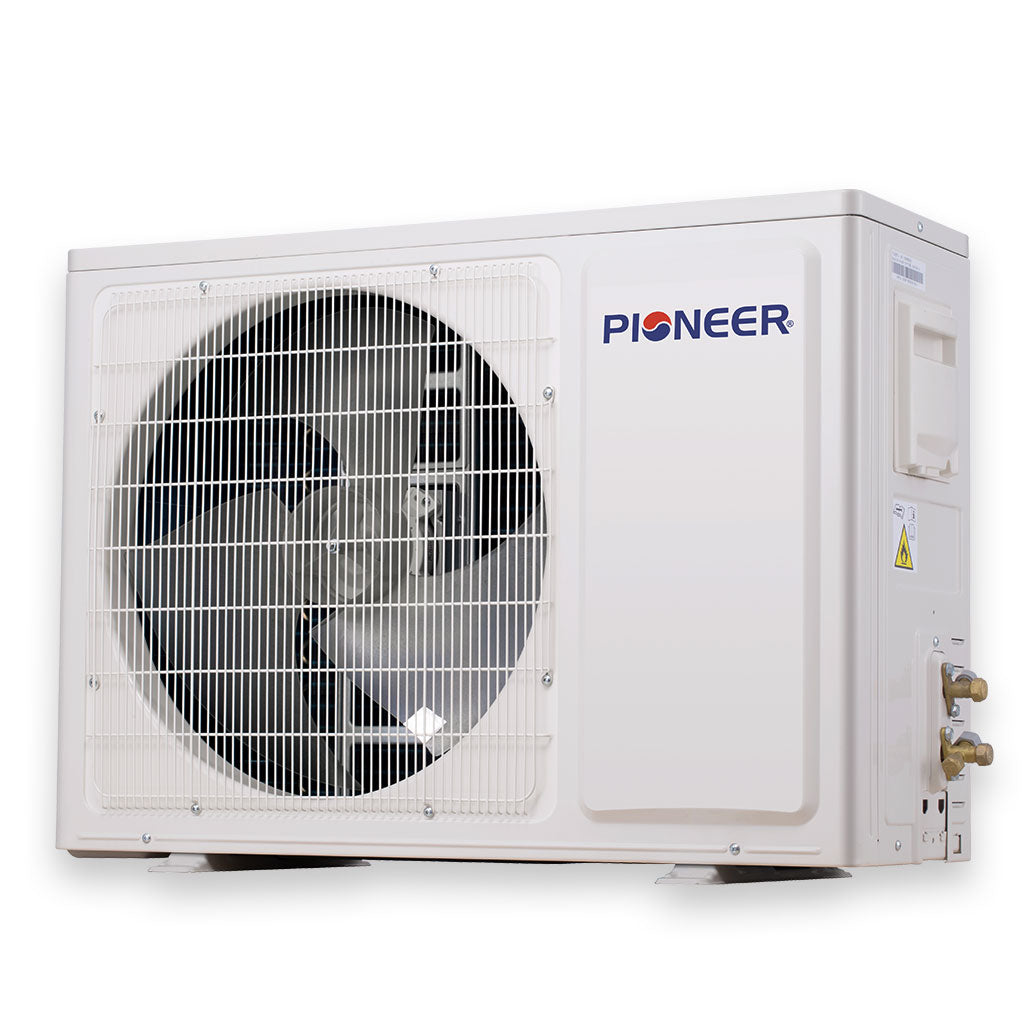

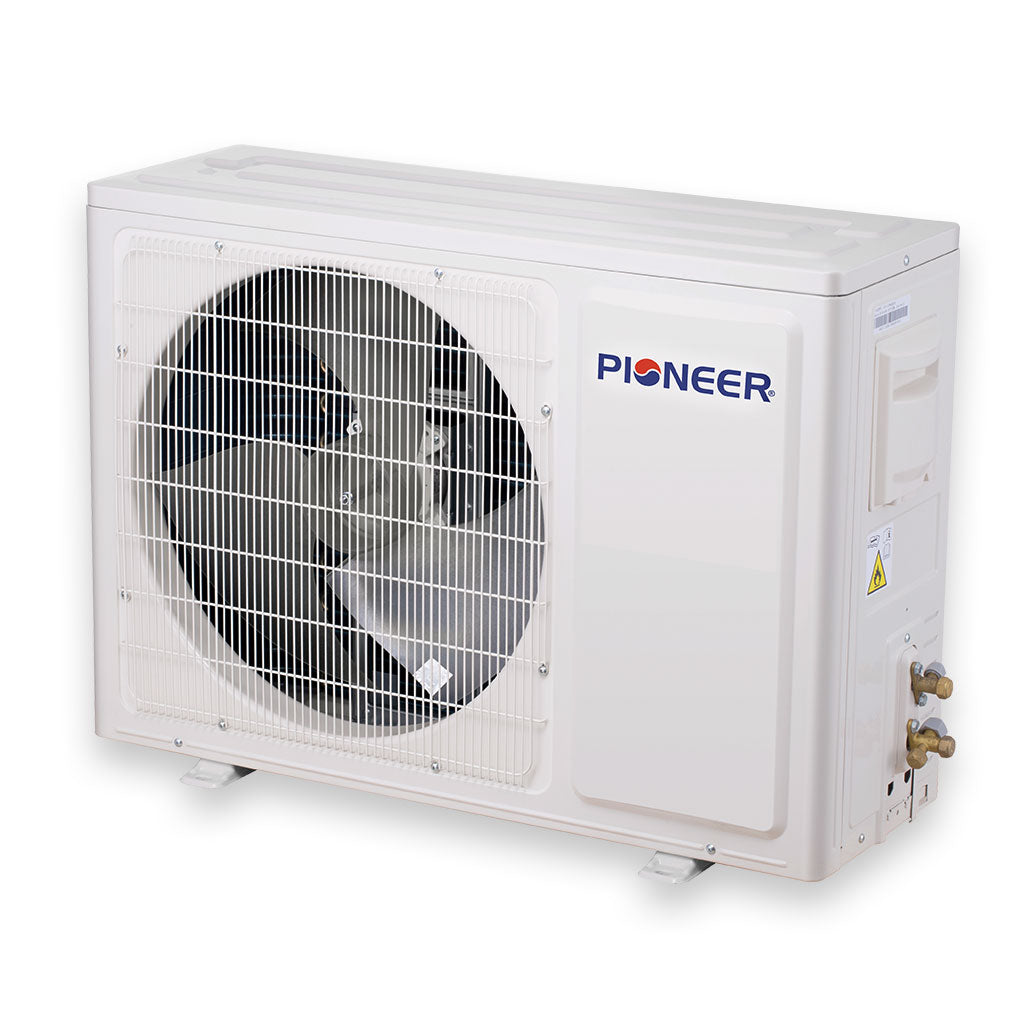

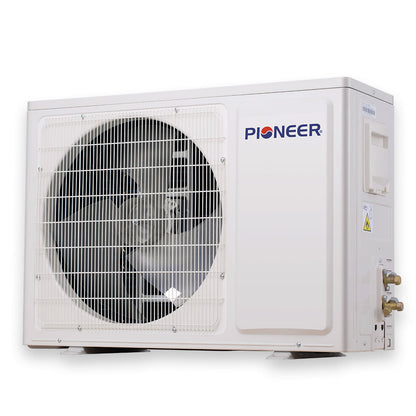

Outdoor Unit Data
-
Part Number: YN012GHFI25RPH
-
Sound Level: 53 dB(A)
-
Net Dimensions (WDH): 31-7/8 x 11 x 23 Inches
-
Carton Dimensions (WDH): 37 x 15-1/8 x 25-1/4 Inches
-
Net / Gross Weight: 72.6 / 79.2 lbs
-
Electrical Circuit Size: 15A (double-pole)
