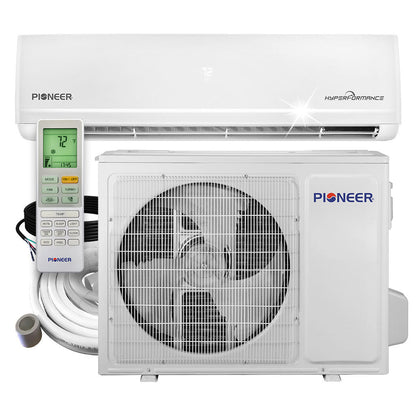

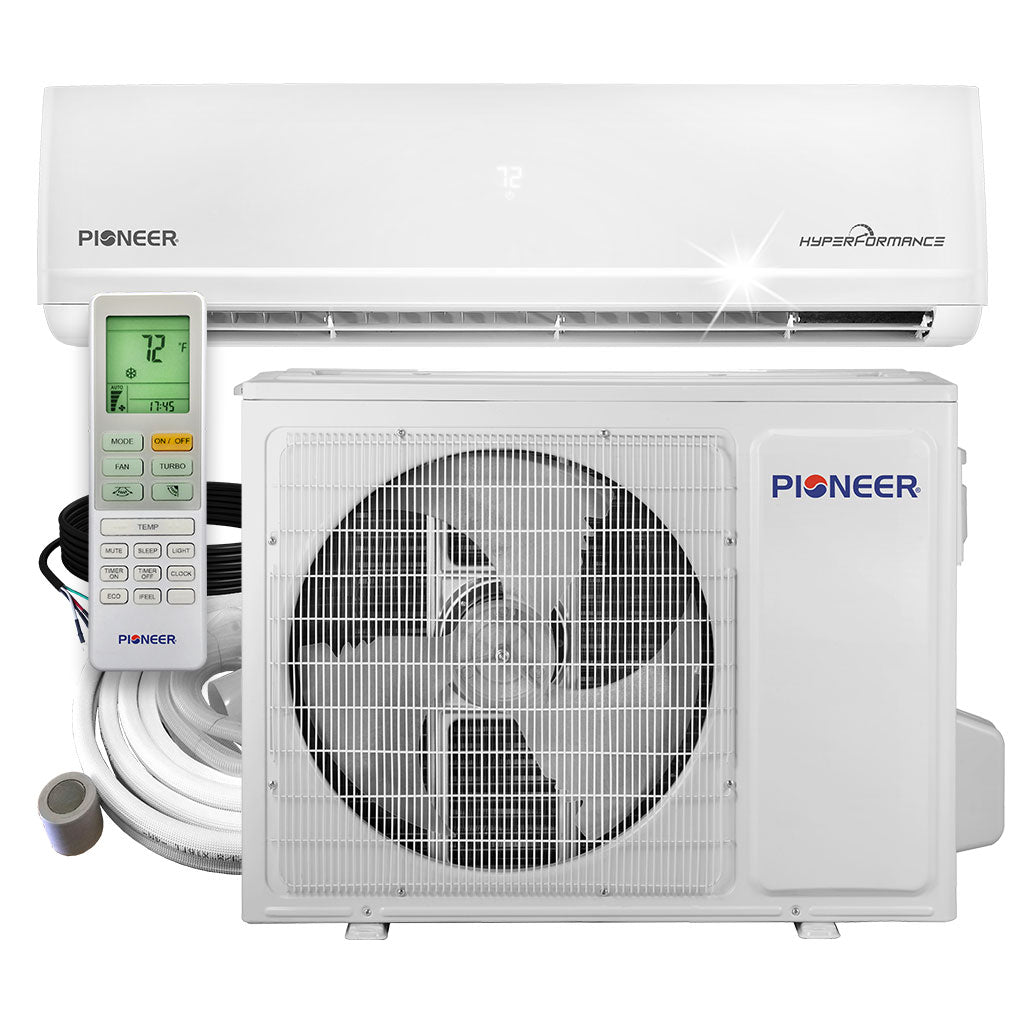

Ultra Low Ambient Hyperformance™ Ductless Mini Split Hyper Heat Pump System
- Cooling capacity: 18,000 BTU/H (1.5 Ton) with 20.5 SEER2 / 13.2 EER2 efficiency
- Heating capacity: 18,000 BTU/H (1.5 Ton) with 9.5 HSPF2 / 3.51 COP efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
-
Hyper Heat Unit (Continues heating in -22°F weather)
- Wireless Internet Access Included (Via Free Smartphone App)
[[SERIES]]
What's Included
- Indoor Unit
- Outdoor Unit

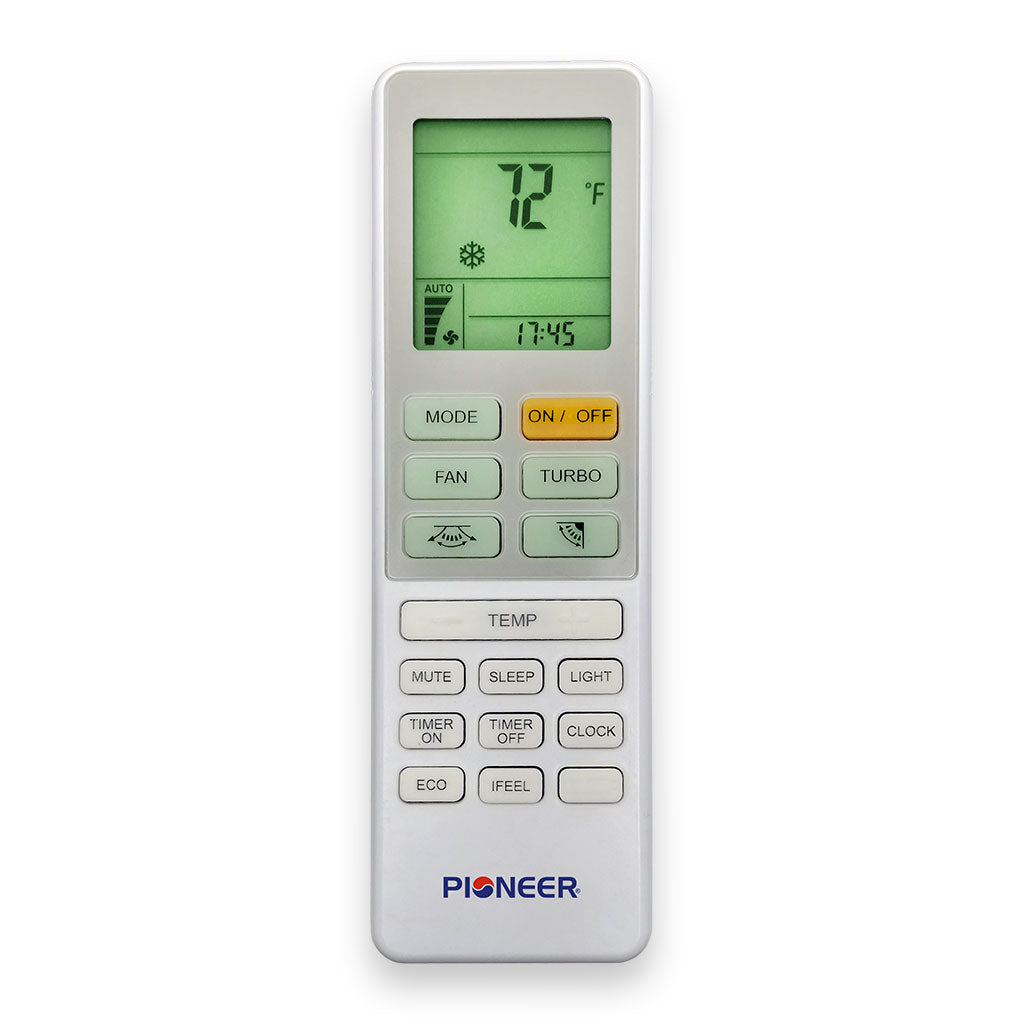

- Wireless Remote Control (with wall holder and batteries)
- Internet Control Module

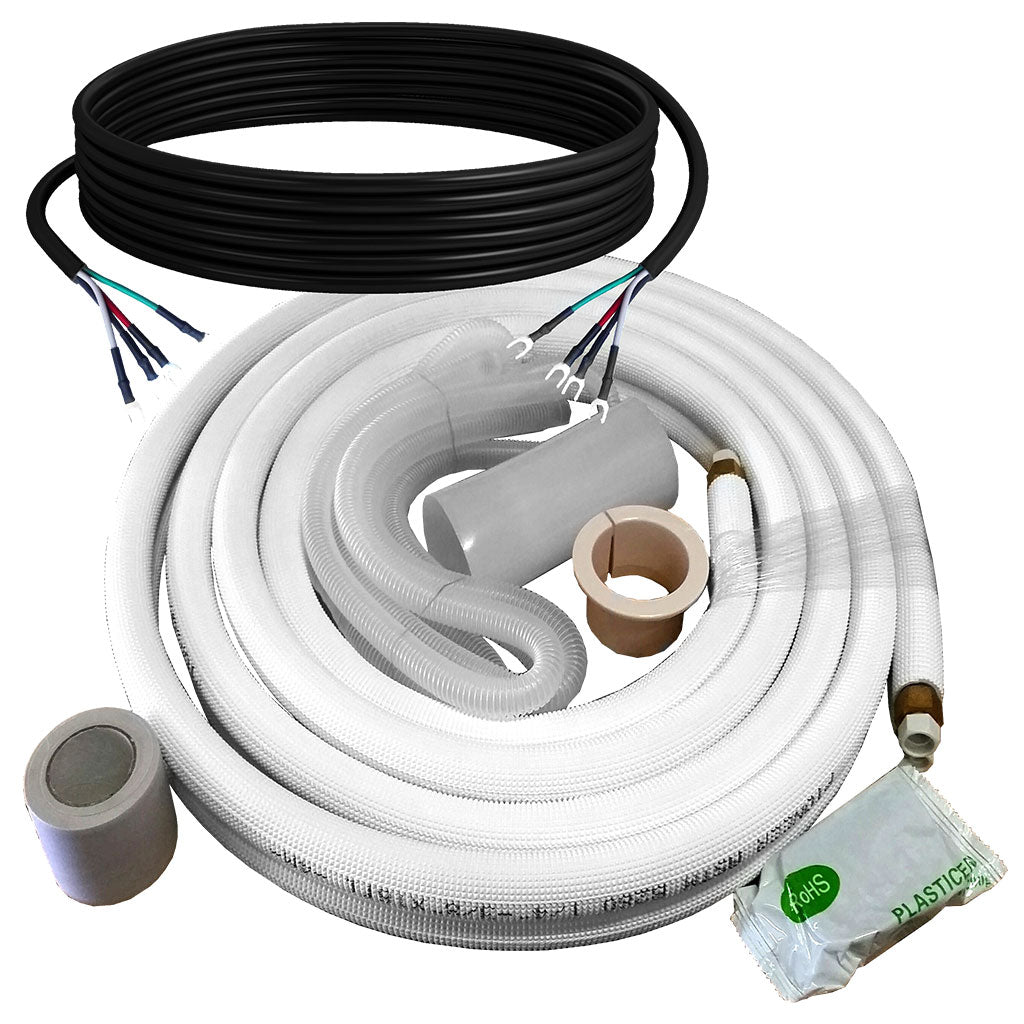

- Copper Lines*
- Signal Cable Between Units*
- Drain for Indoor/Outdoor*
- Wall Passage Sleeve*
- Putty for Wall Hole*
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
*If ordered with an installation kit
Our Guarantee
-
5 years Warranty for Parts (Extendable to up to 7 years)
-
5 years for Compressor (Extendable to up to 10 years)
Features
[[FEATURES]]
Technical Information
Performance Data
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Rated Capacity (BTU/hr): 18,000 (4,500 ~ 20,000)
-
Rated Power Input (Cooling): 1,360W
-
Rated Current (Cooling): 6.0A
-
Cooling SEER2: 20.5 BTU/W.h
-
Cooling EER2: 13.2 BTU/W.h
-
Heating Rated Capacity (BTU/hr): 19,000 (5,500 ~ 23,000)
-
Rated Power Input (Heating): 1,620W
-
Rated Current (Heating): 7.2A
-
Heating HSPF2 (Region IV/V): 10.5 / 9.5 BTU/W.h
-
Heating C.O.P.2 (47°F/5°F): 3.51 / 1.85 W/W
-
Refrigerant Type/Weight: R410A/1.9kg
-
Recommended Application Area: 350~775 Sq.Ft

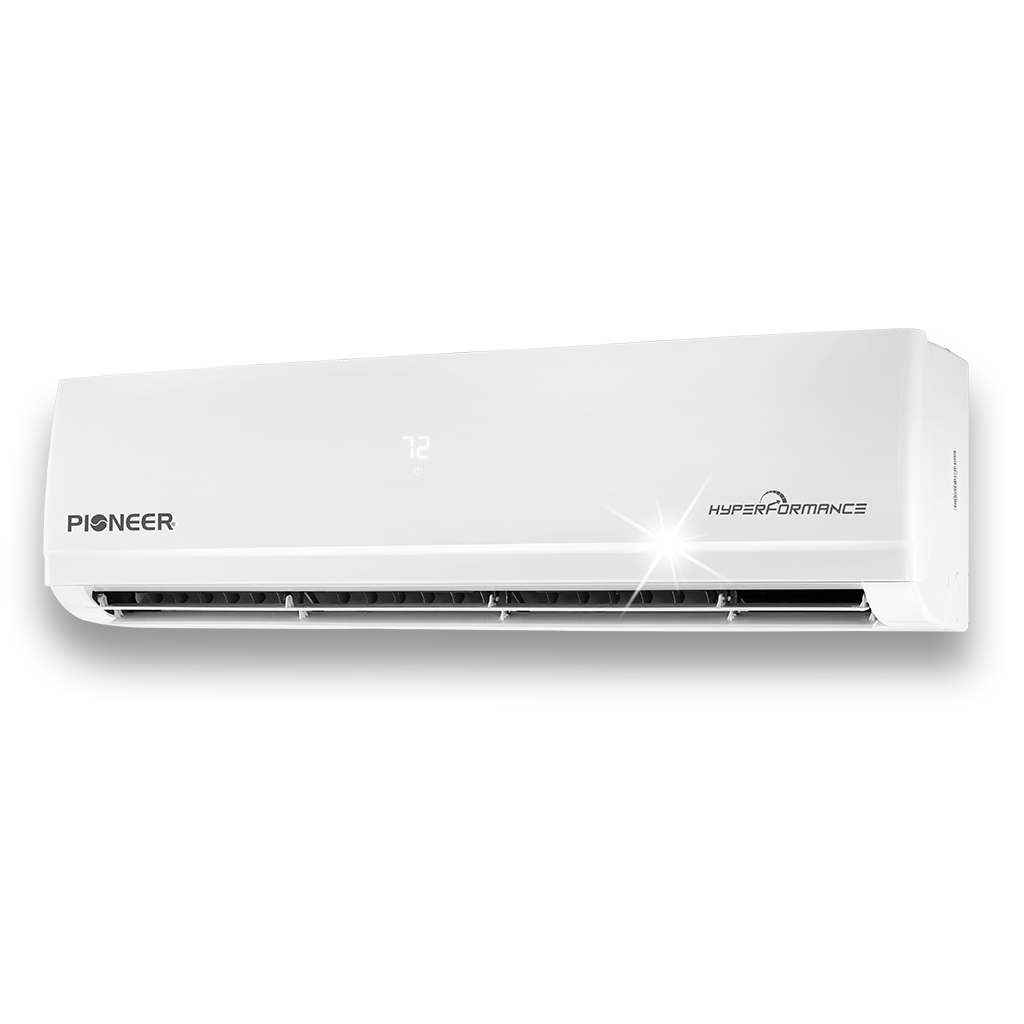

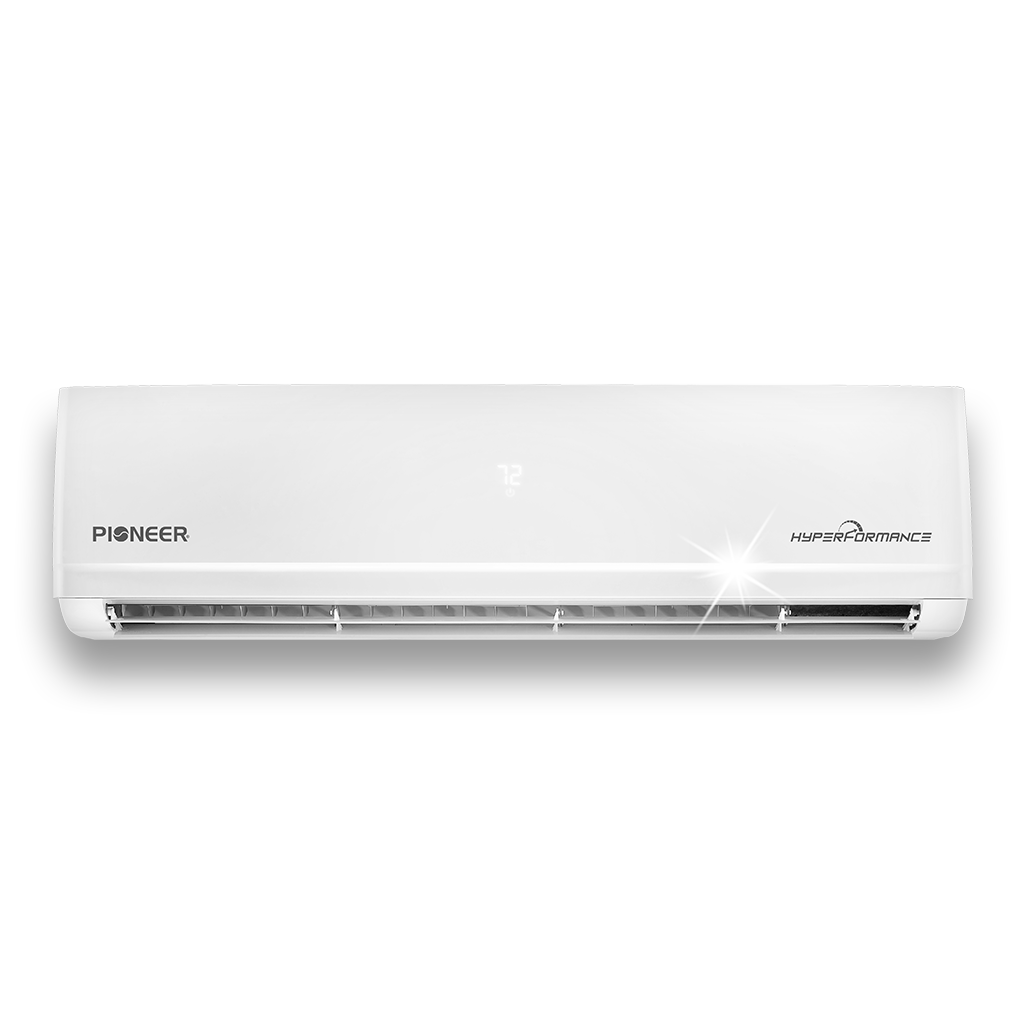

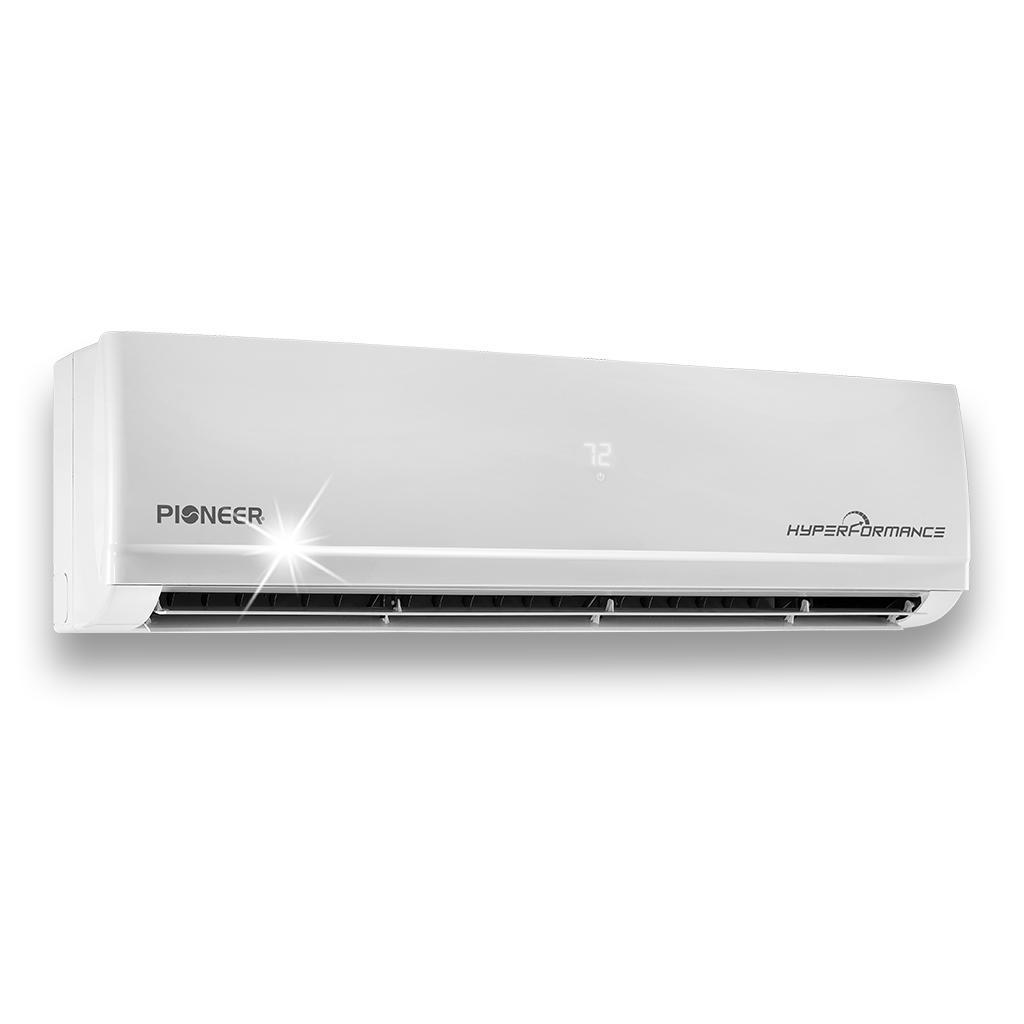

Indoor Unit Data
-
Part Number: WF018GHFI25HLH
-
Air Flow (Hi/Med/Lo): 559 / 470 / 382 CFM
-
Sound Level (Turbo/Hi/Med/Lo/Mute): 48/45/41/39/35 dB(A)
-
Net Dimensions (WDH): 44-1/2 x 9 x 12-3/8 Inches
-
Carton Dimensions (WDH): 47 x 15 x 12-7/8 Inches
-
Net / Gross Weight: 29.7 / 35.2 Lbs

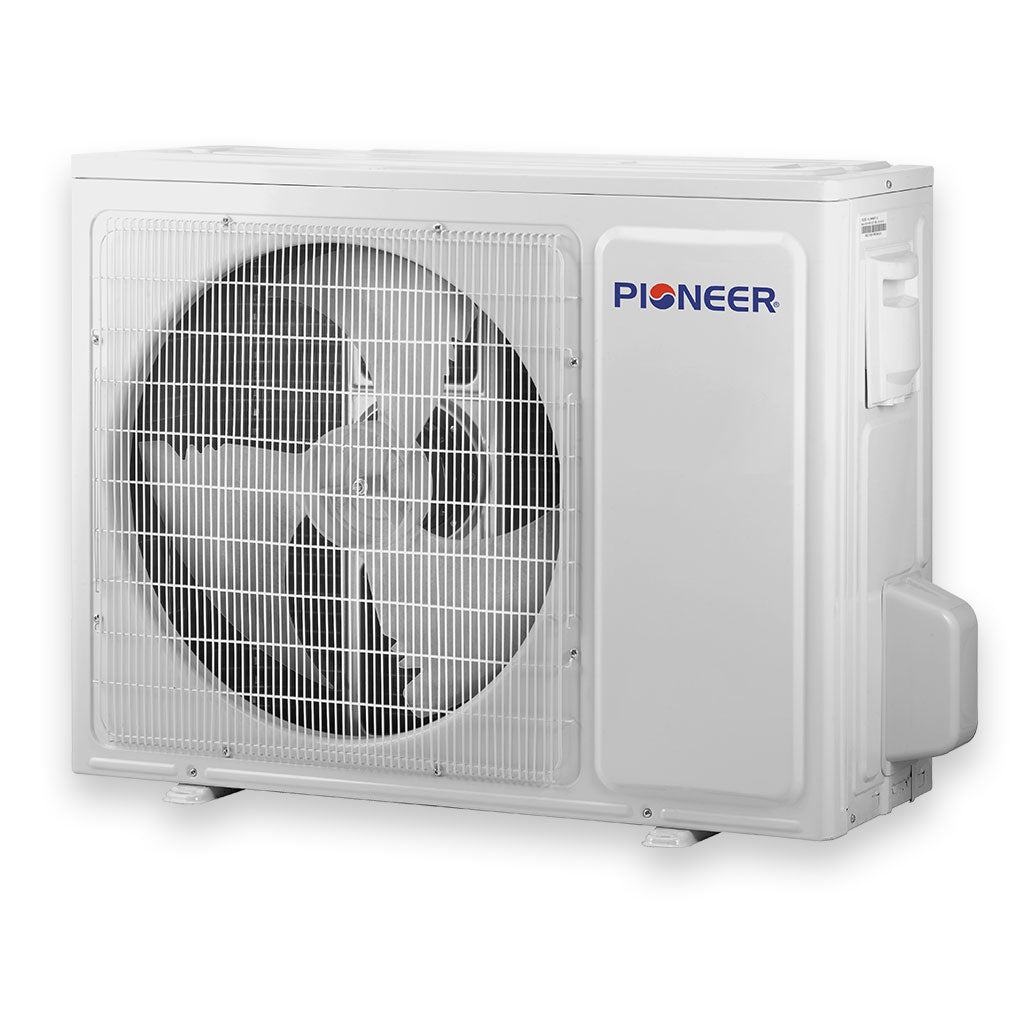

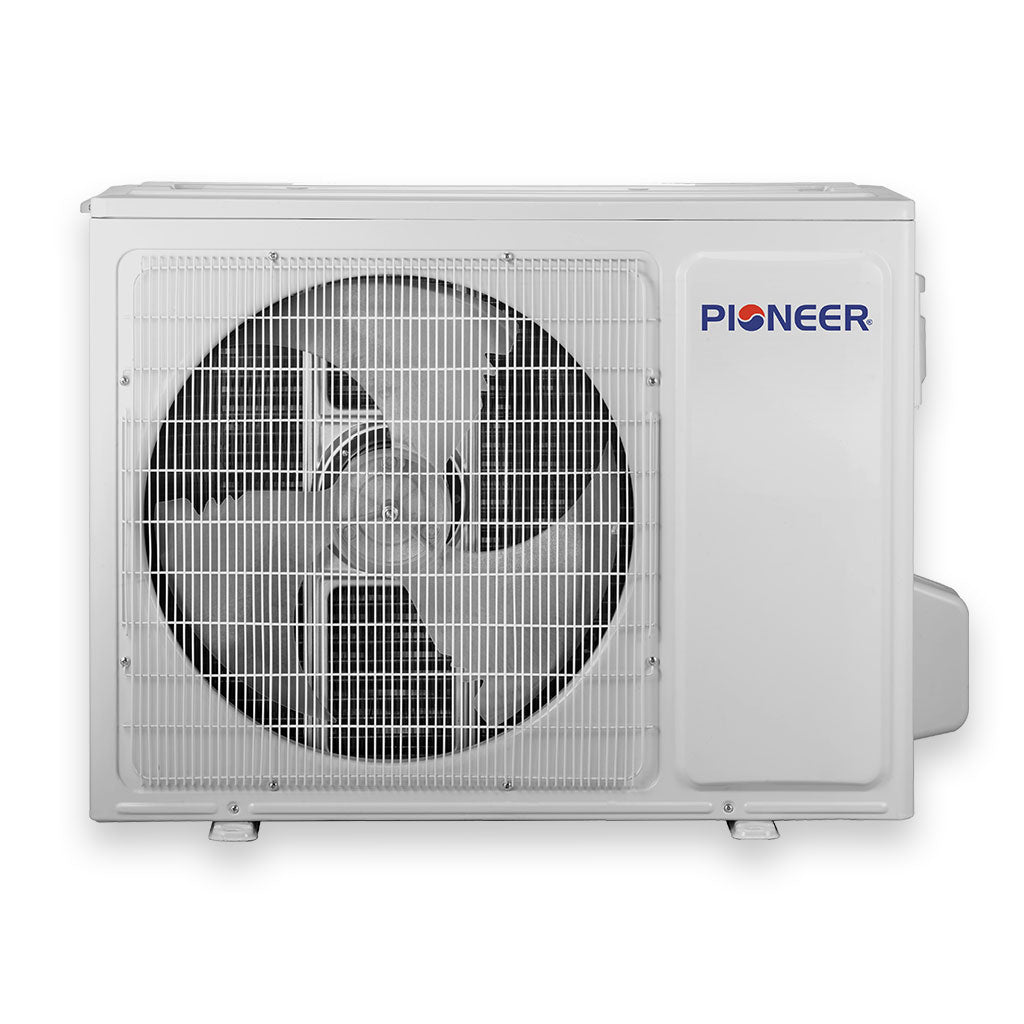

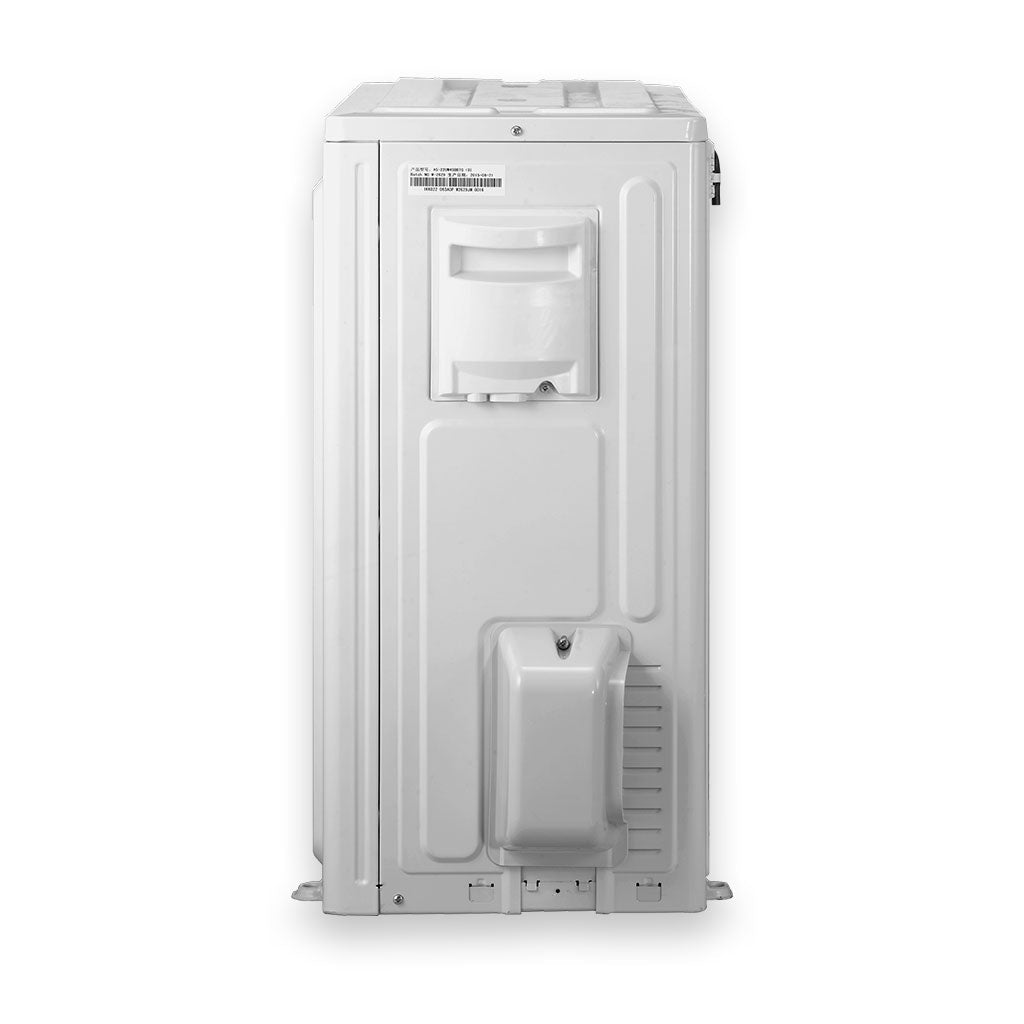

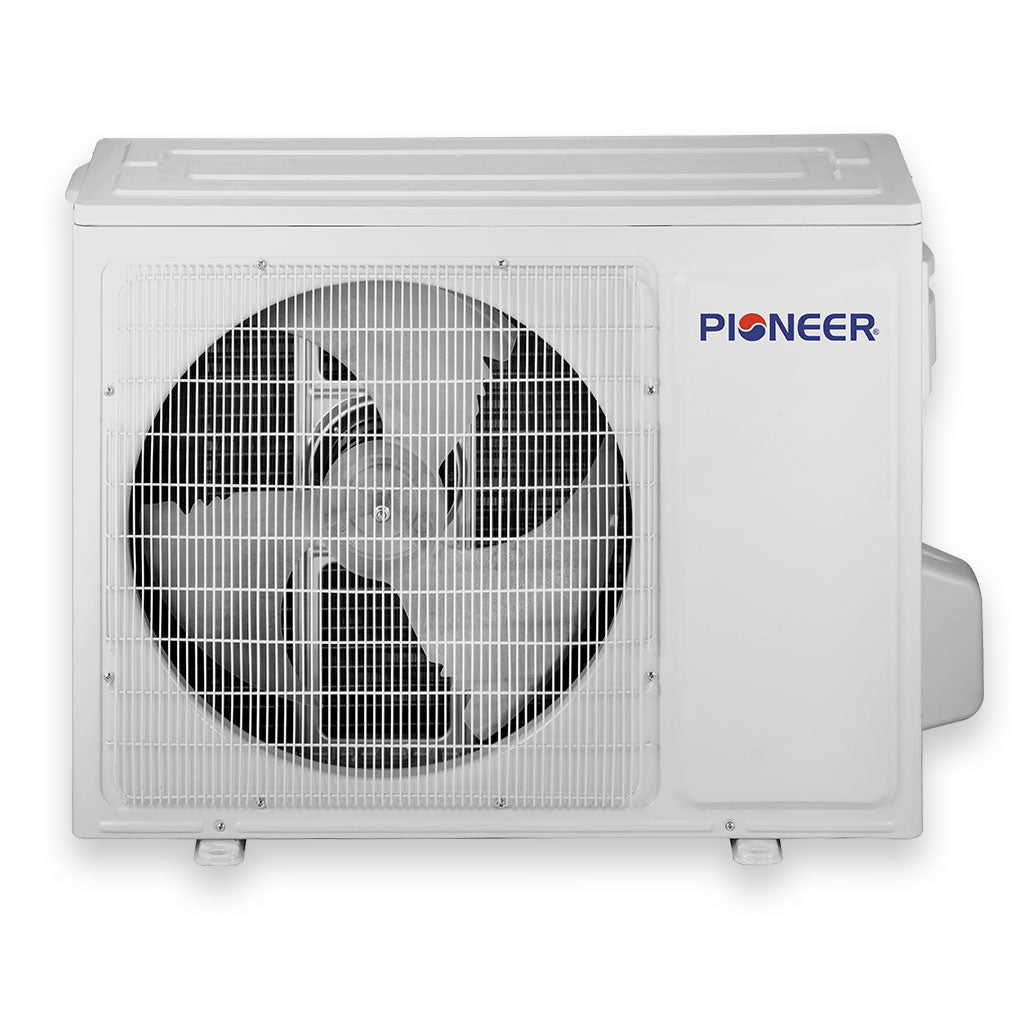

Outdoor Unit Data
-
Part Number: YN018GHFI25RPH
-
Sound Level: 58 dB(A)
-
Net Dimensions (WDH): 33-7/8 x 12-1/4 x 25-5/8 Inches
-
Carton Dimensions (WDH): 39-1/8 x 17-1/2 x 28-3/4 Inches
-
Net / Gross Weight: 101.2 / 110 lbs
-
Electrical Circuit Size: 20A (double-pole)
