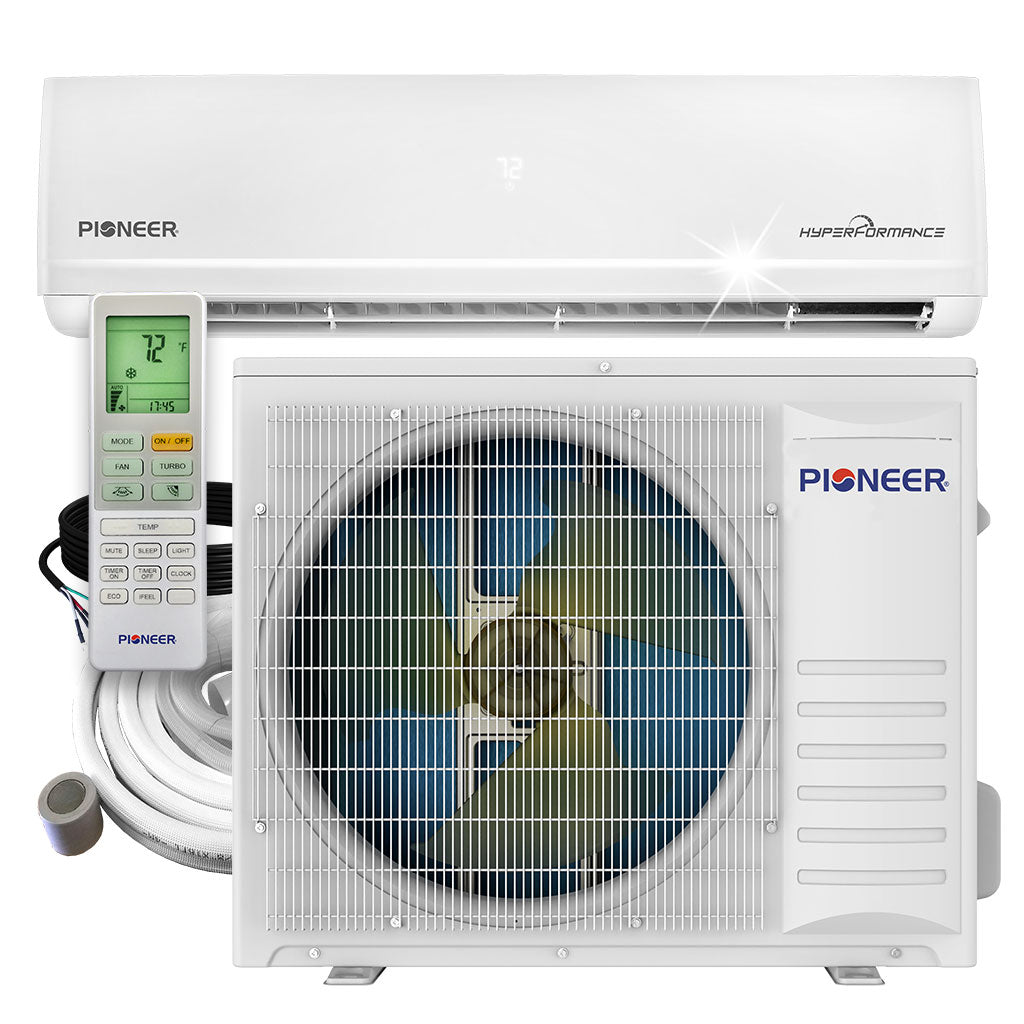

Pioneer® Hyperformance™ 24,000 BTU 21 SEER2 Ductless Mini Split Inverter++ Wi-Fi Enabled Air Conditioner Hyper Heat Pump Full Set 230V

Overview

Summary

• Ultra Low Ambient Hyperformance™ Ductless Mini Split Hyper Heat Pump System
• Cooling capacity: 24,000 BTU/H (2 Ton) with 21 SEER2 / 12.5 EER2 efficiency
• Heating capacity: 24,000 BTU/H (2 Ton) with 10.0 HSPF2 / 3.05 COP efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• High Wall Mounted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Hyper Heat Unit (Continues heating in -22°F weather)
• Wireless Internet Access Included (Via Free Smartphone App)

[[SERIES]]

What's Included

• Indoor Unit
• Outdoor Unit

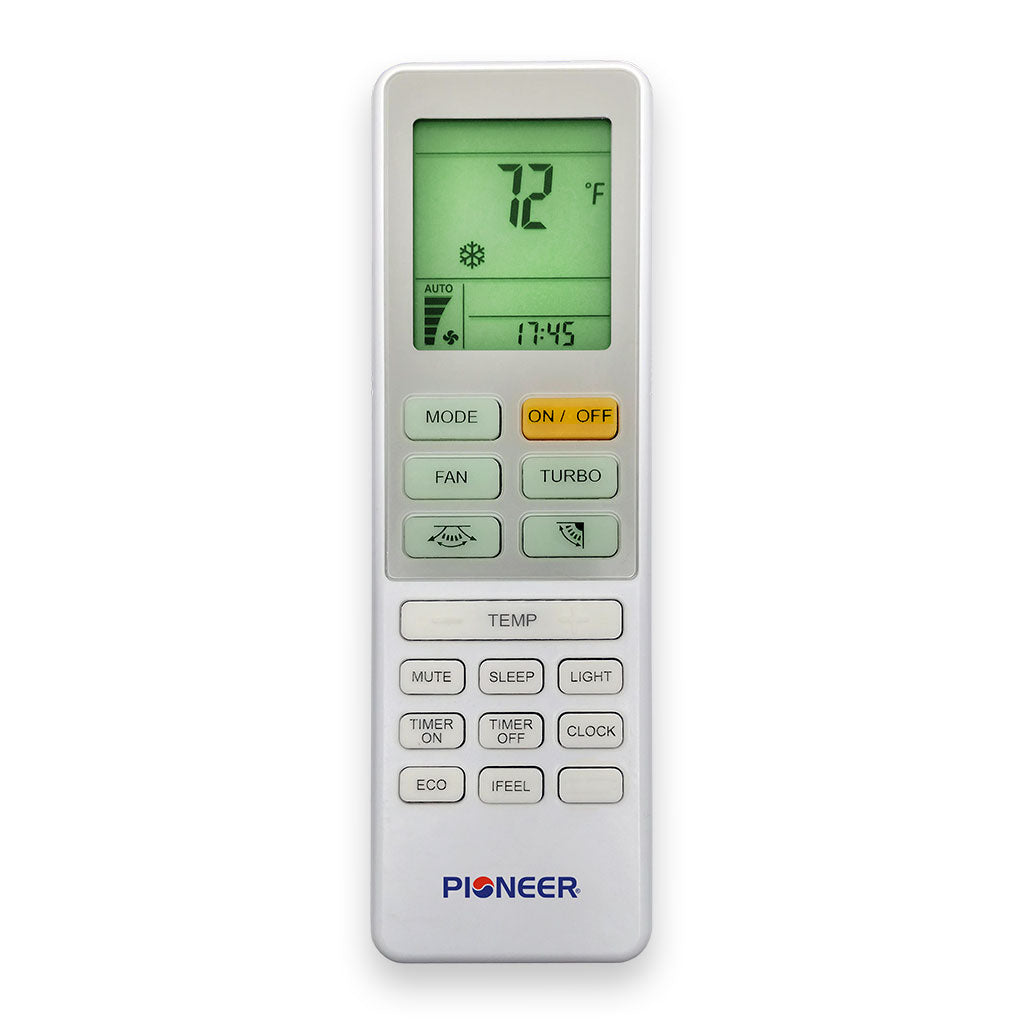

• Wireless Remote Control (with wall holder and batteries)
• Internet Control Module

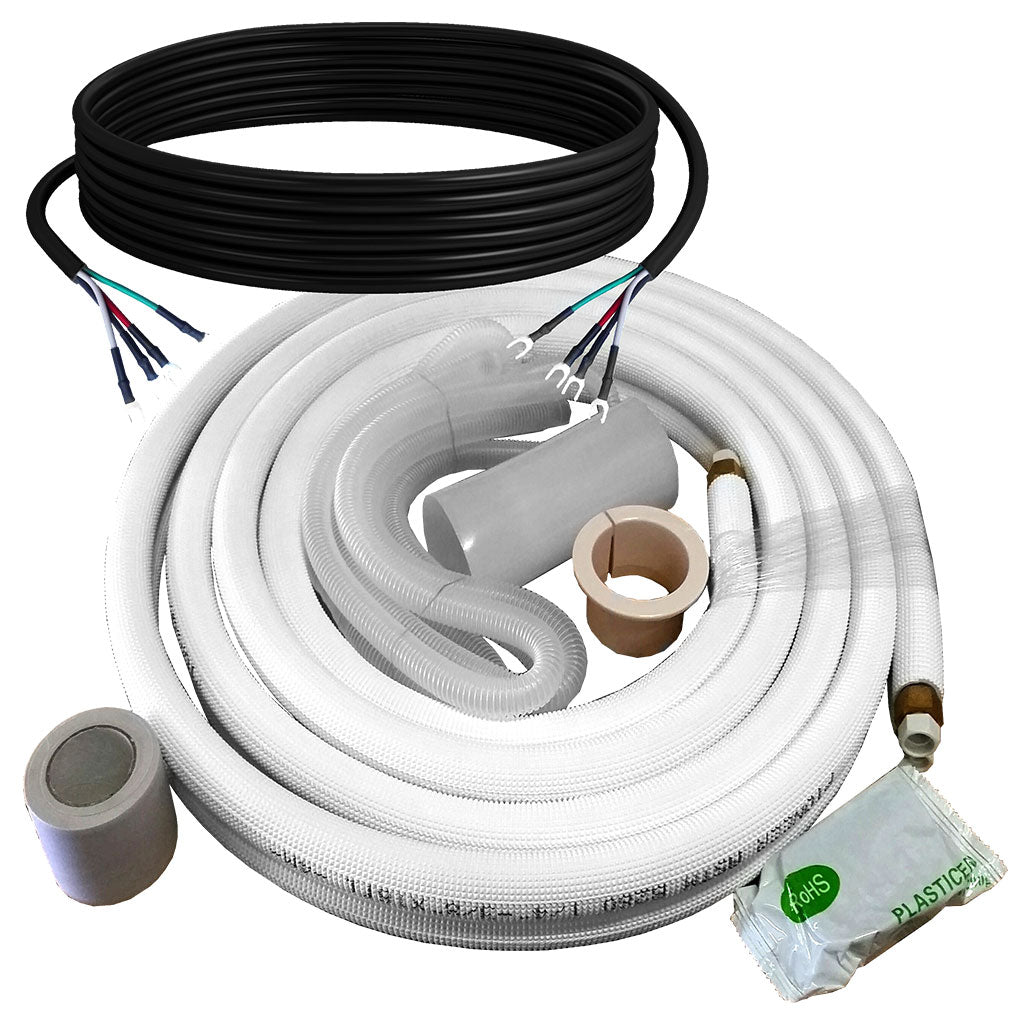

• Copper Lines*
• Signal Cable Between Units*
• Drain for Indoor/Outdoor*
• Wall Passage Sleeve*
• Putty for Wall Hole*
• Leak Guard Sealer
• Wrapping Tape
• Installation Manual
• User’s Manual

*If ordered with an installation kit

Our Guarantee

• 5 years Warranty for Parts (Extendable to up to 7 years)
• 5 years for Compressor (Extendable to up to 10 years)

Features

[[FEATURES]]

Technical Information

Performance Data

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Rated Capacity (BTU/hr): 24,000 (5,500 ~ 25,000)
• Rated Power Input (Cooling): 1,920W
• Rated Current (Cooling): 8.5A
• Cooling SEER2: 21.0 BTU/W.h
• Cooling EER2: 12.5 BTU/W.h
• Heating Rated Capacity (BTU/hr): 26,000 (6,000 ~ 27,000)
• Rated Power Input (Heating): 2,500W
• Rated Current (Heating): 11.2A
• Heating HSPF2 (Region IV/V): 11.5 / 10.0 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 3.05 / 1.75 W/W
• Refrigerant Type/Weight: R410A/2.1kg

• Recommended Application Area: 500~1,000 Sq.Ft

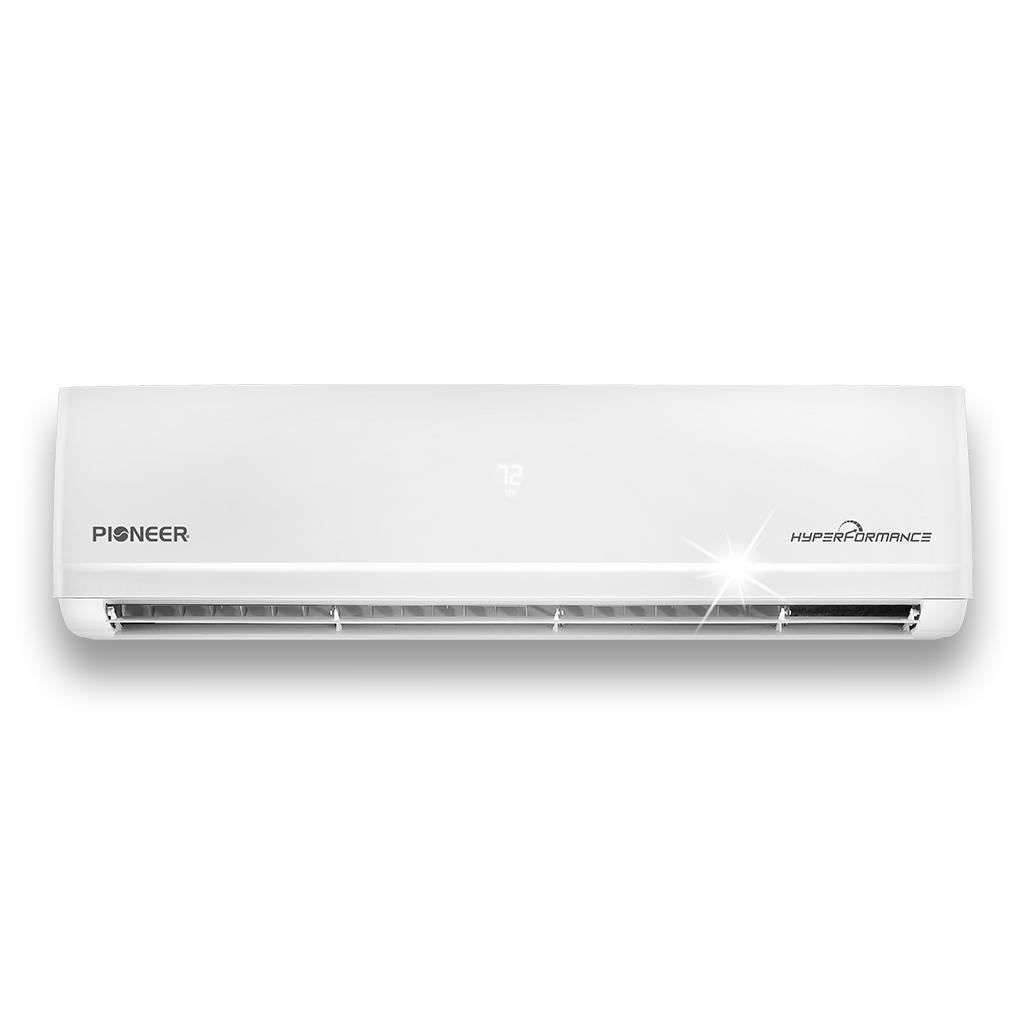

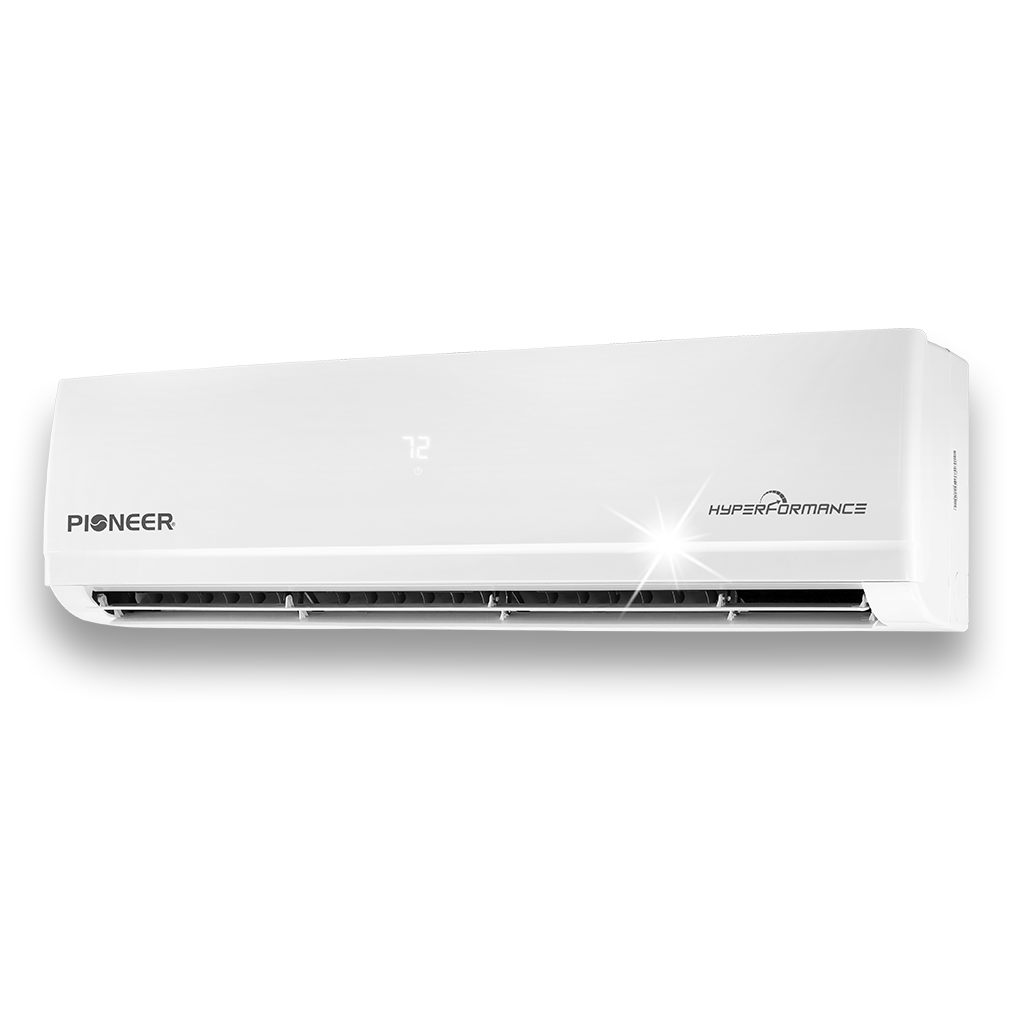

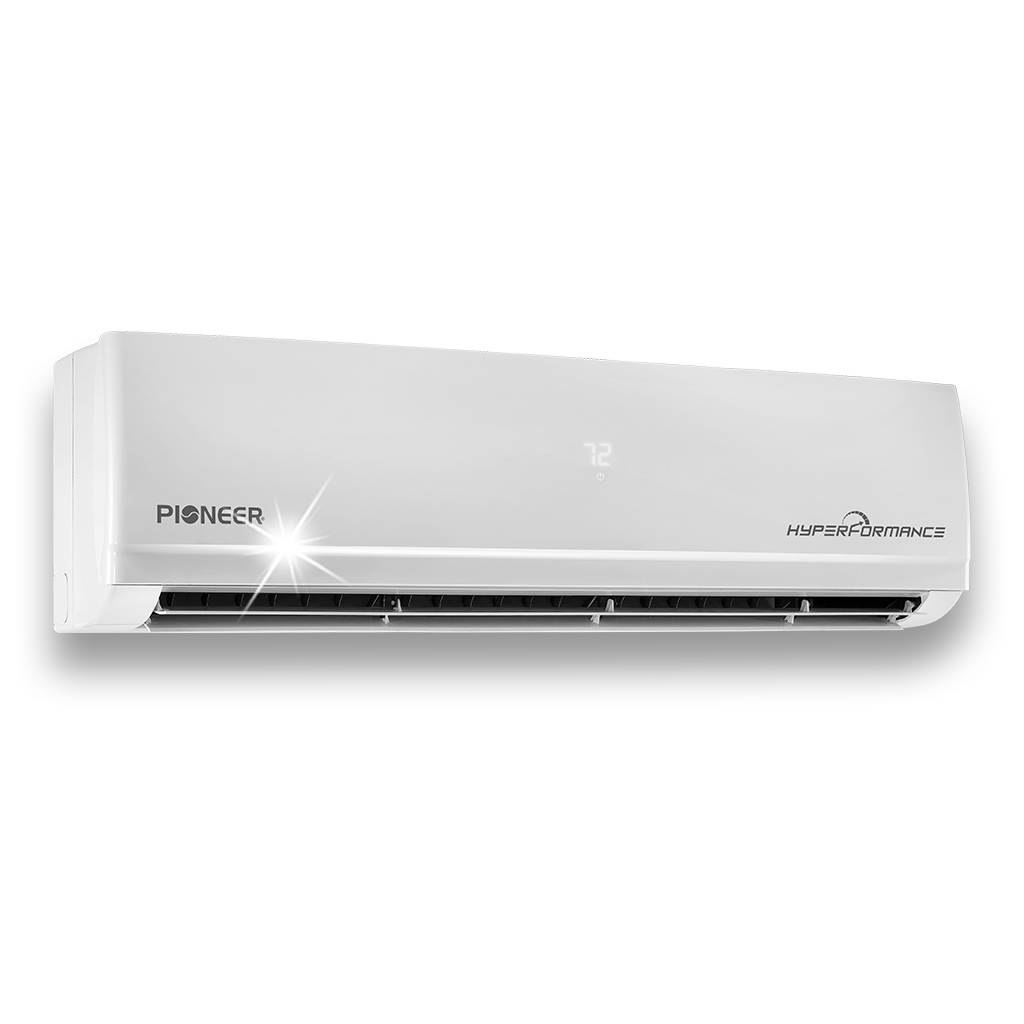

Indoor Unit Data

• Part Number: WF024GHFI25HLH
• Air Flow (Hi/Med/Lo): 706 / 647 / 559 CFM
• Sound Level (Turbo/Hi/Med/Lo/Mute): 53/50/47/45/42 dB(A)
• Net Dimensions (WDH): 50-3/8 x 10-1/4 x 14-1/4 Inches
• Carton Dimensions (WDH): 54-1/2 x 12-3/4 x 17-1/8 Inches
• Net / Gross Weight: 40.1 / 50.3 Lbs

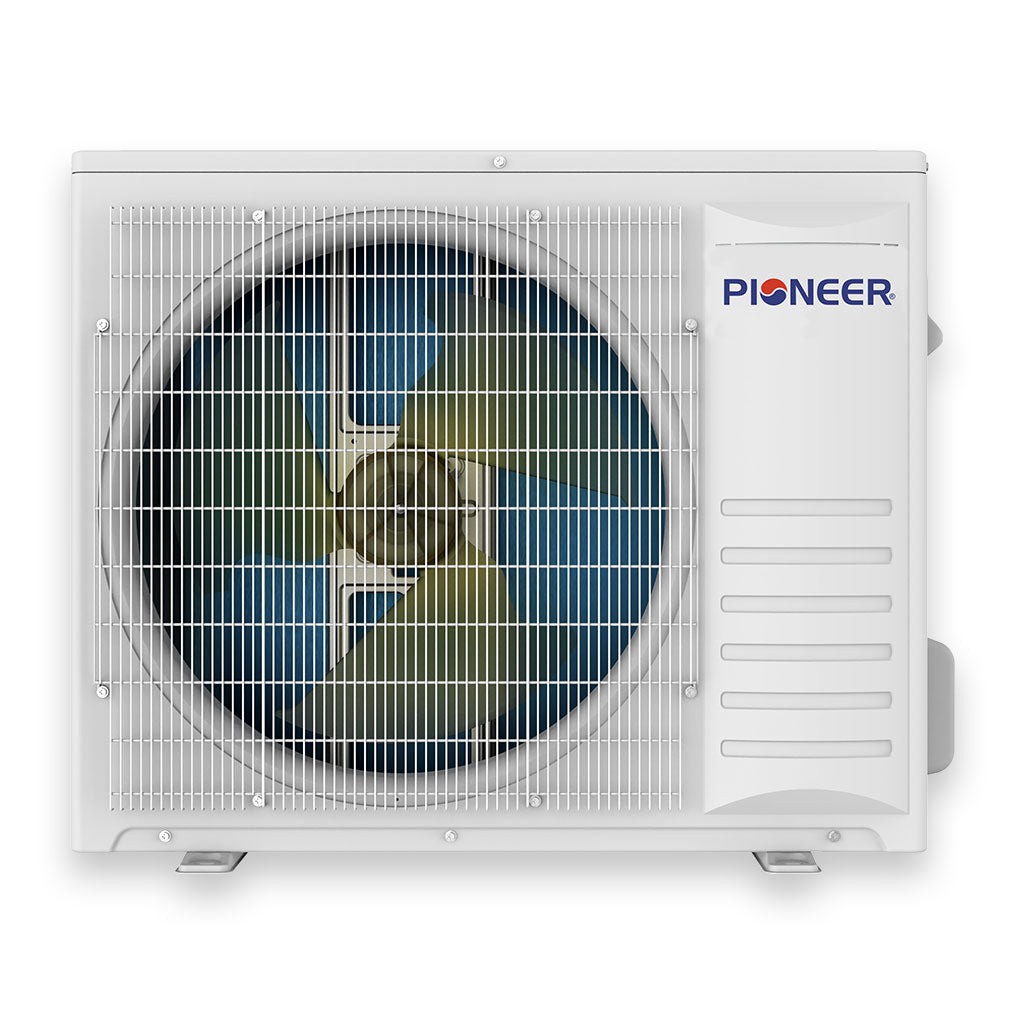

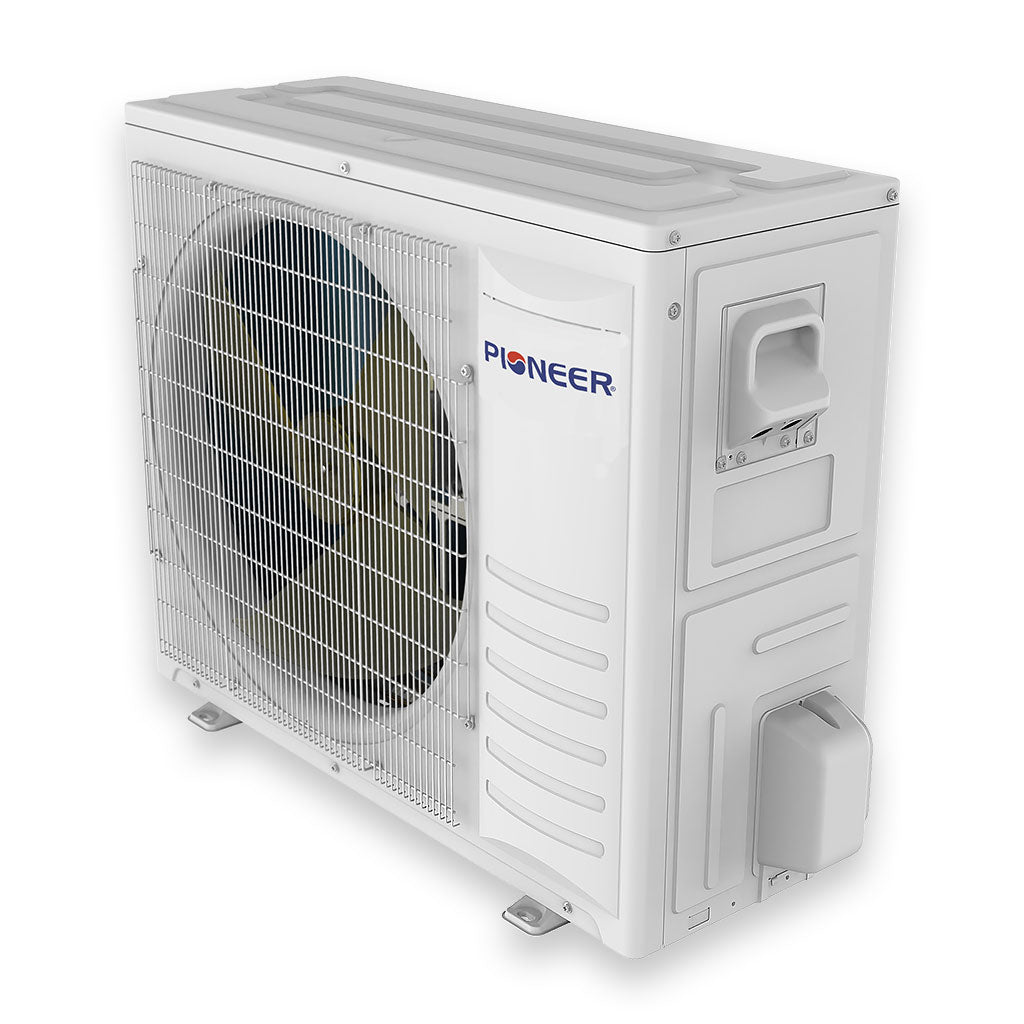

Outdoor Unit Data

• Part Number: YN024GHFI25RPH
• Sound Level: 61 dB(A)

• Net Dimensions (WDH): 35-3/8 x 13-1/2 x 29-1/2 Inches
• Carton Dimensions (WDH): 41-3/4 x 17-3/4 x 32-1/4 Inches
• Net / Gross Weight: 132 / 140.8 lbs
• Electrical Circuit Size: 25A (double-pole)
