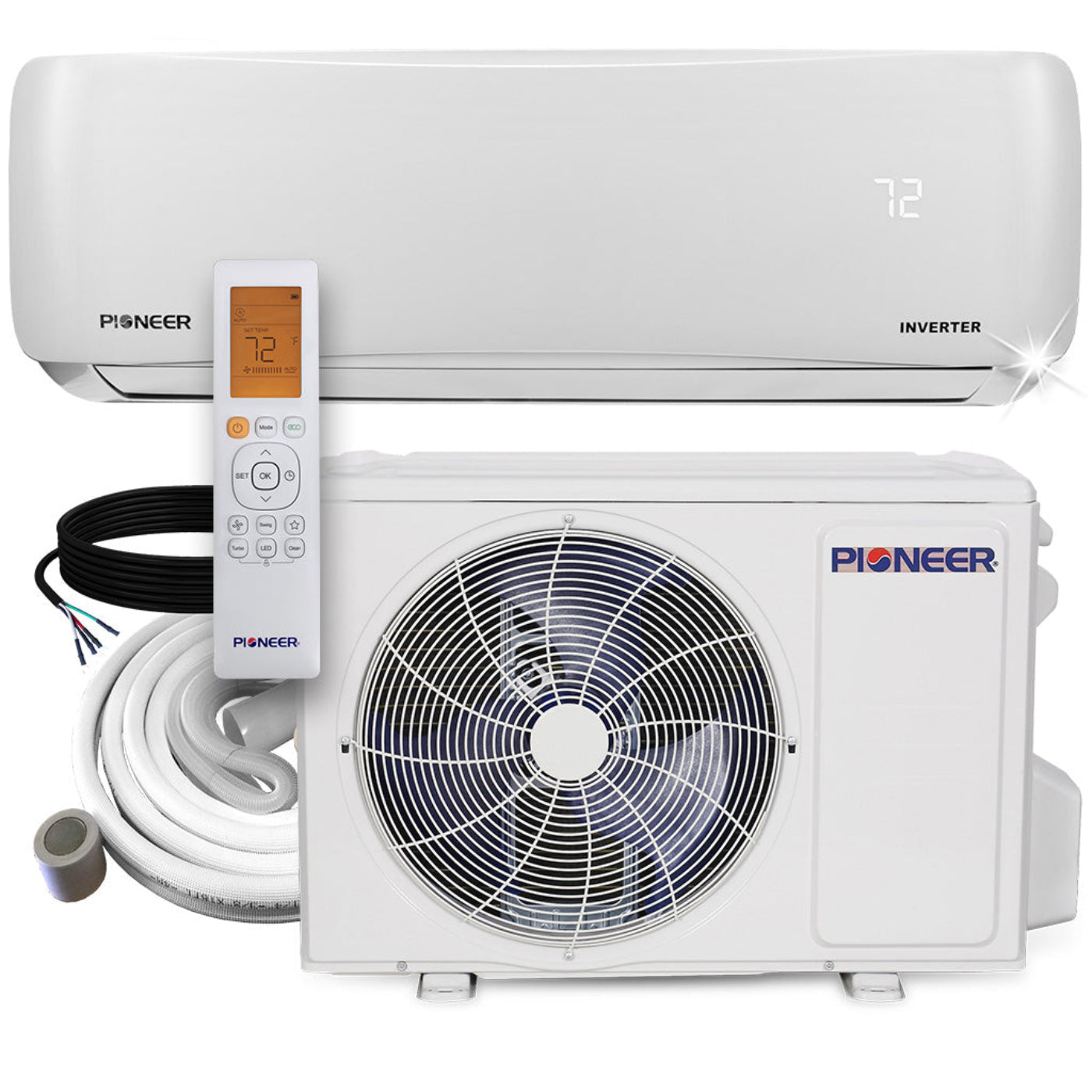

Pioneer 18,000 BTU 21 SEER 230V Ductless Mini-Split Inverter++ Air Conditioner Heat Pump System with 16 ft. Line Sets - WYS018GMFI22RL-16

At Pioneer Mini Split, we offer variable capacity ductless wall-mounted mini split systems, available with different efficiency ratings and in a variety of capacities for simple installation and great single-zone comfort. Our ductless mini split wall-mounted air conditioners and heat pumps come with a convenient remote controller conveys cooling, heating, dehumidification, and ventilation requests to the wall-mount ductless mini split system, while automatic air-sweeping louvers, automatically varying air flow, and capacity adjustments keep the zone at the ultimate comfort level. This results in minimal electrical consumption for a more efficient ductless wall air conditioner and heating system. Check out our selection of wall-mounted heating and cooling units today!

• Ultra High Efficiency Inverter++ ductless mini split heat pump system
• Cooling capacity: 18,000 BTU/H with 20.8 SEER efficiency
• Heating capacity: 18,000 BTU/H with 10 HSPF efficiency
• Voltage: 208~230 V, 60 Hertz, 1Ph
• High Wall Mounted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• Energy-Star Certified
• AHRI Estimated Annual Operating Costs:
• Cooling: $110.00
• Heating: $366.00
• Sleep Mode
  The function enables the air conditioner to automatically increase cooling or decrease heating 1°C per hour for the first two hours, then holds steady for the next 5 hours, after that it will switch off. This function maintains both energy savings and comfort at night.
• Temperature Compensation
  Temperature compensation function eliminates the difference in temperature between the floor and ceiling by mixing the different layers of air. Consequently, the time for cooling the room is reduced, and a cold offset rising stream of warm air by stirring.
• Refrigerant Leakage Detect
  Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.
• Anti-cold Air Function
  Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
• Emergency start
• Low Ambient Cooling
  With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The air conditioner can run heating operation even when the outdoor ambient temperature is down to -13°F.
• 1W Standby
  Intelligent on-off technology enables Pioneer products automatically  enter energy-saving mode when standby, cut energy consumption from normal 5W to 1W or 0.5W per hour which counts 80%~90% of saving.
• 2-way Draining
  Both left and right sides of the indoor unit are possible for outstretch of connective piping and drainage hose for easy installation.
• Follow Me (Remote Thermostat)
  Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort.
• 46°F Heating
  In heating operation, the preset temperature of the air conditioner can be as low as 46°F, which keeps the room temperature steady at 46°F and prevents the house from freezing when it is unoccupied for a long time in severe cold weather.
• Chassis Heating Belt
  Heating belt is fitted on the base plate of the outdoor unit to prevent defrosting water accumulation, which improves heat transfer efficiency.

Optional

• High Density Filter. Compared with ordinary dust filter, the anti-dust effect of this high density filter can increase more than 50%, it can clean dust, pollen up to 80%.
• Wireless Control. With the Wireless control, you can easily turn off each indoor unit that it is paired, outside your home via your smart phone. Furthermore, you can turn it on before you come back.
• Remote in Engineer Mode

• Indoor Unit
• Outdoor Unit

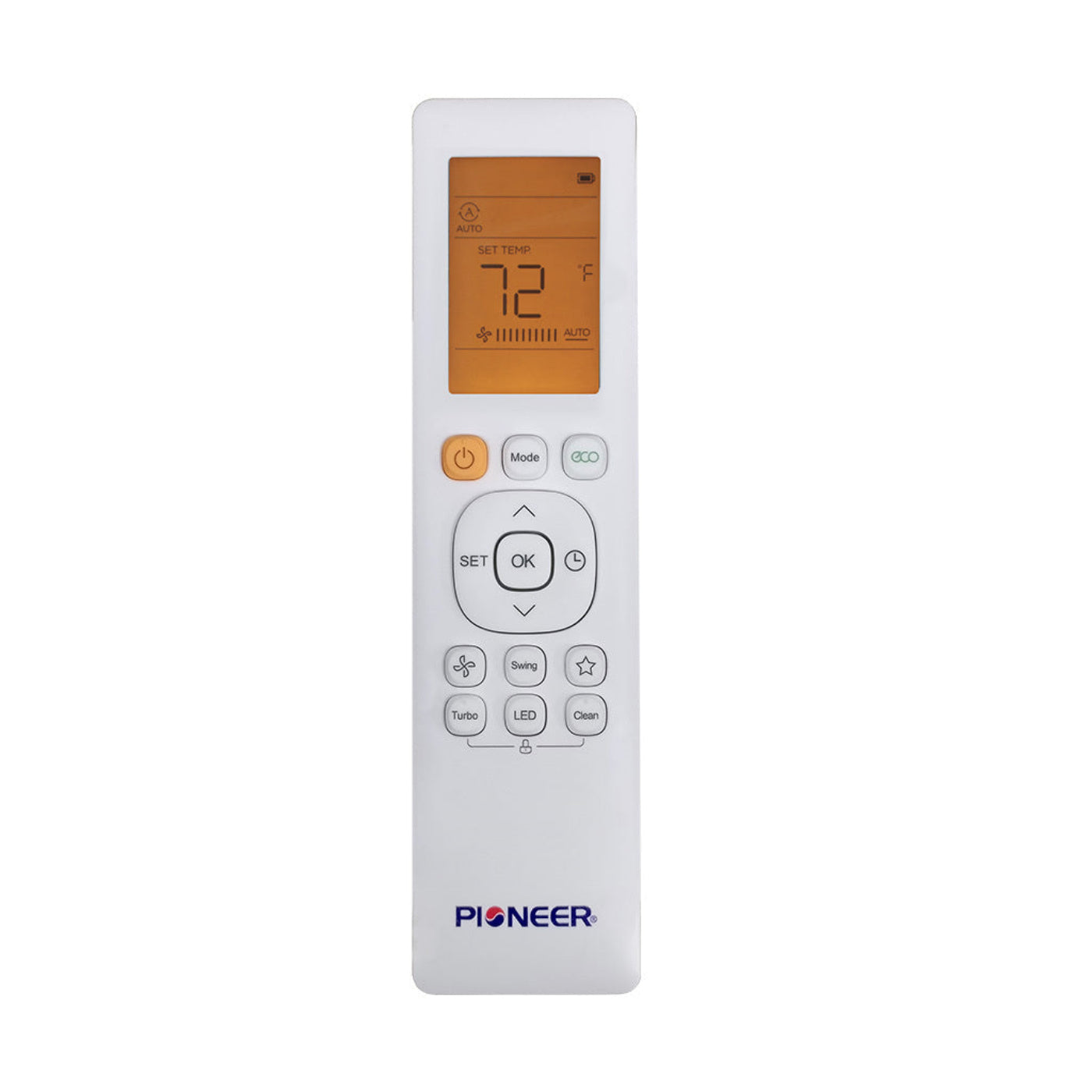

• Wireless Remote Control
• R410A Pre-Charged Outdoor Unit
• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

• Series Technical Brochure

• Series User Manual
• Series Installation Manual
• Series Service Manual

• Efficient Performance: 18,000 BTU with a 21 SEER rating delivers powerful cooling and heating, making it perfect for medium to large spaces, while ensuring energy-efficient operation.
• Inverter++ Technology: Adjusts compressor speed based on temperature demands, providing more consistent comfort and improved energy savings.
• Versatile Installation: Includes 16 ft. line sets, ideal for spaces with moderate installation needs or rooms requiring shorter line sets.
• Quiet Operation: Features advanced noise-reduction technology, ensuring smooth, quiet performance to maintain a peaceful environment.
• All-Season Comfort: Provides efficient cooling in the summer and reliable heating in the winter, making it perfect for year-round climate control.

Q: What is the Pioneer 18,000 BTU 21 SEER Ductless Mini-Split Inverter++ Air Conditioner Heat Pump System?
A: This high-efficiency mini-split system provides both cooling and heating with a 21 SEER rating. Equipped with Inverter++ technology, it ensures energy-efficient, quiet operation and precise temperature control. It comes with 16 ft. line sets for convenient installation.

Q: How does Inverter++ technology enhance performance?
A: Inverter++ technology adjusts the compressor speed to match real-time temperature demands, improving energy efficiency, reducing noise, and maintaining a stable, comfortable indoor environment.

Q: What size room is this system suitable for?
A: This system is ideal for cooling and heating spaces up to 750 sq. ft., providing efficient climate control for medium-sized rooms.

Q: Is it suitable for residential use?
A: Yes, this system is perfect for residential spaces, offering reliable and energy-efficient cooling and heating with quiet operation.

Q: Does it require professional installation?
A: While the system includes 16 ft. line sets for flexibility, professional installation is recommended to ensure proper setup and long-lasting performance.

• Clean the Filters Regularly: Wash the filters every 2-4 weeks to prevent dust buildup and ensure proper airflow.
• Clean the Coils Annually: Inspect and clean the evaporator and condenser coils once a year to avoid dirt accumulation and preserve efficiency.
• Check Refrigerant Levels: Make sure refrigerant levels are correct for optimal cooling and heating performance. If it's low, contact a professional.
• Clear the Drain Line: Regularly clean the condensate drain to avoid clogs, prevent mold growth, and maintain efficient water flow.
• Keep the Outdoor Unit Clear: Remove debris like leaves and dirt from the outdoor unit to maintain unobstructed airflow.
• Schedule Annual Professional Maintenance: Have a technician inspect and service the system once a year to ensure it's running smoothly.
