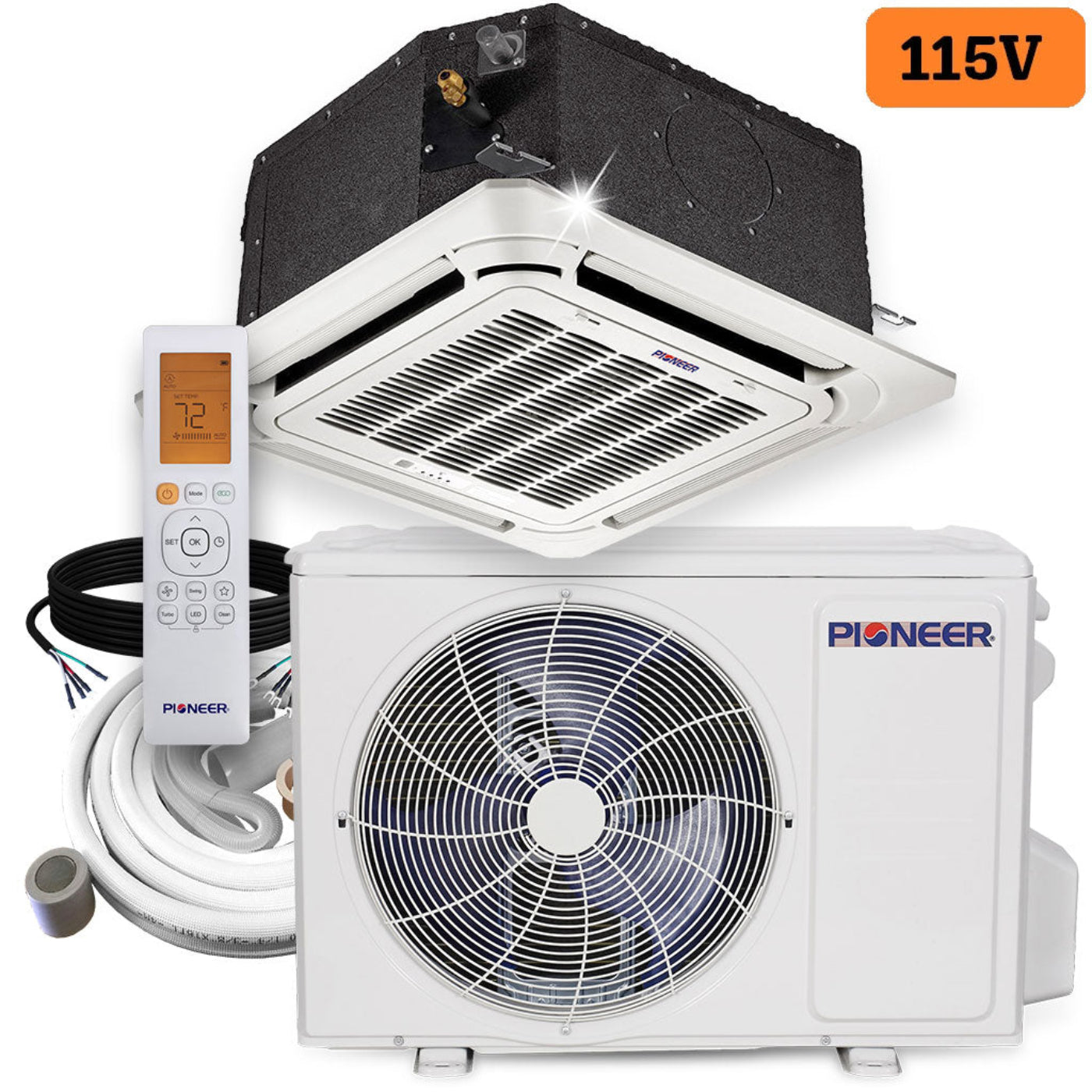

Pioneer 9,000 BTU 20 SEER 115V SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System Full Set - CYB009AMFILCAD-10

Pioneer 9,000 BTU 20 SEER 115V SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System Full Set - CYB009AMFILCAD-10

• Ultra High Efficiency Inverter++ ceiling cassette split heat pump system
• Cooling capacity: 9,000 BTU/H with 20 SEER/12.5 EER efficiency
• Heating capacity: 9,000 BTU/H with 10 HSPF/2.93 COP efficiency
• Voltage: 110~120V, 60 Hertz, 1 Ph
• Ceiling Compact Cassette Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• Energy-Star Certified
• AHRI Estimated Annual Operating Costs:
• Cooling: $58.00
• Heating: $211.00

Included

• Indoor Unit
• Outdoor Unit
• Panel
• Wireless Remote Control
• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual


Manuals

• Series Technical Brochure
• Series User Manual
• Series Installation Manual
• Series Service Manual
• Series Disassembly Guide
• AHRI Certificate
• Energy Guide

What our Experts Think

• High-capacity whole-area comfort: This 48,000 BTU ceiling concealed ducted mini-split system delivers powerful cooling and heating performance for large residential or light-commercial spaces (~1,350–1,800 sq ft) — ideal for open layouts or multi-room ducted distribution.

• Efficient inverter-driven operation: Featuring Inverter+ variable-speed DC technology, the system maintains stable indoor temperatures, reduced compressor cycling, and improved part-load efficiency, helping balance comfort and operating costs.

• Balanced seasonal efficiency: With 15.1 SEER2 cooling efficiency and ~9.3 HSPF2 heating performance, it offers dependable year-round climate control while supporting moderate long-term energy savings compared with older fixed-speed ducted systems.

• Discreet ceiling-concealed installation: Designed for hidden ducted applications, this system distributes conditioned air evenly through ductwork while preserving interior aesthetics — a strong choice for projects requiring invisible HVAC integration.

• Robust airflow capability: High indoor airflow output (up to ~1,228 CFM) and adjustable static pressure support effective distribution across larger zones or longer duct runs, ensuring consistent comfort throughout the conditioned area.

• Complete professional full-set package: Includes indoor air handler, outdoor condenser, wired controller, and installation accessories, simplifying system specification and installation planning for HVAC professionals.

Q&A

Q1: What type of system is this Pioneer model?
A: It is a one-way ceiling cassette indoor mini-split section with Inverter++ heat pump, designed for multi-zone ductless systems.

Q2: What cooling and heating capacity does it provide?
A: Provides 9,000 BTU cooling with heat pump heating, ideal for small rooms or targeted comfort zones.

Q3: How energy-efficient is this unit?
A: Equipped with Inverter++ technology, delivering precise temperature control, quiet operation, and reduced energy consumption.

Q4: What installation style does it support?
A: Designed for flush ceiling cassette installation, offering discreet airflow through a slim one-way discharge design.

Q5: What electrical requirements does it have?
A: Operates on 230 V single-phase power, compatible with residential or light-commercial systems.

Q6: Can it integrate into multi-zone configurations?
A: Yes, it is built for multi-zone setups, allowing connection to compatible Pioneer outdoor condensers.

Q7: Can it provide heating in colder conditions?
A: Yes, the heat pump supports low-ambient heating performance for year-round comfort.

Q8: What comfort features enhance performance?
A: Offers quiet airflow distribution, adjustable fan speeds, and efficient zone temperature management.

Q9: What spaces is this indoor unit best suited for?
A: Ideal for bedrooms, offices, retail areas, or compact residential spaces needing concealed ceiling installation.

Q10: What makes the one-way cassette design beneficial?
A: The directional airflow pattern helps deliver focused cooling or heating in narrow or perimeter-mounted ceiling locations.

Maintenance Tips

• Clean indoor air filters every 2–4 weeks to maintain airflow, cooling/heating efficiency, and indoor air quality.

• Keep the ceiling cassette outlet and intake grille free of dust and debris to ensure smooth one-way air distribution and inverter performance.

• Inspect condensate drain lines and drip pan regularly to prevent leaks or moisture buildup.

• Check refrigerant piping, wiring connections, and mounting stability annually for safe and reliable operation.

• Use the self-clean function periodically to reduce internal moisture and help prevent mold or odors.

• Maintain adequate ceiling clearance around the unit for consistent airflow and temperature coverage.

• Schedule professional servicing once per year for inverter diagnostics, refrigerant pressure checks, and overall system optimization.
