Pioneer 9,000 BTU 20.5 SEER Ceiling Concealed Ducted Mini Split - RYB009GMFILDAD-25

Pioneer 9,000 BTU 20.5 SEER Ceiling Concealed Ducted Mini Split - RYB009GMFILDAD-25

Pioneer 9,000 BTU Ducted Concealed mini split systems offer climate control, including hidden mini split AC for multiple rooms and areas, utilizing a network of air ducts (existing or field designed) using a single set of equipment. The concealed duct mini split is ideal for use in specific climate zones with distinctive separations, such as a master suite, where the zone can be split up into sub zones (a bathroom, study, dressing room, etc.). In this setting, a single set of equipment will properly condition all areas of the entire zone based on the same comfort settings.

• Cooling capacity: 9,000 BTU/H with 20.5 SEER efficiency
• Heating capacity: 10,000 BTU/H with 11.5 HSPF efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Ceiling Concealed Ducted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Energy-Star Certified
• Front Desk Control. With a smart control board, Pioneer air conditioners can be turned on/off via long distance control signals.
• Wired Control. Compared with infrared remote controller, wired controller can be fixed on the wall and makes air conditioner control more convenient.
• Refrigerant Leakage Detect. Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.
• Anti-cold Air Function. Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
• Low Ambient Cooling. With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The air conditioner can run cooling operation even when the outdoor ambient temperature is down to -15°C.
• Follow Me. Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort.

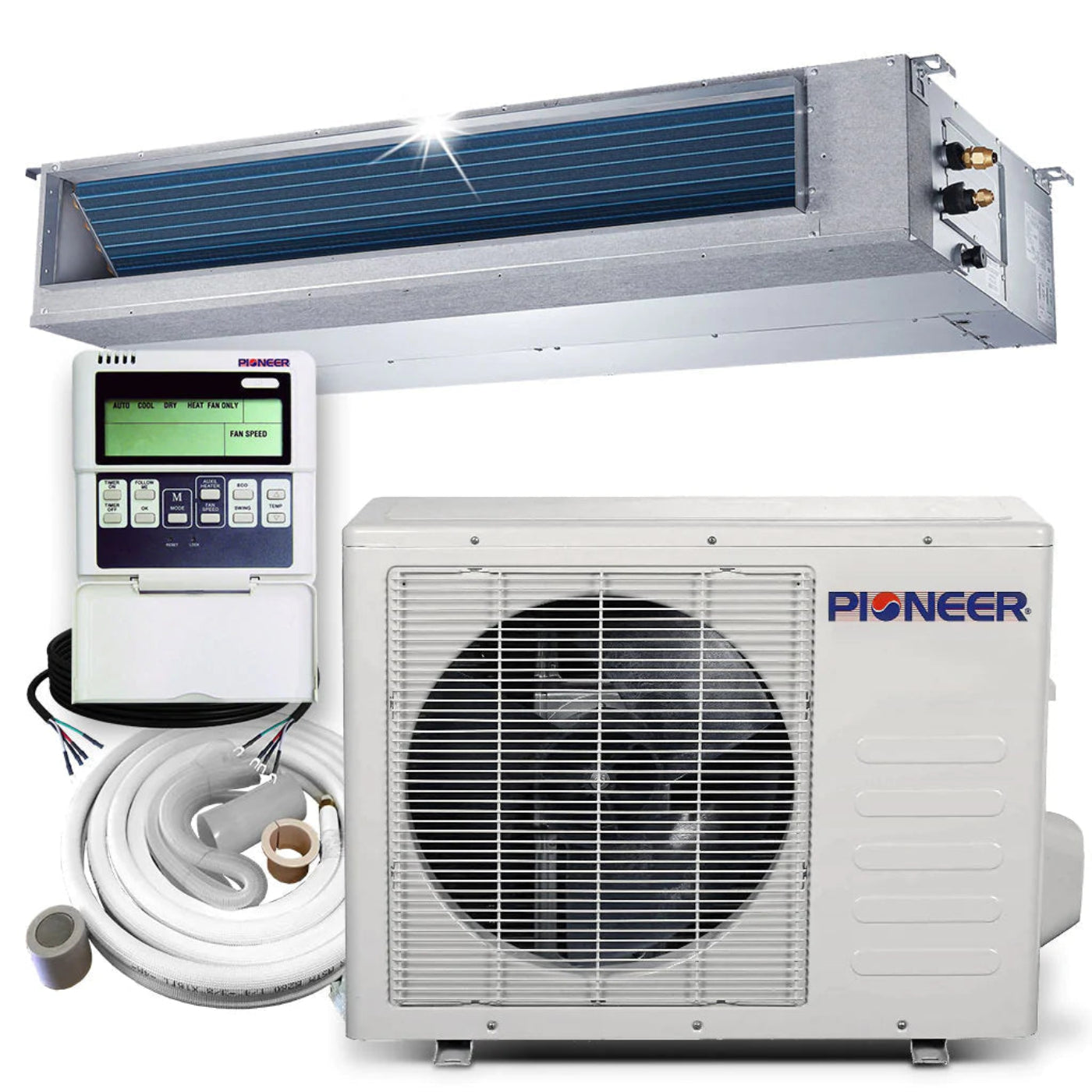

• Indoor Unit

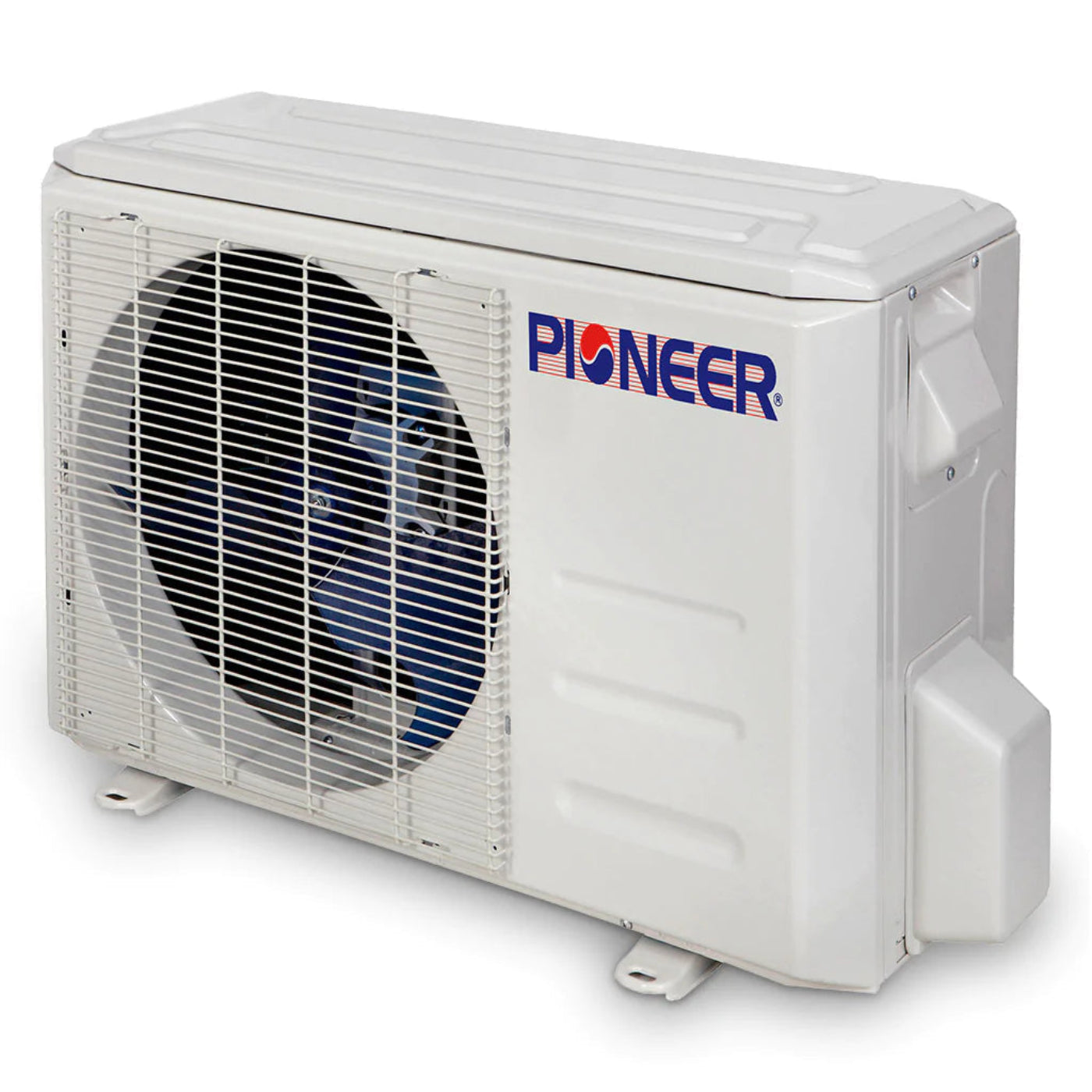

• Outdoor Unit

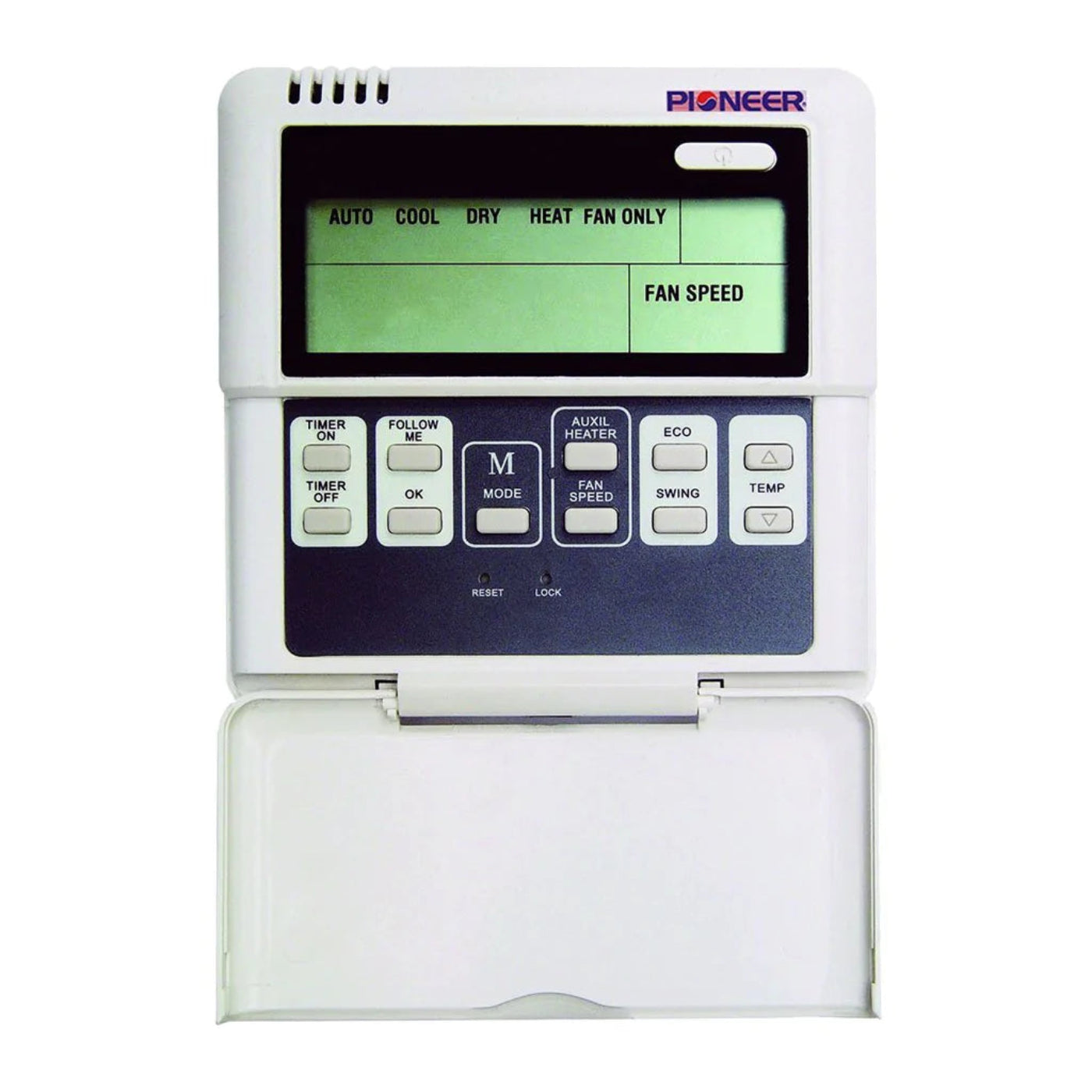

• Wire Remote Control

• R410A Pre-Charged Outdoor Unit

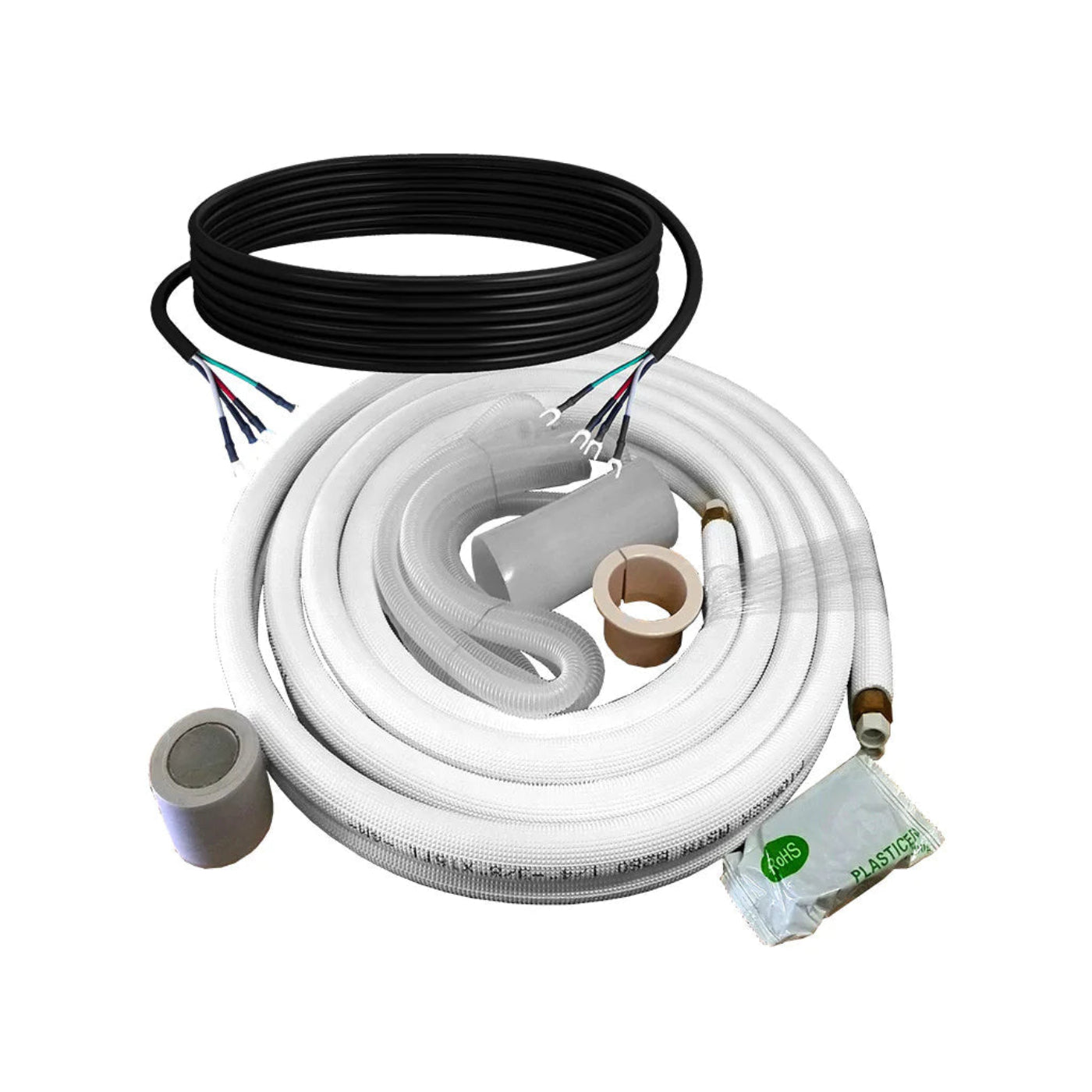

• 25 Ft. Installation Kit - 25 ft. copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.
• Flare Connection Leak Guard Sealer
• Manufacturer Warranty

What's Not Included and Required for Installation

• Electrical Requirements, such as Disconnect Box or Electrical Whip
• Vacuum Pump or Vacuum Set (alternatively, you can use the Pioneer Flush Kit)

• Dual Swing
• Dual Drainage
• Low Noise
• High Efficiency

• Indoor Unit
• Outdoor Unit
• Wireless Remote Control (with wall holder and batteries)
• 16 Ft. Copper Lines
• 16 Ft. Electrical Wire
• 10 Ft. Drain for indoor/outdoor
• Wall Passage Sleeve
• Putty for Wall Hole
• Leak Guard Sealer
• Wrapping Tape

What's Not Included and Required for Installation

• Electrical Requirements, such as Disconnect Box or Electrical Whip
• Vacuum Pump or Vacuum Set (alternatively, you can use the Pioneer Flush Kit)

Important Note

The copper tubing is included in the outdoor unit cardboard box and the communication wiring kit is included in the indoor unit cardboard box.

• Technical Brochure
• User Manual
• Installation Manual
• Service Manual
• AHRI Certificate
• Energy Guide

• 9,000 BTU Capacity: Perfect for small to medium-sized rooms, delivering efficient cooling and heating for consistent comfort.
• 20.5 SEER Energy Efficiency: High energy efficiency rating helps reduce electricity consumption, ensuring lower utility bills while maintaining optimal performance.
• Ceiling Concealed Ducted Design: A discreet, ceiling-mounted system that blends seamlessly with your space, providing even air distribution without taking up floor space.
• Inverter Technology: Ensures precise temperature control, quieter operation, and improved energy efficiency for long-term comfort.
• Quiet Operation: Designed to operate with minimal noise, making it an ideal choice for bedrooms, living rooms, or offices where a peaceful environment is essential.
• Easy Installation: Includes a 25 ft. pre-charged refrigerant line set, making installation quicker and easier with minimal setup time.
• Reliable & Durable: Built with high-quality materials to ensure reliable long-term operation and minimal maintenance.

Q: What is the cooling capacity of the Pioneer 9,000 BTU Ceiling Concealed Ducted Mini Split system?
A: This system provides 9,000 BTU of cooling power, ideal for small to medium-sized spaces or rooms up to 400 sq. ft.

Q: What is the SEER rating of the Pioneer 9,000 BTU Ceiling Concealed Ducted Mini Split system?
A: It features a 20.5 SEER rating, offering excellent energy efficiency and reducing your overall electricity costs.

Q: What are the key features of the Pioneer 9,000 BTU Ceiling Concealed Ducted Mini Split system?
A: This system includes a concealed ducted design for seamless installation, quiet operation, advanced filtration, and WiFi compatibility for convenient remote control and monitoring.

Q: Does the Pioneer Ceiling Concealed Ducted Mini Split system provide both cooling and heating?
A: Yes, it works as both an air conditioner and heat pump, offering year-round climate control for both cooling in the summer and heating in the winter.

Q: Is the Pioneer 9,000 BTU Ceiling Concealed Ducted Mini Split system easy to install?
A: Yes, it comes with a 25 ft. lineset and is designed for discreet ceiling installation, saving space while delivering efficient air distribution.

• Clean or Replace Filters: Clean the filters every 2-4 weeks to ensure proper airflow. Replace filters annually or when they become damaged or excessively dirty.
• Clean the Coils: Clean both the evaporator and condenser coils at least once a year to remove dirt and debris. This will help maintain heat transfer efficiency and system performance.
• Inspect the Drain Line: Regularly check the condensate drain line for clogs or blockages. Keeping it clear prevents water leaks and mold growth.
• Monitor Refrigerant Levels: Ensure refrigerant levels are sufficient for effective cooling and heating. If you notice reduced performance, contact a professional to inspect and refill the refrigerant if necessary.
• Check Airflow Path: Ensure the air handling unit’s intake and exhaust vents are free from debris and obstructions. This helps maintain efficient operation.
• Schedule Annual Professional Service: Have a technician perform annual inspections to check refrigerant levels, clean the components, and ensure the system is functioning properly.
