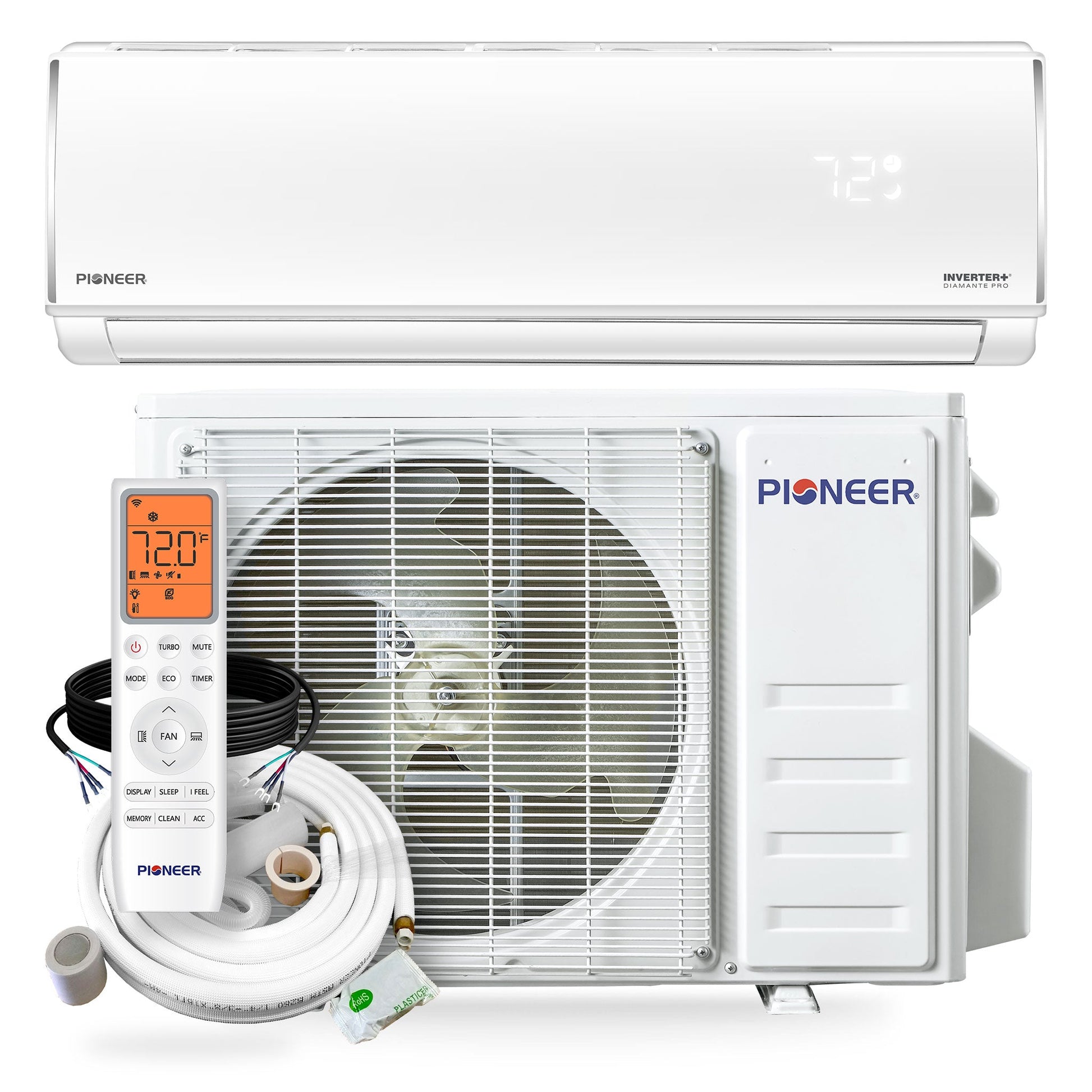

Pioneer Diamante Pro 31,500 BTU 19 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit - WYT030GLSI20RL

Pioneer Diamante Pro 31,500 BTU 19 SEER2 230V High-Wall Ductless Mini-Split Air Conditioner Inverter Heat Pump with 16 Ft. Kit - WYT030GLSI20RL

• High Efficiency Diamante Pro Ductless Mini Split Heat Pump System
• Cooling capacity: 31,500 BTU/H with 19 SEER2 / 9 EER2 efficiency
• Heating capacity: 33,000 BTU/H with 9 HSPF2 / 3.15 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• High Wall-Mounted Ductless Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Low Ambient Range Operation (As low as -4°F in Heating / As high as 122°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
• Functional Remote with:
• ECO and SLEEP Modes, for Energy-Conservation
• Timer On/Off Control
• TURBO, for Times of High-Demand
• Self-Clean Cycle
• MEMORY, to Recall Favorite Settings
• IFEEL, to Detect and Adjust to Local Temperature

What our Experts Think

• Large‑space floor/ceiling comfort (36,000 BTU)
  This floor/ceiling mini‑split full set delivers powerful cooling and heating for ≈900–1,350 sq ft spaces—ideal for large living areas, open plans, workshops, or commercial zones.

• High seasonal efficiency (19 SEER2)
  19 SEER2 efficiency helps reduce energy use compared with older HVAC units, balancing performance with operating cost savings for year‑round comfort.

• Inverter+ DC technology for precise control
  Variable‑speed DC inverter operation maintains stable temperatures with quieter cycling and faster comfort recovery than traditional fixed‑speed compressors.

• All‑season heat pump system
  Combines cooling and heating in one full‑set solution, with ~38,000 BTU heating capacity and strong HSPF2 performance for comfortable winters without separate heating.

• Flexible floor/ceiling installation
  Designed for floor or ceiling mounting, this unit fits a variety of room layouts while providing focused air delivery and unobtrusive presence.

• Smart comfort features
  Functions like “Follow Me” temperature sensing optimize comfort by adjusting output based on remote‑controller readings.

Q&A

Q: What room size is this 36,000 BTU floor/ceiling mini split ideal for?
A: Perfect for large rooms or open spaces (approx. 1,200–1,800 sq. ft.), including living areas, offices, or commercial spaces.

Q: Does it provide both cooling and heating?
A: Yes, this inverter+ heat pump delivers efficient year-round cooling and heating.

Q: How energy-efficient is the 19 SEER2 rating?
A: With 19 SEER2, it offers strong energy efficiency while lowering electricity costs.

Q: What type of indoor unit does this system use?
A: Floor/ceiling mount indoor unit provides flexible installation and even airflow throughout the space.

Q: What voltage does it require?
A: Designed for 208–230V single-phase power.

Q: What is included in the full set?
A: Includes floor/ceiling indoor unit, outdoor condenser, and pre-charged installation kit for convenient setup.

Q: Does it support Wi-Fi or smart control?
A: Wi-Fi support may be available with compatible modules for remote operation and scheduling.

Q: How quiet is the indoor unit?
A: Operates quietly, typically 35–45 dB, ideal for offices, living spaces, or commercial areas.

Q: What comfort and usability features are included?
A: Turbo mode, ECO mode, sleep mode, self-cleaning, auto restart, timer, and multi-directional airflow for optimal comfort.

Q: Is professional installation required?
A: Yes, professional installation is recommended; proper floor/ceiling mounting, refrigerant connections, and electrical setup are required.

Maintenance Tips

• Clean washable air filters every 2–4 weeks – Maintains optimal airflow and 19 SEER2 efficiency for 1,000–1,200 sq ft areas

• Run self-clean function regularly – Prevents mold, bacteria, and odor buildup inside the floor/ceiling unit

• Keep indoor & outdoor units free of dust and debris – Ensures consistent airflow and peak heat exchange

• Check and clear condensate drain line – Prevents leaks and floor/ceiling damage

• Maintain 2–3 ft clearance around outdoor unit – Supports efficient cooling/heating performance

• Inspect refrigerant lines annually – Ensures leak-free operation and reliable capacity

• Use ECO, Sleep & Wi-Fi smart modes – Reduces compressor wear and lowers energy consumption

• Schedule yearly professional servicing – Maximizes inverter efficiency and extends system lifespan
