Pioneer Multi Zone 24,000 BTU Diamante Ultra Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V - WT024GLFI22HLD-10

Pioneer Multi Zone 24,000 BTU Diamante Ultra Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V - WT024GLFI22HLD-10

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Capacity: 23,000 BTU/h
• Cooling SEER: 20
• Heating Capacity: 24,000 BTU/h
• Heating HSPF: 10
• Suitable Area: 400~650 Sq.F
• Air Flow (Hi/Med/Lo): 735 / 618 / 529 CFM
• Sound Level (Hi/Med/Lo/Mute): 48 / 43 / 38 / 35 dB(A)
• Net Dimensions (WDH): 43-3/8 × 8-3/4 × 13-1/8 Inches
• Carton Dimensions (WDH): 45-7/8 × 11-5/8 × 16 Inches
• Net / Gross Weight: 30.9 / 35.3 Lbs

Manuals

• Technical Brochure

• Installation and User's Manual

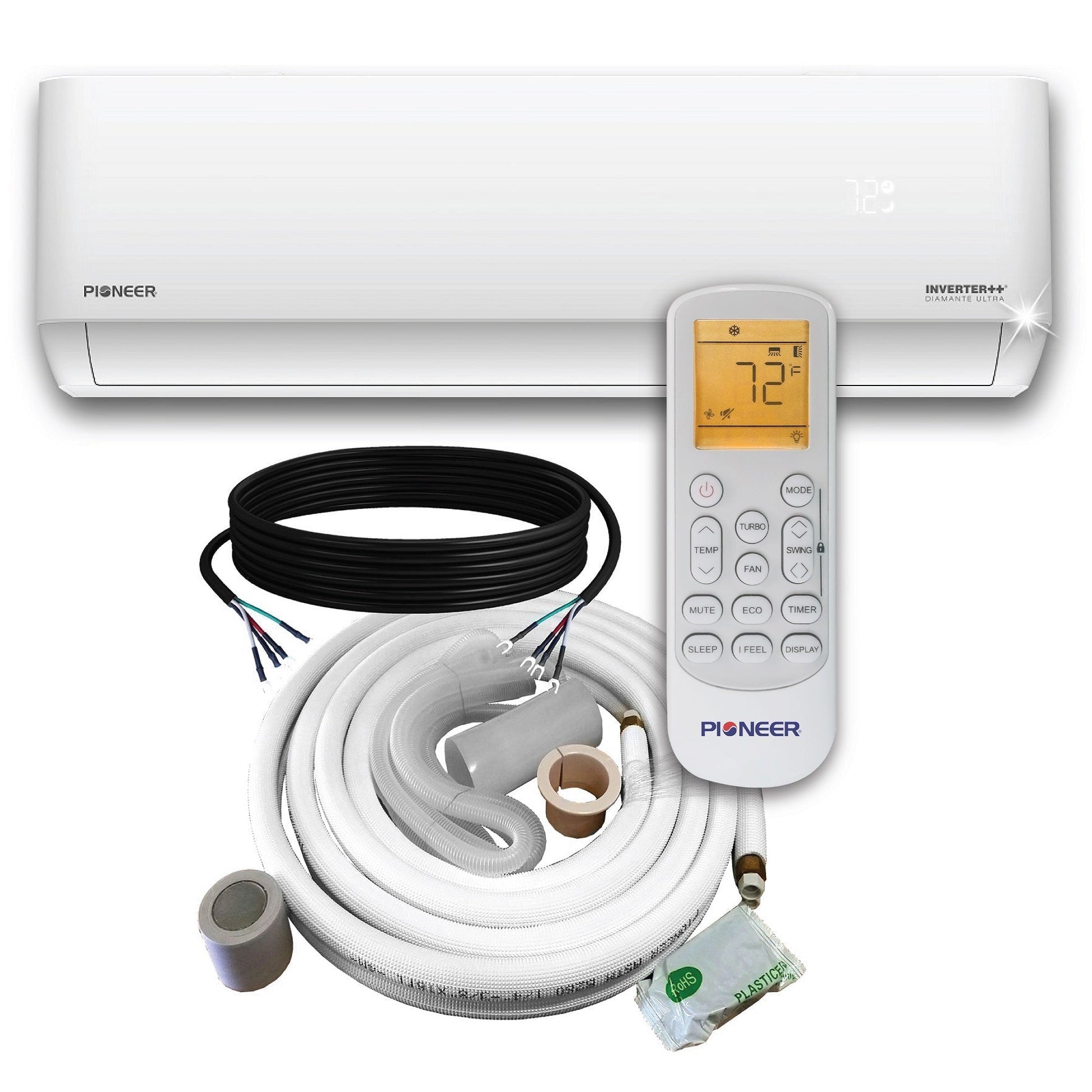

Included

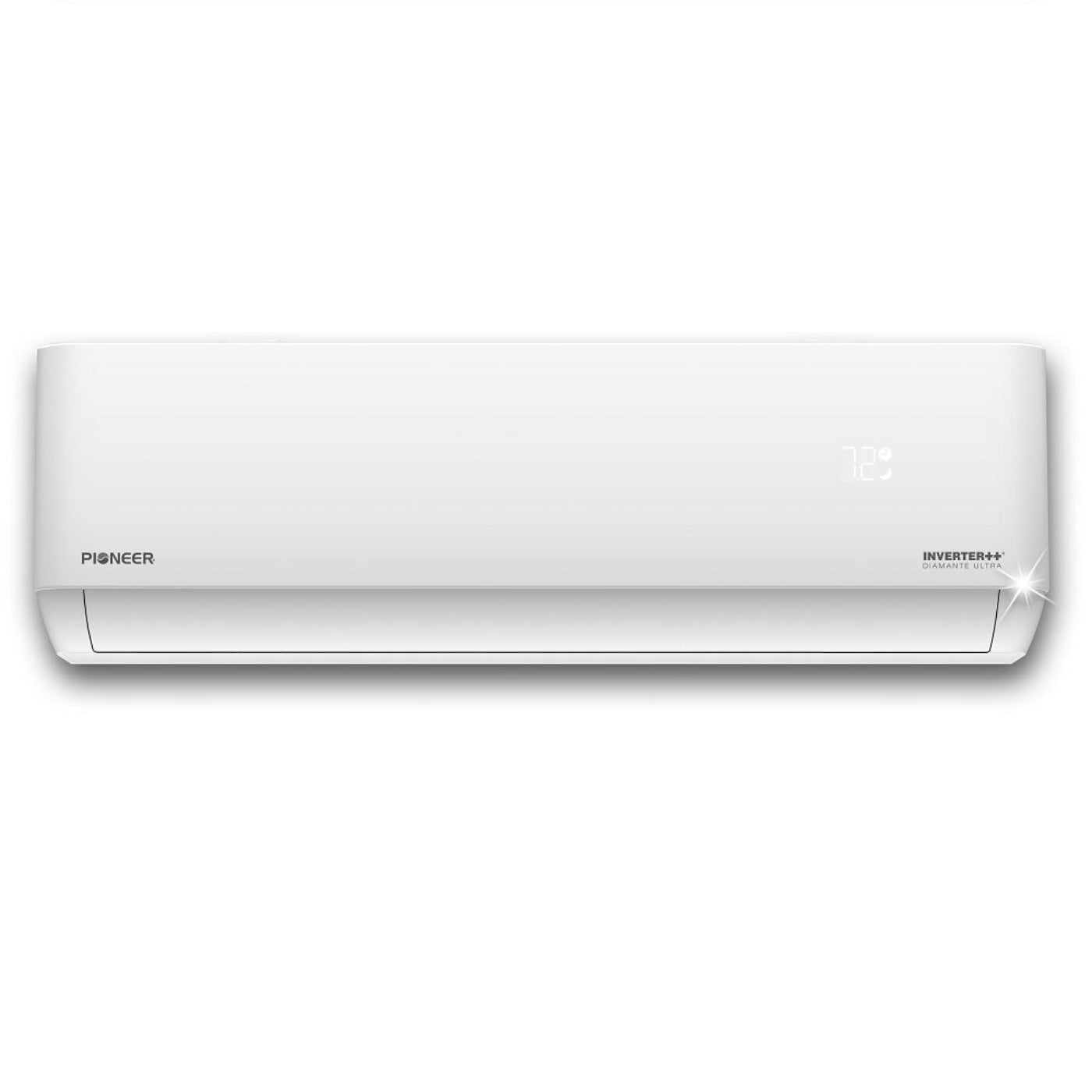

• Indoor Unit

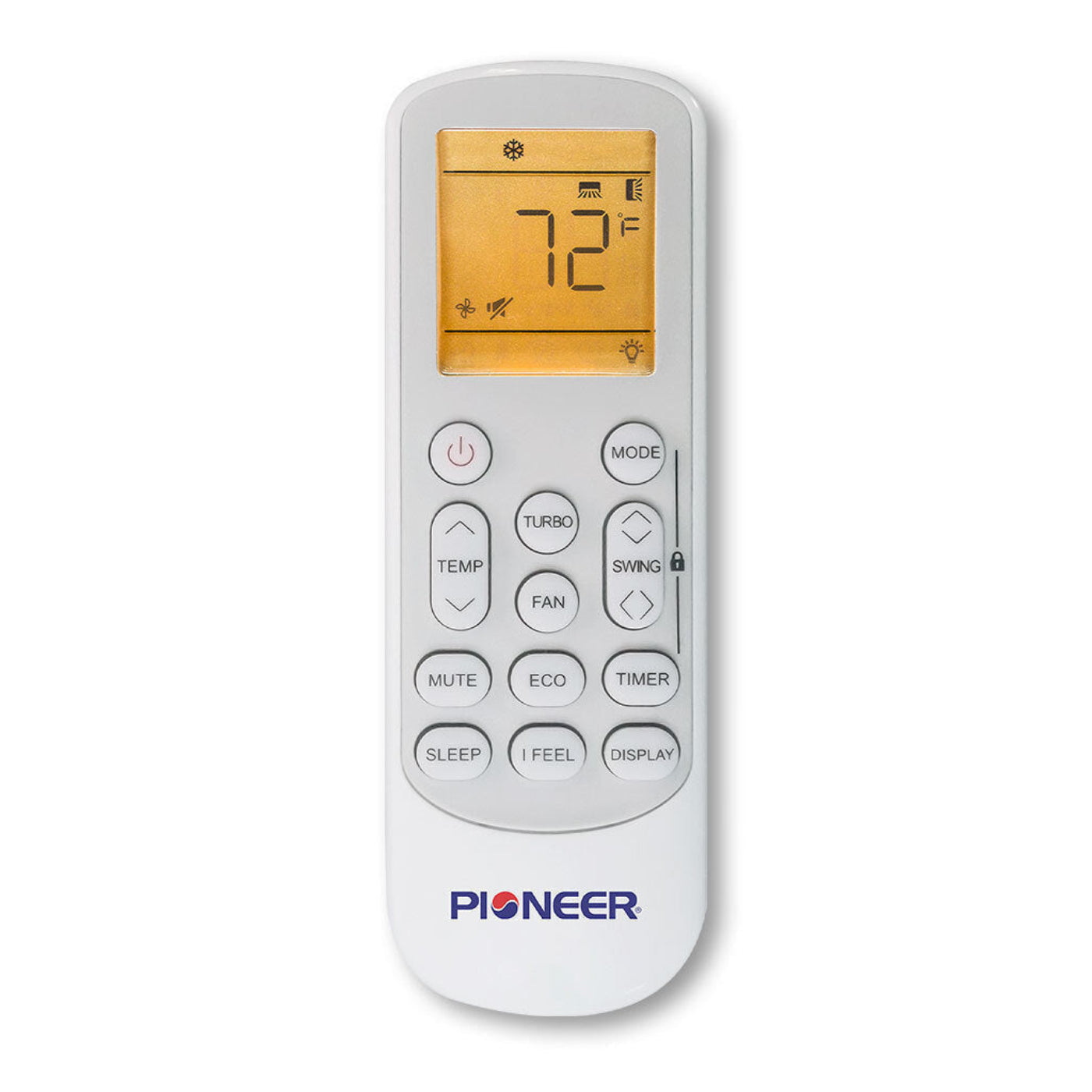

• Wireless Remote Control
• Wi-Fi Module w/ Free App
• Full Installation Kit (unless "No Installation Kit" is selected)
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual


What our Experts Think

• Balanced whole‑home performance: The Pioneer Vertex 36,000 BTU 18.6 SEER2 230 V Ducted Central Split Air Conditioner Inverter Heat Pump delivers robust ~34,000 BTU cooling and ~34,200 BTU heating performance with variable‑speed inverter efficiency, helping reduce energy use across larger ducted areas.

• Energy‑smart inverter design: Variable‑speed DC inverter technology improves part‑load efficiency and reduces compressor cycling for smoother, more efficient temperature control compared with traditional fixed‑speed systems.

• Flexible whole‑home comfort: Engineered for use with duct systems, it evenly distributes conditioned air throughout multiple rooms or open floorplans — ideal for larger homes and year‑round climate needs.

• Reliable performance range: Capable of operating in low ambient heat pump conditions (down to –4 °F) and high heat (up to 131 °F), it supports dependable comfort in diverse climates.

• Communicating system & modern refrigerant: Factory‑precharged with R454B refrigerant and featuring a communicating control system for streamlined thermostat integration and consistent performance.

• Quiet, efficient airflow: The multi‑position indoor air handler delivers up to 920 CFM airflow at moderate sound levels (~49–52 dB), while the outdoor unit runs around 79 dB, balancing airflow, efficiency, and noise.

• Professional installation ready: Built as a 208–230 V single‑phase heat pump, it includes advanced control wiring and communications — ideal for custom ducted HVAC setups.

Q&A

Q1: What type of system is this Pioneer model?
A: It is a ductless mini-split indoor unit with integrated heat pump, designed for multi-zone climate control.

Q2: What cooling and heating capacity does it provide?
A: Provides 24,000 BTU cooling with heat pump heating, ideal for medium to large rooms or multi-zone setups.

Q3: How energy-efficient is this unit?
A: Features Inverter++ technology, offering precise temperature control, quiet operation, and reduced energy consumption.

Q4: Does it support smart controls?
A: Yes, includes Wi-Fi connectivity for remote operation via smartphone or smart home systems.

Q5: What electrical requirements does it have?
A: Operates on 230 V single-phase power, suitable for residential or light-commercial circuits.

Q6: Can it integrate with other zones?
A: Yes, it is Multi Zone Diamante Ultra compatible, allowing connection with multiple indoor units for centralized control.

Q7: What installation style does it support?
A: Designed for indoor ductless installation, providing flexible airflow options without ductwork.

Q8: Can it provide heating in cold climates?
A: Yes, the heat pump supports low-ambient heating, ensuring year-round comfort.

Q9: What indoor unit features enhance comfort?
A: Includes adjustable airflow, washable filters, quiet operation, and energy-efficient performance.

Q10: What spaces is this system best suited for?
A: Ideal for living rooms, bedrooms, offices, or multi-zone residential setups.

Maintenance Tips

• Clean indoor air filters every 2–4 weeks to maintain airflow, system efficiency, and indoor air quality.

• Keep the indoor unit and vents free of dust and debris to optimize inverter performance and cooling/heating output.

• Inspect condensate drain lines and pan regularly to prevent leaks or water buildup.

• Check refrigerant lines, wiring, and mounting annually for safe and reliable operation.

• Use the self-clean cycle periodically to reduce moisture buildup and prevent mold or odors.

• Ensure adequate clearance around the indoor unit for proper airflow and temperature distribution.

• Schedule professional servicing once per year for inverter diagnostics, refrigerant checks, and system optimization.
