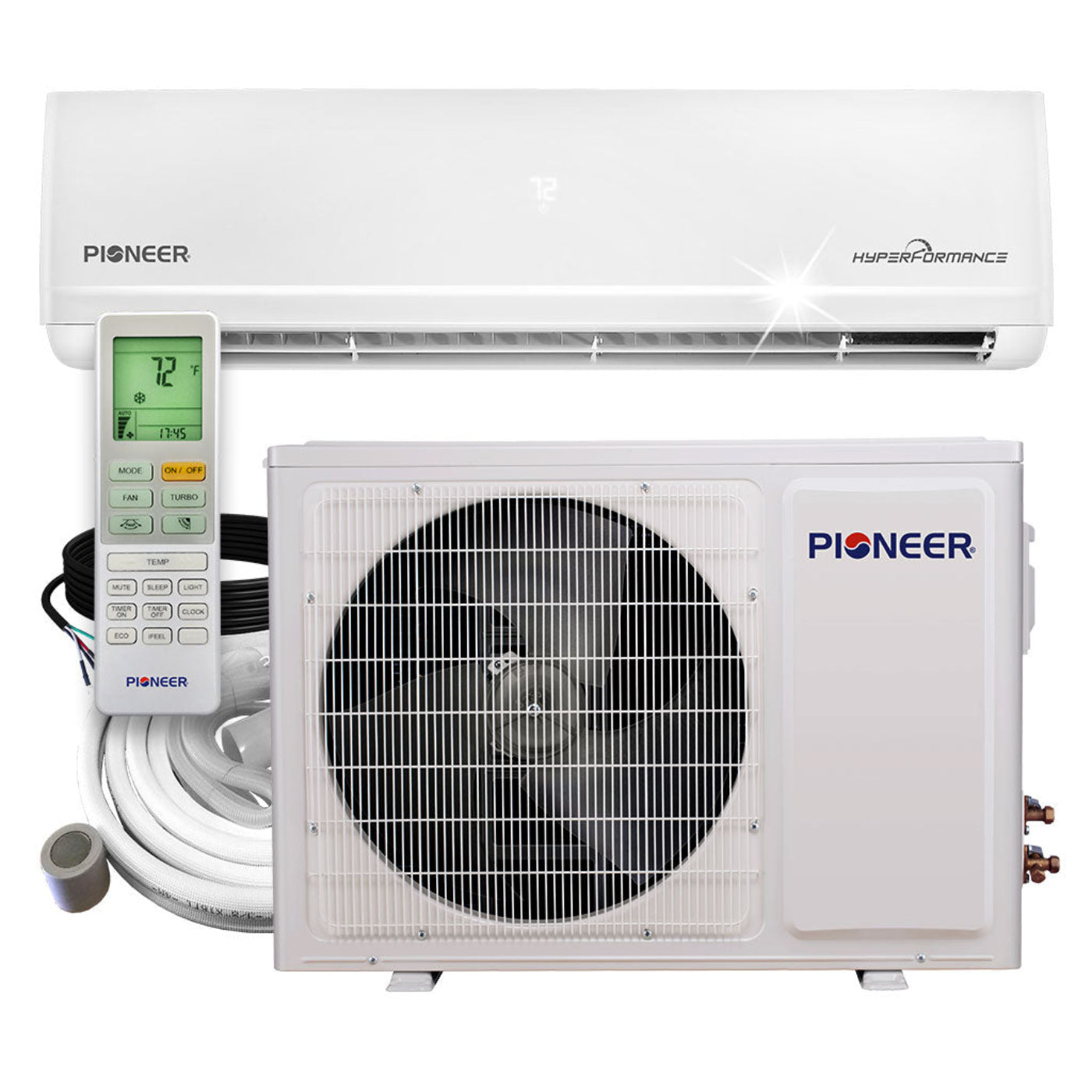

Pioneer Hyperformance 24K BTU Ductless Mini Split Hyper Heat Pump Complete System, Energy Star - WYF024GHFI25RH

Pioneer Hyperformance 24K BTU Ductless Mini Split Hyper Heat Pump Complete System, Energy Star - WYF024GHFI25RH

Experience unmatched comfort and efficiency with the Pioneer WYF-25 Hyperformance series of ductless mini split heat pumps. These revolutionary systems redefine year-round comfort, providing exceptional heating and cooling performance even in extreme weather conditions as low as -22°F.

Summary

• Ultra Low Ambient Hyperformance Ductless Mini Split Hyper Heat Pump System
• Cooling capacity: 24,000 BTU/H (2 Ton) with 21 SEER2 / 12.5 EER2 efficiency
• Heating capacity: 24,000 BTU/H (2 Ton) with 10 HSPF2 / 3.05 COP efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• High Wall Mounted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Hyper Heat Unit (Continues heating in -22°F weather)
• Wireless Internet Access Included (Via Free Smartphone App)

Energy-Star Certified Efficiency
Save on utility bills with Energy-Star certification and qualify for rebates nationwide.

Heavy Duty Heating in -22°F
Engineered to keep your space warm in extreme cold with up to 88% capacity retention.

Dual-Swing 3D Louver
Ensure optimal airflow distribution with automatic dual-directional louvers.

Dependably Durable Design
Built to withstand harsh climates with galvanized steel panels and anti-corrosion coil.

Wi-Fi Controllable
Control your system remotely with the free app, set custom schedules, and integrate with smart home setups.

High-Density Air Particle Filtration
Improve air quality with ultrafine and supplemental filters, eliminating pollutants and odors.

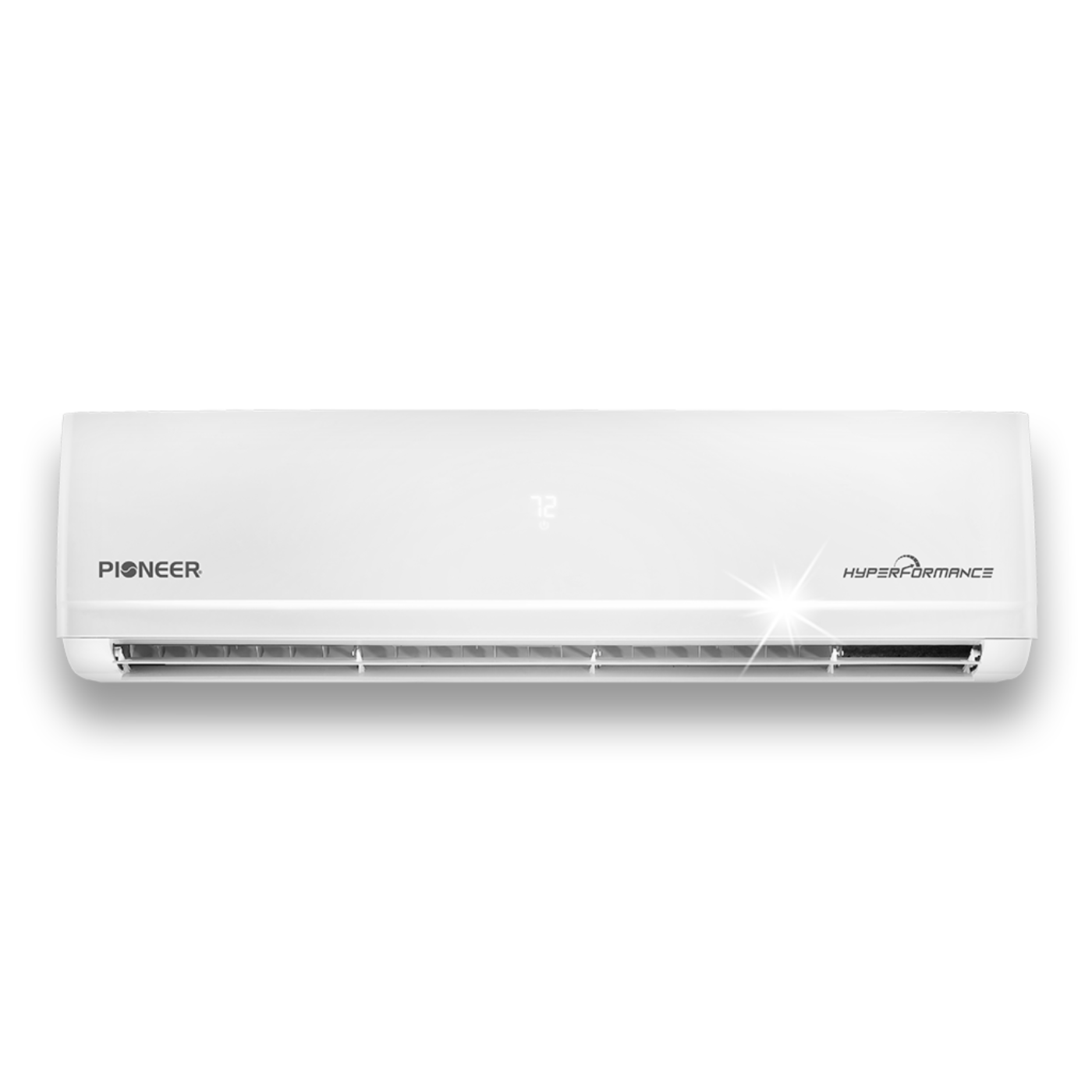

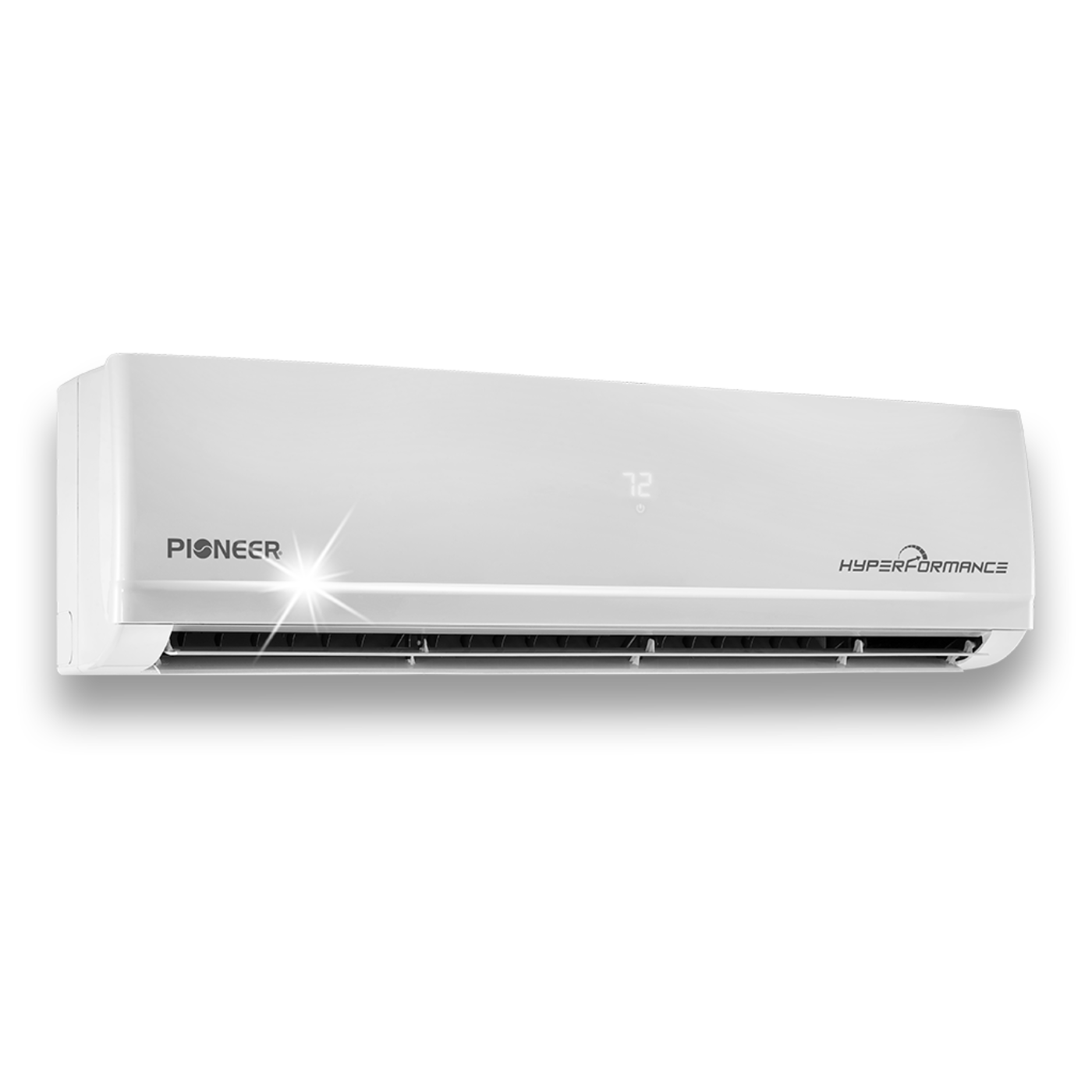

• Indoor Unit
• Outdoor Unit

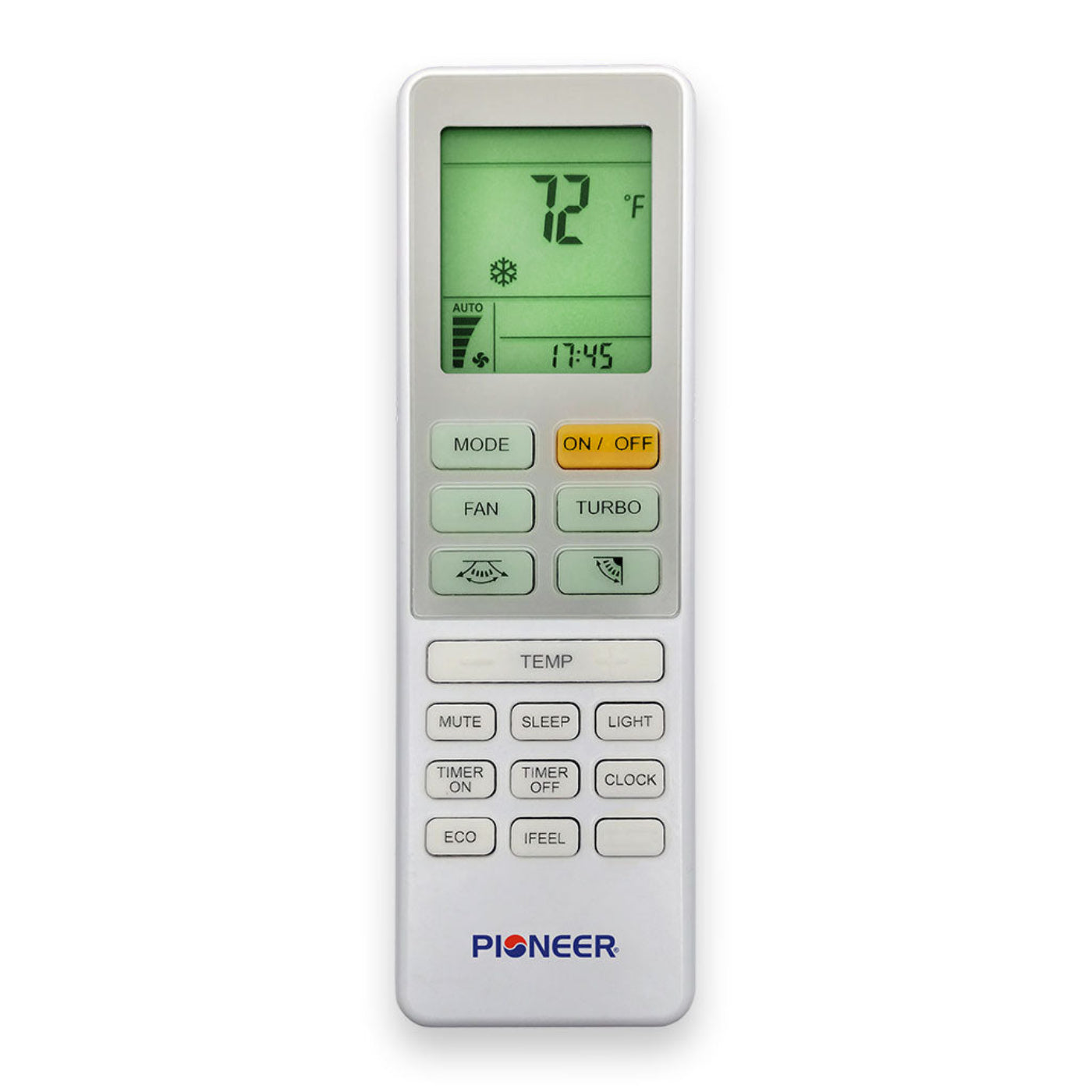

• Wireless Remote Control (with wall holder and batteries)
• Internet Control Module

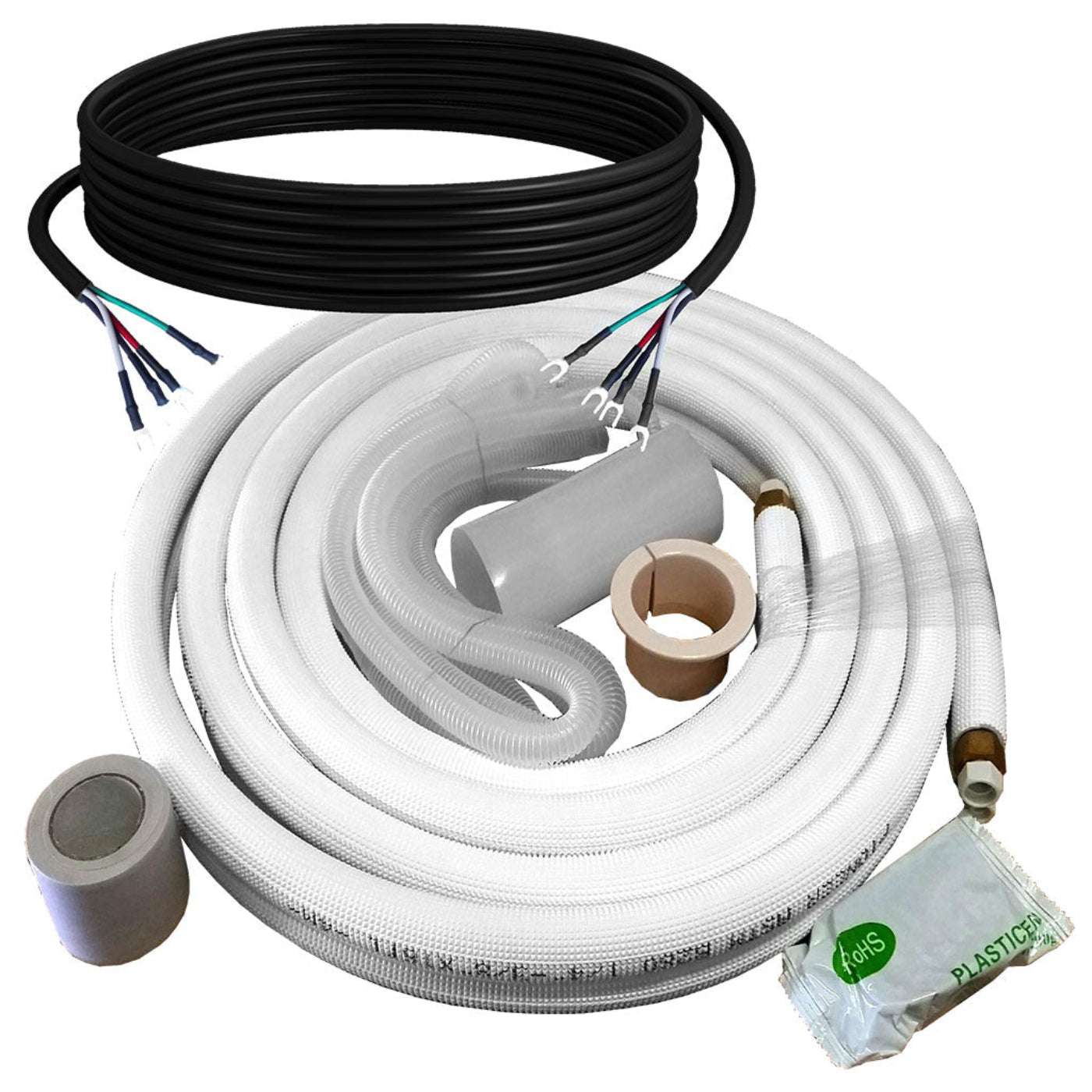

• Copper Lines*
• Signal Cable Between Units*
• Drain for Indoor/Outdoor*
• Wall Passage Sleeve*
• Putty for Wall Hole*
• Leak Guard Sealer
• Wrapping Tape
• Installation Manual
• User’s Manual
• (*If ordered with an installation kit)

Installation Manual
Product Brochure
Performance Specifications
Service Manual
Wifi App Manual
Energy Guide

• 24,000 BTU Capacity: Ideal for large rooms or open spaces, delivering powerful and efficient heating and cooling year-round.
• Hyper Heat Technology: Provides exceptional heating performance even in extreme cold temperatures, making it perfect for colder climates.
• Energy Star Certified: Ensures high energy efficiency, reducing electricity costs while maintaining consistent comfort.
• Inverter Technology: Offers precise temperature control, improved energy savings, and whisper-quiet operation.
• Ductless Design: Easy to install without the need for complex ductwork, offering flexibility for various residential and commercial spaces.
• Quiet Operation: Engineered for minimal noise, making it an excellent choice for bedrooms, offices, and living areas.

Q: What is the cooling capacity of the Pioneer Hyperformance 24,000 BTU Mini-Split system?
A: This system provides 24,000 BTU of cooling power, making it ideal for large rooms or spaces up to 1,000 sq. ft.

Q: What makes the Pioneer Hyperformance Mini-Split a "Hyper Heat" system?
A: It features advanced Hyper-Heat technology, ensuring efficient heating even in extreme cold temperatures as low as -13°F.

Q: What is the SEER and HSPF rating of the Pioneer Hyperformance 24,000 BTU Mini-Split system?
A: This system has a high SEER rating for cooling efficiency and an excellent HSPF rating for superior heating performance, providing year-round energy savings.

Q: Does the Pioneer Hyperformance Mini-Split system qualify for Energy Star certification?
A: Yes, it is Energy Star certified, meaning it meets strict energy efficiency standards to reduce energy consumption and lower utility costs.

Q: What are the key features of the Pioneer Hyperformance 24,000 BTU Mini-Split system?
A: This system includes inverter technology for optimized energy efficiency, ultra-quiet operation, WiFi compatibility for remote control, and advanced air filtration for cleaner indoor air.

Q: Is the Pioneer Hyperformance 24,000 BTU Mini-Split system easy to install?
A: Yes, it comes as a complete system with all necessary components, making installation straightforward and flexible.

• Clean or Replace Filters: Wash the air filters every 2-4 weeks to maintain airflow and efficiency. Replace them annually or when excessively dirty.
• Clean the Coils: Wipe down the evaporator and condenser coils at least once a year to remove dust and debris that can reduce efficiency.
• Inspect the Drain Line: Regularly check the condensate drain line for clogs and clear any blockages to prevent water leaks and mold growth.
• Monitor Refrigerant Levels: Ensure refrigerant levels are sufficient for optimal heating and cooling. If performance drops, contact a professional for inspection.
• Keep Airflow Unobstructed: Maintain a clutter-free space around both the indoor and outdoor units to ensure proper airflow and prevent strain on the system.
• Defrost Mode Check: In colder climates, ensure the defrost function is working properly to prevent ice buildup on the outdoor unit.
• Schedule Annual Professional Maintenance: Have a technician perform an annual inspection, including refrigerant level checks and component cleaning, to ensure efficient operation.
