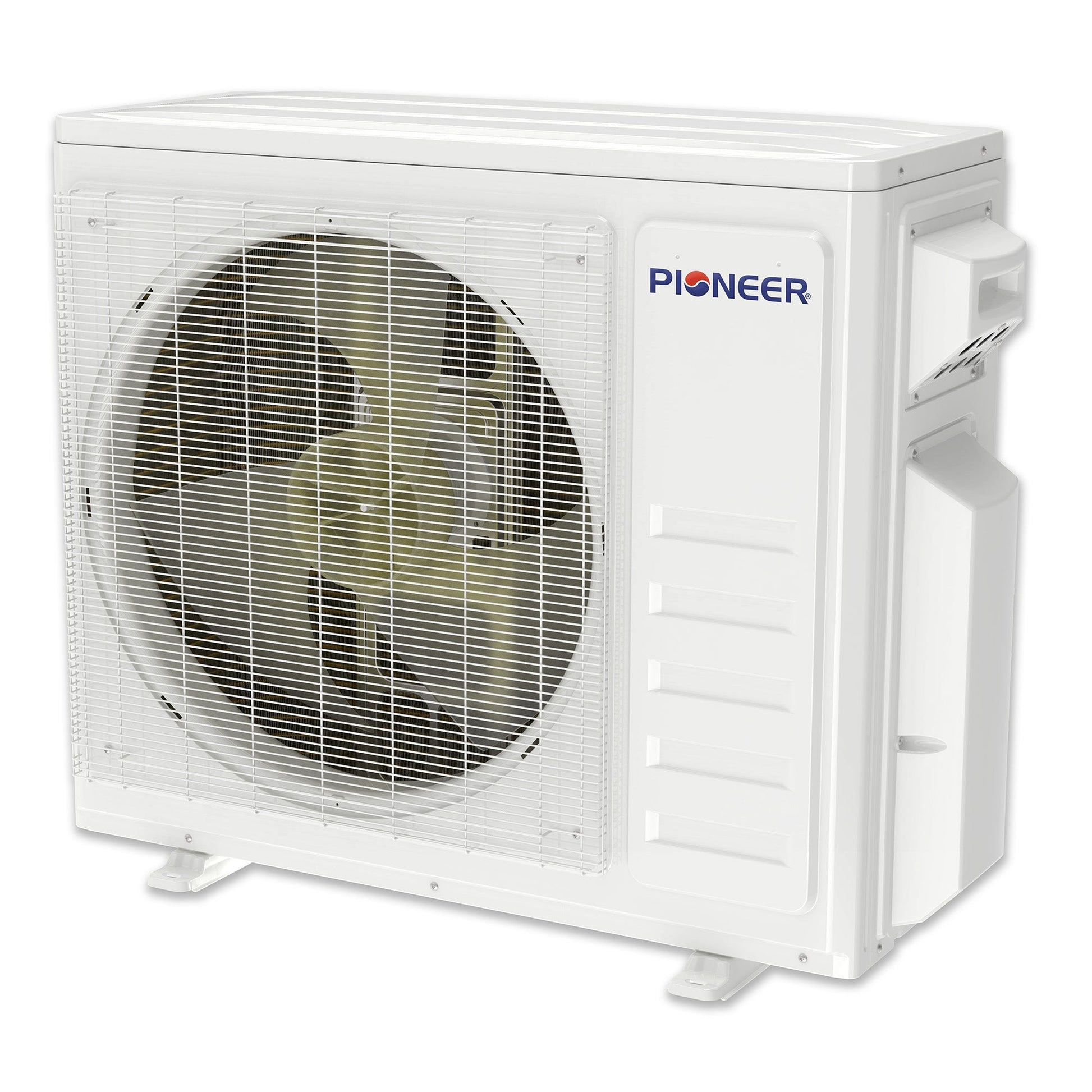

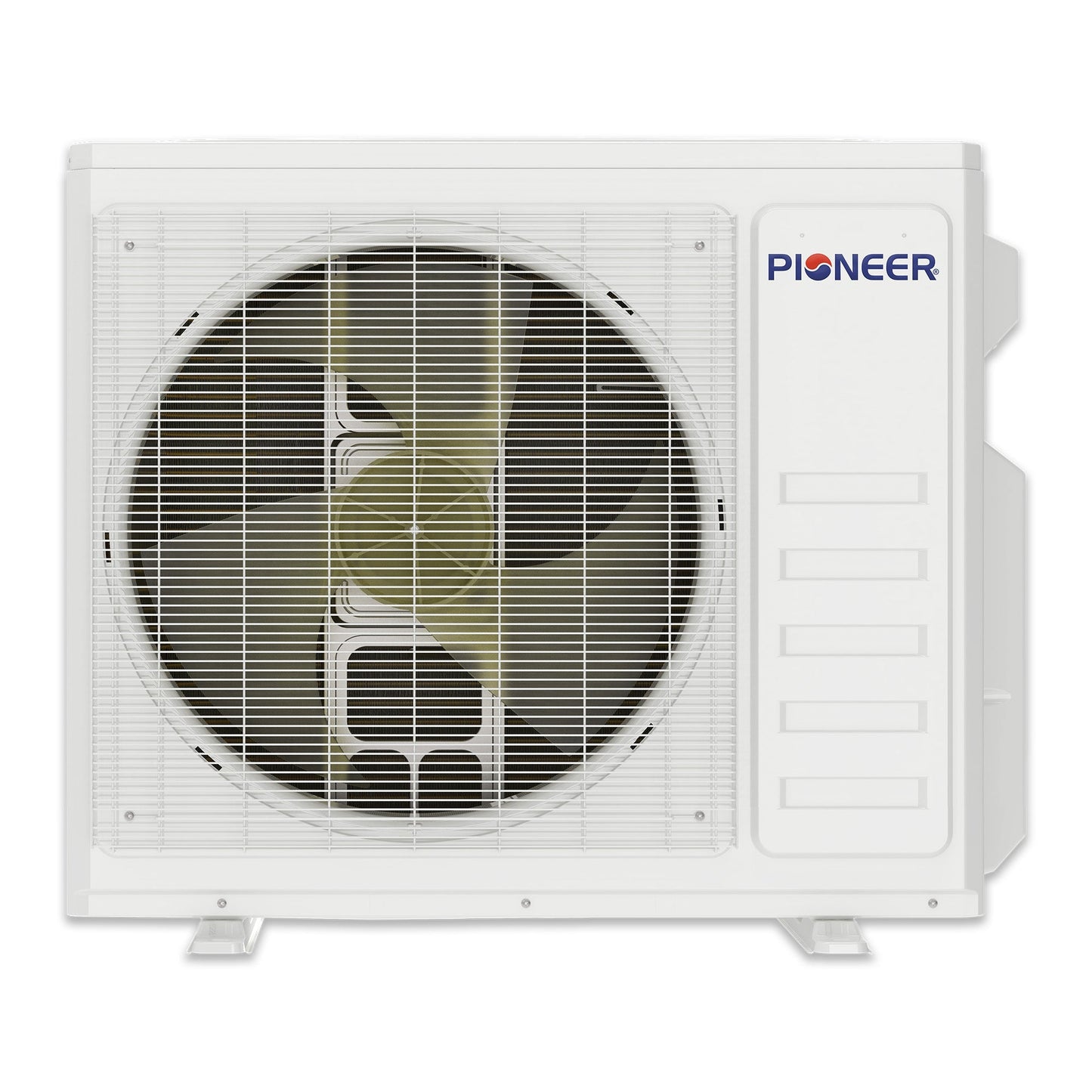

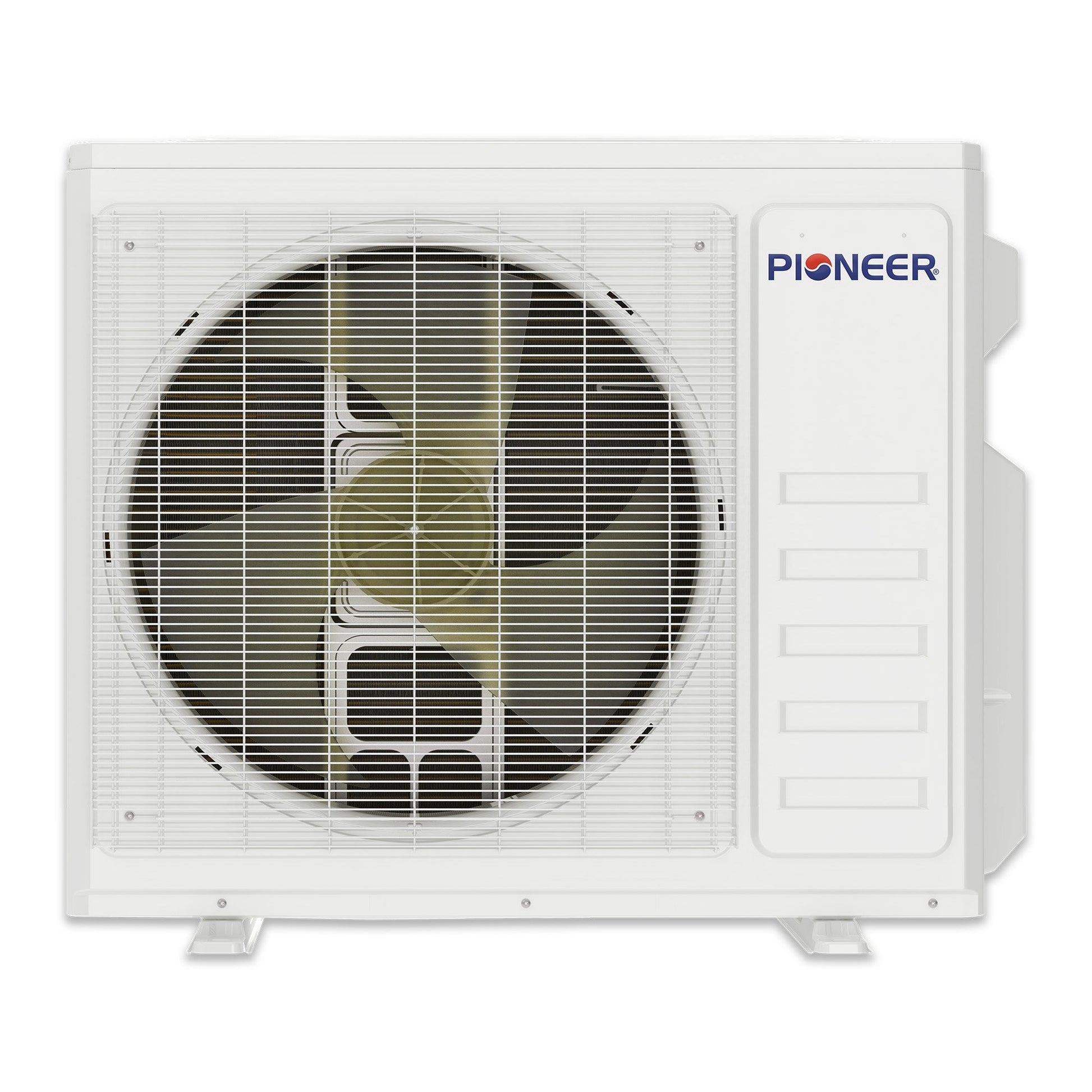

Pioneer Multi (3) Circuit Quantum Ultra Series 24 SEER2 Triple Zone Outdoor Section Inverter++ Energy-Star Air Conditioner Heat Pump 230V - YN030GLSI24M3G

Pioneer Multi (3) Circuit Quantum Ultra Series 24 SEER2 Triple Zone Outdoor Section Inverter++ Energy-Star Air Conditioner Heat Pump 230V - YN030GLSI24M3G

• Ultra High Efficiency Triple Zone (3 Circuit) Outdoor Condensing System
• Cooling Capacity: 27,000 BTU with 24 SEER2 / 12.0 EER2 efficiency
• Heating Capacity: 28,000 BTU with 10.0 HSP2 / 3.5 C.O.P. efficiency
• Energy-Star and Energy-Star Cold-Climate Designated Performance
• Wide Ambient Operation Range (As low as -13°F in Heating / As high as 131°F in Cooling)
• Factory Precharged to Cover Up to 75 Ft. of Total Combined Attached Lineset Length

• Can be Utilized as a Stronger Dual-Zone System by Leaving 3rd Zone Closed

Features

• Power Supply: 208~230V, 60Hz, 1Ph
• Communication Protocol: Current Loop
• Min-Max Load Attached: 18,000~39,000 BTU/h
• Cooling Rated Capacity: 27,000 BTU/h
• Cooling SEER2 (Ductless): 24.0 BTU/W.h
• Cooling EER2 (Ductless): 12.0 BTU/W.h
• Heating Rated Capacity: 28,000 BTU/h
• Heating HSPF2 (Ductless): 10.0 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 3.5 / 2.0 W/W
• Refrigerant Type: R454B

• Suitable Area: 400~1050 Sq.F
• Sound Level: 62.0 dB(A)
• Circuit Breaker Utilized: 25A (double-pole)
• Net Dimensions (WDH): 38-1/2 x 16-1/2 x 31-5/8 Inches
• Carton Dimensions (WDH): 40-1/2 x 18-7/8 x 32-7/8 Inches
• Net / Gross Weight: 119 / 128 Lbs

Manuals & Documents

• Technical Brochure
• Submittal Sheet
• Installation Manual (Multi-Split Addendum)
• Service Manual
• AHRI Certificate (Ductless Indoor Units / Ducted Indoor Units)
• Energy Guide

Specifications

9,000 BTU Compatible Units

• Wall Mounted: WT009GLSI24HLG (32-1/4 x 7-5/8 x 12 inches WDH)
• Ceiling Cassette: CT009GLSILCFHG (22-1/2 x 22-1/2 x 9-5/8 inches WDH)
• Ductable Concealed: RT009GLSILCFHG (27-1/2 x 19-1/4 x 7-7/8 inches WDH)

12,000 BTU Compatible Units

• Wall Mounted: WT012GLSI24HLG (36-1/4 x 7-5/8 x 12 inches WDH)
• Ceiling Cassette: CT012GLSILCFHG (22-1/2 x 22-1/2 x 9-5/8 inches WDH)
• Ductable Concealed: RT012GLSILCFHG (27-1/2 x 19-1/4 x 7-7/8 inches WDH)

18,000 BTU Compatible Units

• Wall Mounted: WT018GLSI24HLG (43-1/8 x 8-3/4 x 13 inches WDH)
• Ceiling Cassette: CT018GLSILCFHG (22-1/2 x 22-1/2 x 9-5/8 inches WDH)
• Floor-Ceiling Flex Console: UT018GLSILCFHG (41-1/2 x 9-1/4 x 26-1/2 inches WDH)
• Ductable Concealed: RT018GLSILCFHG (35-1/2 x 19-1/4 x 7-7/8 inches WDH)

24,000 BTU Compatible Units

• Wall Mounted: WT024GLSI24HLG (43-1/8 x 8-3/4 x 13 inches WDH)
• Ceiling Cassette: CT024GLSILCFHG ( 33-1/8 x 33-3/4 x 10-3/4 inches WDH)
• Floor-Ceiling Flex Console: UT024GLSILCFHG (41-1/2 x 9-1/4 x 26-1/2 inches WDH)
• Ductable Concealed: RT024GLSILCFHG ( 43-1/4 x 17-3/4 x 7-7/8 inches WDH)

Min. / Max. Loading

18,000 / 39,000 BTU/h.

Notes

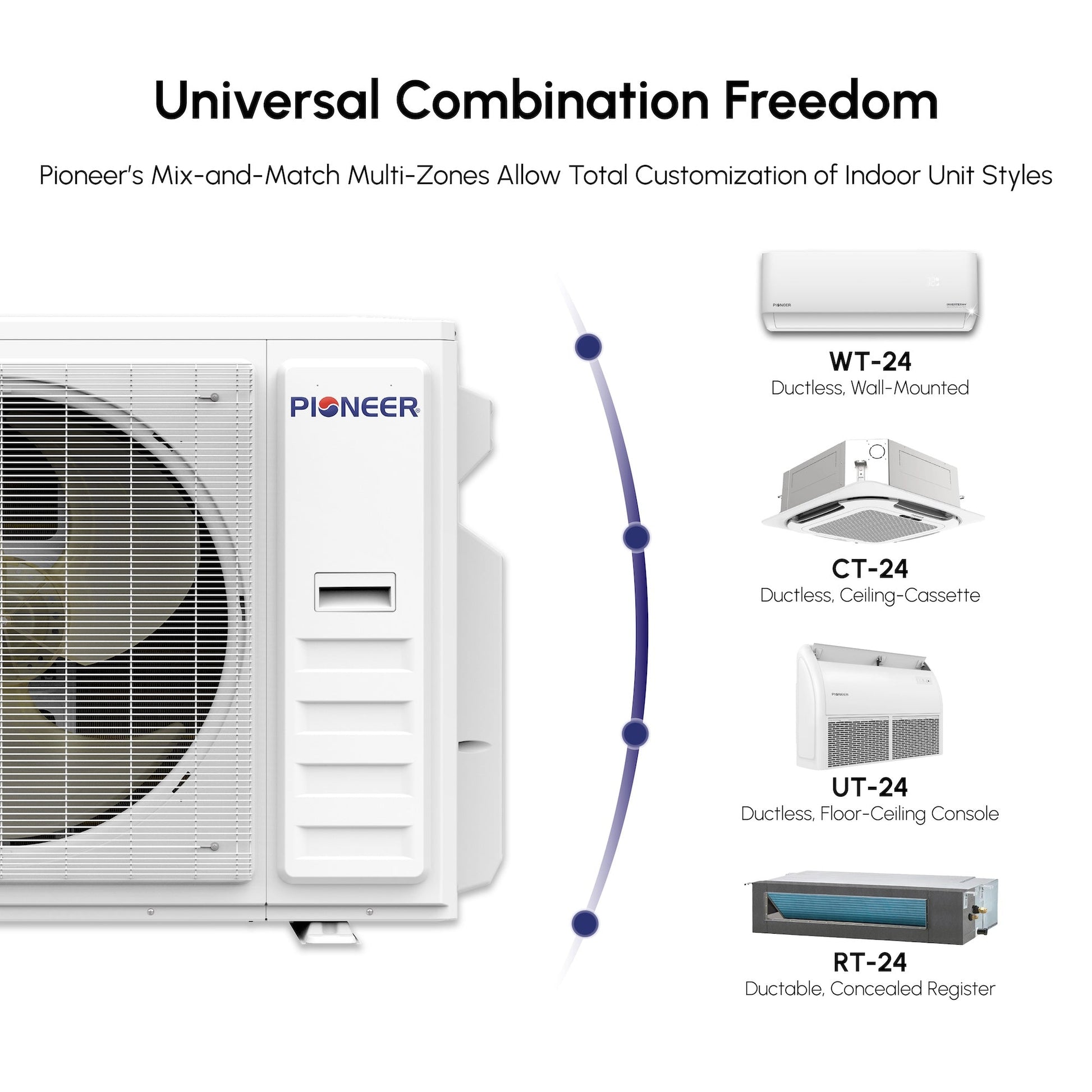

• Different models of all available matching indoor units can be combined in any order to create a multi zone split system, up to a quantity of the number of available circuits.
• Not all available circuits need to be utilized with an attached indoor unit. 66% or higher of the total capacity utilization is recommended.

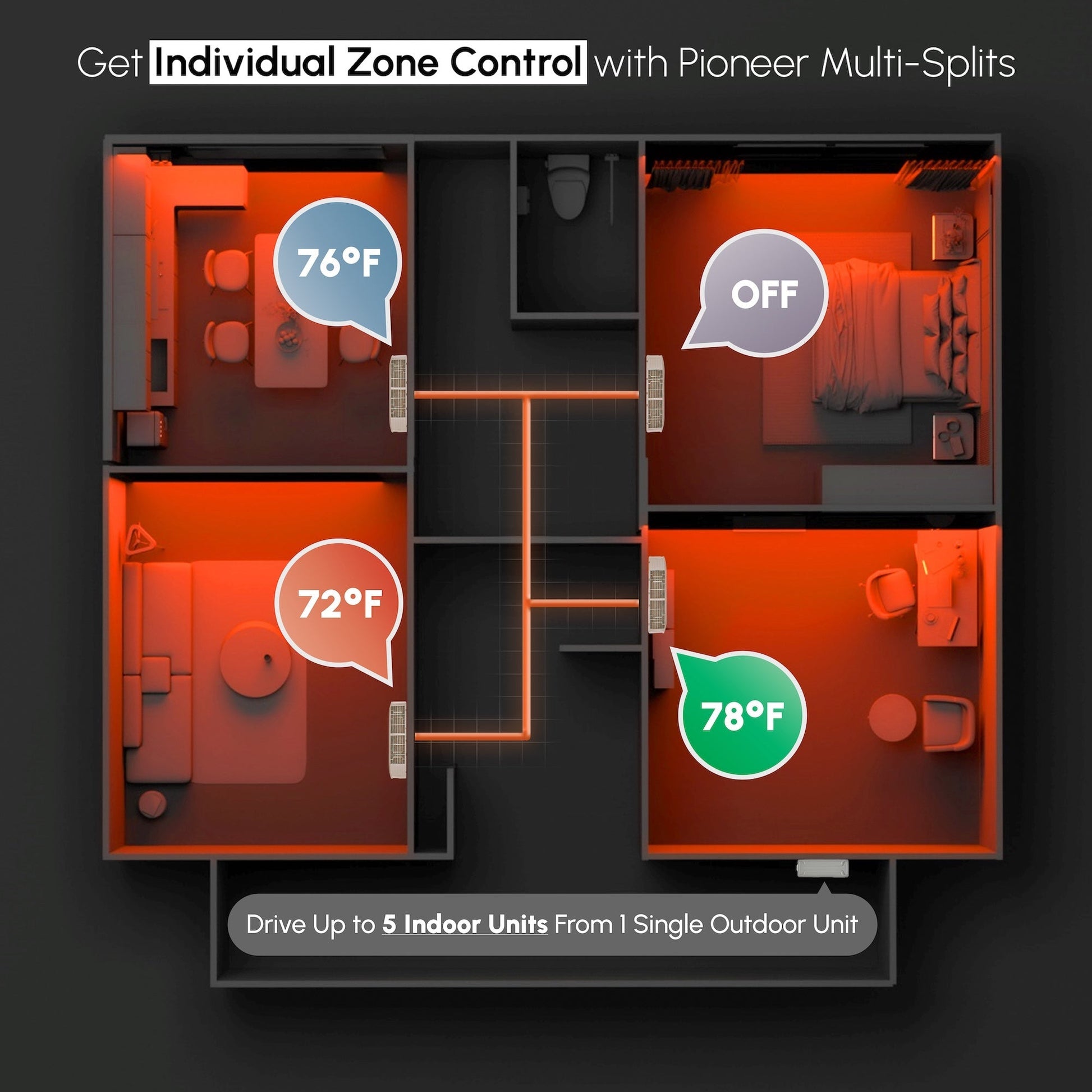

• Every indoor unit attached to a multi zone system will operate at a random, self-regulated capacity, based on the actual demand it measures from the zone it is serving (Between 30% to 100% of its rated capacity) or turn OFF as needed.
• Outdoor unit will also self-regulate its total output capacity, based on the total demand it reads from all the simultaneously running indoor units at any given moment, up to its maximum rating capacity.
• With multi split systems, the total demand from the outdoor unit, will seldomly exceed 75% of the total available capacity of the combined indoor unit group due to load fluctuations of each indoor unit.
• Therefore, total attached indoor unit capacity can be selected up to 133% of the supporting outdoor unit's rated capacity.
• Although very seldom, if the total demand from the combined group of indoor units' exceeds the rated capacity of the outdoor unit, the capacity of the each indoor unit will be annotated accordingly.
• For high demand applications, max loading limits may need to be reduced up to 20% to avoid underperformance risks during some extreme conditions.

What Our Experts Think

• Triple-zone outdoor unit efficiently powers three indoor sections simultaneously.

• 30,000 BTU capacity with 24 SEER2 rating delivers exceptional energy efficiency.

• Inverter++ technology ensures quiet, precise, and reliable performance.

• Energy Star certified for reduced energy costs and eco-friendly operation.

• Durable outdoor construction designed for long-term residential or light commercial use.

Q&A

Q: How many zones can this outdoor unit support?
A: It powers up to three separate indoor zones at once.

Q: Is it energy-efficient?
A: Yes, with a 24 SEER2 rating and Energy Star certification, it’s built for efficiency.

Q: Does it work with both heating and cooling?
A: Yes, it functions year-round as both an air conditioner and heat pump.

Maintenance Tips

• Keep outdoor unit clear of leaves, dirt, and debris for proper airflow.

• Rinse condenser coils seasonally to maintain peak performance.

• Inspect refrigerant lines and connections annually.

• Schedule professional servicing each year to ensure long-lasting reliability.
