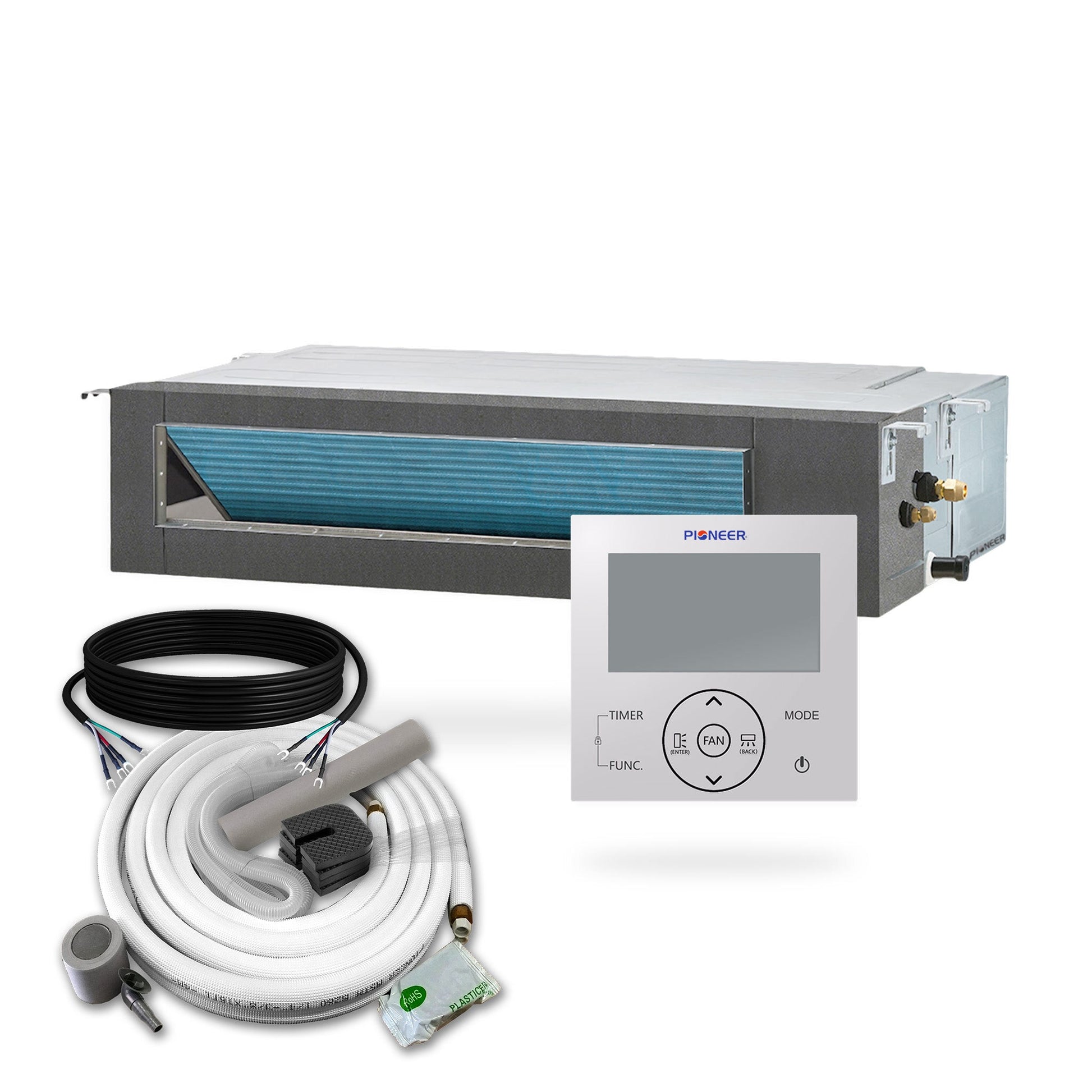

Pioneer Multi Zone 12,000 BTU Quantum Ultra Ceiling Concealed Indoor Section Ductable Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V - RT012GLSILCFHG-10S

Pioneer Multi Zone 12,000 BTU Quantum Ultra Ceiling Concealed Indoor Section Ductable Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V - RT012GLSILCFHG-10S

• Part Number: RT012GLSILCFHG
• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Capacity: 12,000 BTU/h
• Heating Capacity: 12,000 BTU/h
• Suitable Area: 350~500 sq ft
• Air Flow (Turbo/Hi/Med/Lo/Mute): 360 / 330 / 270 / 210 / 180 CFM
• Sound Level (Turbo/Hi/Med/Lo/Mute): 43 / 41 / 39 dB(A)
• Product Dimensions (WDH): 27"-1/2 x 19"-1/4 x 7"-7/8 Inches
• Carton Dimensions (WDH): 35"-1/2 x 21"-7/8 x 9"-7/8 Inches
• Net / Gross Weight: 33.1 / 40.8 lbs

Compatibility

• Dual (2) Zone Condenser: YN020GLSI24M2G
• Triple (3) Zone Condenser: YN030GLSI24M3G
• Quad (4) Zone Condenser: YN040GLSI24M4G
• Quint (5) Zone Condenser: YN050GLSI24M5G

Manuals

• Technical Brochure

• User & Installation Manual

Included

• Indoor Unit
• Wireless Remote Control
• Wi-Fi Module w/ Free App
• Full Installation Kit (unless "No Installation Kit" is selected)
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual


What our Experts Think

• Powerful central cooling & heating (24,000 BTU outdoor condenser)
  This Pioneer central split outdoor unit delivers strong cooling and heating capacity (~24,000 BTU), making it ideal for whole-zone or small home ducted systems (~700–900 sq ft) when paired with a compatible air handler.

• Efficient inverter performance (≈17 SEER2)
  With 17 SEER2 efficiency, it offers solid energy savings vs traditional non-inverter systems, balancing performance and operating cost for year-round use.

• Inverter+ variable-speed compressor
  Equipped with a continuously variable inverter compressor, it delivers precise temperature control, reduced energy waste, and smoother operation compared to fixed-speed condensers.

• Built for ducted central systems
  Designed as an outdoor condenser section, it integrates with a central ducted air handler, enabling whole-home airflow through existing or new ductwork.

• Cold-climate heat pump capability
  Maintains heating performance even in low temperatures (down to ~-13°F), making it suitable for year-round use in varying climates.

• Quiet and compact outdoor operation
  Outdoor noise levels around ~54 dB and a compact footprint make it residential-friendly and easy to place outside homes.

• Pre-charged & installation-friendly
  The unit comes pre-charged with R410A refrigerant (up to ~25 ft line length) and supports standard 208–230 V power, simplifying installation logistics.

Q&A

Q: What is the purpose of this 24,000 BTU outdoor condenser?
A: This unit is the outdoor section of a ducted central split system, designed to provide cooling and heating when paired with a compatible indoor air handler.

Q: What size area can this system support?
A: Suitable for medium to large spaces (approx. 800–1,200 sq. ft.), depending on the matched indoor unit and duct design.

Q: Does it provide both cooling and heating?
A: Yes, this inverter+ heat pump supports year-round cooling and heating.

Q: How energy-efficient is the 17 SEER2 rating?
A: With 17 SEER2, it offers reliable efficiency for central ducted applications while helping reduce operating costs.

Q: What voltage does it require?
A: Designed for 208–230V single-phase power.

Q: What components are included?
A: Includes the outdoor condenser unit only; a compatible indoor air handler and ductwork are required for full operation.

Q: Is this inverter technology?
A: Yes, inverter+ technology adjusts compressor speed for better efficiency, quieter performance, and consistent temperatures.

Q: How quiet is the outdoor unit?
A: Engineered for low noise operation relative to its size, typically around 45–55 dB depending on load and environment.

Maintenance Tips

• Clean condenser coils regularly – Remove dust, dirt, and debris monthly to maintain 17 SEER2 efficiency

• Ensure proper airflow clearance (2–3 ft) – Prevents overheating and supports efficient heat exchange

• Inspect refrigerant lines annually – Detect leaks early and maintain optimal cooling/heating capacity

• Check electrical connections periodically – Ensures safe operation and prevents power issues

• Clean fan blades and inspect motor – Promotes strong airflow and extends component lifespan

• Keep surrounding area clear of debris – Avoids airflow restriction and system strain

• Monitor for unusual noise or vibration – Early detection helps prevent costly repairs

• Schedule yearly professional servicing – Maximizes inverter efficiency and long-term reliability
