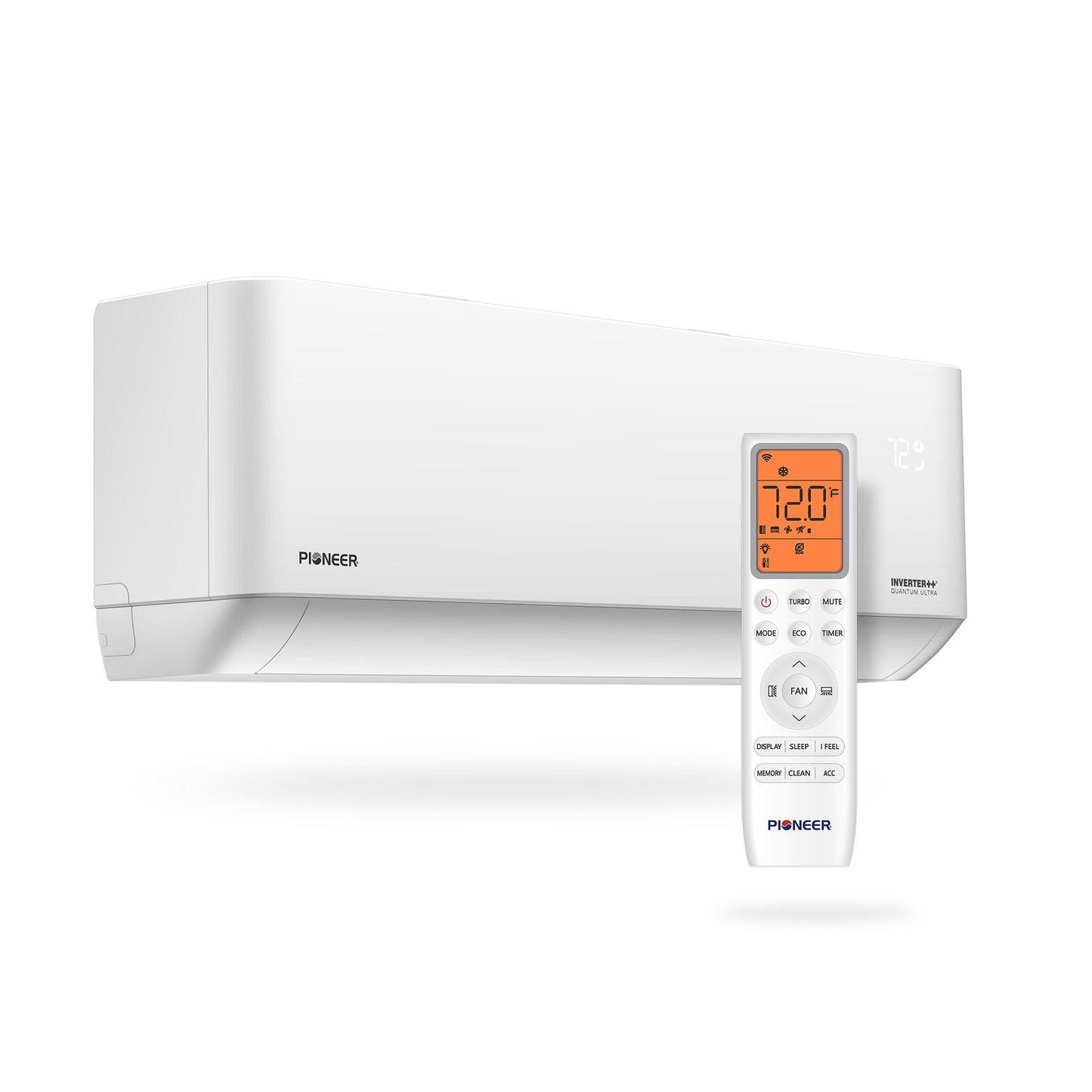

Pioneer Multi Zone 12,000 BTU Quantum Ultra Wall-Mounted Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V - WT012GLSI24HLG-10S

Pioneer Multi Zone 12,000 BTU Quantum Ultra Wall-Mounted Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V - WT012GLSI24HLG-10S

• Part Number: WT012GLSI24HLG
• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Capacity: 12,000 BTU/h
• Heating Capacity: 12,000 BTU/h
• Suitable Area: 350~500 sq ft
• Air Flow (Turbo/Hi/Med/Lo/Mute): 500 / 470 / 411 / 323 / 205 CFM
• Sound Level (Turbo/Hi/Med/Lo/Mute): 46 / 44 / 36 / 32 / 30 dB(A)
• Product Dimensions (WDH): 36"-1/4 x 7"-5/8 x 12" Inches
• Carton Dimensions (WDH): 39" x 10"-1/2 x 15" Inches
• Net / Gross Weight: 23.1 / 30.9 lbs
• Piping Diameter: 3/8" (Gas) / 1/4" (Liquid)

Compatibility

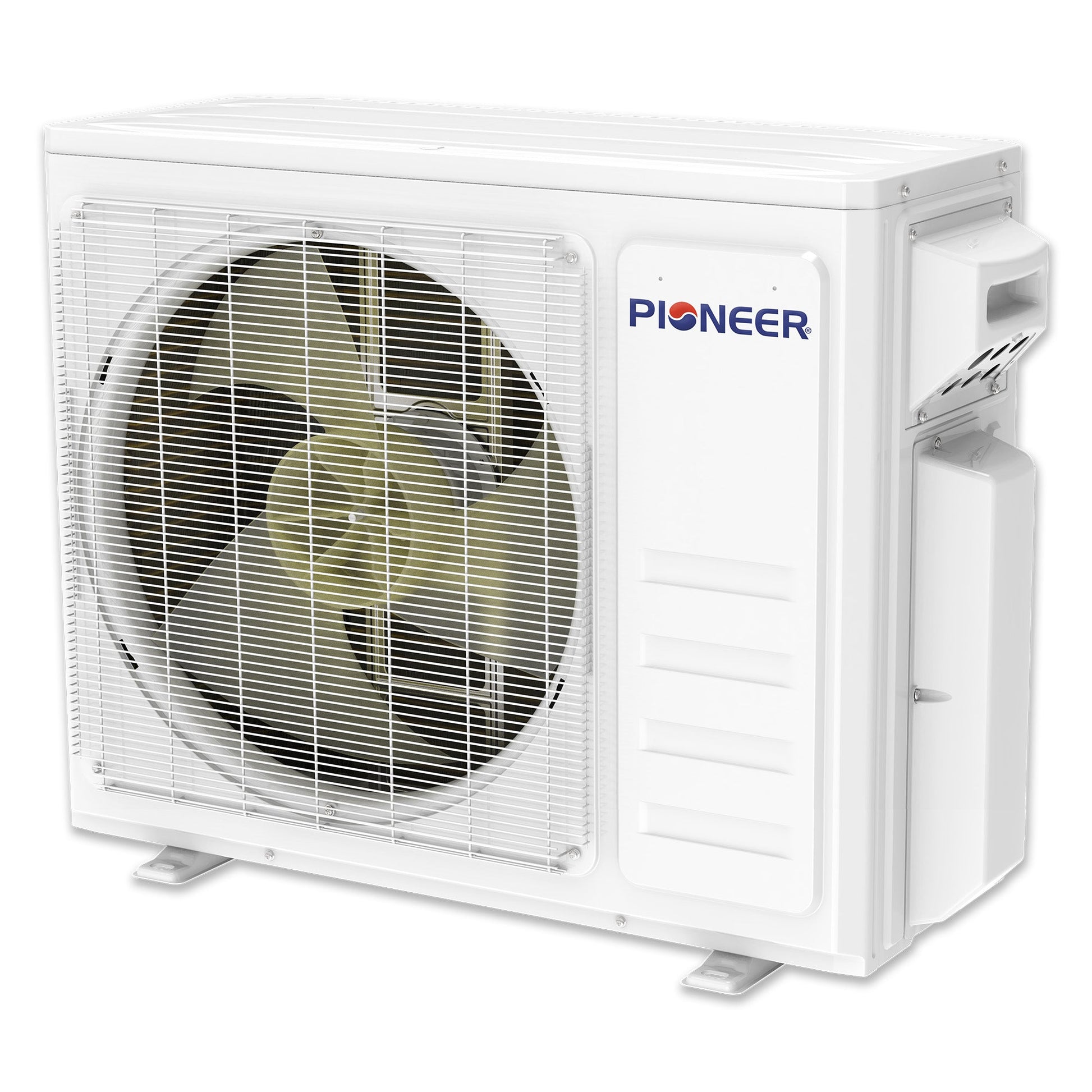

• Dual (2) Zone Condenser: YN020GLSI24M2G
• Triple (3) Zone Condenser: YN030GLSI24M3G
• Quad (4) Zone Condenser: YN040GLSI24M4G
• Quint (5) Zone Condenser: YN050GLSI24M5G

Manuals

• Technical Brochure

• User & Installation Manual


Included

• Indoor Unit
• Wireless Remote Control
• Wi-Fi Module w/ Free App

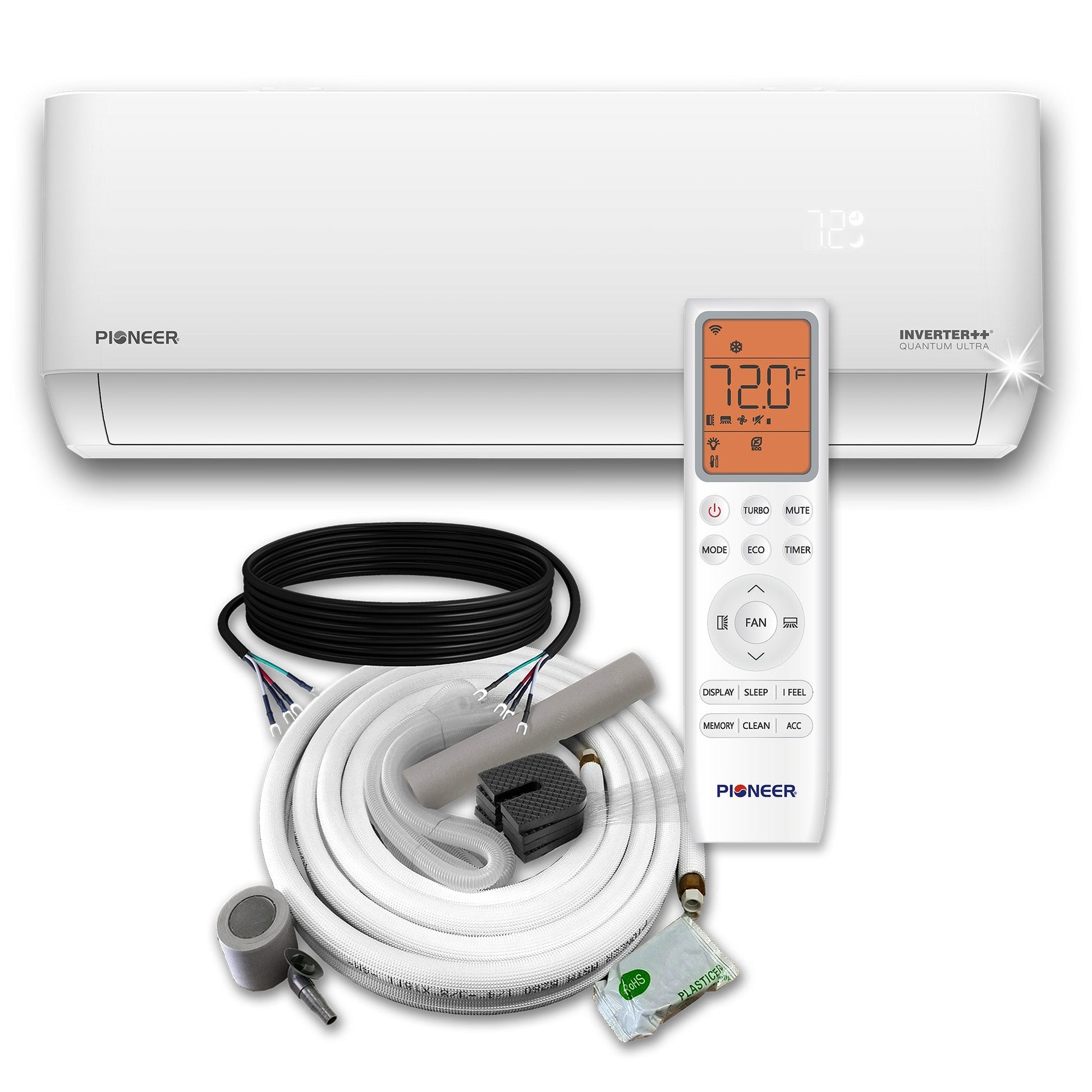

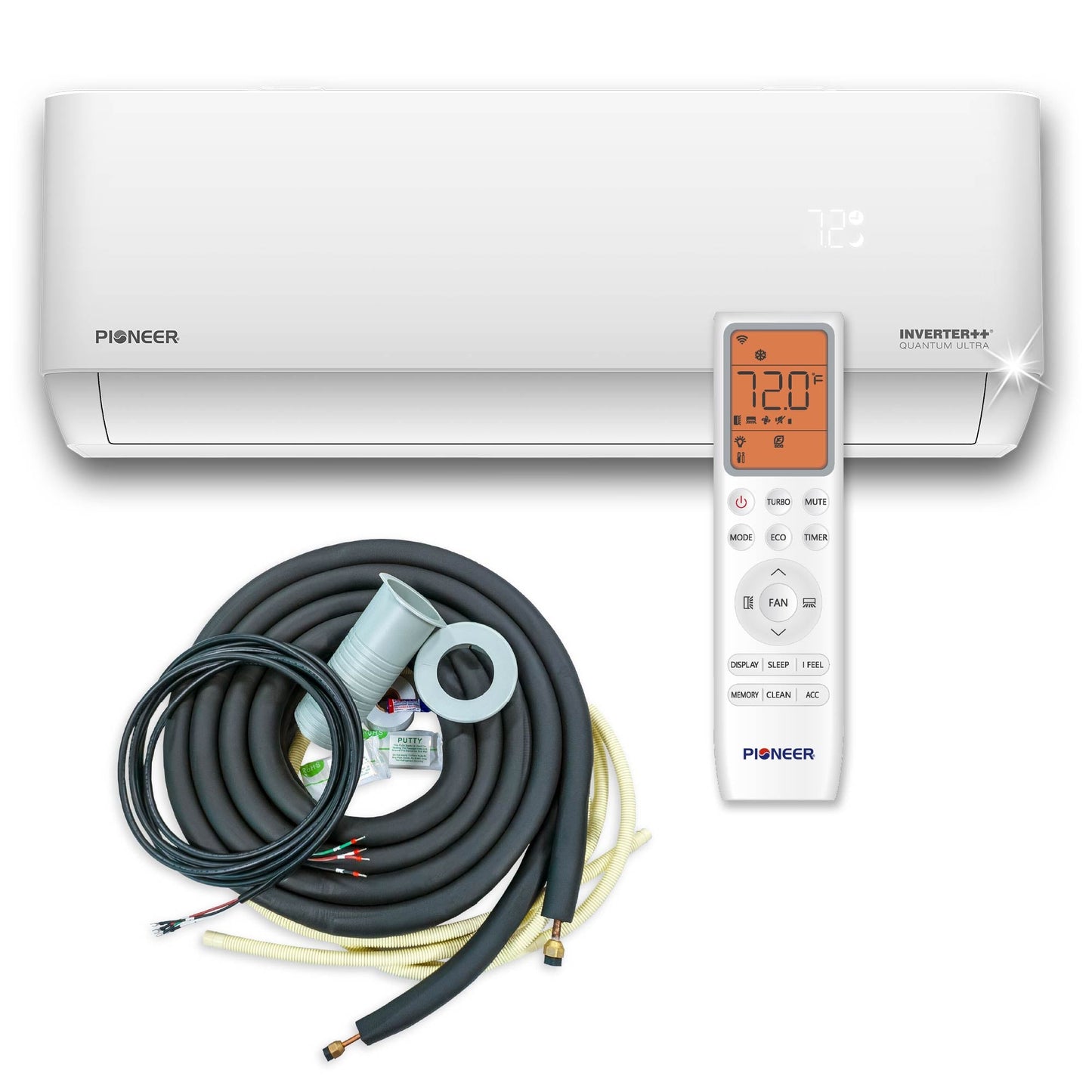

• Full Installation Kit (unless "No Installation Kit" is selected)
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual


What our Experts Think

• Balanced mid‑size performance (12,000 BTU)
  Perfect for medium rooms (~400–550 sq. ft.), this unit delivers reliable cooling and heating without oversizing your space or energy bills.

• Inverter++ efficiency for lower costs
  Advanced DC inverter technology boosts efficiency, reduces power spikes, and maintains steady temperatures—translating into lower monthly energy bills.

• Smart Wi‑Fi control included
  Built‑in Wi‑Fi lets users control and schedule remotely, improving convenience and enabling smarter energy use with mobile app access.

• Multi‑zone ready
  Designed to work with multi‑zone outdoor units, making this a scalable choice if you plan to expand comfort to multiple rooms.

• Comfort‑focused airflow
  Quiet operation and balanced air distribution mean even temperatures throughout the room, with modes like Turbo, Sleep, and ECO boosting comfort.

• Year‑round heating & cooling
  Functions as a heat pump system, providing efficient conditioning in both hot and cold seasons—great for varied climates.

• User‑centric features that matter
  Includes self‑cleaning, timer, and “I FEEL” temperature sensing for enhanced usability and comfort customization.

Q&A

Q: What room size is this 12,000 BTU mini split ideal for?
A: Suitable for medium rooms (approx. 400–500 sq. ft), like bedrooms, offices, or small living areas.

Q: Does it provide both cooling and heating?
A: Yes, it’s a heat pump system delivering year-round cooling and heating.

Q: Is this unit compatible with multi-zone systems?
A: Yes, works with Pioneer multi-zone outdoor condensers (2–5 zones) for whole-home setups.

Q: Does it support Wi-Fi and smart control?
A: Yes, built-in Wi-Fi allows remote operation via the Pioneer Airlink app.

Q: How energy-efficient is this inverter AC?
A: High efficiency with up to 24 SEER2 rating, reducing electricity costs while maintaining comfort.

Q: How quiet is the indoor unit?
A: Ultra-quiet operation, as low as ~30 dB, suitable for bedrooms and low-noise environments.

Q: What voltage does it require?
A: Requires 208–230V single-phase power supply.

Q: What features enhance comfort and usability?
A: Turbo mode, ECO mode, sleep mode, self-cleaning, auto diagnostics, and multi-directional airflow.

Q: Is installation included?
A: This listing is for the indoor unit; outdoor condenser and installation kit may be required separately.

Maintenance Tips

• Clean washable air filters every 2–4 weeks – Maintains airflow and high inverter efficiency for 350–500 sq ft areas

• Run self-clean function regularly – Prevents mold, bacteria, and odor buildup inside the indoor unit

• Keep indoor & outdoor units free of dust and debris – Ensures optimal airflow and heat exchange

• Check and clear condensate drain line – Prevents water leaks and system damage

• Maintain 2–3 ft clearance around outdoor unit – Supports efficient cooling/heating performance

• Inspect refrigerant lines annually – Ensures leak-free operation and optimal cooling capacity

• Use ECO, Sleep & Wi-Fi smart modes – Reduces compressor strain and energy consumption

• Schedule yearly professional servicing – Maximizes inverter performance and extends system lifespan
