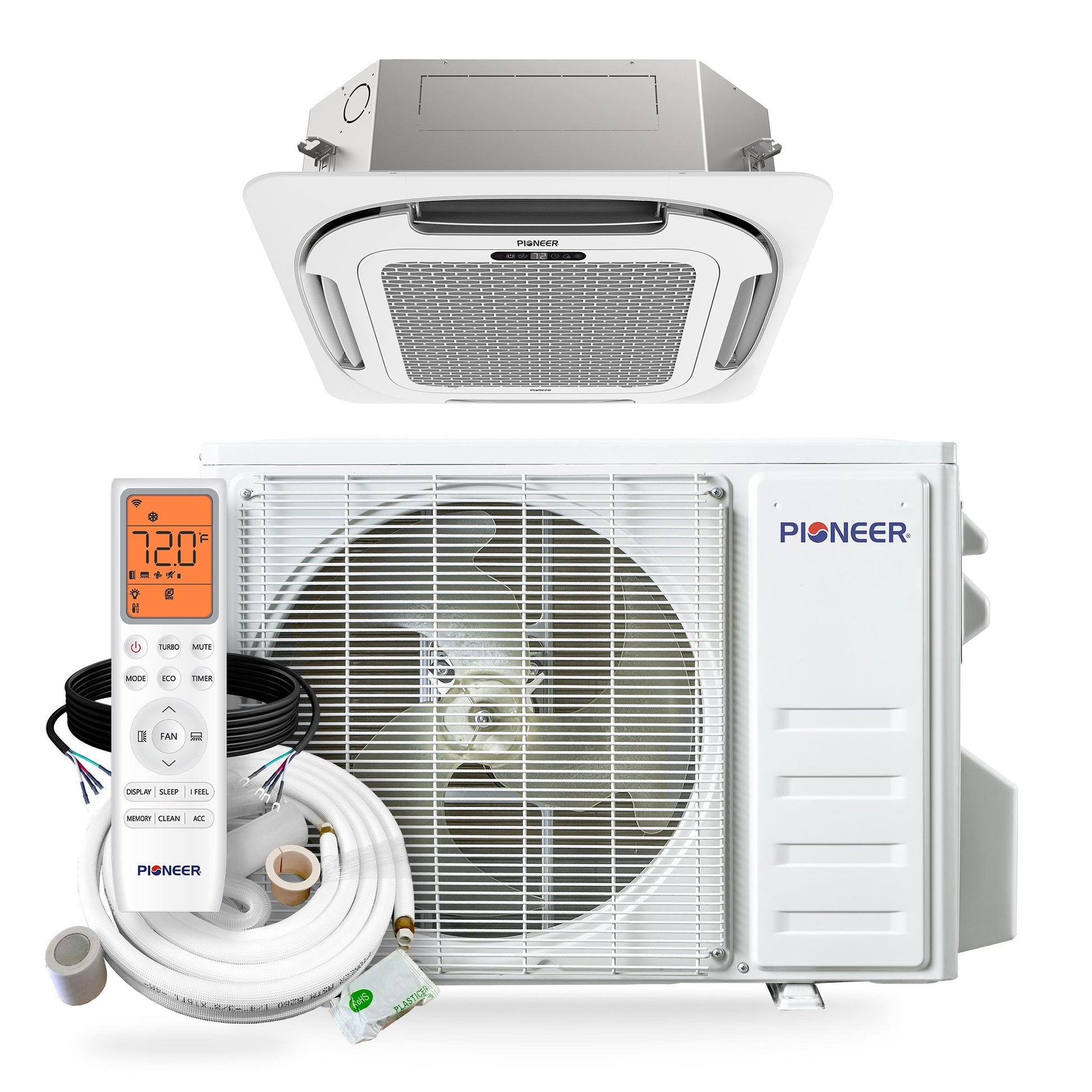

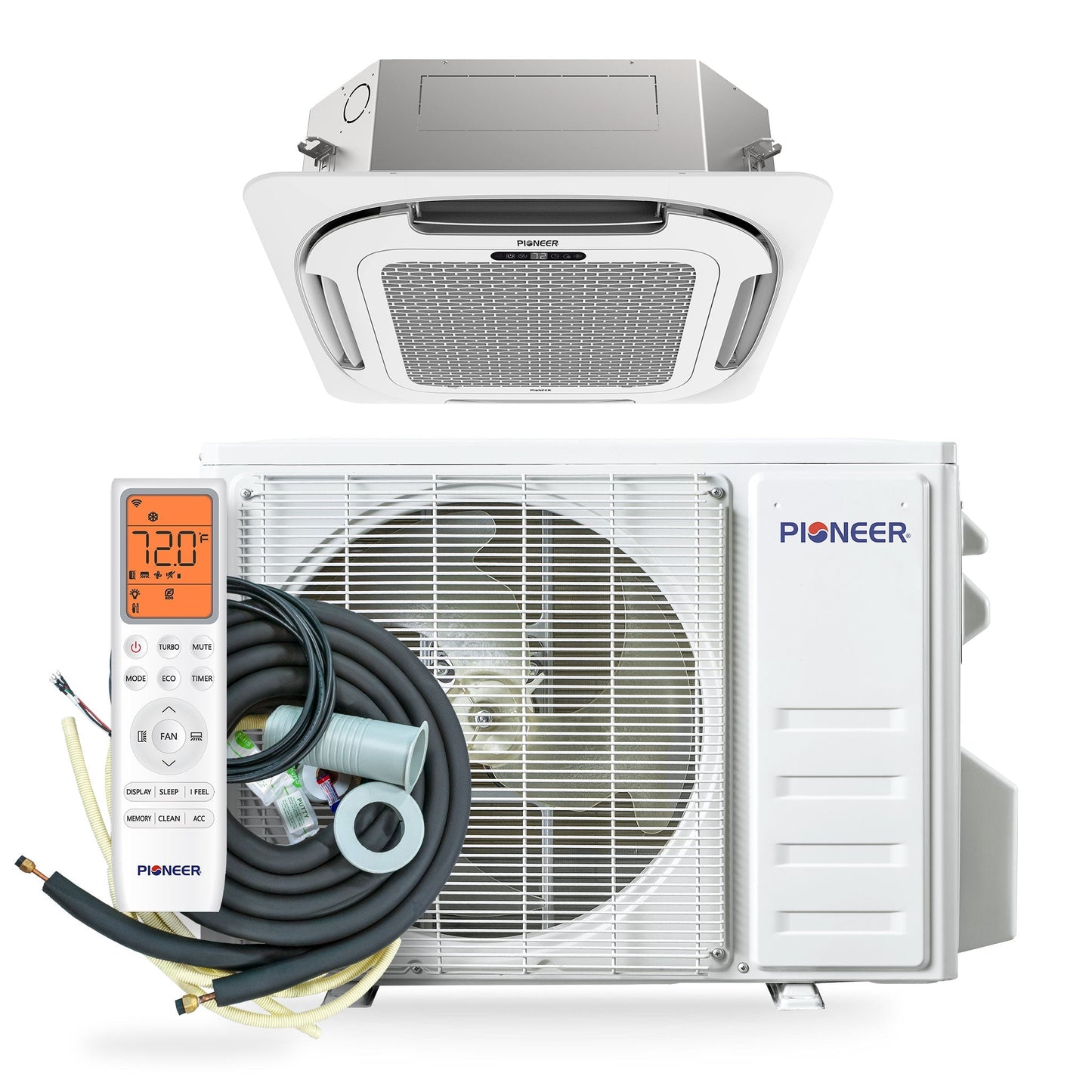

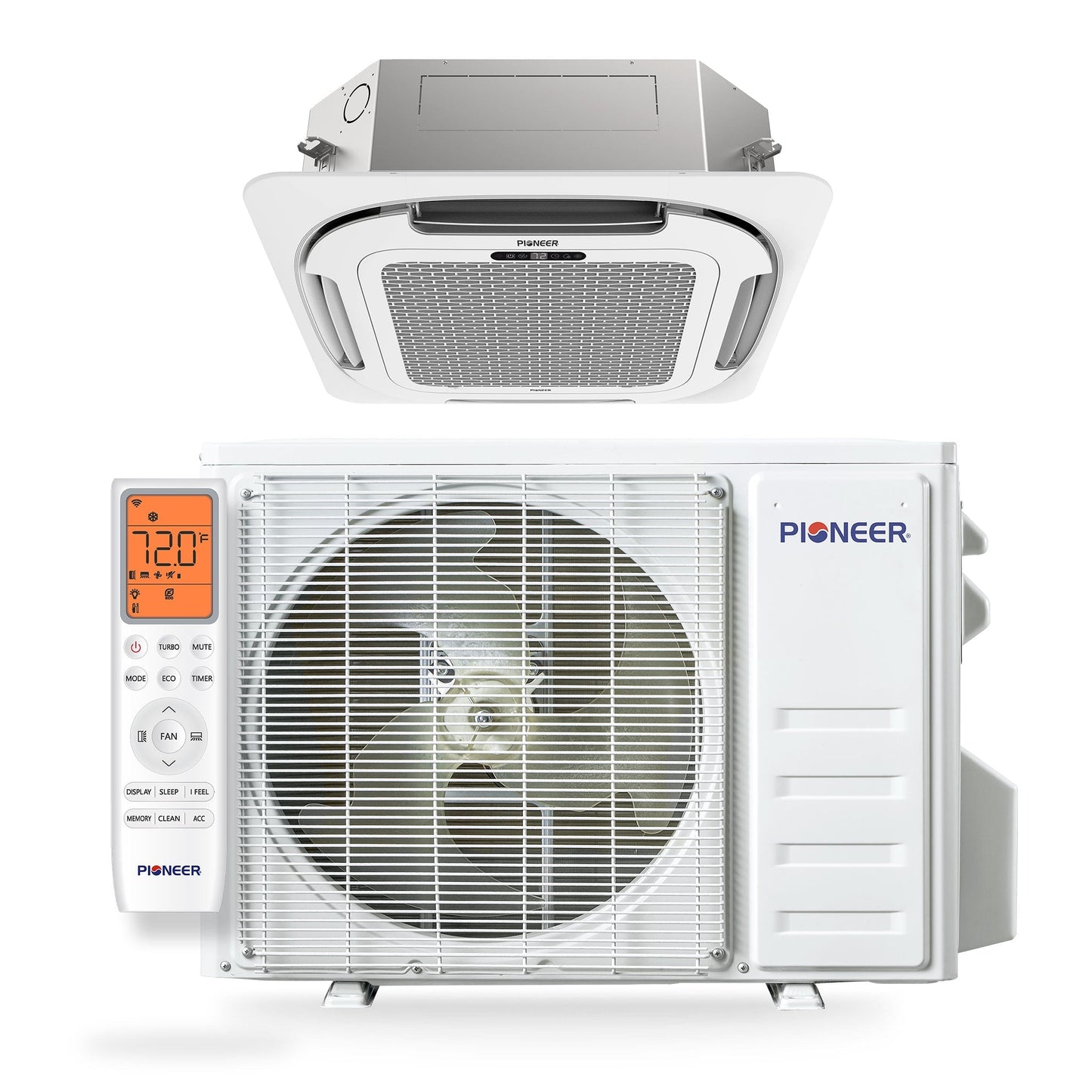

Pioneer Quantum Ultra 12,000 BTU 22 SEER2 230V Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set - CYT012GLSI24RL

Pioneer Quantum Ultra 12,000 BTU 22 SEER2 230V Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set - CYT012GLSI24RL

• High Efficiency Quantum Ultra Ceiling Cassette Split Heat Pump System
• Cooling capacity: 12,000 BTU/H with 22 SEER2 / 11.7 EER2 efficiency
• Heating capacity: 12,500 BTU/H with 9.5 HSPF2 / 3.6 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• Ceiling Cassette Mounted Ductless Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

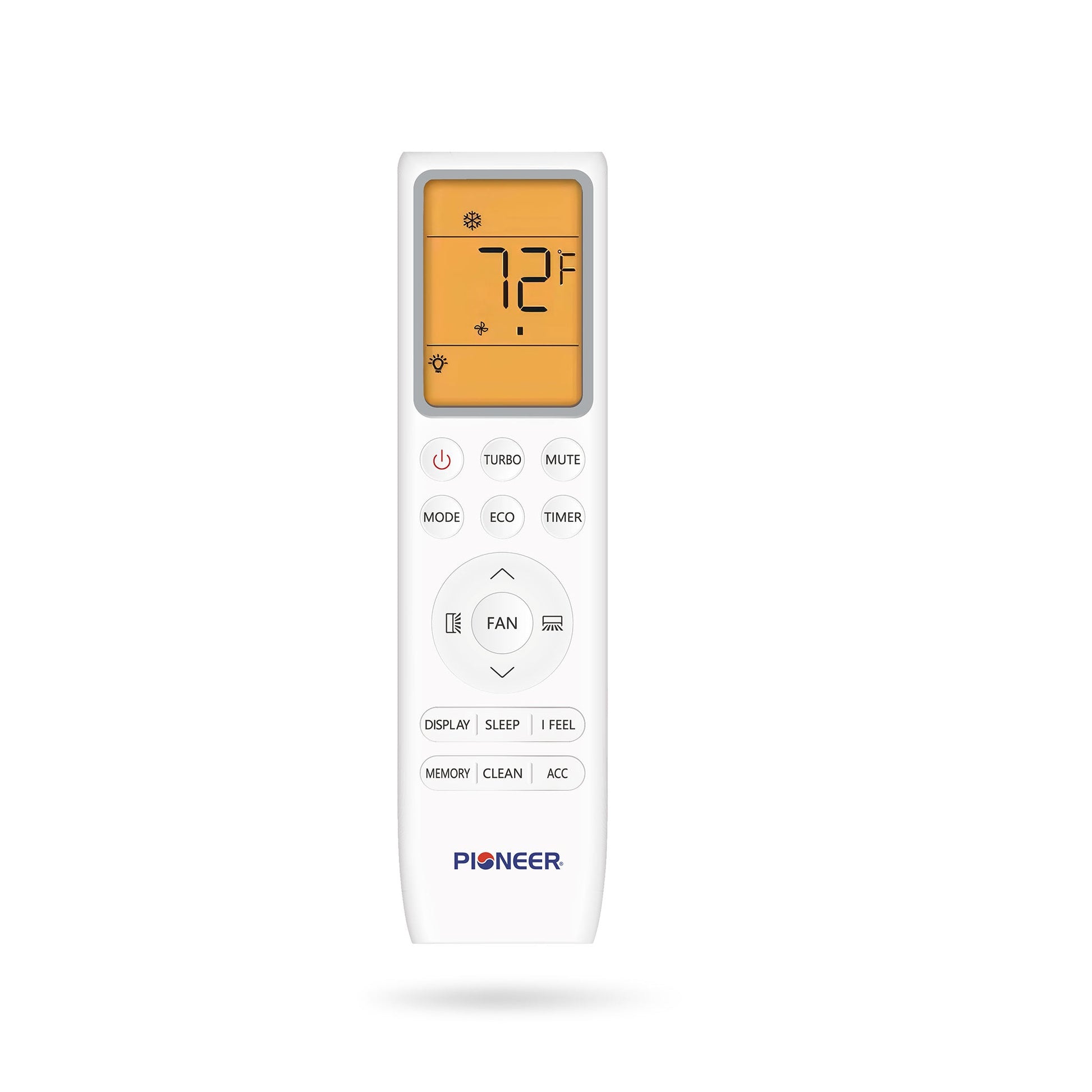

• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature

Technical Performance

• Energy Guide

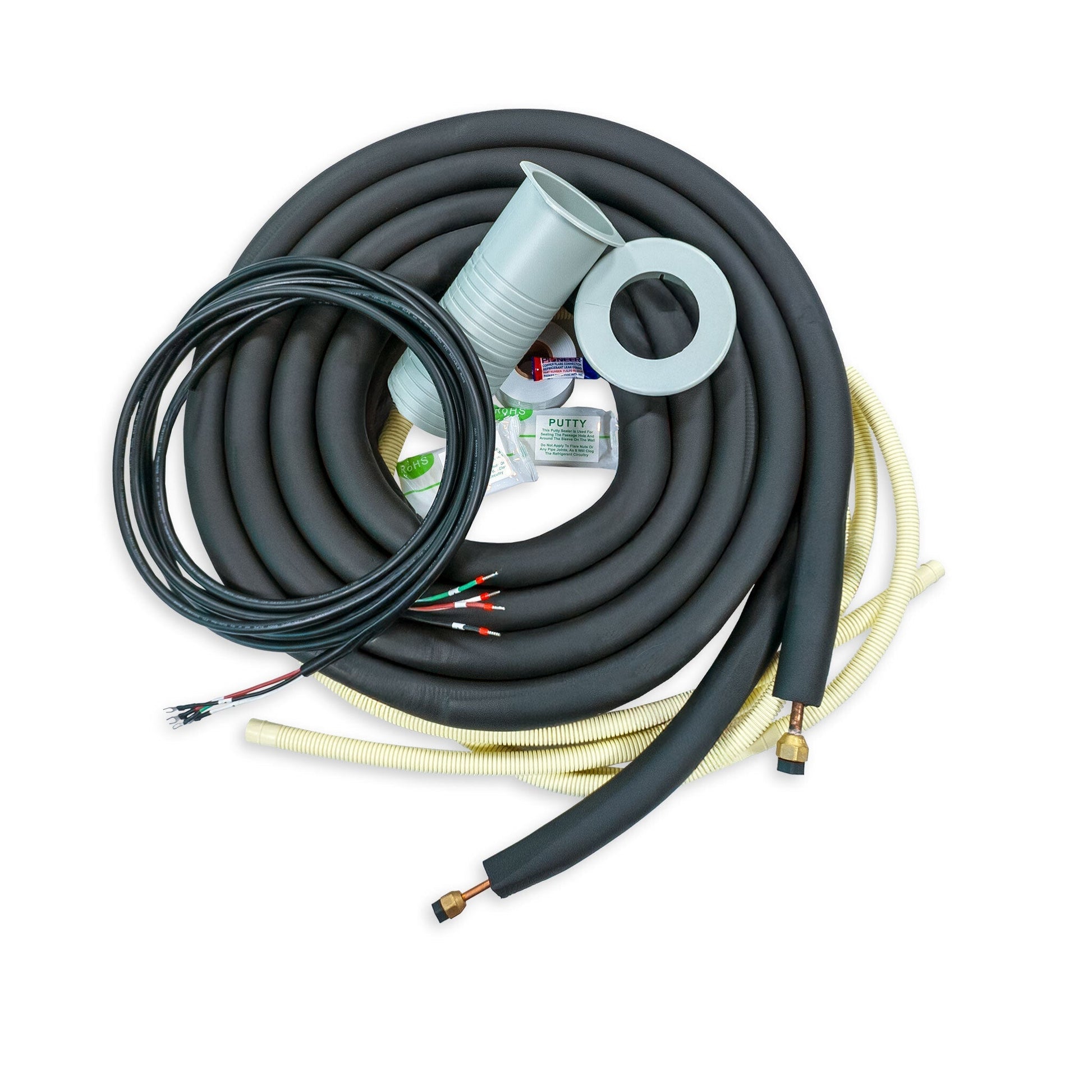

• System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 12,000 BTU/h
  • Cooling Capacity Range: 2,000~13,600 BTU/h
  • Cooling SEER2: 22.0 BTU/W.h
  • Cooling EER2: 11.7 BTU/W.h
  • Heating Rated Capacity: 12,500 BTU/h
  • Heating Capacity Range: 3,100~12,700 BTU/h
  • Heating HSPF2 (Region IV): 9.5 / 8.5 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.6 / 1.9 W/W
  • Refrigerant Type: R454b
  • Suitable Area: 350~500 Sq.F
  • AHRI Reference: 217048759

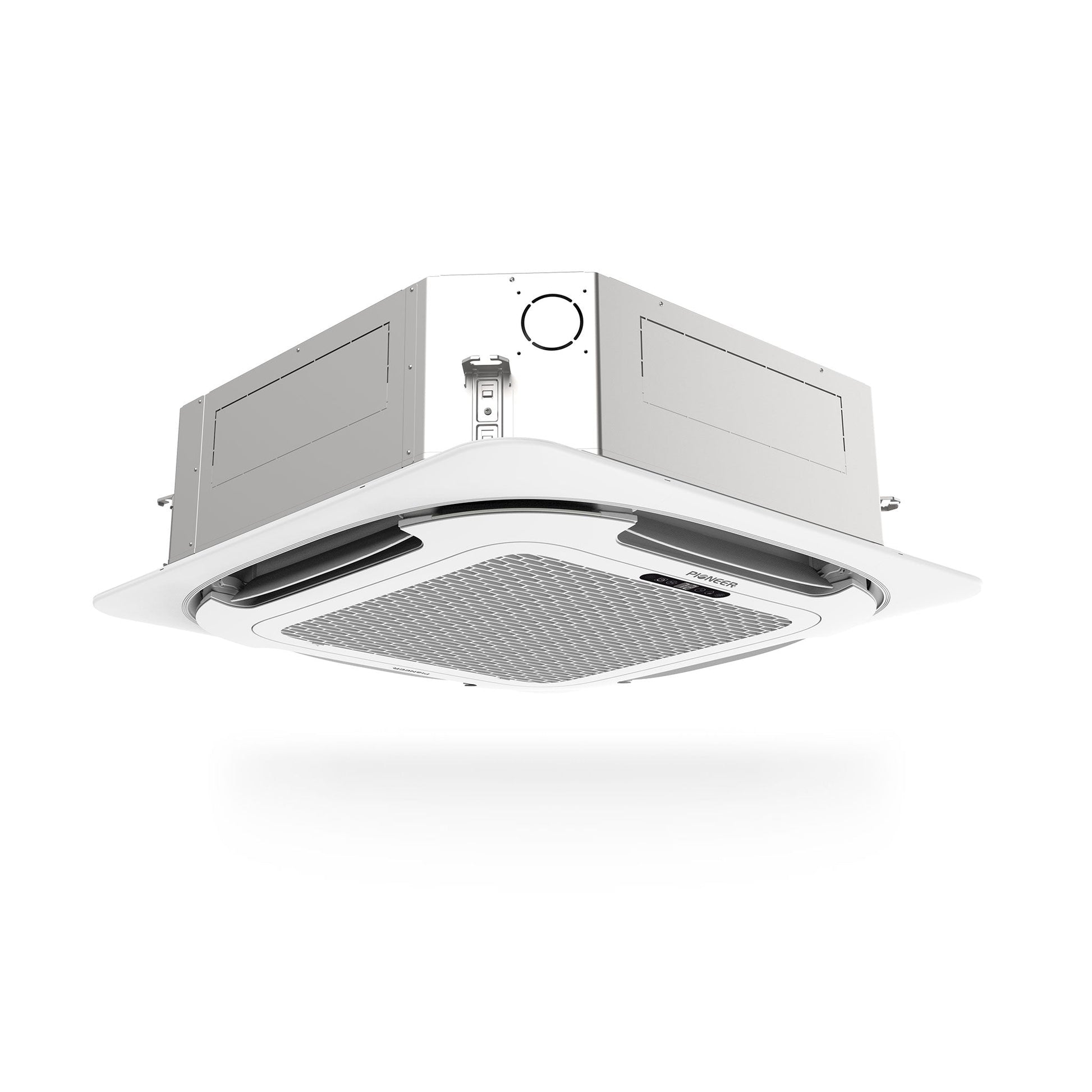

• Indoor Unit
  • Part Number: CT012GLSILCFHG
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 500/470/411/323/205 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 46/44/36/32/30 dB(A)
  • Product Dimensions (WDH): 22"-1/2 x 22"-1/2 x 9"-5/8 Inches
  • Carton Dimensions (WDH): 28"-1/4 x 25"-7/8 x 11"-7/8 Inches
  • Net / Gross Weight: 32.0 / 38.6 lbs

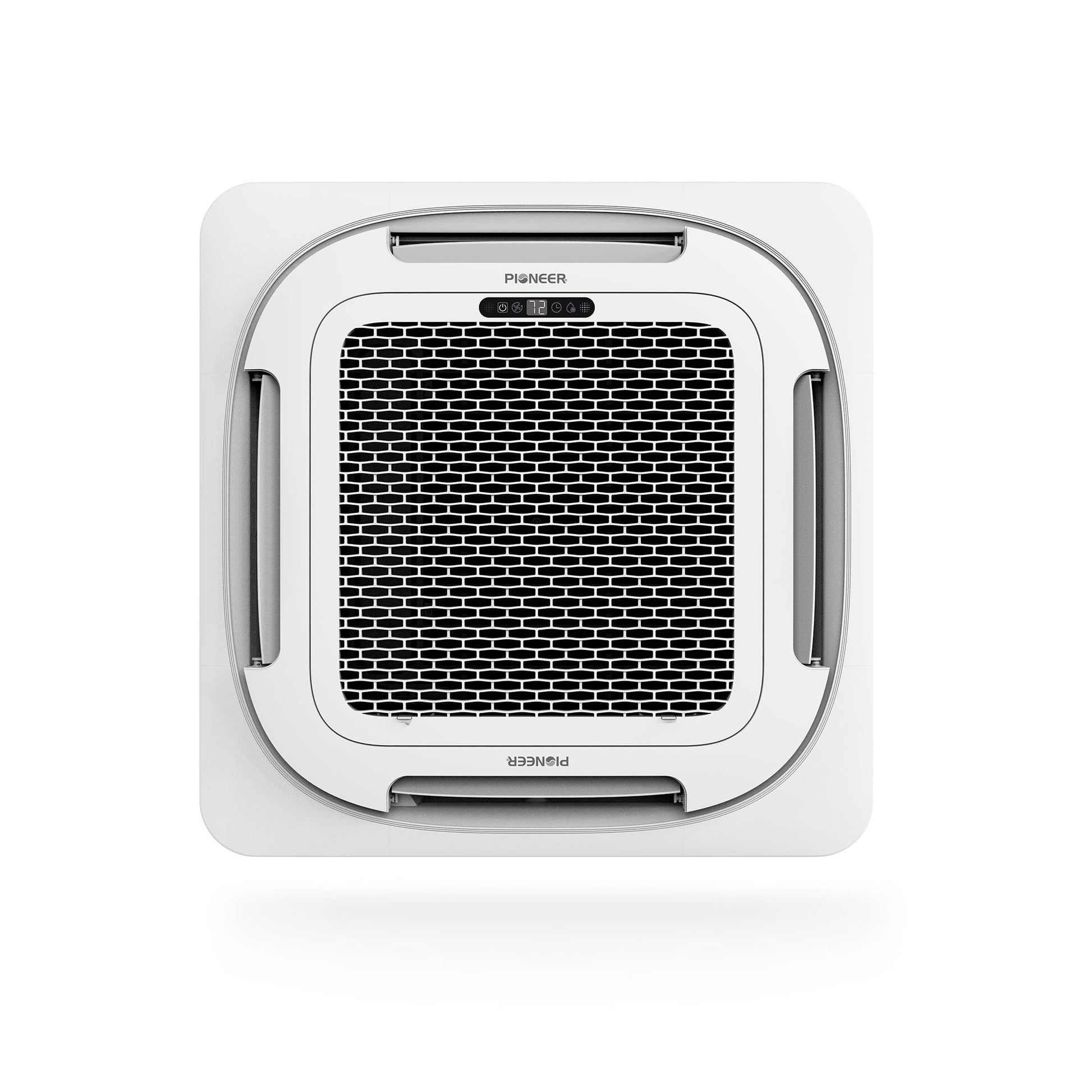

• Decorative Panel
  • Part Number: CT0918DPNL
  • Product Dimensions (WDH): 25"-5/8 x 25"-5/8 x 2"-3/8
  • Carton Dimensions (WDH): 28"-7/8 x 28"-7/8 x 4"-3/8
  • Net / Gross Weight: 6.0 / 9.5 lbs

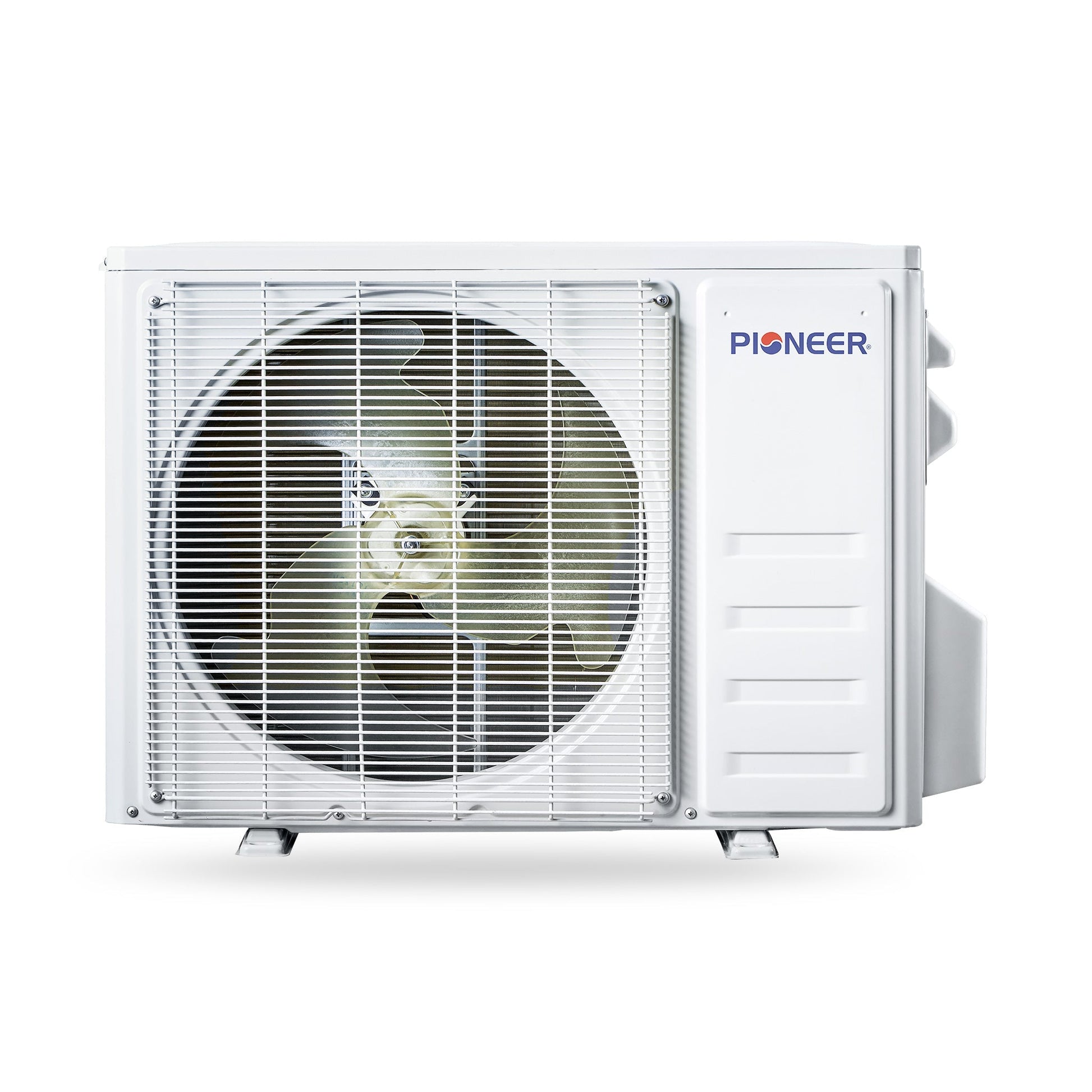

• Outdoor Unit
  • Part Number: YN012GLSI24RPG
  • Breaker Needed: 15A (double-pole)
  • Sound Level: 52 dB(A)
  • Net Dimensions (WDH): 31"-7/8 x 12" x 21"-5/8 Inches
  • Carton Dimensions (WDH): 32"-7/8 x 13" x 22"-5/8 Inches
  • Net / Gross Weight: 58.4 / 65.0 lbs.

Dimension Chart

What Our Experts Think

• 12,000 BTU capacity ideal for medium-sized rooms.

• 22 SEER2 efficiency ensures energy savings and reduced operational costs.

• Ceiling cassette design provides 4-way airflow for even temperature distribution.

• Inverter heat pump delivers reliable heating and cooling year-round.

• Full set includes both indoor and outdoor units for easy installation.

Q&A

Q: What room size is suitable for this system?
A: Recommended for spaces up to 500–600 sq. ft., depending on insulation.

Q: Does it provide both heating and cooling?
A: Yes, the inverter heat pump provides year-round climate control.

Q: Can it be installed in a ceiling?
A: Yes, the ceiling cassette design is perfect for ceiling-mounted installations.

Maintenance Tips

• Clean air filters monthly for optimal airflow and performance.

• Ensure ceiling vents are free from dust and debris.

• Keep the outdoor condenser area clear for efficient operation.

• Schedule annual professional servicing for long-term reliability.
