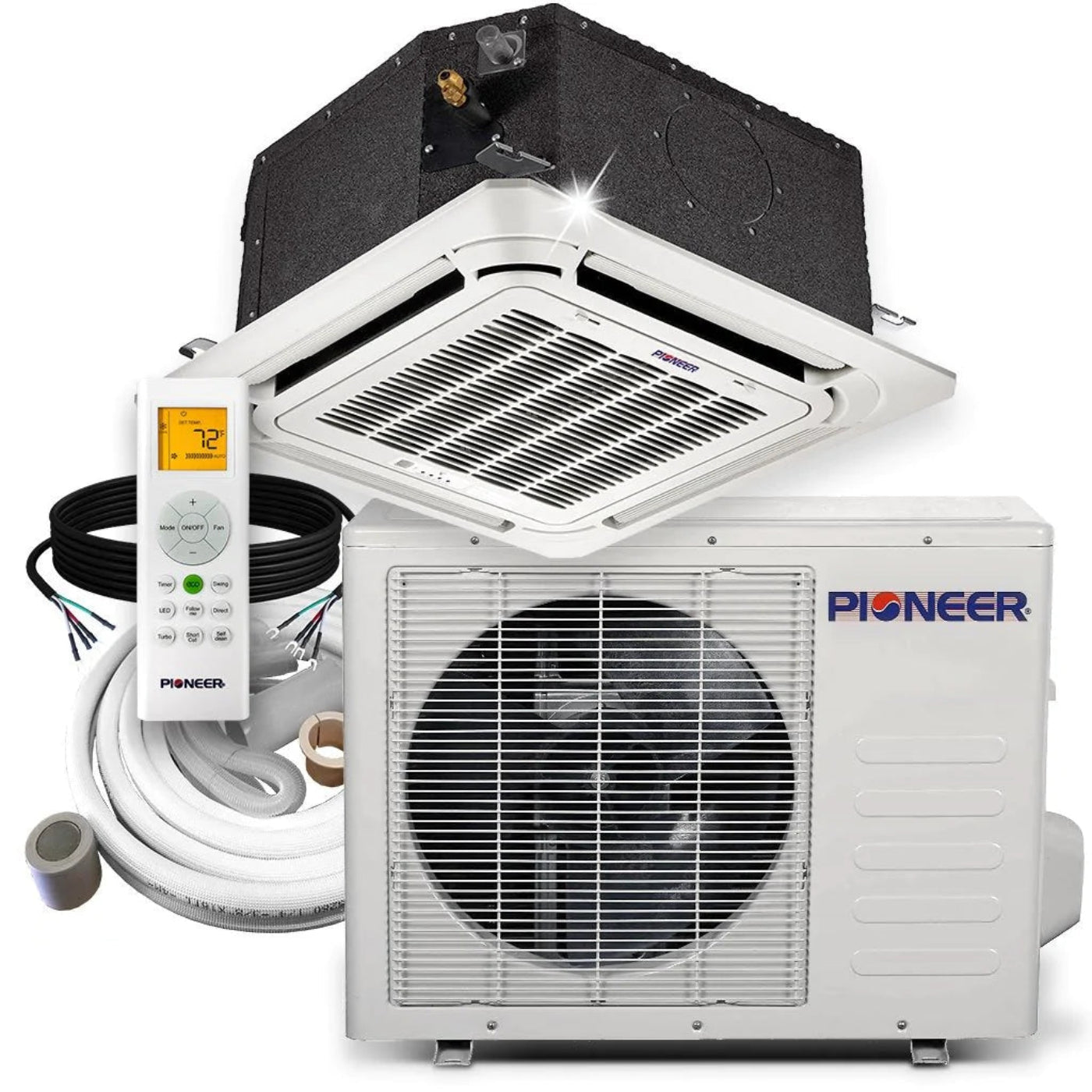

Pioneer 18,000 BTU 20 SEER 8-Way Compact Cassette Ductless Mini Split with 25 ft. Linesets - CYB018GMFILCAD-25

• Cooling capacity: 18,000 BTU/H with 20.0 SEER efficiency
• Heating capacity: 18,000 BTU/H with 10.3 HSPF efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Ceiling Compact Cassette Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• Energy-Star Certified
• Front Desk Control. With a smart control board, Pioneer air conditioners can be turned on/off via long distance control signals.
• Temperature Compensation. Temperature compensation function eliminates the difference in temperature between the floor and ceiling by mixing the different layers of air. Consequently, the time for cooling the room is reduced, and a cold offset rising stream of warm air by stirring.
• Refrigerant Leakage Detect. Indoor unit shows error code "EC" and stops automatically when refrigerant leakage is detected. This protects the compressor from high temperature damage due to refrigerant leakage.
• Anti-cold Air Function. Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
• Emergency start
• Low Ambient Cooling. With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The air conditioner can run cooling operation even when the outdoor ambient temperature is down to -15°C.
• Follow Me (Remote Thermostat). Temperature sensor built in the remote controller will sense it’s surrounding temperature. The unit will adjust the room temperature more accurately to give you comfort.
• 46°F Heating. In heating operation, the preset temperature of the air conditioner can be as low as 46°F, which keeps the room temperature steady at 46°F and prevents the house from freezing when it is unoccupied for a long time in severe cold weather.

Optional

• Ionizer. Release negative ions, eliminate odor, dust, smoke and pollen particles to give you fresh and healthy air.
• Wired Controller. Compared with infrared remote controller, wired controller can be fixed on the wall and makes air conditioner control more convenient.
• Remote in Engineer Mode
• Central Control Management. The centralized controller is a multi-functional device that can control up to 64 indoor units within a maximum connection length of 3.90 Ft.

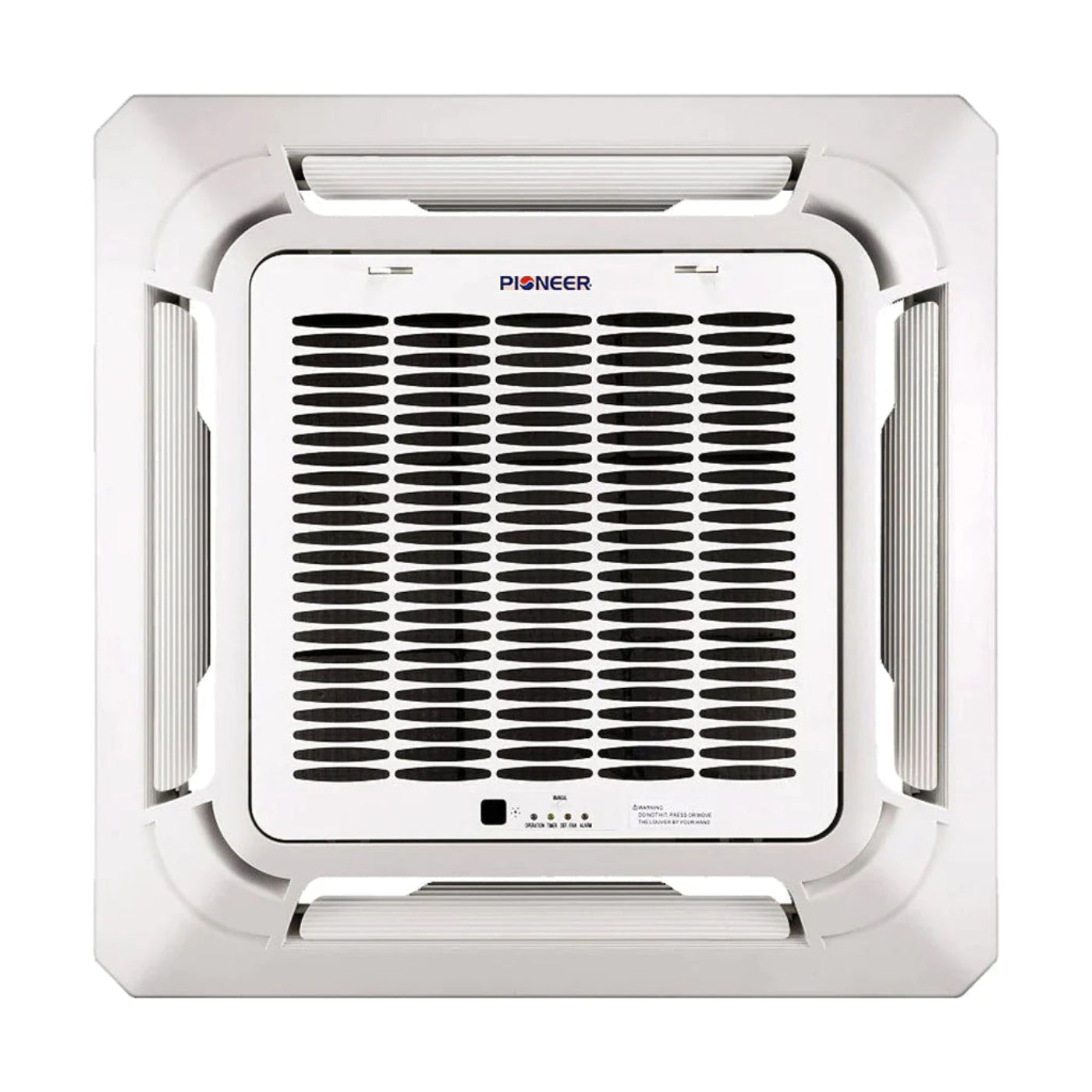

• Indoor Unit
• Outdoor Unit
• Wireless Remote Control
• R410A Pre-Charged Outdoor Unit
• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Condenser Specifications

• Technical Brochure
• User Manual
• Installation Manual
• Service Manual
• Energy Guide

• Compact 8-Way Cassette: Features an 8-way airflow system, ensuring even and efficient air distribution throughout the room.
• 18,000 BTU Capacity: Ideal for medium to large spaces, offering powerful cooling and heating performance.
• 20 SEER Energy Efficiency: Saves on energy costs while maintaining optimal comfort with high energy efficiency.
• Ductless Design: Easy to install and eliminates the need for extensive ductwork, offering a flexible and space-saving solution.
• Inverter Technology: Provides precise temperature control, quieter operation, and enhanced energy savings.
• 25 ft. Linesets Included: Ready for installation with pre-charged refrigerant lines, making setup quick and easy.
• Quiet Operation: Designed to run quietly, ensuring a comfortable and peaceful environment.

Q: What is the cooling capacity of the Pioneer 18,000 BTU 8-Way Compact Cassette mini split?
A: This system provides 18,000 BTU of cooling power, perfect for medium-sized rooms or spaces.

Q: What is the SEER rating of the Pioneer 18,000 BTU Compact Cassette system?
A: It features a 20 SEER rating, offering high energy efficiency and reduced operating costs.

Q: What are the main features of the Pioneer 18,000 BTU Compact Cassette mini split?
A: It includes an 8-way air distribution system, WiFi compatibility, quiet operation, and advanced filtration for clean, consistent cooling.

Q: Does the Pioneer 18,000 BTU mini split system provide heating?
A: Yes, it is compatible with heat pump functionality, providing both cooling and heating for year-round comfort.

Q: What installation options does the Pioneer 18,000 BTU system offer?
A: The system comes with 25 ft. linesets for easy installation in a variety of indoor environments, offering flexible placement options.

• Clean or Replace Filters: Inspect and clean the air filters every 2-4 weeks to maintain good airflow. Replace them if damaged or worn.
• Inspect & Clean Coils: Clean the indoor and outdoor coils annually to remove dirt and debris, ensuring efficient cooling and heating performance.
• Clear Drain Line: Check the condensate drain line regularly and clear any blockages to avoid water leakage and prevent mold buildup.
• Check for Refrigerant Leaks: Ensure refrigerant levels are correct. If the system isn't cooling efficiently, contact a professional for leak inspection and refill.
• Keep Vents Clear: Make sure the air handler’s intake and outlet vents are unobstructed to allow optimal airflow and performance.
• Professional Annual Service: Schedule yearly inspections to check refrigerant levels, clean coils, and ensure the system’s overall efficiency.
