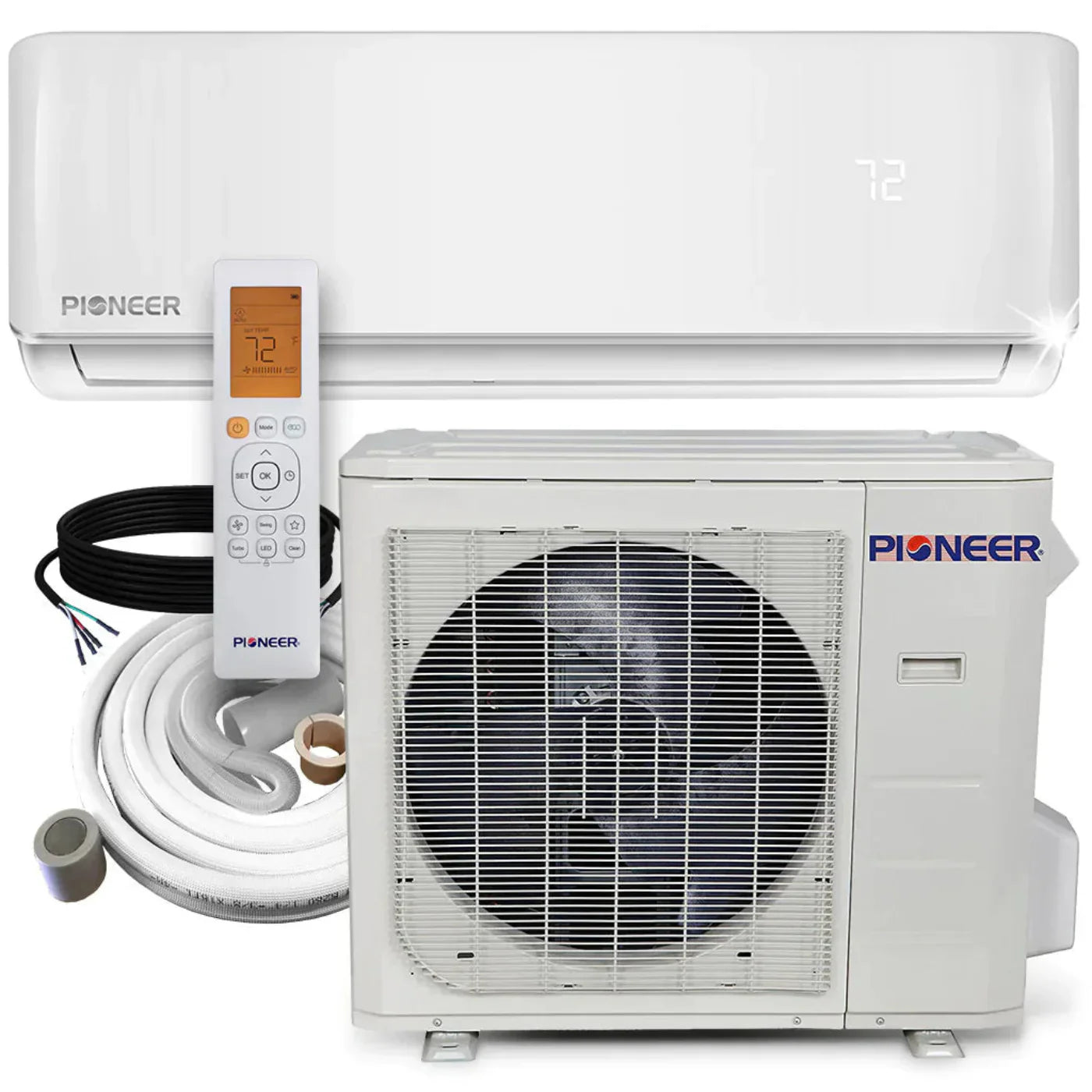

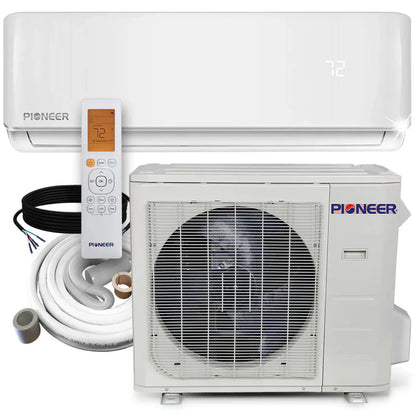

Pioneer Diamante Series 12,000 BTU 20 SEER Ductless Mini Split - WYT012ALFI19RL

Pioneer Diamante Series 12,000 BTU 20 SEER Ductless Mini Split - WYT012ALFI19RL

• Cooling capacity: 12,000 BTU/H with 20 SEER efficiency

• Heating capacity: 12,000 BTU/H with 10 HSPF efficiency
• Voltage: 110~120V, 60Hz, 1Ph
• High Wall Mounted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Low Ambient Unit (-13F)

• Indoor Unit
• Outdoor Unit
• Wireless Remote Control (with wall holder and batteries)
• R410A Pre-Charged Outdoor Unit

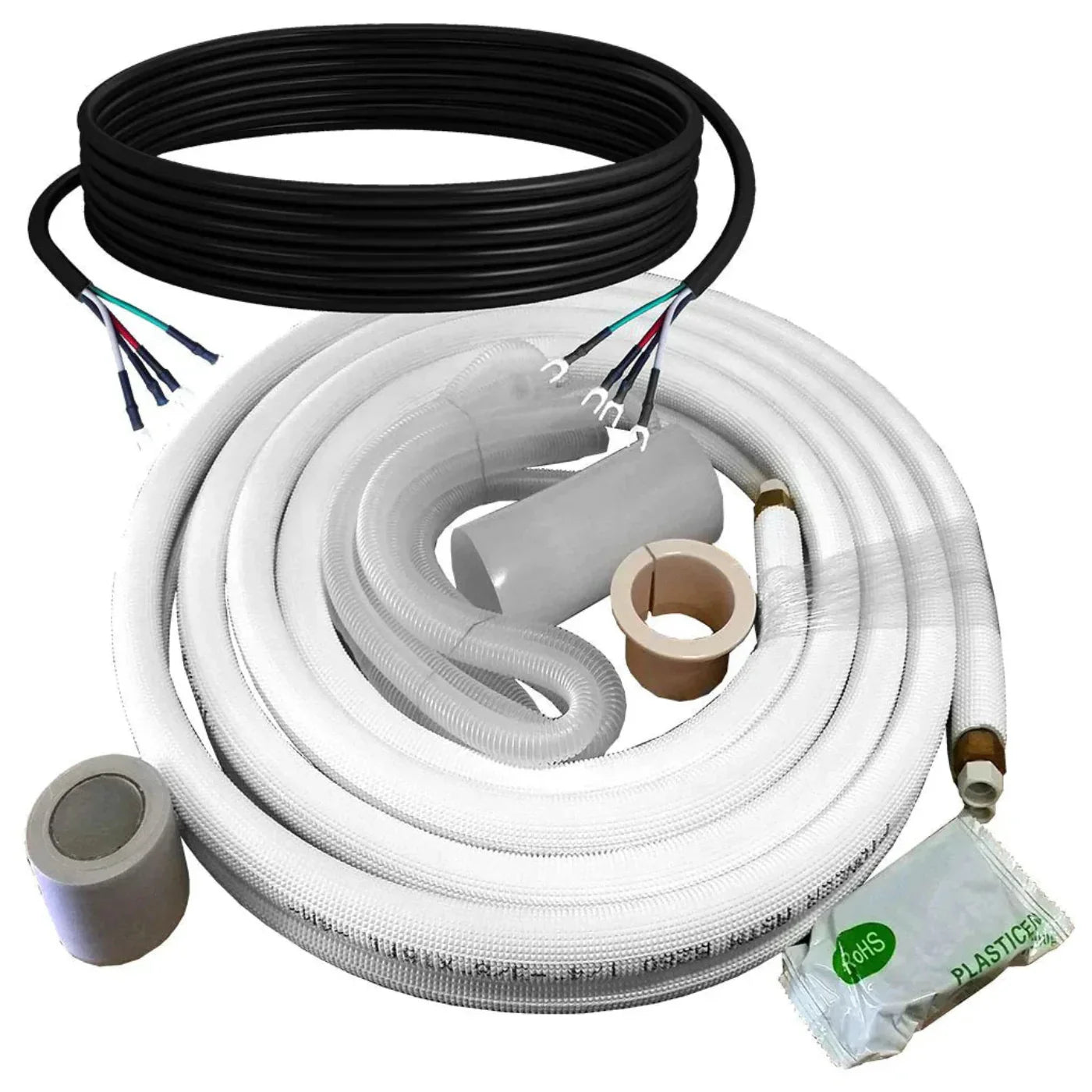

• 16 Ft. Copper Lines
• 16 Ft. Electrical Wire
• 10 Ft. Drain for indoor/outdoor
• Wall Passage Sleeve
• Putty for Wall Hole
• Leak Guard Sealer
• Wrapping Tape
• Installation Manual
• User’s Manual

• Electrical Requirements, such as Disconnect Box or Electrical Whip
• Vacuum Pump or Vacuum Set (alternatively, you can use the Pioneer Flush Kit)

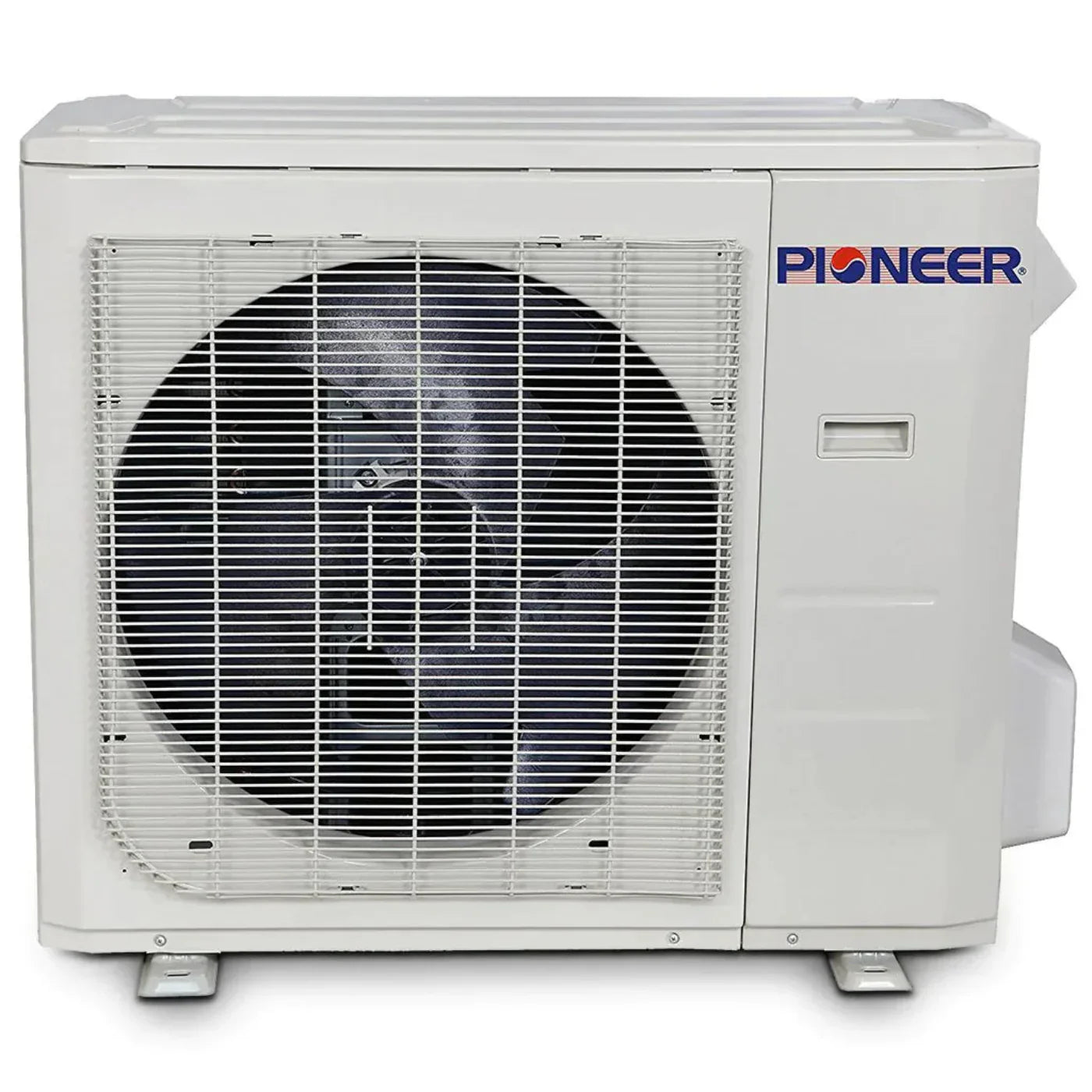

Condenser Specifications

• Installation Manual
• Service Manual
• Energy Guide


• Top-Tier Efficiency – 12,000 BTU capacity with a 20 SEER rating, ensuring excellent energy savings.
• Year-Round Comfort – Ideal for maintaining consistent temperatures with both cooling and heating functions.
• Whisper-Quiet – Extremely quiet operation, perfect for bedrooms, offices, or any noise-sensitive environment.
• Smart Control – Remote control included, with Wi-Fi compatibility for convenient mobile access.
• Eco-Conscious – Utilizes R-32 refrigerant, which is more environmentally friendly and efficient.
• Easy Setup – Comes with everything needed for a straightforward installation process.

Q: What is the Pioneer Diamante Series 12,000 BTU Ductless Mini Split?
A: The Pioneer Diamante Series 12,000 BTU Ductless Mini Split is an energy-efficient air conditioning and heating system designed for smaller to medium-sized rooms. With a 20 SEER rating, it offers superior performance while keeping energy consumption low, ensuring cost savings without sacrificing comfort.

Q: What is the significance of the 20 SEER rating?
A: The 20 SEER rating represents high energy efficiency, meaning this mini split system uses less energy to provide the same amount of cooling and heating compared to units with lower SEER ratings. This makes it an excellent choice for reducing electricity costs while maintaining a comfortable indoor climate.

Q: What size area can this system effectively cool or heat?
A: With a 12,000 BTU capacity, this unit is ideal for rooms up to 600 square feet. It’s perfect for bedrooms, offices, or smaller living spaces that require precise temperature control.

Q: Does this system provide both heating and cooling?
A: Yes, the Pioneer Diamante Series is a dual-function system, providing both cooling during the summer and heating during the colder months. This versatility makes it a year-round solution for temperature control.

Q: What are the advantages of a ductless mini split system?
A: Ductless mini split systems offer zoned heating and cooling, so you can set different temperatures in different rooms. They are also compact, efficient, and easy to install with no need for ductwork. Additionally, these systems operate quietly, contributing to a peaceful and comfortable environment.

Q: Is an installation kit included?
A: Yes, the system comes with an installation kit that includes the necessary components to set up the unit. However, professional installation is recommended to ensure optimal performance.

• Clean or Replace Air Filters: Clean or replace filters every 1-3 months to maintain good airflow and air quality. A clogged filter can strain the system and reduce energy efficiency.
• Inspect and Clean Coils: Over time, dirt and debris can accumulate on the evaporator and condenser coils. Clean them every 6-12 months with a soft brush or coil cleaner to maintain optimal performance and prevent overheating.
• Check and Clear the Condensate Drain: Ensure the condensate drain is clear of blockages. A clogged drain can lead to water leaks or mold buildup. Clean the drain line by flushing with warm water or using a wet/dry vacuum.
• Monitor Refrigerant Lines: Regularly check refrigerant lines for leaks or signs of wear, ensuring they are well-insulated to prevent energy loss and condensation buildup.
• Keep the Outdoor Unit Unobstructed: Remove leaves, dirt, or debris from the outdoor condenser to allow for proper airflow. This helps the system perform efficiently and prevents overheating.
• Inspect System Performance: Run the system in both cooling and heating modes periodically to verify its performance. If you notice reduced efficiency, strange noises, or fluctuating temperatures, it might be time to schedule an inspection.
• Listen for Unusual Sounds: If you hear rattling, buzzing, or other unusual noises, these could indicate a loose part or refrigerant issue. Contact a professional technician to resolve any problems promptly.
• Schedule Annual Professional Maintenance: Have a licensed technician perform an annual inspection to check refrigerant levels, clean internal components, and ensure everything is functioning correctly for long-term performance.
