Pioneer Diamante Series 24,000 BTU 18 SEER Ductless Mini Split - WYT024GLFI19RL

Pioneer Diamante Series 24,000 BTU 18 SEER Ductless Mini Split - WYT024GLFI19RL

$1,689.00 $1,529.00

Pioneer Diamante Series 24,000 BTU 18 SEER Ductless Mini Split - WYT024GLFI19RL

$1,689.00 $1,529.00

Recently Viewed Products

Pioneer Diamante Series 24,000 BTU 18 SEER Ductless Mini Split - WYT024GLFI19RL

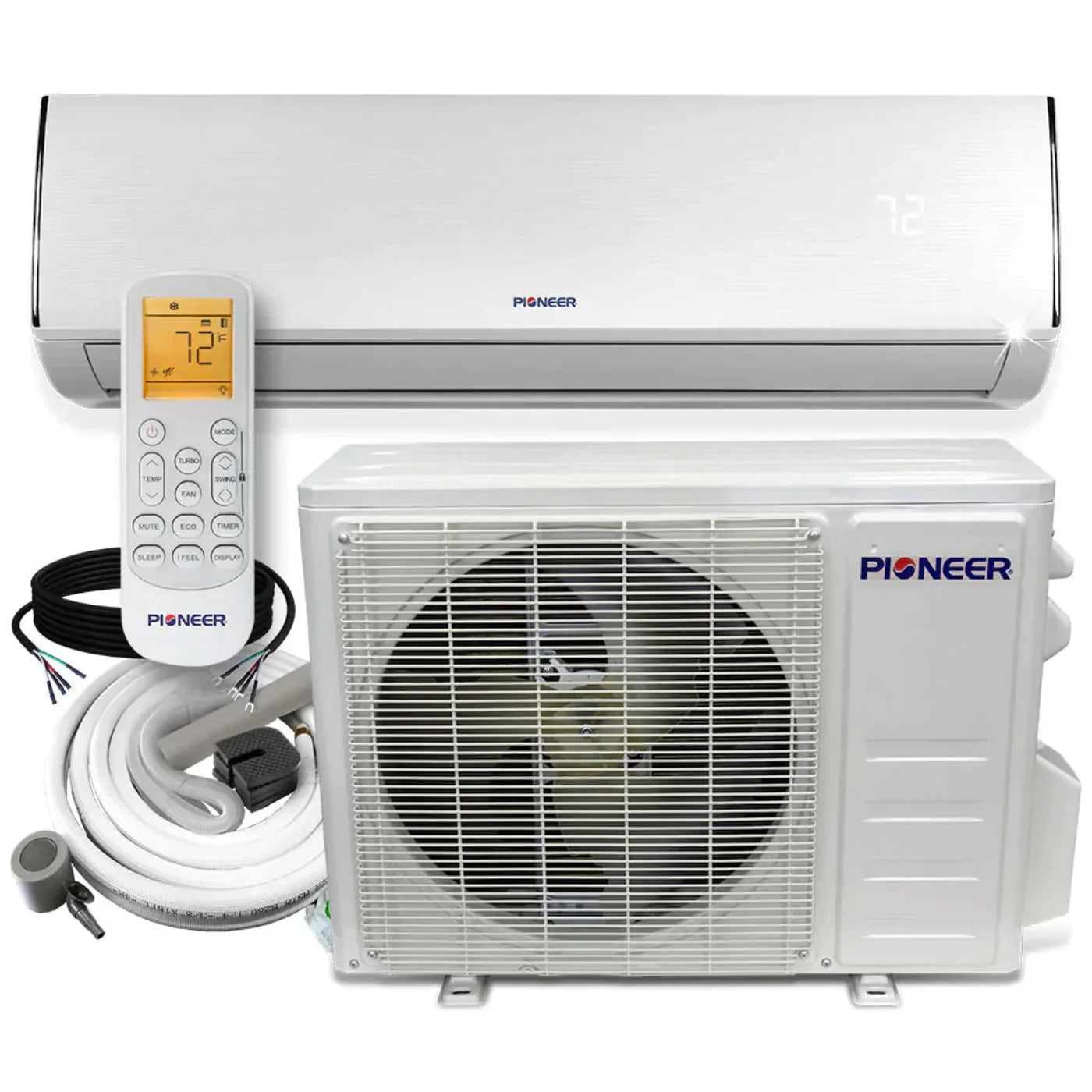

Experience instant relief the moment you enter your room with Pioneer’s latest Diamante series high-wall ductless mini-split heat pumps. This all-new product line was designed and developed to bring a truly affordable heating and cooling solution without sacrificing desirable features. The variable-speed inverter technology and high-efficiency 18 SEER average rating guarantee substantial savings from your monthly energy bill. A dual-swing louver system ensures both horizontal and vertical sweeping air throw, perfectly reach all directions of the room. All systems in this series come equipped with an auxiliary strip heater in the condensing unit, to provide hyper-heating even in frigid -13°F temperatures. And with noise measurements as low as 42 dB, you can sleep peacefully with air conditioning quieter than even an empty library. In addition, all systems come pre-packed with a full 16 ft. installation kit, so your ductless mini-split heat pump system is ready to be up and running in a single afternoon. Browse our newest selection of wall-mounted Diamante split systems today!
  • Cooling capacity: 24,000 BTU/H with 18 SEER efficiency
  • Heating capacity: 24,500 BTU/H with 10 HSPF efficiency
  • High Wall Mounted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Indoor Unit
  • Outdoor Unit
  • Wireless Remote Control (with wall holder and batteries)
  • R410A Pre-Charged Outdoor Unit
  • 16 Ft. Copper Lines
  • 16 Ft. Electrical Wire
  • 10 Ft. Drain for indoor/outdoor
  • Wall Passage Sleeve
  • Putty for Wall Hole
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • User’s Manual
What's Not Included and Required for Installation
  • Electrical Requirements, such as Disconnect Box or Electrical Whip
  • Vacuum Pump or Vacuum Set (alternatively, you can use the Pioneer Flush Kit)
Condenser Specifications
Product Dimensions 33 1/4"W x 15"D x 27 1/2"H
Cooling Capacity 24,000 BTU
Heating Capacity 24,500 BTU
Zone Capacity 1
Low Ambient Unit -13F
SEER 18
Voltage Requires a minimum of 208~230V, 60Hz, 1Ph (please check your home meets this electrical requirement prior to purchase)
Warranty 5 Years for Compressor
Air Handler 24K BTU
Product Dimensions 46 5/8"W x 10 1/4"D x 13 3/8"H
Mount Type Wall
Cooling Capacity 24,000 BTU
Heating Capacity 24,500 BTU
Coverage Area Up to 1000 Square Feet
Warranty 5 Years on Parts
  • Balanced Performance24,000 BTU capacity with 18 SEER rating, providing a good mix of efficiency and power for medium to large spaces.
  • Year-Round Comfort – Reliable heating and cooling for consistent temperature control, whatever the season.
  • Quiet & Efficient – Operates quietly while maintaining high energy efficiency, ideal for living rooms, bedrooms, or offices.
  • Smart Control – Includes a remote control, with Wi-Fi compatibility for convenient mobile access.
  • Eco-Conscious – Uses R-32 refrigerant, offering a more environmentally friendly solution.
  • Easy Installation – Comes with all necessary components for hassle-free installation and setup.

Q: What is the Pioneer Diamante Series 24,000 BTU 18 SEER Ductless Mini Split?
A: The Pioneer Diamante Series 24,000 BTU 18 SEER Ductless Mini Split (model WYT024GLFI19RL) is a high-performance air conditioning system designed to efficiently cool and heat medium to large-sized rooms. With a 24,000 BTU capacity and an 18 SEER rating, it provides powerful temperature control with energy efficiency for year-round comfort.

Q: What makes the Diamante Series stand out?
A: The Pioneer Diamante Series is known for its reliable performance, sleek design, and whisper-quiet operation. The system integrates Inverter technology, which helps maintain a steady temperature while reducing energy usage, making it a more sustainable and cost-effective solution for home or office use.

Q: How does the Inverter technology improve the system’s performance?
A: Inverter technology automatically adjusts the compressor speed based on the desired temperature, ensuring that the system uses only the amount of energy needed. This results in improved efficiency, quieter operation, and better overall performance, as the unit doesn't cycle on and off like traditional systems.

Q: What is the cooling or heating capacity of this system?
A: With its 24,000 BTU capacity, this system is designed to efficiently cool or heat medium to large rooms (approximately 500 to 700 square feet), such as living rooms, open-plan areas, or offices.

Q: Is this unit capable of both cooling and heating?
A: Yes, the Pioneer Diamante Series 24,000 BTU Ductless Mini Split offers both cooling and heating functions. This makes it an ideal solution for year-round comfort, whether you need cooling in the summer or heating in the winter.

Q: How energy-efficient is this system?
A: The 18 SEER rating ensures that the system is highly energy-efficient, helping reduce electricity consumption and keeping operating costs low. Inverter technology further enhances the system’s energy efficiency by adjusting its output according to the temperature needs of the room.

  • Clean or Replace Air Filters: Regularly clean or replace the air filters every 1-3 months to ensure optimal airflow and system efficiency. A clogged filter can reduce performance and increase energy consumption.
  • Inspect and Clean Coils: Dirt and debris can accumulate on the evaporator and condenser coils, which reduces efficiency. Clean the coils every 6-12 months with a soft brush or coil cleaner to maintain peak performance.
  • Check and Clear the Condensate Drain: A blocked condensate drain can lead to water damage and mold growth. Check the drain regularly, and clear it using warm water or a wet/dry vacuum to avoid blockages.
  • Inspect Refrigerant Lines and Insulation: Ensure the refrigerant lines are intact and free of leaks. Also, verify that the insulation is in good condition to prevent energy loss and maintain system efficiency.
  • Clear Debris Around the Outdoor Unit: Keep the outdoor condenser unit free from debris such as leaves, dirt, or branches to ensure proper airflow and prevent overheating. Regular cleaning of the area will help your system function effectively.
  • Test the System's Performance: Periodically check the performance of both the cooling and heating functions. If you notice inconsistent temperatures or poor airflow, schedule a service check to address any issues.
  • Listen for Unusual Noises: Unusual noises such as buzzing, rattling, or hissing can indicate issues with the unit, like a refrigerant leak or loose components. Contact a technician if you hear strange sounds.
  • Schedule Annual Professional Maintenance: To keep your system running smoothly and efficiently, schedule annual professional maintenance. A technician will check refrigerant levels, clean internal components, and ensure your system is functioning at its best.
