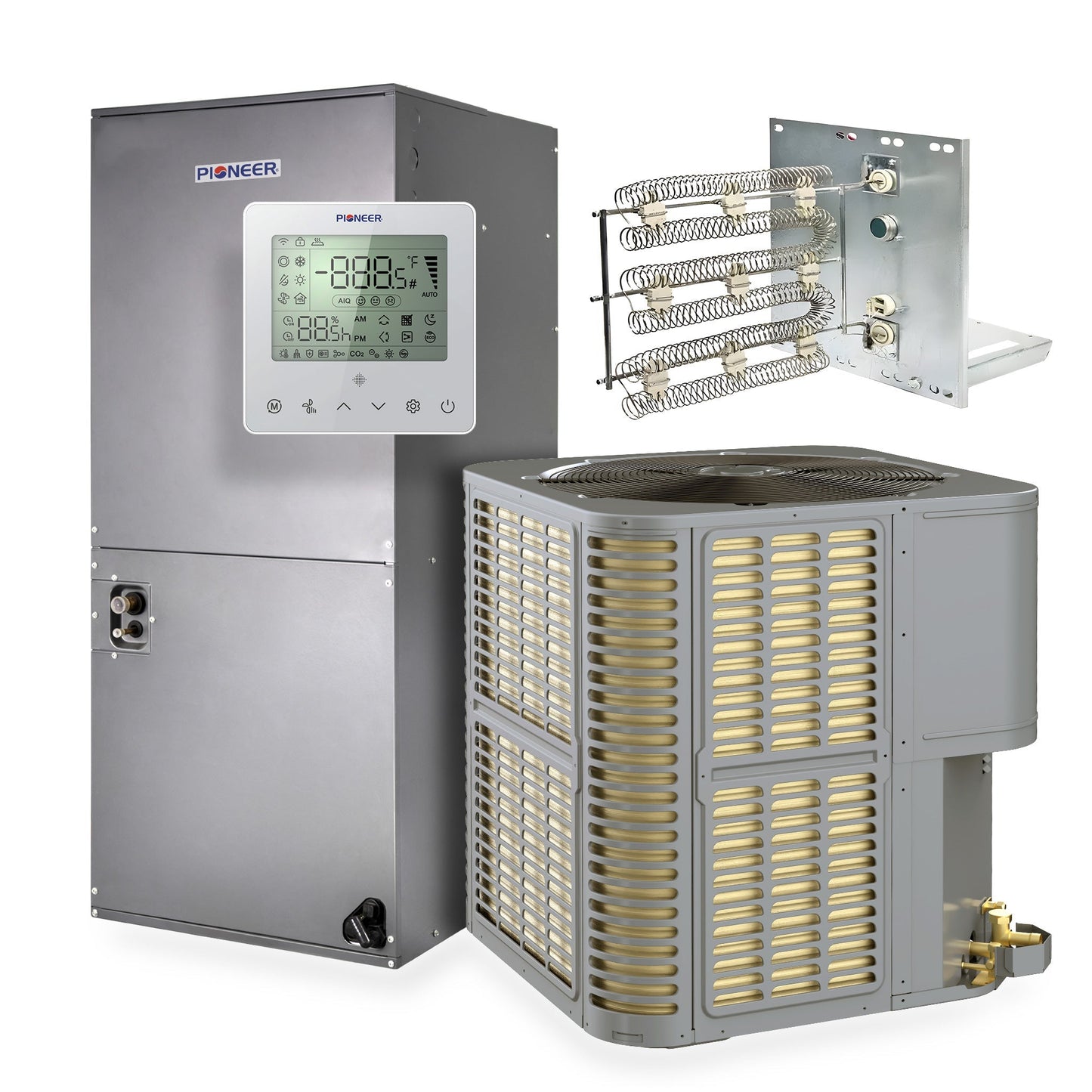

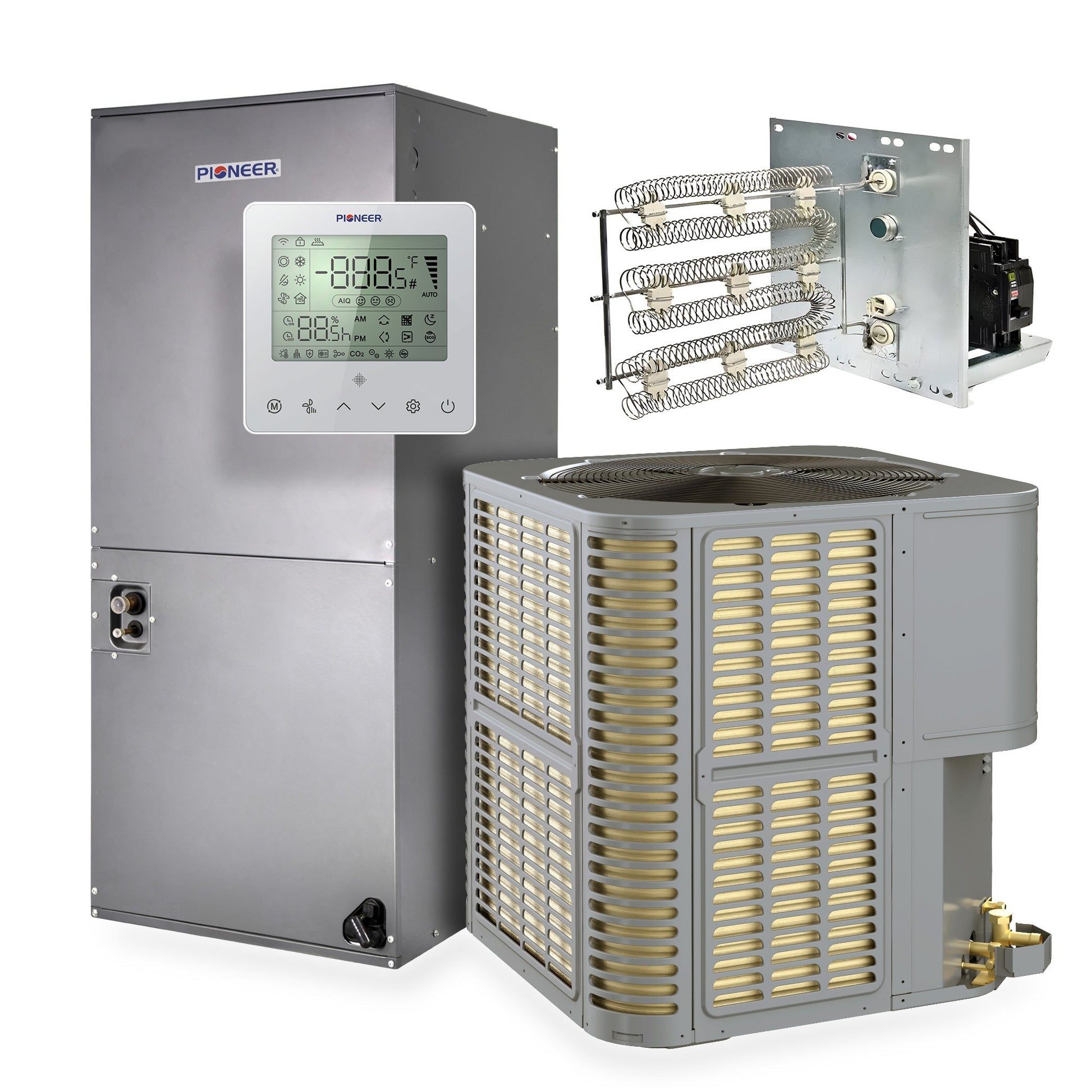

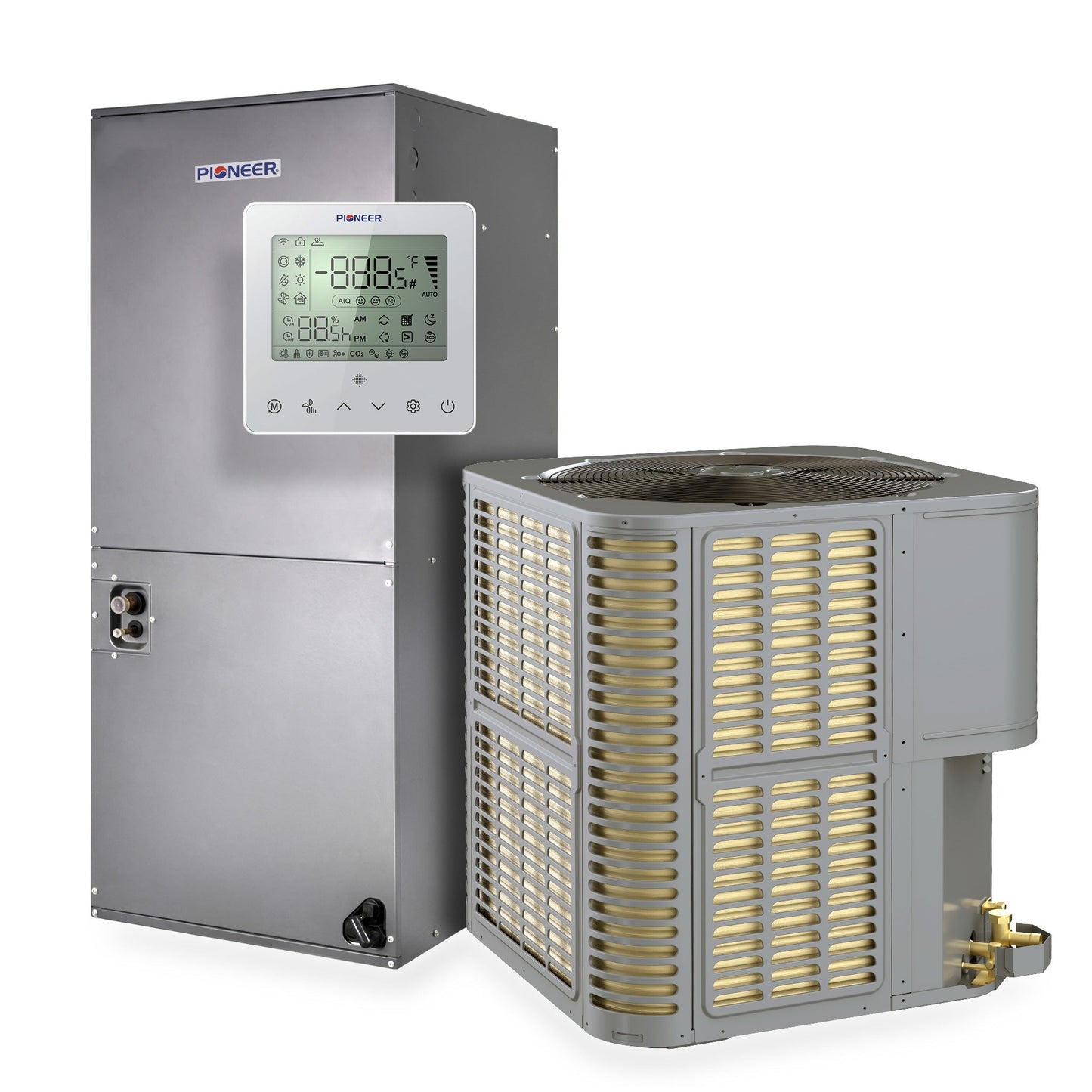

Pioneer Vertex 36,000 BTU 18.6 SEER2 230V Ducted Central Split Air Conditioner Inverter Heat Pump - DYC036GCSI18RD
- High Efficiency Vertex Ducted Central Split Heat Pump System
- Cooling capacity: 34,000 BTU/H with 18.6 SEER2 / 11.7 EER2 efficiency
- Heating capacity: 34,200 BTU/H with 9.0 HSPF2 / 2.1 COP2 efficiency
-
Voltage: 208/230V, 60Hz, 1Ph
-
Communicating system with dedicated signal transmission
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
-
Low Ambient Range Operation (As low as -4°F in Heating / As high as 131°F in Cooling)
Technical Performance
-
System Kit
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Rated Capacity: 34,000 BTU/h
-
Cooling Capacity Range: 22,300~41,900 BTU/h
-
Cooling SEER2: 18.6 BTU/W.h
-
Cooling EER2: 11.7 BTU/W.h
-
Heating Rated Capacity: 34,200 BTU/h
-
Heating Capacity Range: 12,600~48,900 BTU/h
-
Heating HSPF2 (Region IV): 9.0 BTU/W.h
- Heating C.O.P.2 (5°F): 2.1 W/W
-
Refrigerant Type: R454b
-
AHRI Reference: 217048498
-

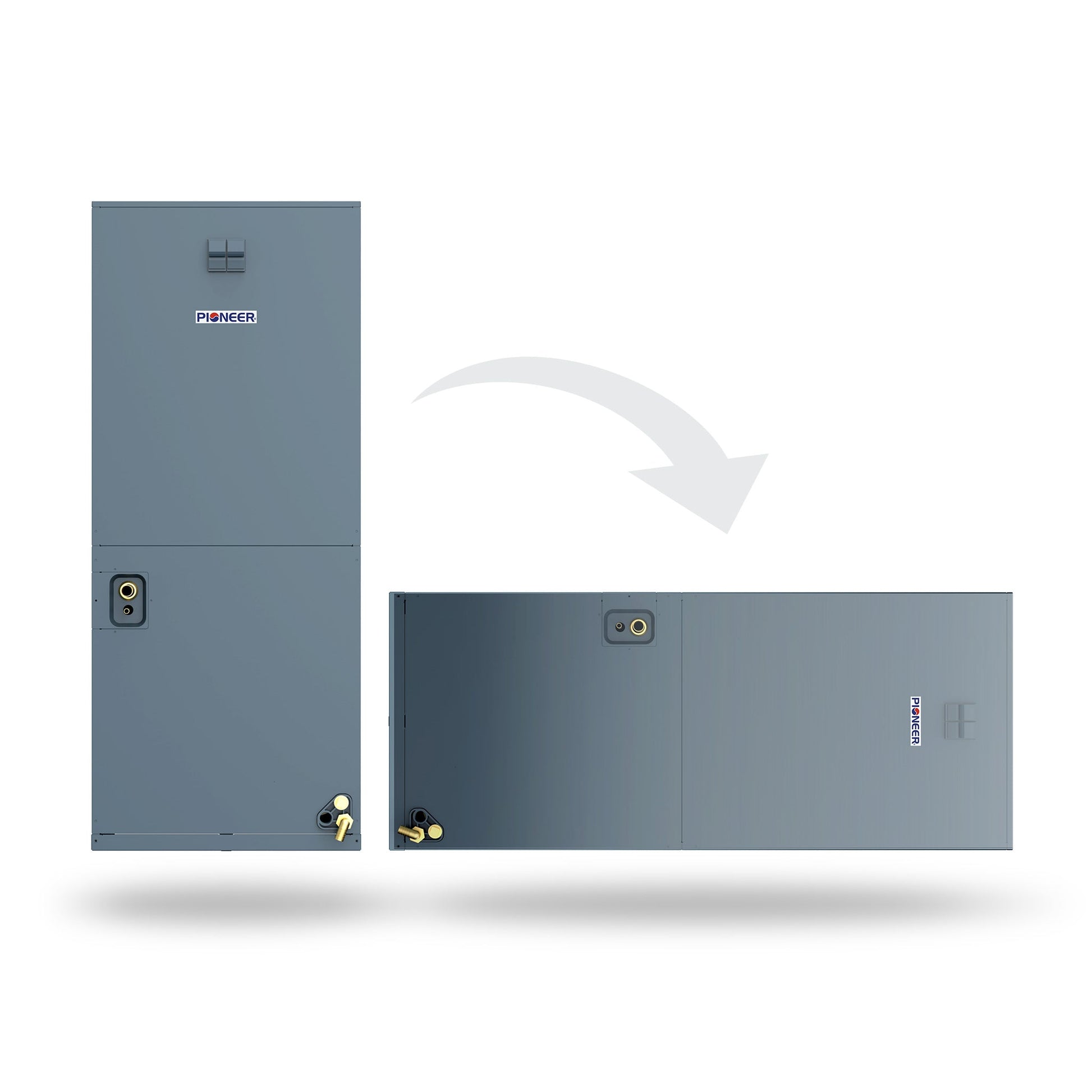

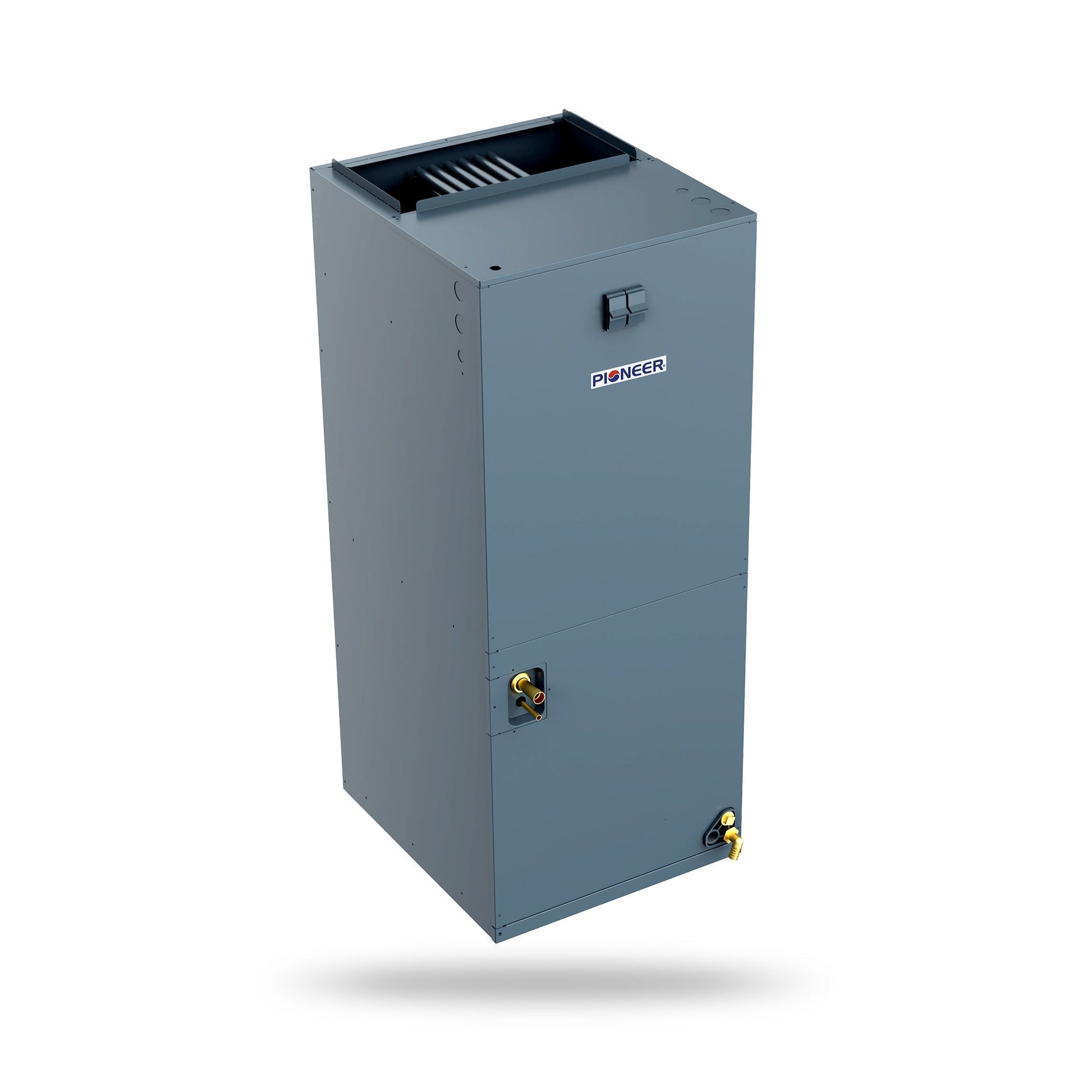

Air Handler
-
Part Number: DC036GCSICDHRT
-
Air Flow (Hi/Lo): 920 / 730 CFM
-
Sound Level (Hi/Lo): 52 / 49 dB(A)
-
Product Dimensions (WDH): 19"-5/8 x 22" x 45"-3/4 Inches
-
Carton Dimensions (WDH): 22"-7/8 x 25"-5/8 x 47"-5/8 Inches
-
Net / Gross Weight: 130 / 143 lbs
-

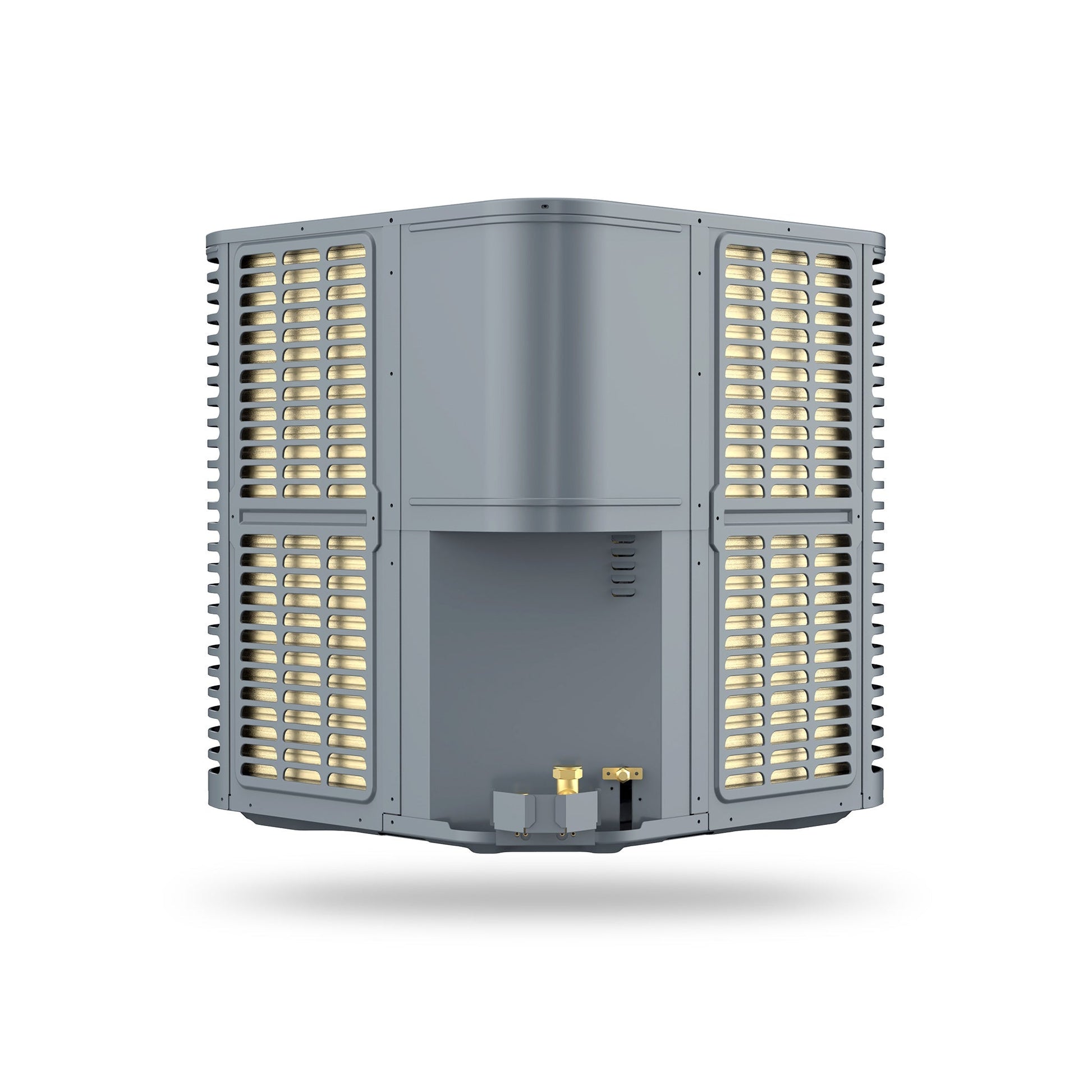

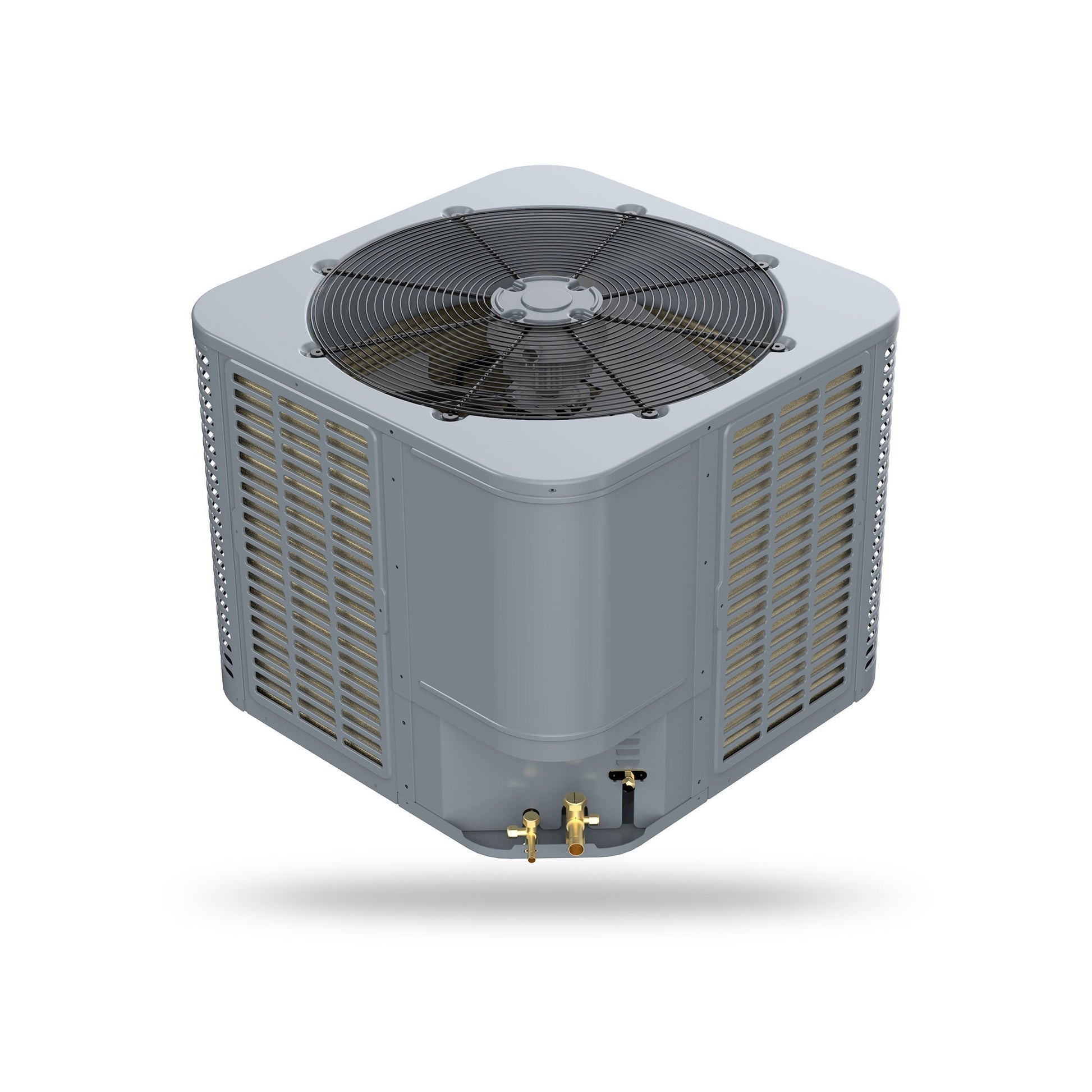

Outdoor Unit
-
Part Number: YD2436GCSI18RD
-
Breaker Needed: 20A (double-pole)
-
Sound Level: 79 dB(A)
-
Net Dimensions (WDH): 29"-1/8 x 25" x 29"-1/8 Inches
-
Carton Dimensions (WDH): 30" x 26" x 30" Inches
-
Net / Gross Weight: 137 / 146 lbs
Dimension Chart
What Our Experts Think
-
36,000 BTU (3-ton) capacity ideal for central ducted cooling and heating.
-
18.6 SEER2 efficiency delivers energy savings for large homes or commercial spaces.
-
Ducted split design provides even temperature distribution throughout the building.
-
Inverter heat pump ensures reliable heating and cooling year-round.
-
Durable, commercial-grade components built for continuous performance.
Q&A
Q: What size area can this system serve?
A: Suitable for homes or commercial spaces up to ~1,500 sq. ft., depending on insulation.
Q: Does it provide both heating and cooling?
A: Yes, the inverter heat pump provides year-round climate control.
Q: Is it energy-efficient?
A: Yes, the 18.6 SEER2 rating ensures energy savings while maintaining comfort.
Maintenance Tips
-
Inspect and clean air filters monthly to maintain airflow.
-
Check ductwork periodically for leaks or blockages.
-
Keep outdoor condenser area free from debris.
-
Schedule annual professional servicing to maintain efficiency and longevity.
