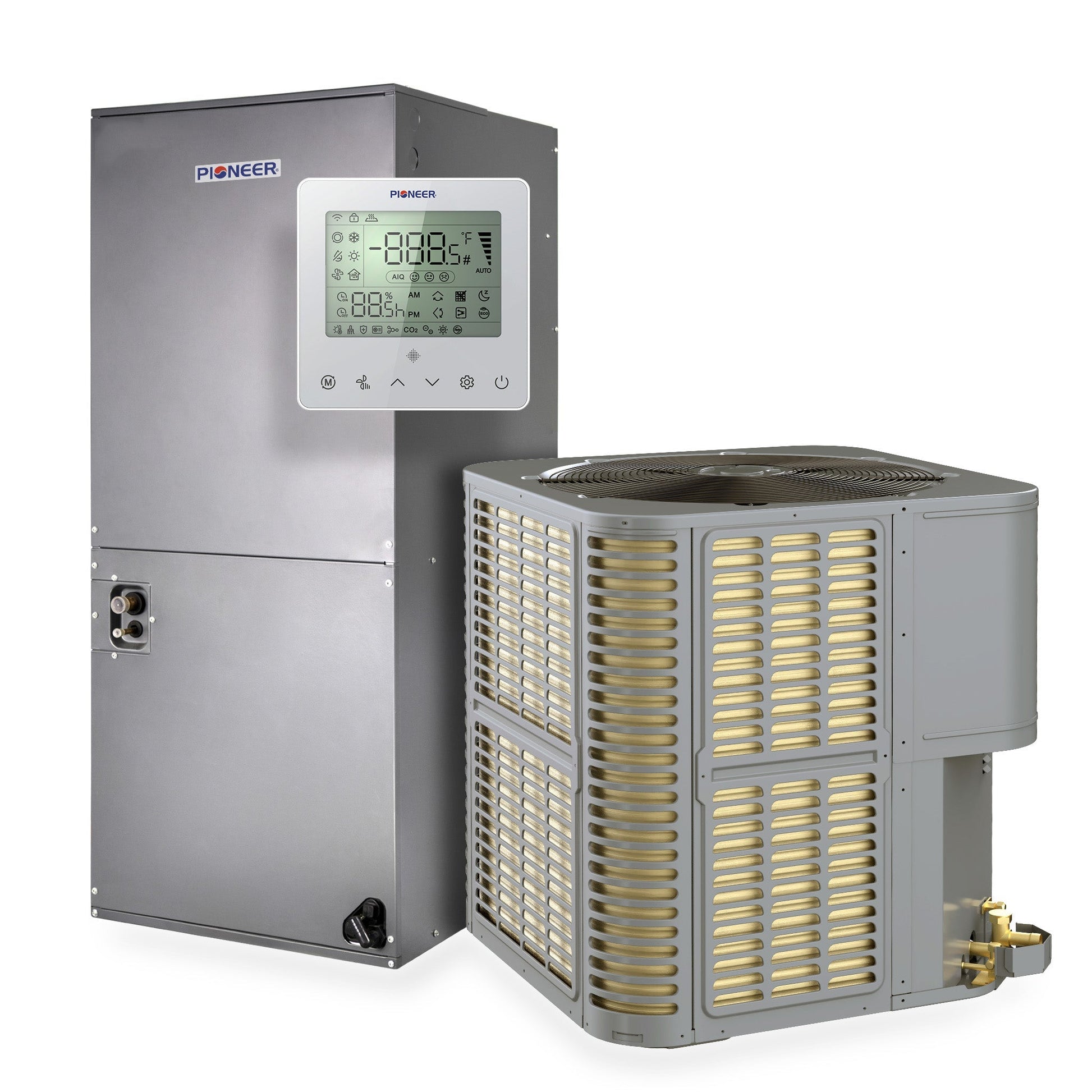

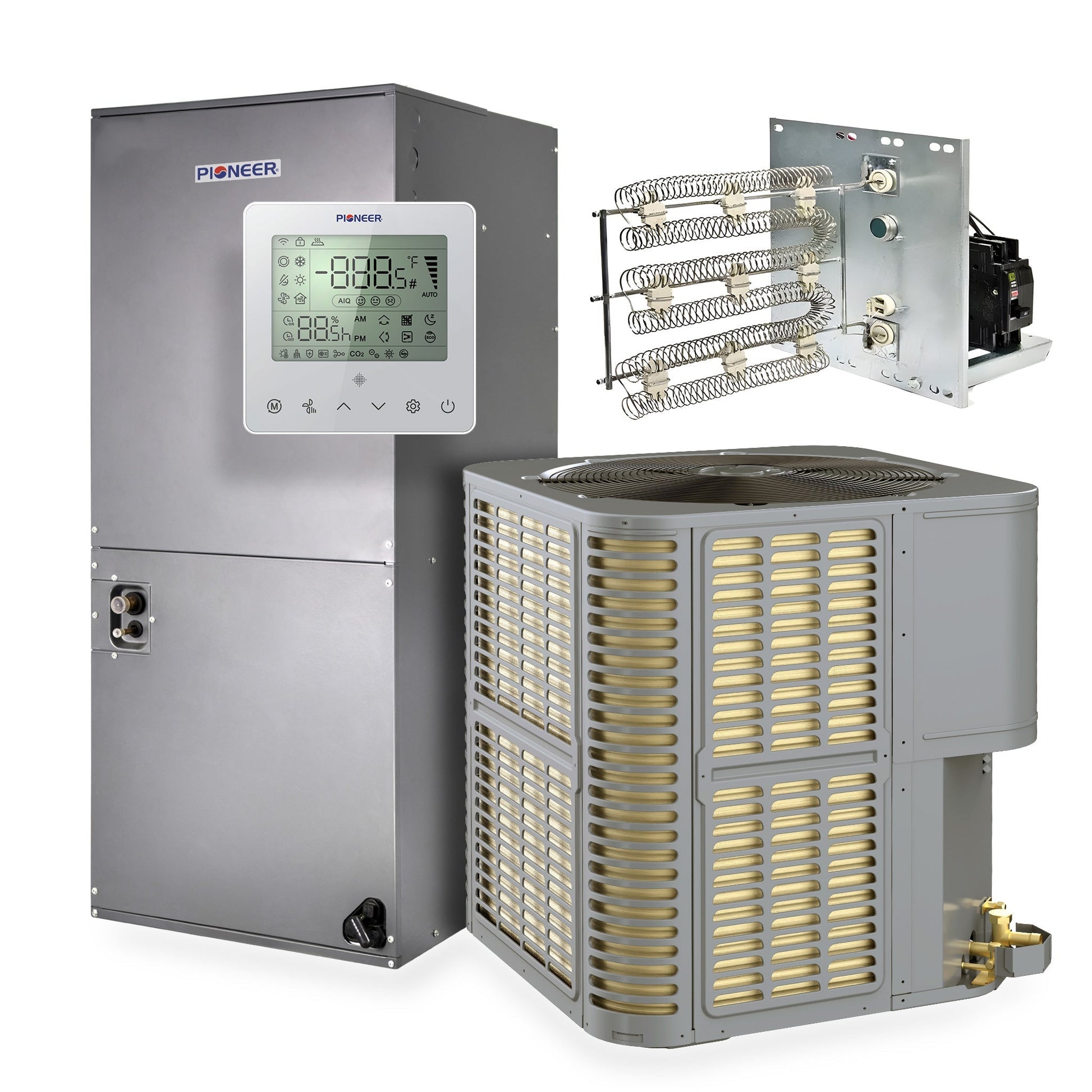

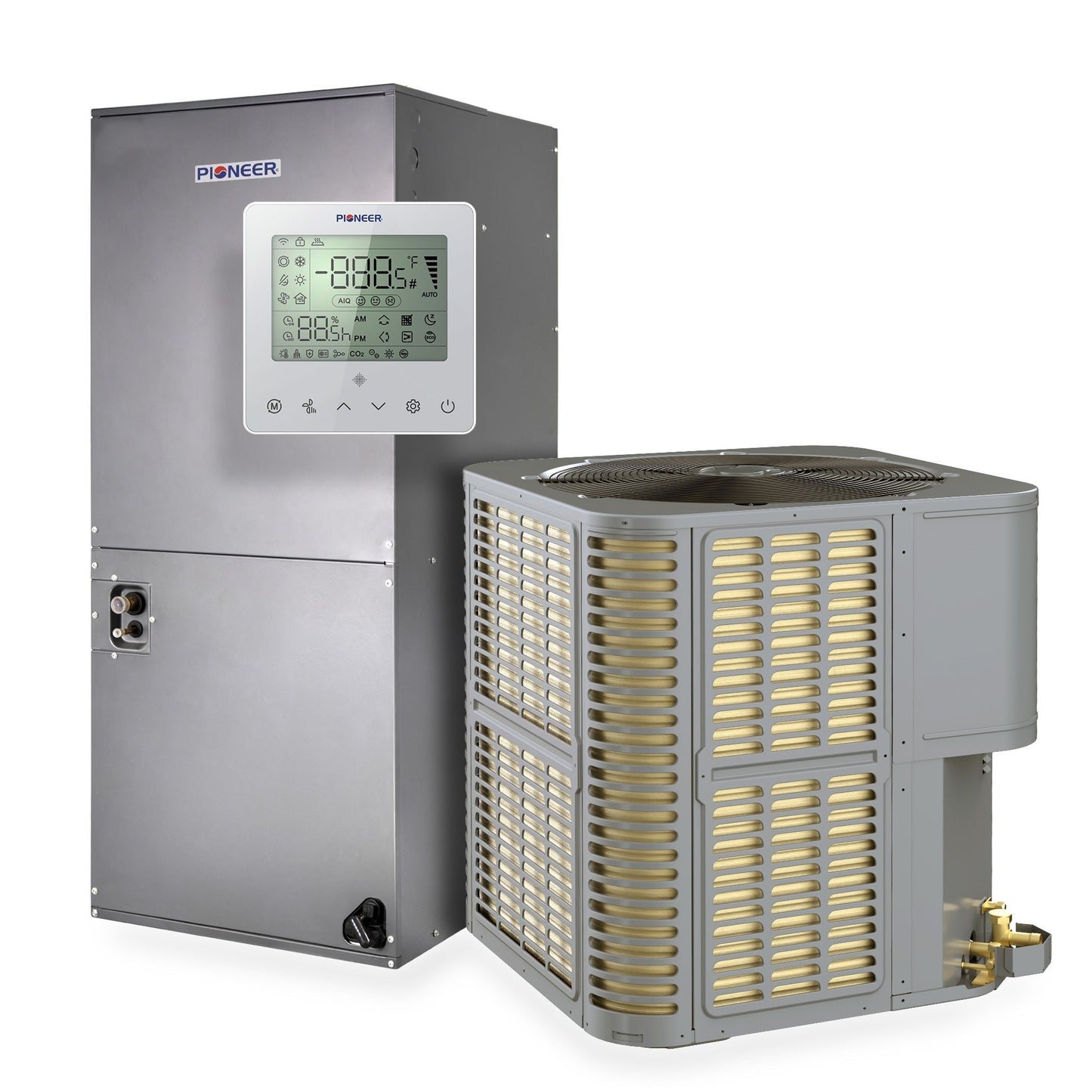

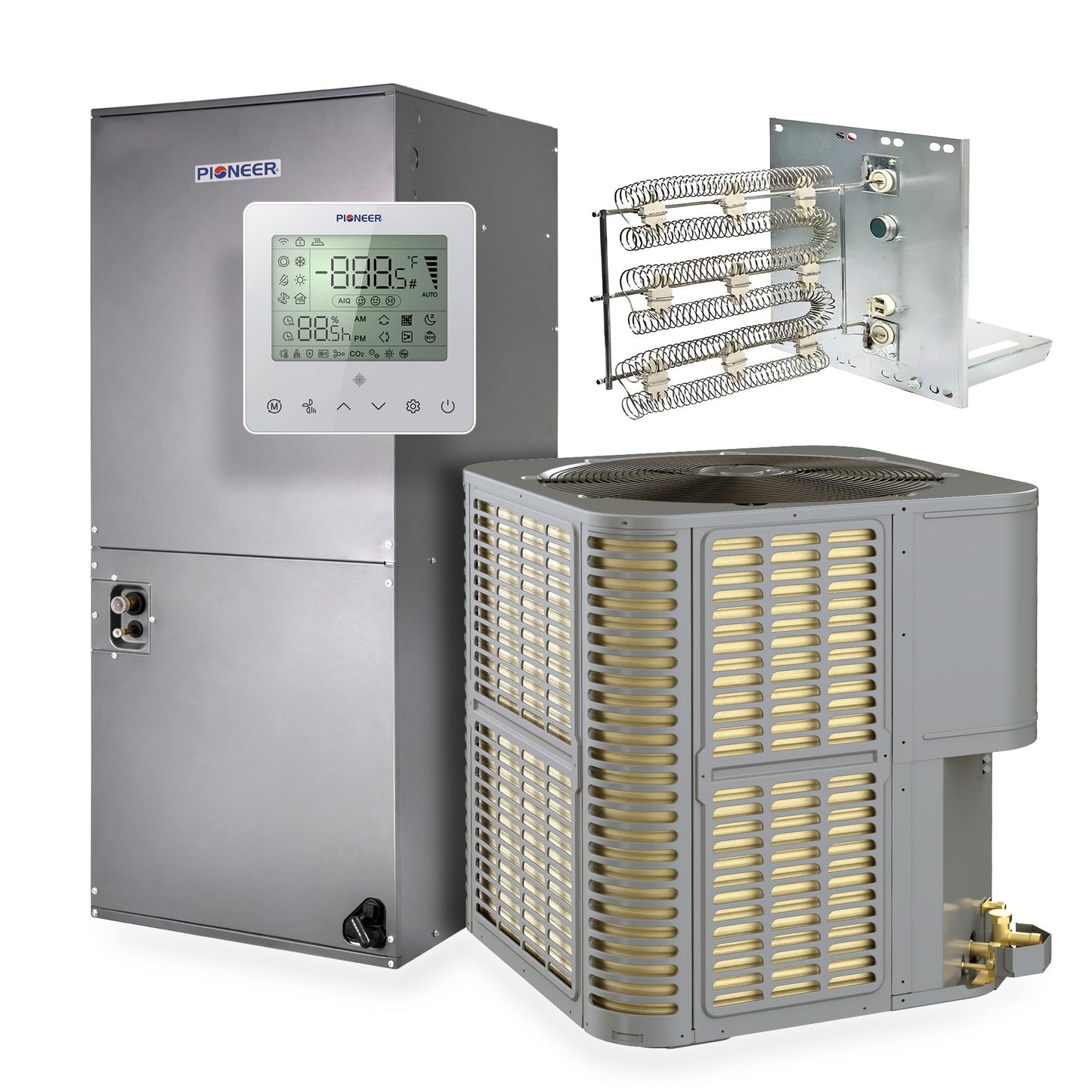

Pioneer Vertex 56,000 BTU 17 SEER2 230V Ducted Central Split Air Conditioner Inverter Heat Pump - DYC060GCSI18RD
- High Efficiency Vertex Ducted Central Split Heat Pump System
- Cooling capacity: 55,500 BTU/H with 17.0 SEER2 / 10.0 EER2 efficiency
- Heating capacity: 57,000 BTU/H with 8.6 HSPF2 / 2.1 COP2 efficiency
-
Voltage: 208/230V, 60Hz, 1Ph
-
Communicating system with dedicated signal transmission
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
-
Low Ambient Range Operation (As low as -4°F in Heating / As high as 131°F in Cooling)
Technical Performance
-
System Kit
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Rated Capacity: 55,500 BTU/h
-
Cooling Capacity Range: 37,600~67,400 BTU/h
-
Cooling SEER2: 17.0 BTU/W.h
-
Cooling EER2: 10.0 BTU/W.h
-
Heating Rated Capacity: 57,000 BTU/h
-
Heating Capacity Range: 18,000~72,500 BTU/h
-
Heating HSPF2 (Region IV): 8.6 BTU/W.h
- Heating C.O.P.2 (5°F): 2.1 W/W
-
Refrigerant Type: R454b
-
AHRI Reference: 217048500
-

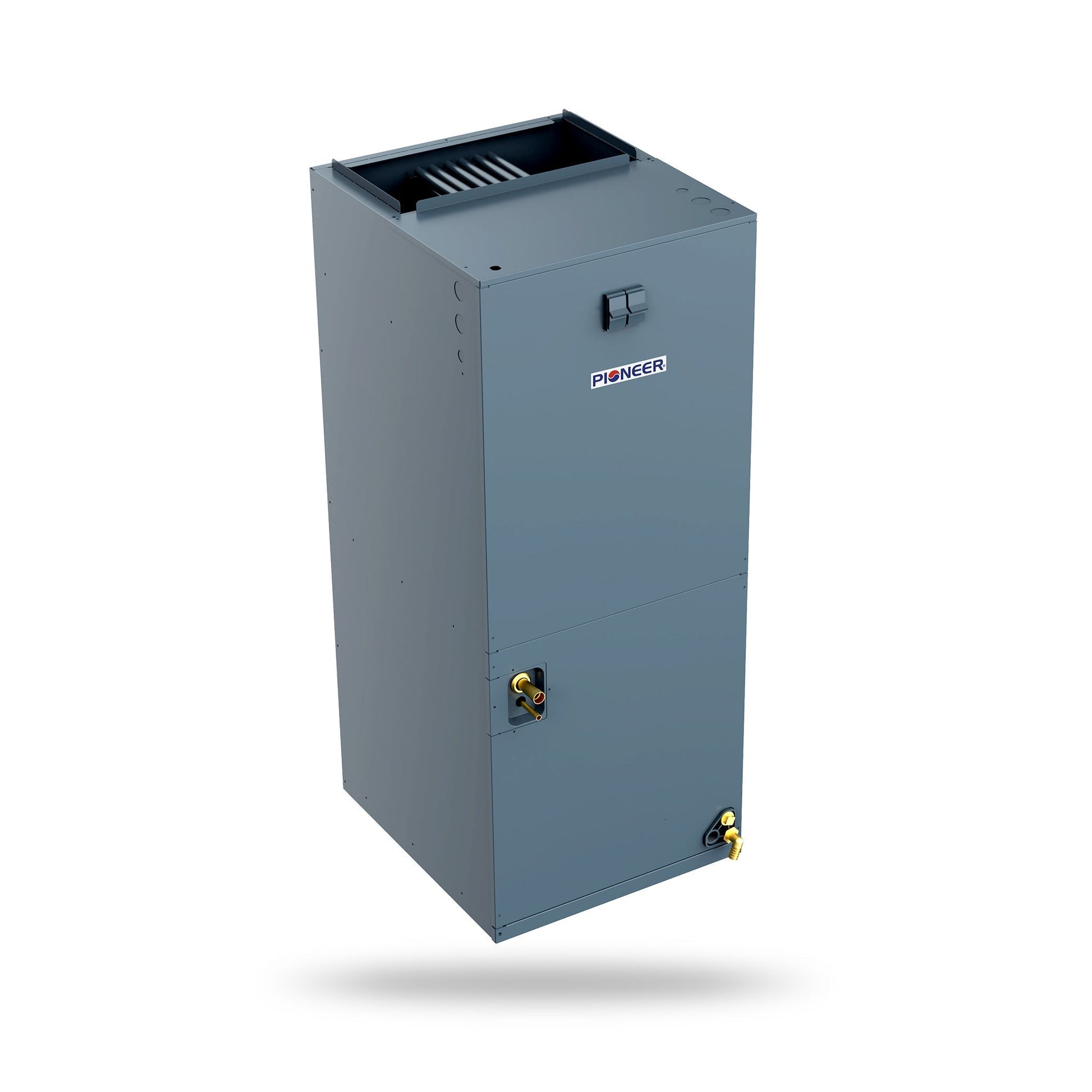

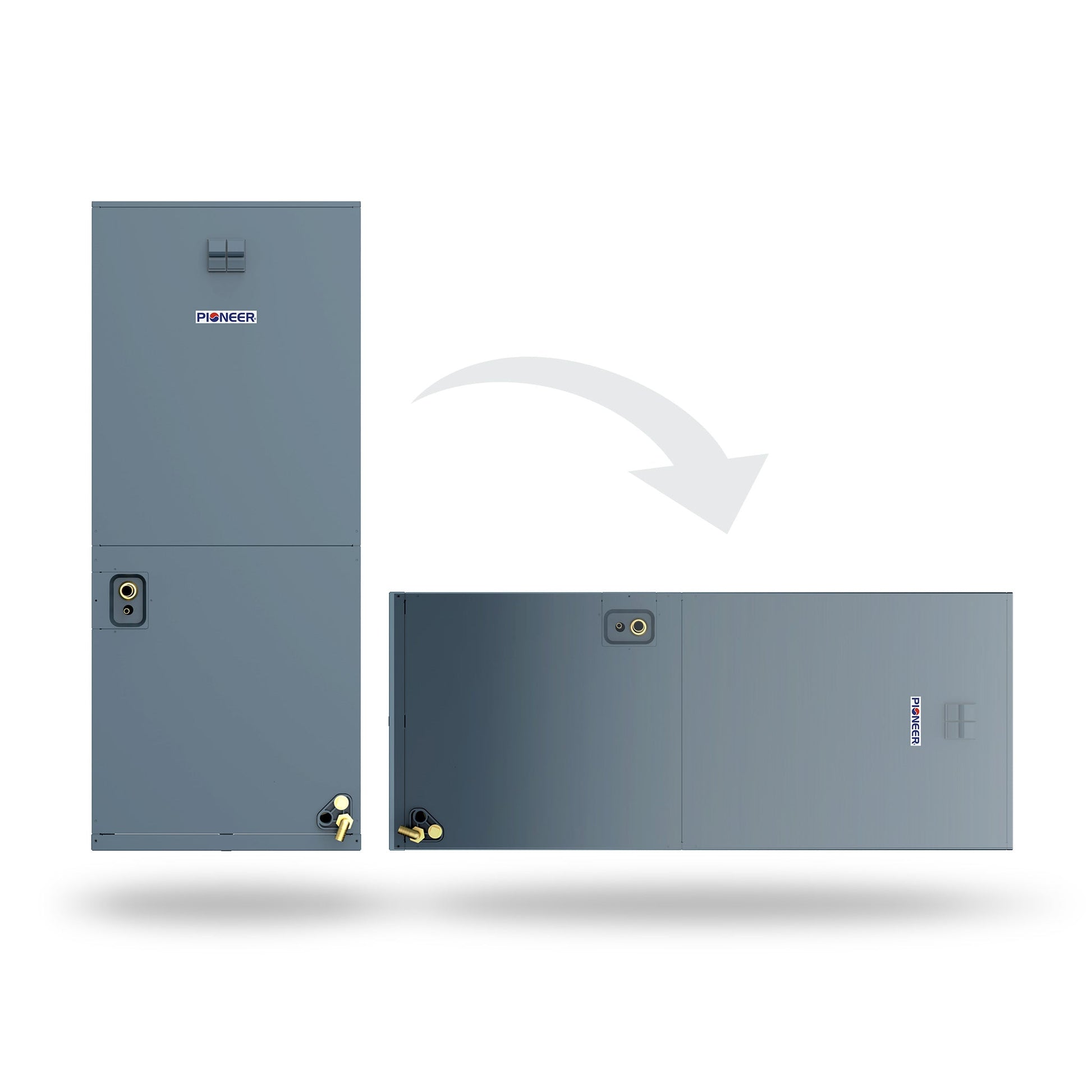

Air Handler
-
Part Number: DC060GCSICDHRT
-
Air Flow (Hi/Lo): 1,500 / 1,205 CFM
-
Sound Level (Hi/Lo): 59 / 55 dB(A)
-
Product Dimensions (WDH): 22" x 24"-1/2 x 53"-1/8 Inches
-
Carton Dimensions (WDH): 25"-1/4 x 28" x 54"-3/4 Inches
-
Net / Gross Weight: 169 / 182 lbs
-

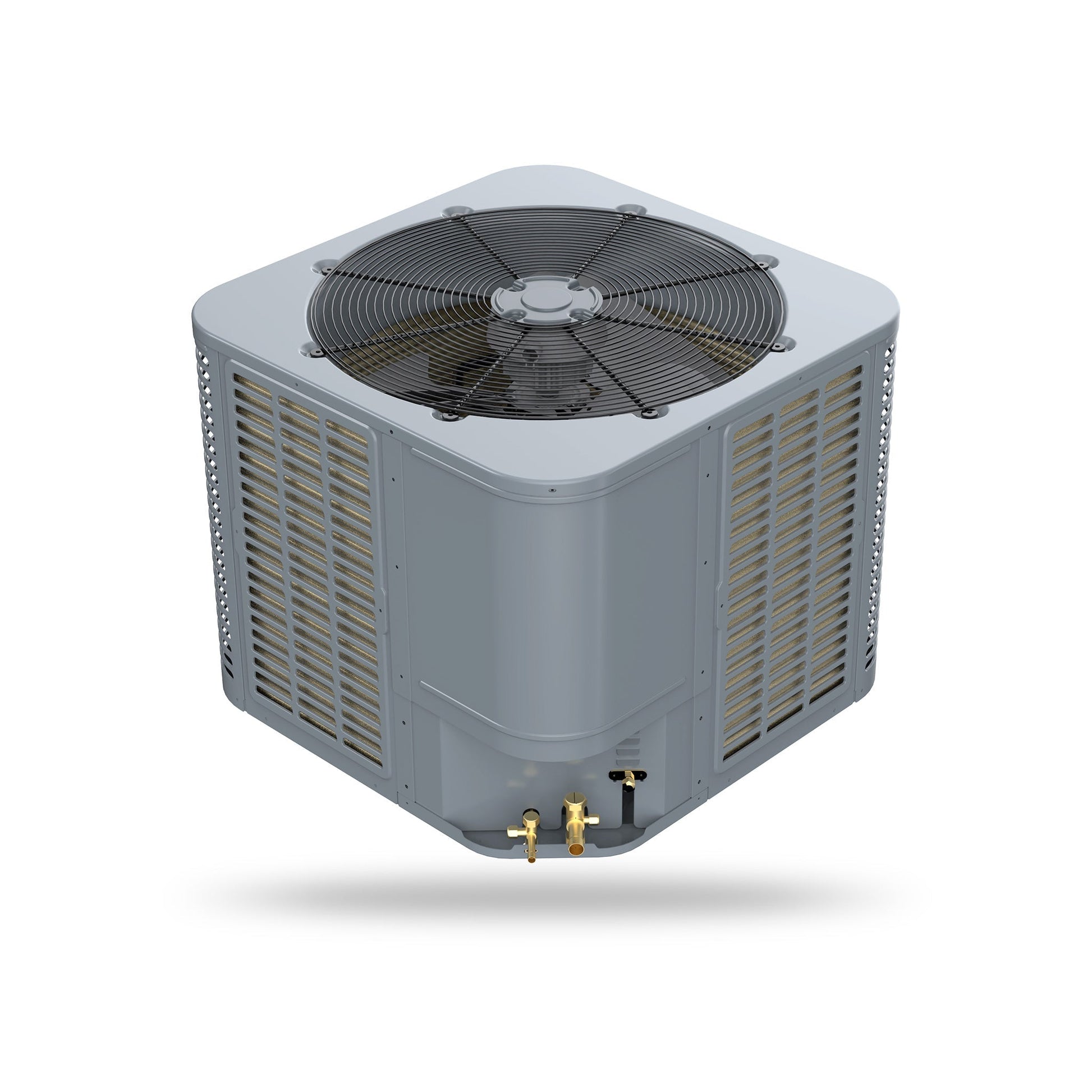

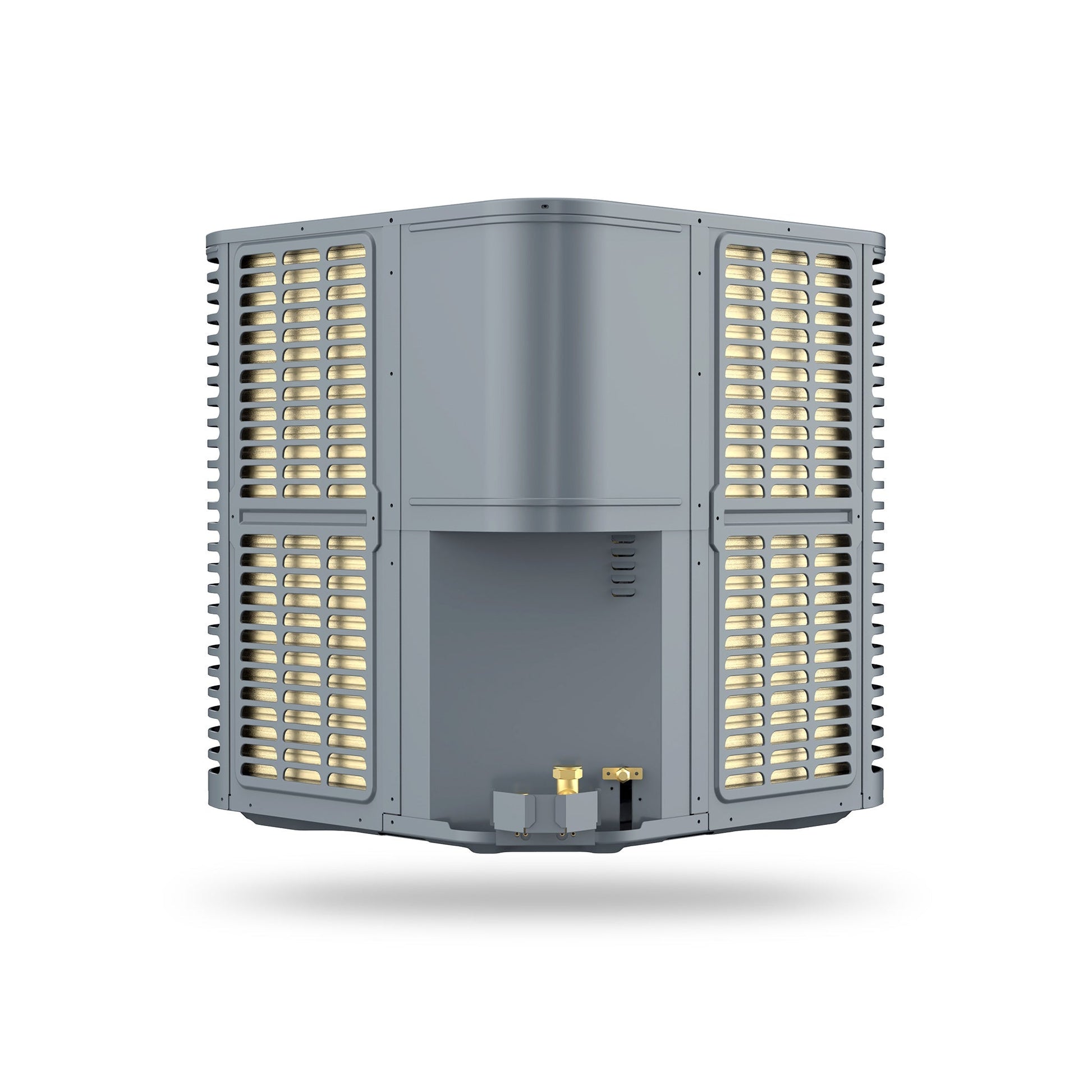

Outdoor Unit
-
Part Number: YD4860GCSI18RD
-
Breaker Needed: 30A (double-pole)
-
Sound Level: 79 dB(A)
-
Net Dimensions (WDH): 29"-1/8 x 29"-1/8 x 32" Inches
-
Carton Dimensions (WDH): 30" x 30" x 34"-1/2 Inches
-
Net / Gross Weight: 187 / 196 lbs
Dimension Chart
What Our Experts Think
-
56,000 BTU capacity ideal for large homes or commercial spaces.
-
17 SEER2 efficiency balances high performance with energy savings.
-
Ducted central split design provides even airflow throughout multiple rooms.
-
Inverter heat pump ensures reliable heating and cooling year-round.
-
Built for durability and continuous operation in demanding environments.
Q&A
Q: What size space is this system suitable for?
A: Perfect for large homes or commercial areas up to ~2,500–3,000 sq. ft., depending on insulation.
Q: Can it provide both heating and cooling?
A: Yes, the inverter heat pump supports year-round comfort.
Q: Is this a ducted system?
A: Yes, it’s a ducted central split system for full-home or multi-room distribution.
Maintenance Tips
-
Replace or clean air filters every 4–6 weeks for optimal airflow.
-
Inspect ductwork periodically for leaks or blockages.
-
Keep outdoor condenser clear of debris for peak efficiency.
-
Schedule professional servicing annually to ensure longevity and performance.
