Powermatic 201HH 22" Helical Head Planer 7.5hp, 1PH, 230V - PM9-1791267

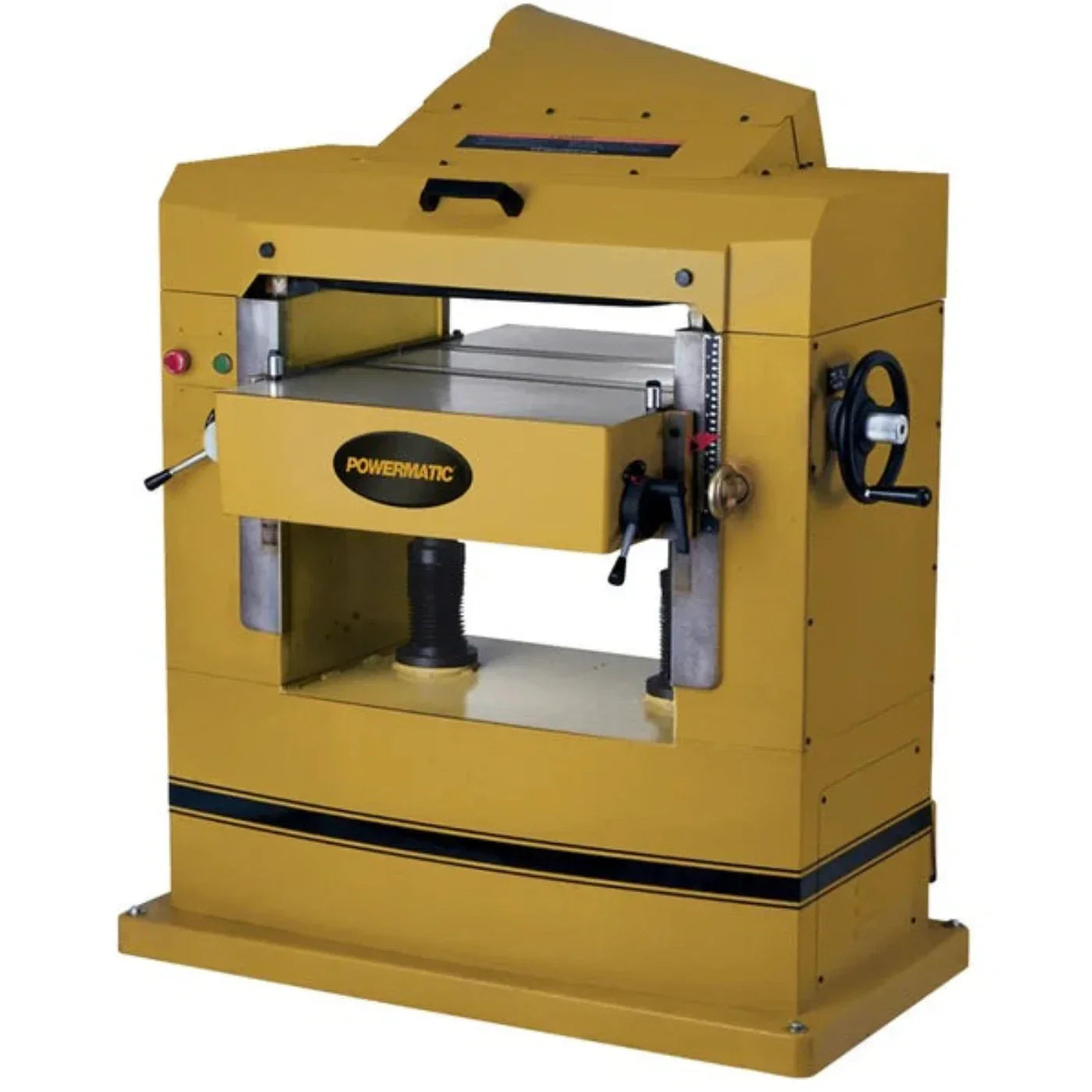

Powermatic 201HH 22" Helical Head Planer 7.5hp, 1PH, 230V

This 1,300-pound heavy duty cast iron planer offers rock solid rigidity and accurate planing for years to come. The hinged top allows easy access to the rollers and knives, and has a 5” dust port for easy attachment to any dust collection system.

The cutterhead is a helical design with 150 four-sided knife inserts – these produce a superior finish and much quieter operation compared to conventional cutterheads, and the inserts are installed without further adjustments. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. Infeed and outfeed rollers are fitted with roller bearings for long life. The sectional infeed roller and chip breaker are specially designed to allow multiple boards to be planed at the same time.

The adjustable bed rollers facilitate both rough and finish planing. The solid steel outfeed roller is machined with small serrations to ensure a smooth finish yet provide positive feeding. The two-speed gearbox with machined detents is quickly changed up front when switching from rough to finish work. The massive, ribbed cast iron table is ground finished and rises smoothly via the hand wheel. With a hefty 7-1 /2 horsepower motor, the 201HH Planer is perfect for the small to medium shop with continuous planning requirements.

• 2 feed speeds - 20/30 fpm - accommodates rough and fine finish work
• Adjustable bed rollers allow smooth feeding of rough or finished workpieces
• All cast iron construction, the heavy cast iron table travels on two large lead screws
• Cast iron construction
• Dust chute with 5" port for dust collection
• Helical cutterhead with 125 four sided carbide knife inserts provides smoother, quieter cutting and finer finish than conventional systems
• Roller bearing-mounted feed rollers for smooth operation and long life
• Segmented infeed roller with sectional chip breaker for planing multiple height stock

• Powerful 7.5hp Motor: 1-phase motor ensures consistent and robust performance for heavy-duty tasks.
• Helical Cutterhead: Provides smoother cuts, reduces noise, and extends blade life compared to traditional straight blades.
• Large Capacity: 22" width capacity makes it ideal for handling large workpieces with ease.
• Precision Performance: Fine-tuned for accuracy, with minimal snipe and a smooth finish.
• Durable Construction: Built to withstand demanding use while maintaining high precision.
• Efficient Operation: 230V electrical input for reliable, energy-efficient performance.

Q: What are the key features of the Powermatic 201HH 22" Helical Head Planer PM9-1791267?
A: The Powermatic 201HH features a 22" cutting capacity, a 7.5hp motor, and a helical head design for smooth, precise cuts. It operates on a 1-phase, 230V power supply, making it ideal for professional and heavy-duty woodworking.

Q: What is the advantage of the helical head design?
A: The helical head design ensures quieter operation and a smoother surface finish by using multiple cutting edges, reducing tear-out and vibration.

Q: What motor does the Powermatic 201HH use?
A: The planer is powered by a 7.5hp motor, providing ample power for high-demand planing tasks.

Q: Is the Powermatic 201HH suitable for industrial use?
A: Yes, this planer is designed for professional and industrial woodworking, delivering the durability and precision needed for large-scale projects.

Q: What electrical requirements does the Powermatic 201HH need?
A: The planer operates on a 1-phase, 230V electrical system for optimal performance

• Clean after use: Remove sawdust, chips, and debris from the table, cutter head, and motor to maintain smooth operation.
• Inspect the knives: Check the helical carbide inserts for wear and replace or rotate them as needed to ensure consistent cutting quality.
• Lubricate moving parts: Apply grease or oil to the infeed and outfeed rollers, gears, and other moving components to reduce friction and wear.
• Check alignment: Verify that the infeed and outfeed tables are properly aligned to ensure flat, smooth cuts.
• Monitor belt tension: Inspect the belts for wear, and adjust the tension if necessary to maintain proper speed and performance.
• Tighten fasteners: Periodically check and tighten all bolts and screws to prevent vibrations and maintain machine stability.
• Inspect electrical components: Check the motor, wiring, and power switch for wear or damage to ensure safe and reliable operation.
