Powermatic 201HH 22" Helical Head Planer 7.5hp, 3PH, 230V

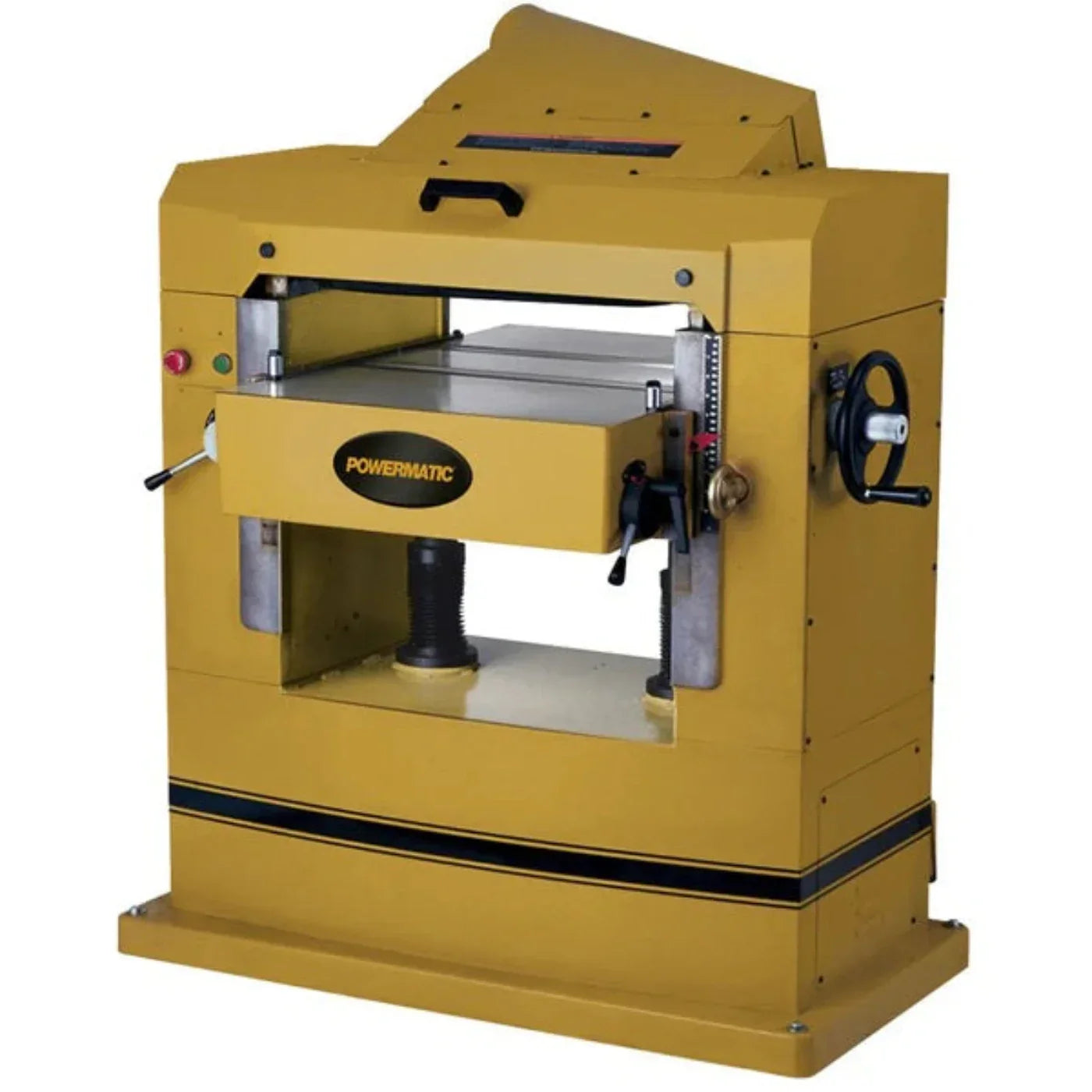

This 1,300-pound heavy duty cast iron planer offers rock solid rigidity and accurate planing for years to come. The hinged top allows easy access to the rollers and knives, and has a 5” dust port for easy attachment to any dust collection system.

The cutterhead is a helical design with 150 four-sided knife inserts – these produce a superior finish and much quieter operation compared to conventional cutterheads, and the inserts are installed without further adjustments. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. Infeed and outfeed rollers are fitted with roller bearings for long life. The sectional infeed roller and chip breaker are specially designed to allow multiple boards to be planed at the same time.

The adjustable bed rollers facilitate both rough and finish planing. The solid steel outfeed roller is machined with small serrations to ensure a smooth finish yet provide positive feeding. The two-speed gearbox with machined detents is quickly changed up front when switching from rough to finish work. The massive, ribbed cast iron table is ground finished and rises smoothly via the hand wheel. With a hefty 7-1 /2 horsepower motor, the 201HH Planer is perfect for the small to medium shop with continuous planning requirements.

  • 2 feed speeds - 20/30 fpm - accommodates rough and fine finish work
  • Adjustable bed rollers allow smooth feeding of rough or finished workpieces
  • All cast iron construction, the heavy cast iron table travels on two large lead screws
  • Cast iron construction
  • Dust chute with 5" port for dust collection
  • Helical cutterhead with 125 four sided carbide knife inserts provides smoother, quieter cutting and finer finish than conventional systems
  • Roller bearing-mounted feed rollers for smooth operation and long life
  • Segmented infeed roller with sectional chip breaker for planing multiple height stock

Bed Rollers Adjustable from Front 2
Column Diameter 2-1/2"
Cuts Per Minute Not Applicable
Cutterhead Diameter 3-1/4"
Cutterhead Speed 4,800 RPM
Dust Collection Required (min.) 900 CFM
Dust Port Outside Diameter 5"
Feed Rate 20/30 FPM
Infeed Roller Diameter 3"
Max. Depth of Cut 3/16"
Max. Full Width Depth of Cut 3/16"
Max. Height of Rollers Parallel to Tabletop 0.05"
Max. Planing Thickness 9-1/4"
Max. Planing Width 22"
Min. Planing Length 10"
Motor Phase 1
Motor Power 7-1/2hp
Motor Voltage 230V
Number of Speeds 2
Prewired Voltage 230V
Style (Type) Floor
Type of Cutterhead HELICAL
  • Powerful 7.5hp Motor: 3-phase motor provides consistent, high-performance operation for heavy-duty planing.
  • Helical Cutterhead: Delivers smoother cuts, quieter operation, and longer blade life compared to traditional straight blades.
  • Large Capacity: 22" width capacity makes it ideal for larger projects and workpieces.
  • Precision and Accuracy: Designed to reduce snipe, providing superior surface finishes with minimal effort.
  • Durability: Built with a heavy-duty construction that withstands frequent use and maintains accuracy.
  • Efficient Operation: 230V power ensures reliable, energy-efficient performance in professional settings.

Q: What are the key features of the Powermatic 201HH 22" Helical Head Planer PM9-1791268?
A: The Powermatic 201HH offers a 22" cutting capacity, a 7.5hp motor, and a helical head design for smooth, precise finishes. It operates on a 3-phase, 230V power supply, ideal for professional and heavy-duty woodworking applications.

Q: What is the benefit of the helical head design?
A: The helical head design reduces noise, vibration, and tear-out while providing a cleaner, smoother surface finish thanks to its multiple cutting edges.

Q: What motor does the Powermatic 201HH use?
A: The planer is powered by a 7.5hp motor, delivering ample power for high-volume and demanding planing tasks.

Q: Is the Powermatic 201HH suitable for industrial use?
A: Yes, this planer is built for industrial-grade woodworking, offering exceptional durability and precision for large-scale operations.

Q: What electrical requirements does the Powermatic 201HH need?
A: The planer requires a 3-phase, 230V power supply for optimal performance and reliability

  • Clean regularly: Remove dust, wood chips, and debris from the cutter head, table, and motor to keep the planer running smoothly.
  • Inspect the carbide inserts: Check the helical inserts for wear and replace or rotate them when necessary to maintain sharpness and consistent cutting.
  • Lubricate moving parts: Apply lubricant to the infeed and outfeed rollers, gears, and other moving components to reduce friction and prolong the machine’s life.
  • Check alignment: Ensure the infeed and outfeed tables are level and aligned for uniform, flat cuts.
  • Monitor belt tension: Inspect the drive belts for wear, and adjust the tension to ensure proper operation and performance.
  • Tighten fasteners: Regularly check and tighten all bolts, screws, and fasteners to prevent vibrations and ensure machine stability.
  • Inspect motor and electrical connections: Examine the motor, wiring, and electrical components for signs of damage to maintain safe operation and optimal performance
