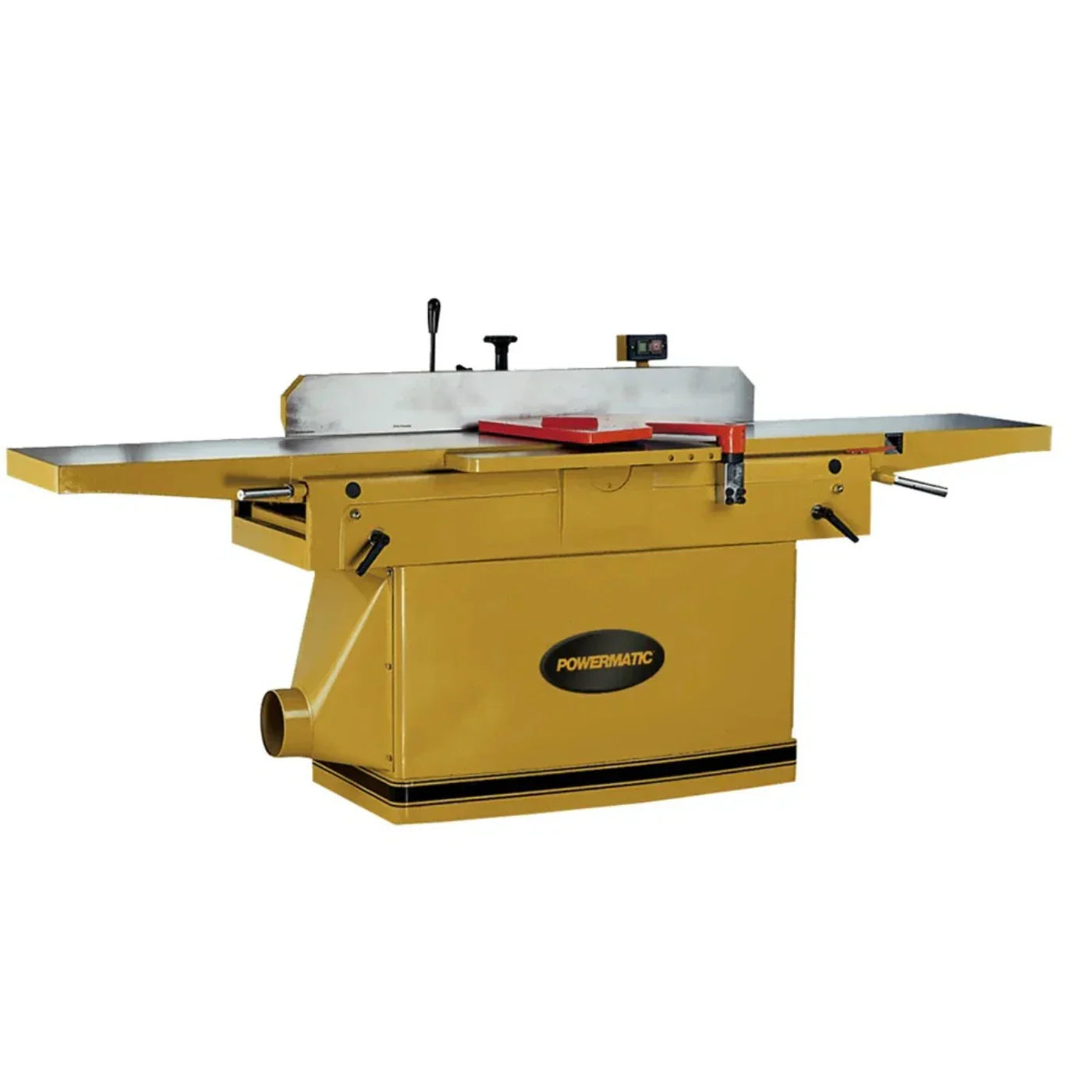

Powermatic PJ1696 16" Helical Head Jointer
This 16" jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily on a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles.
The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. The specially designed solid steel helical cutterhead consists of six rows of precision ground staggered inserts. This system makes fast work of knife changing and never needs adjustment. The heavy-duty 7-1/2HP motor delivers all the power you need for even the biggest jobs.
Features
- Cast iron fence bevel controls with positive stops at 45° and 90°
- Extra-long cast iron infeed and outfeed tables
- Full size rabbeting table supports large workpieces for rabbets up to 3/4" deep
- Helical cutterhead with 58 two-sided knife inserts reduces noise, eliminates adjustments, and speeds knife change
- Large 16" x 96" precision ground cast iron table surface for maximum support and fine finish
- Parallelogram construction maintains close table-to-cutterhead proximity and ensures table parallelism
- Rack and pinion adjustable cast iron fence system for smoother fence positioning and sturdy work support
Specifications
| Cuts Per Minute |
20,800 |
| Cutterhead Diameter |
4" |
| Cutterhead Speed (RPM) |
5,200 |
| Cutting Capacity (W x D) |
16 x 3/4" |
| Dust Collection Minimum CFM Required (CFM) |
800 |
| Dust Port Outside Diameter |
6" |
| Infeed Table Length |
47-1/2" |
| Motor Phase |
3 |
| Motor Power (HP) |
7-1/2 |
| Motor Voltage (V.) |
230/460 |
| Number of Knives |
58 |
| Prewired Voltage (V.) |
230 |
| Table Height from Floor |
37-1/2" |
What Our Experts Think
-
Powerful Performance: Equipped with a robust motor for consistent cutting and smooth jointing.
-
Helical Cutterhead: Offers quieter operation, smoother cuts, and longer-lasting blades compared to traditional straight blades.
-
Wide Cutting Capacity: 16" cutting capacity makes it ideal for handling larger materials and wide stock.
-
Precision Cuts: Built for accurate, smooth jointing with minimal snipe and excellent surface quality.
-
Heavy-Duty Construction: Designed for long-term reliability, reducing vibrations for a more stable and precise operation.
-
User-Friendly: Simple adjustments and easy setup make it easy to integrate into your workflow.
Q&A
Q: What are the key features of the Powermatic PJ1696 16" Helical Head Jointer PM9-1791283?
A: The Powermatic PJ1696 features a 16" cutting capacity, a helical head design for smoother cuts, and a powerful motor. It is built for precision jointing with reduced noise and tear-out, making it ideal for professional and industrial woodworking.
Q: What is the benefit of the helical head design on the Powermatic PJ1696?
A: The helical head design provides a quieter operation, smoother finish, and reduced tear-out by using multiple cutting edges for more efficient material removal.
Q: What motor does the Powermatic PJ1696 use?
A: The jointer is equipped with a powerful motor, providing reliable performance for high-volume jointing tasks.
Q: What is the cutting capacity of the Powermatic PJ1696?
A: The Powermatic PJ1696 has a 16" cutting capacity, allowing for jointing large boards with ease.
Q: Is the Powermatic PJ1696 suitable for professional use?
A: Yes, the PJ1696 is designed for professional and industrial applications, providing high precision and durability for demanding woodworking environments
Maintenance Tips
-
Clean regularly: Remove wood chips, dust, and debris from the bed, cutterhead, and motor to ensure smooth operation.
-
Inspect the helical cutters: Check the carbide inserts for wear, and rotate or replace them as needed to maintain a sharp and smooth cut.
-
Lubricate moving parts: Apply oil to the infeed and outfeed rollers, bed, and fence to reduce friction and ensure smooth operation.
-
Check alignment: Ensure the infeed and outfeed tables are properly aligned to avoid uneven cuts and improve precision.
-
Inspect the drive belt: Check for wear, and ensure proper tension for optimal power transfer to the cutterhead.
-
Tighten fasteners: Periodically check all bolts and screws to prevent vibrations and maintain machine stability.
-
Monitor motor and electrical components: Inspect the motor and wiring for wear or damage to ensure safe and reliable operation.
