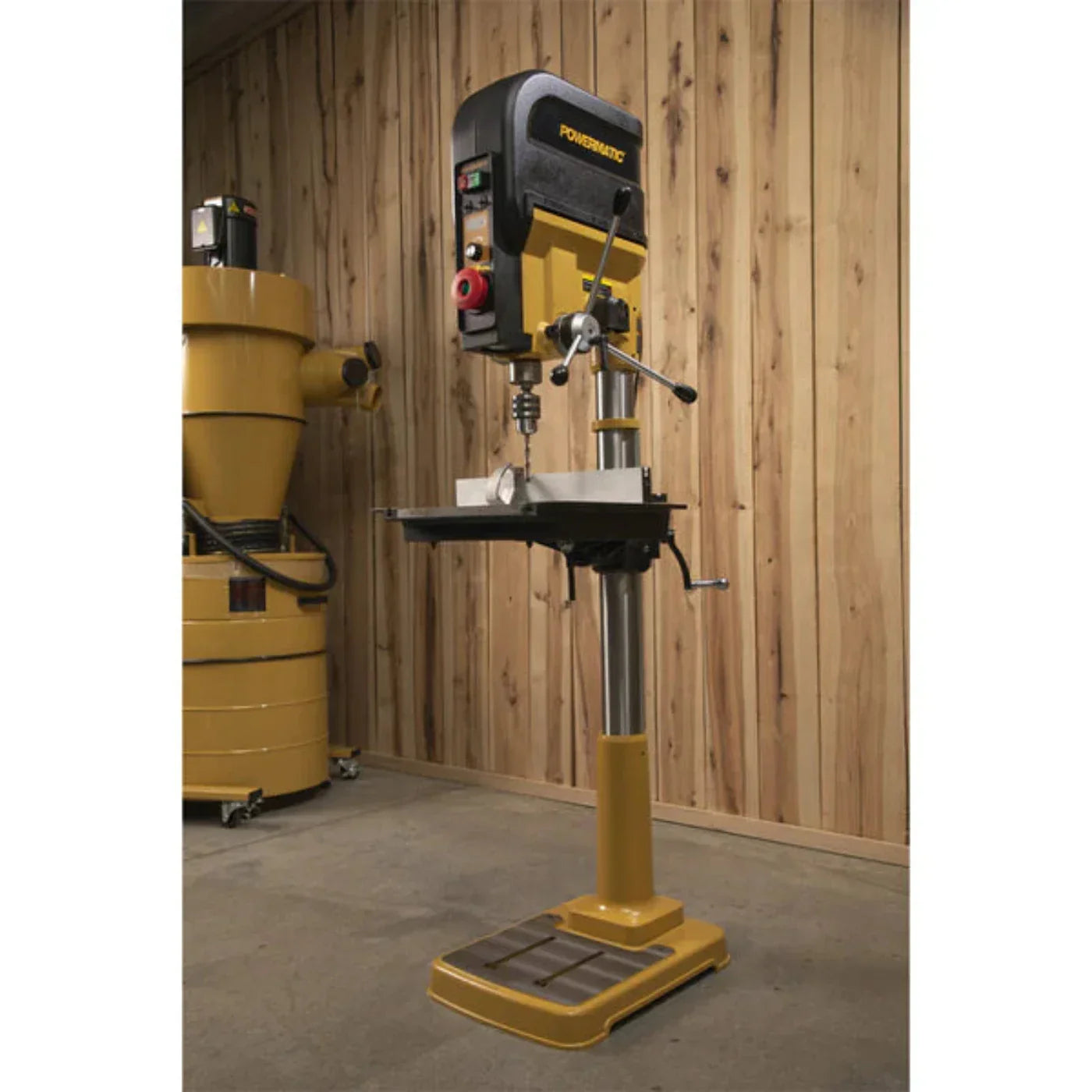

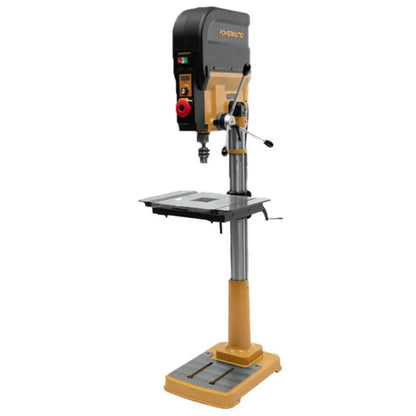

Gear up for the Ultimate Performance with the Powermatic PM2820EVS Drill Press. The gear driven power transfers torque consistently and efficiently for any project in a wide range of materials. A removable cast table with 45° rotation has capacity for projects large and small. The high visibility laser pinpoints the drilling location for total accuracy. Included fence and stop help make repeat and production drilling efficient. Handles can be moved to right or left for ease of use. Oversized cast base give this drill press stability. Integrated LED light reduces shadows for project visibility.
Features

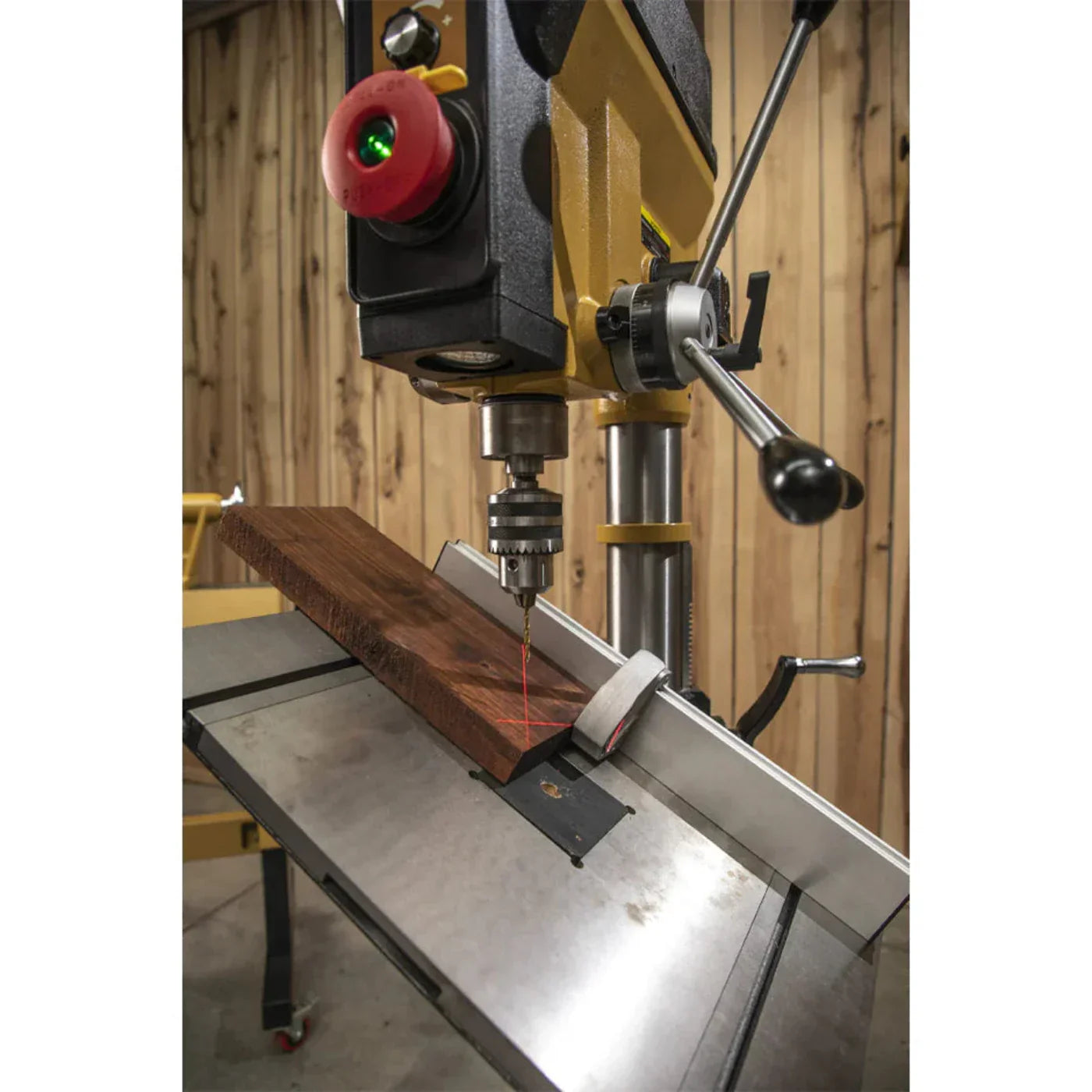

For unbeatable accuracy, the laser cross hairs provide precise tool point indication
Gear driven power transfers torque consistently and efficiently for a wide range of materials
Handles can be reversed for left or right sided operation

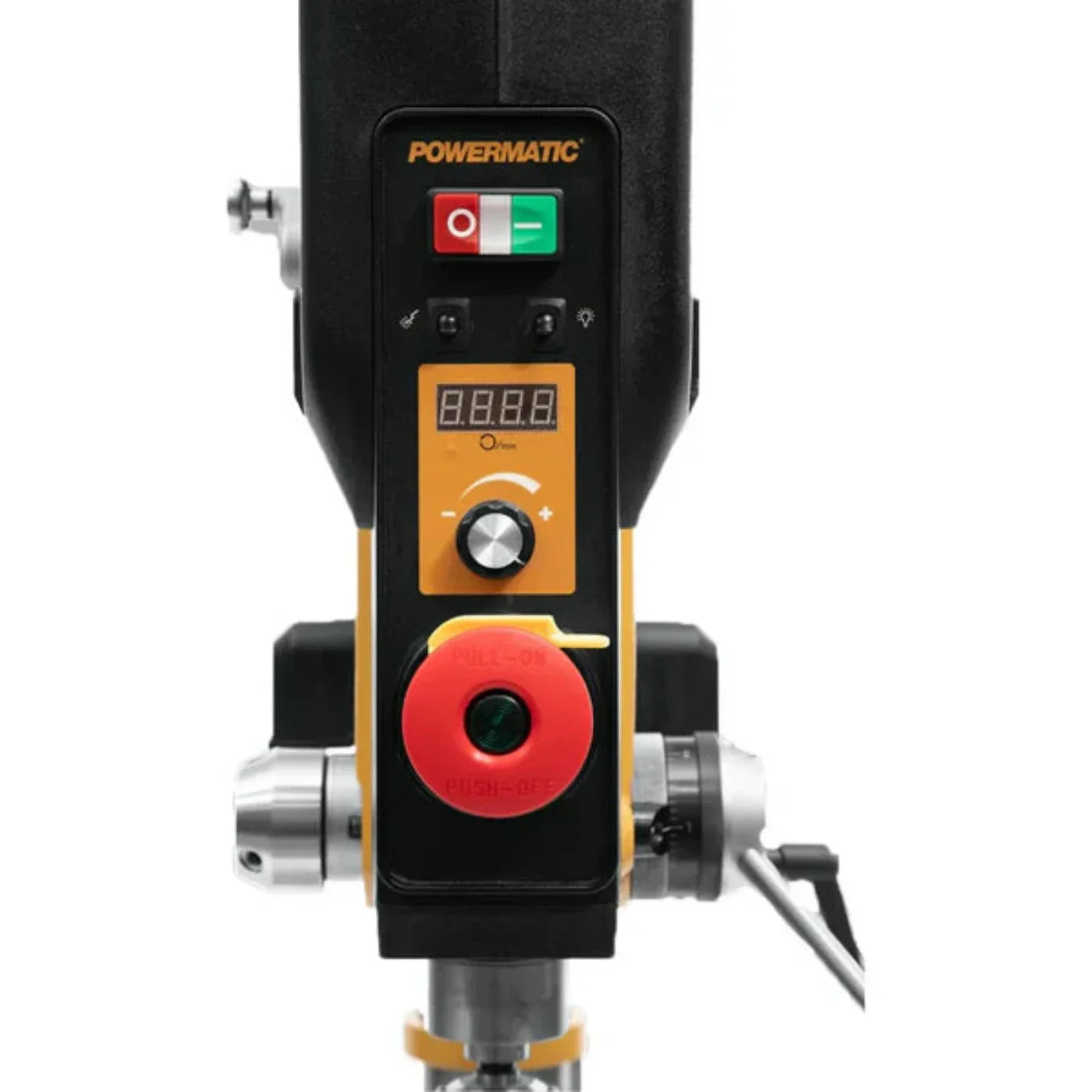

Highly visible digital readout gives users control
Includes Powermatic’s patented integrated depth stop for efficient drilling
Includes the most versatile table in the drill press market. Allows insert to be removed for better access to oversized pieces
Standing on an oversized cast base for outstanding stability for the 20 inch swing
The electronic variable speed means torque is not lost using either the higher or low speed settings. Low speed setting ranges 150 – 870 RPM and the high speed setting ranges 600 – 3600 RPM
The large cast table adjusts to a range of positions and tilts to a full ninety degree position
Specifications
Base Dimensions
22.7" x 16.3" x 2.75"
Base Size
22-3/4" x 16-3/8" x 2-3/4"
Base Work Table
11.81" x 12.05"
Chuck Distance to Base
41-1/4"
Chuck Distance to Table
19-1/4"
Chuck Size
5/8"
Column Diameter
3-3/8"
Fence Size (L x H)
19-3/4" x 2-5/8"
Gross Weight
413 lbs.
Motor Amps
8
Motor
1hp
Motor Voltage
120v
Net Weight
337 lbs.
Number of Spindle Speeds
2 Variable
Overall Dimensions (L x W x H)
24.5" x 20.5" x 71.85"
Prewired Voltage
115v
Quill Diameter
2.6"
Spindle Distance to Base
45"
Spindle Distance to Table (Max.)
23"
Spindle Speed (RPM)
150 - 3,600
Spindle Taper
MT2
Spindle Travel
6"
Swing
20"
Table Size Fully Extended (L x W)
20-1/2" x 15-1/2"
Table Size (L x W)
20-1/2" x 15-1/2"
Table Tilt
90° L/R
Video
What Our Experts Think
Electronic Variable Speed: Offers smooth, on-the-fly speed adjustments, ensuring optimal performance across different materials and tasks.
Powerful 2HP Motor: Delivers reliable, consistent power for heavy-duty drilling, even with larger bits or tough materials.
Precision and Accuracy: Equipped with a fully adjustable depth stop and fine-tuning features for precise, repeatable drilling results.
Heavy-Duty Construction: Built with durable materials to minimize vibrations, enhancing stability and cutting accuracy.
User-Friendly Features: Includes a digital readout for speed, easy-to-use controls, and a large worktable for versatile setups.
Q&A
Q: What is the Powermatic PM2820EVS Drill Press designed for? A: It is a high-precision drill press designed for professional woodworking and metalworking, offering versatility for a wide range of drilling tasks.
Q: What is the motor power? A: The PM2820EVS features a powerful motor, designed for consistent performance and efficient drilling.
Q: Does it have variable speed control? A: Yes, it comes with an electronic variable speed control, allowing precise speed adjustments for different materials and drilling requirements.
Q: Is this drill press suitable for heavy-duty use? A: Yes, the PM2820EVS is built for heavy-duty, industrial use, handling both light and heavy drilling tasks with ease.
Q: What types of tasks can it handle? A: It is ideal for a wide range of tasks, including drilling accurate holes in wood, metal, and plastics.
Q: Is it easy to adjust for various tasks? A: Yes, it features intuitive adjustments and settings for quick changes between different drilling tasks.
Maintenance Tips
Spindle and Chuck Care: Clean the spindle and chuck regularly to remove debris and ensure smooth operation. Check for wear and replace parts if necessary.
Lubrication: Apply proper lubrication to the spindle, bearings, and other moving parts to minimize friction and ensure quiet, efficient operation.
Belt and Drive Inspection: Check the belts for proper tension and any signs of wear or damage. Replace any worn belts to maintain consistent performance.
Dust Collection: Keep the drill press clean by regularly removing dust and debris, particularly around the motor and the table area. Use an effective dust collection system to maintain cleanliness.
Motor Maintenance: Inspect the motor for overheating or unusual noises. Clean the motor vents to ensure proper airflow and cooling.
Table and Column Alignment: Ensure the table is level and free from rust. Regularly check for alignment of the table and column to maintain precise drilling.
Electrical System: Inspect the electrical components, including the power cord, switches, and connections, for signs of wear or damage, and replace as needed.
Safety Features: Always verify that safety guards are in place and functioning. Ensure the drill press is grounded properly to prevent electrical hazards.
