Powermatic PM701 Mortiser - PM9-1791310

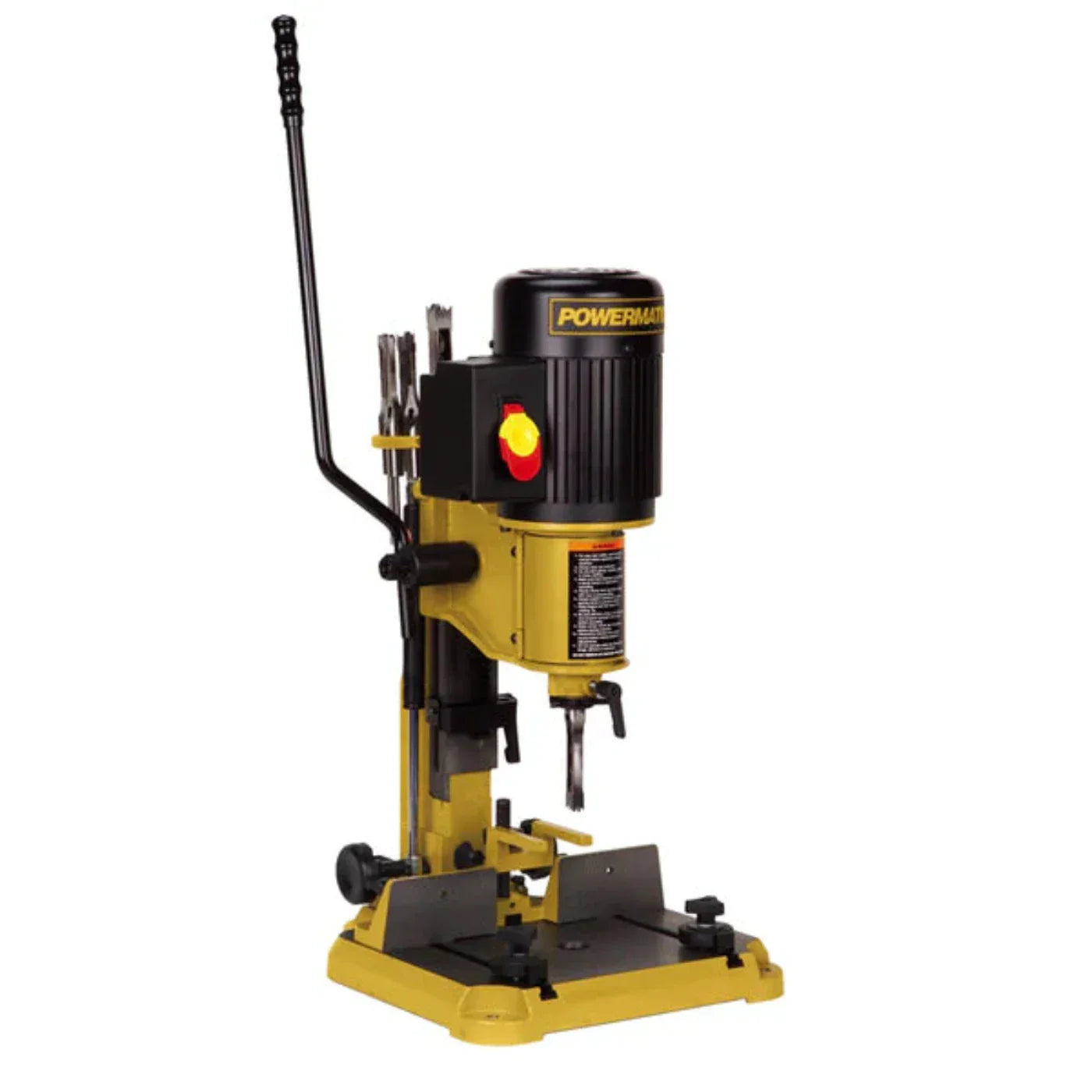

Powermatic PM701 Mortiser

The design criteria for the Powermatic 701 Benchtop Mortiser was very clear – accuracy, durability and user-friendly operation. The design process was further guided by a list of the features and concerns frequently expressed by woodworkers. The result is the groundbreaking Powermatic 701 Benchtop Mortiser you see here.

Accuracy and durability are based on oversized iron castings that form the base, column, head and fence. These crucial pieces are precisely cast and machined to create a super-stable platform that supports an industry-leading array of features. This foundation also means that the Powermatic 701 Benchtop Mortiser will be a cherished tool for generations.

The plunge action of the head is driven by a true rack and pinion gear system, operated by a large, 23“ long, solid steel arm. Effort is drastically reduced which means mortising in the toughest of woods with the precision you need has never been easier.

To make the Powermatic 701 Benchtop Mortiser equally comfortable for left and right handed operators, the lever arm can be mounted on the left or right side of the head by simply removing a finger-operated knob and moving the assembly to an identical spline on the other side. Both splines have ten positions so the lever arm can be quickly located for the best range of motion.

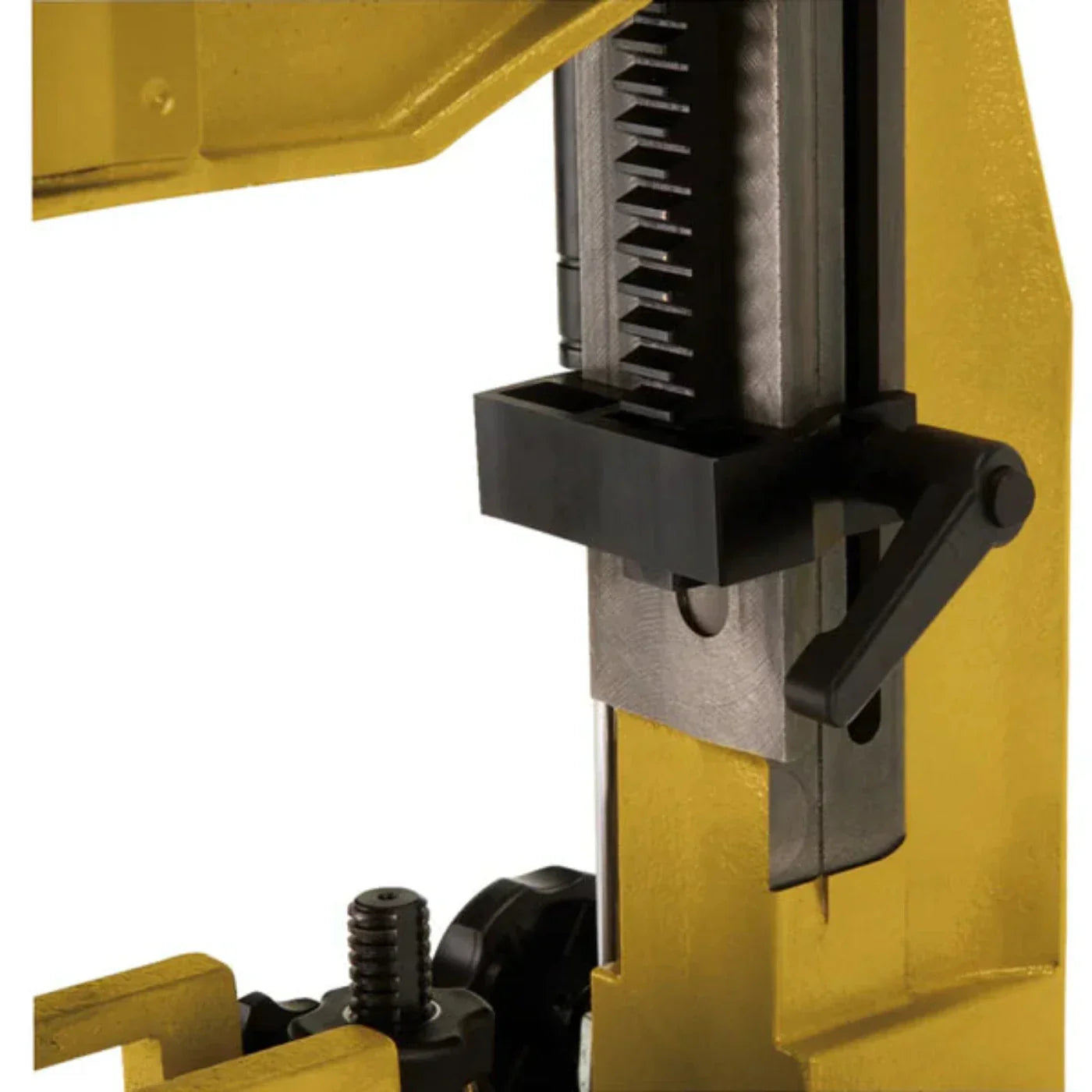

Most mortisers have their depth stop located to the side or ahead of the line of force where it can induce racking of the head and deflection of the bit. That deflection drastically increases lateral friction on the bit and compromises accuracy. To eliminate this problem, the Powermatic 701 Benchtop Mortiser depth stop is located on the column, directly on the line of force.

Equipped with a 3/4hp motor (1,725 rpm), the 701 Benchtop Mortiser features plenty of power and torque to drive the largest chisel and bit combinations in the toughest woods. The additional power also means that it runs easier and cooler, extending its life considerably.

• Heavy-duty reversible handle can be installed to either side of the head without tools
• Inline depth stop allows stopping at pre-set depths without racking the bit to the base
• 2" riser block for more over-table capacity
• Extra long solid steel arm
• Integrated chisel and tool holder with sharpening stone
• Large work surfaces on both table and fence for greater stability and accuracy

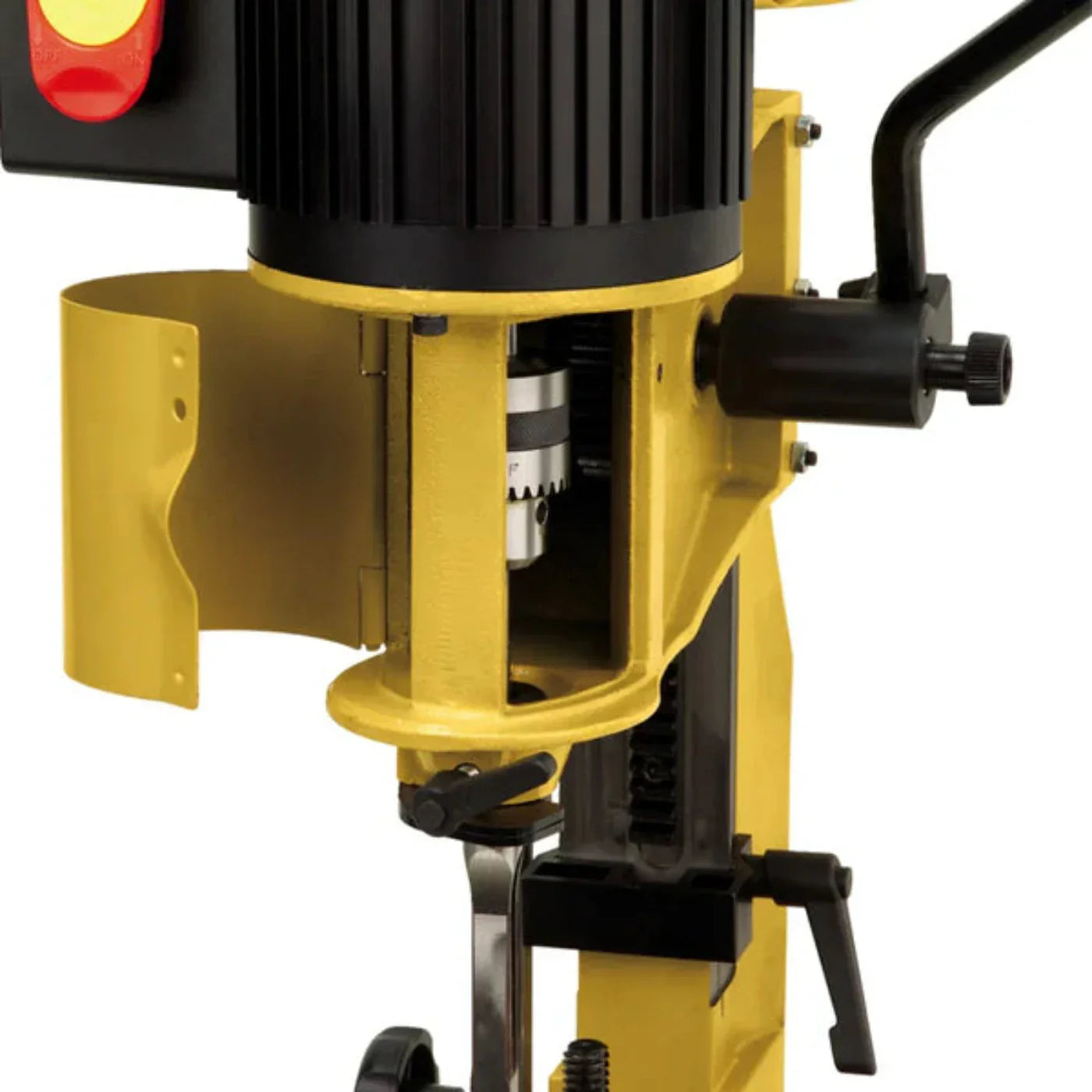

• Large, hinged chuck door with magnetic catch for rapid access to the chuck
• Quick action cam lock will quickly lock fence in position with one 90° movement
• Rack and pinion design for simple fence adjustments

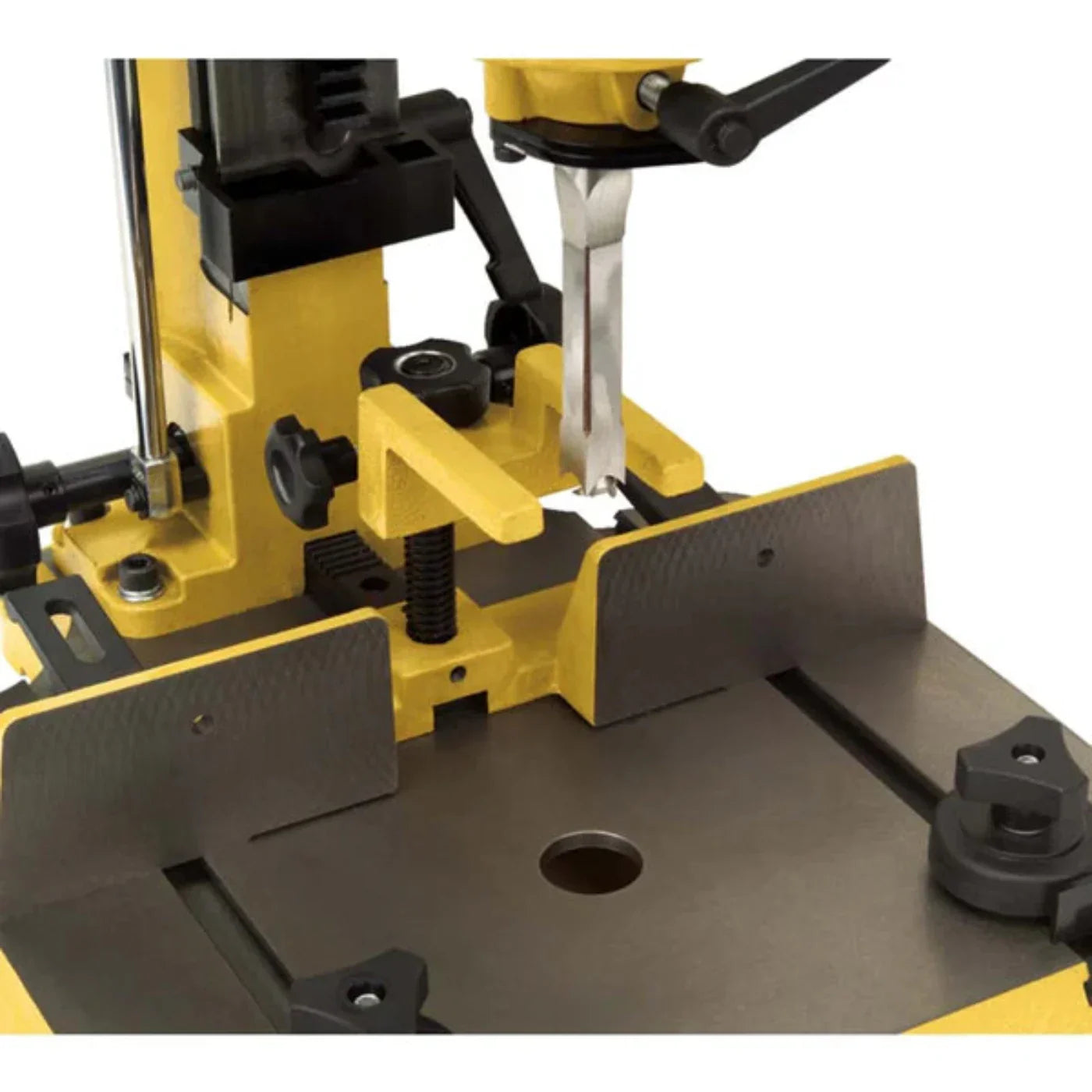

• Stock hold-down with a double lock system, top and side, to eliminate slippage of workpiece
• Two integrated bit and chisel spacers for quick set up

• Efficient 1/2HP Motor: Delivers reliable power for consistent, accurate mortising in a variety of wood types.
• Precise Vertical Movement: Features a fully adjustable fence and an easy-to-use depth stop for consistent, repeatable cuts.
• Heavy-Duty Construction: Built with a sturdy frame to reduce vibration and provide stability during operation.
• Space-Saving Design: Compact size is ideal for smaller workshops, offering a powerful solution without taking up too much space.
• User-Friendly: Easy setup and operation, making it suitable for both professionals and hobbyists.

Q: What is the Powermatic PM701 Mortiser designed for?
A: It is a high-precision mortiser designed for creating square or rectangular holes (mortises) in wood, ideal for woodworking joints.

Q: What is the motor power?
A: The PM701 features a 1/2HP motor, providing reliable performance for mortising tasks.

Q: Is this mortiser suitable for professional use?
A: Yes, it is built for professional woodworking shops, offering durability and accuracy for demanding projects.

Q: What is the stroke length?
A: The PM701 offers a 5-inch stroke length, allowing for deeper mortises.

Q: Is it easy to adjust for different tasks?
A: Yes, it includes easy-to-use adjustments for different chisel sizes and mortise depths.

Q: What type of work can it handle?
A: It is ideal for precise mortising in wood, making it perfect for joinery tasks like making mortise-and-tenon joints.

• Chisel and Bit Care: Regularly clean chisels and bits to remove sawdust and resin buildup. Sharpen or replace them as needed to maintain clean cuts.
• Lubrication: Apply lubricant to the guide rods and other moving parts to reduce friction and ensure smooth operation.
• Dust Collection: Keep the dust collection system clear and check for blockages to ensure efficient dust removal during use.
• Table and Fence Alignment: Check the alignment of the table and fence to ensure accurate mortising. Adjust as needed to maintain precision.
• Motor Inspection: Regularly inspect the motor for unusual sounds or overheating. Clean motor vents and ensure proper airflow for cooling.
• Drive Belt Checks: Inspect the drive belts for proper tension and signs of wear. Replace any damaged belts to avoid performance issues.
• Electrical System: Examine power cords, switches, and connections for wear and replace any damaged components promptly.
• General Cleaning: Clean the overall machine after each use, especially around the mortising area, to prevent buildup of dust and debris.
