Pioneer Quad Split 36000 BTU 3-Ton Quantum Ultra Wi-Fi 22.5 SEER Energy-Star Multi (4) Zone Wall Mount Air Conditioner Heat Pump 230-Volt - WYT040GLSI24M4-9W-9W-9W-9W
Pioneer brand multi split heat pump system, complete set. System components include: one multi zone outdoor unit, matching multiple wall mount indoor units, piping and accessory kits and remote controllers. Pioneer Quantum Ultra multi split systems are available in 5 versions; for 2, 3, 4, and 5 zones.
Features
- Ultra-high efficiency inverter++ ductless multi split quad (4) zone heat pump system
- (x4) inside unit cooling capacity: 9,000 BTU/H nominal capacity, condensing system 35,000 BTU/H (Range: 5,500 minimum - 41,000 maximum) with 22.5 SEER2/12.0 EER2 efficiency
- Heating capacity: 36,000 BTU/H nominal (range 5,500 minimum - 41,000 maximum) with 9.5 HSPF2/3.5 COP2 efficiency
- Voltage: 208 - 230-Volt, 60 hertz, 1 phase (standard household 2 line power, l1-l2-g)
- Energy-Star Certified and Wi-Fi Enabled

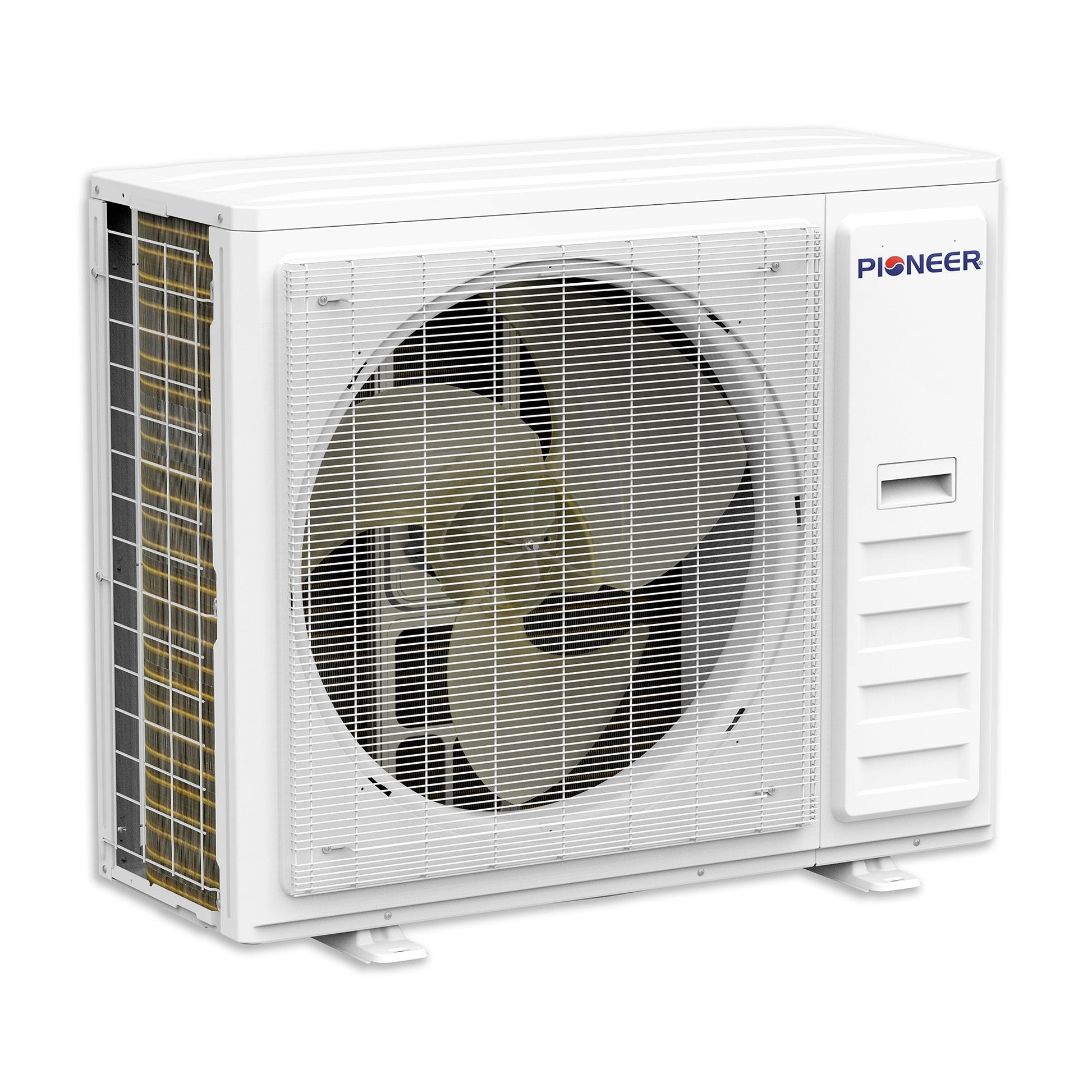

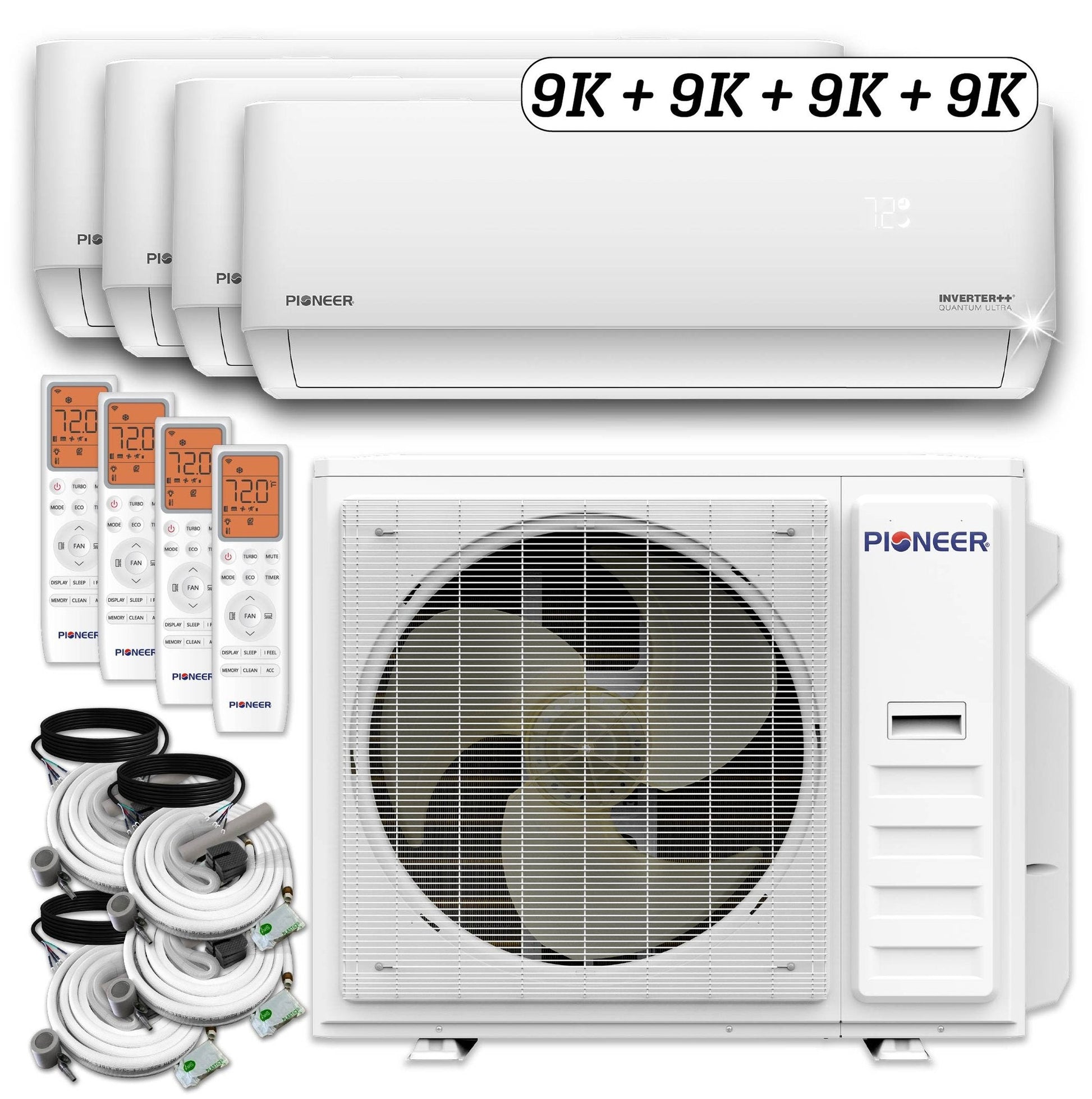

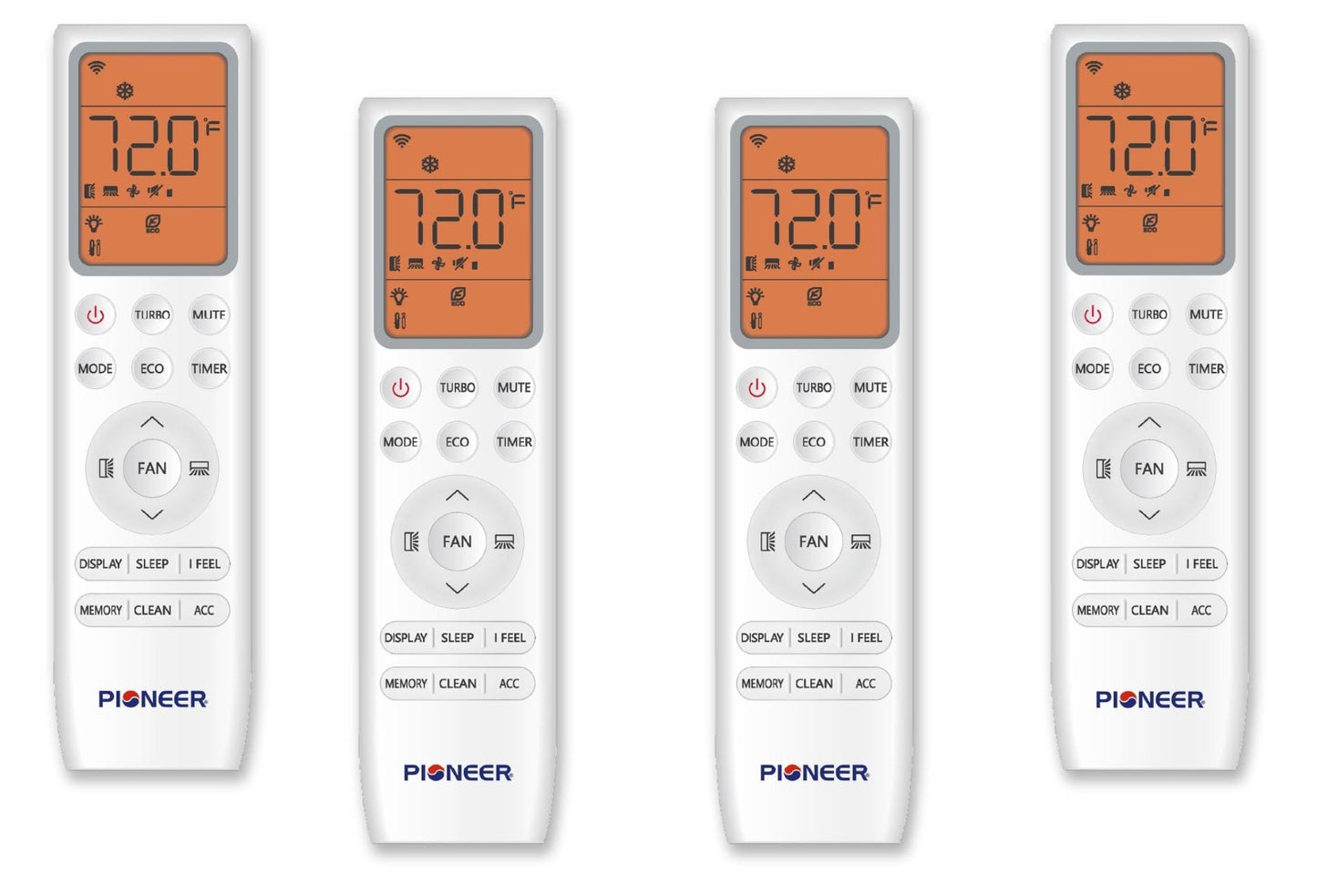

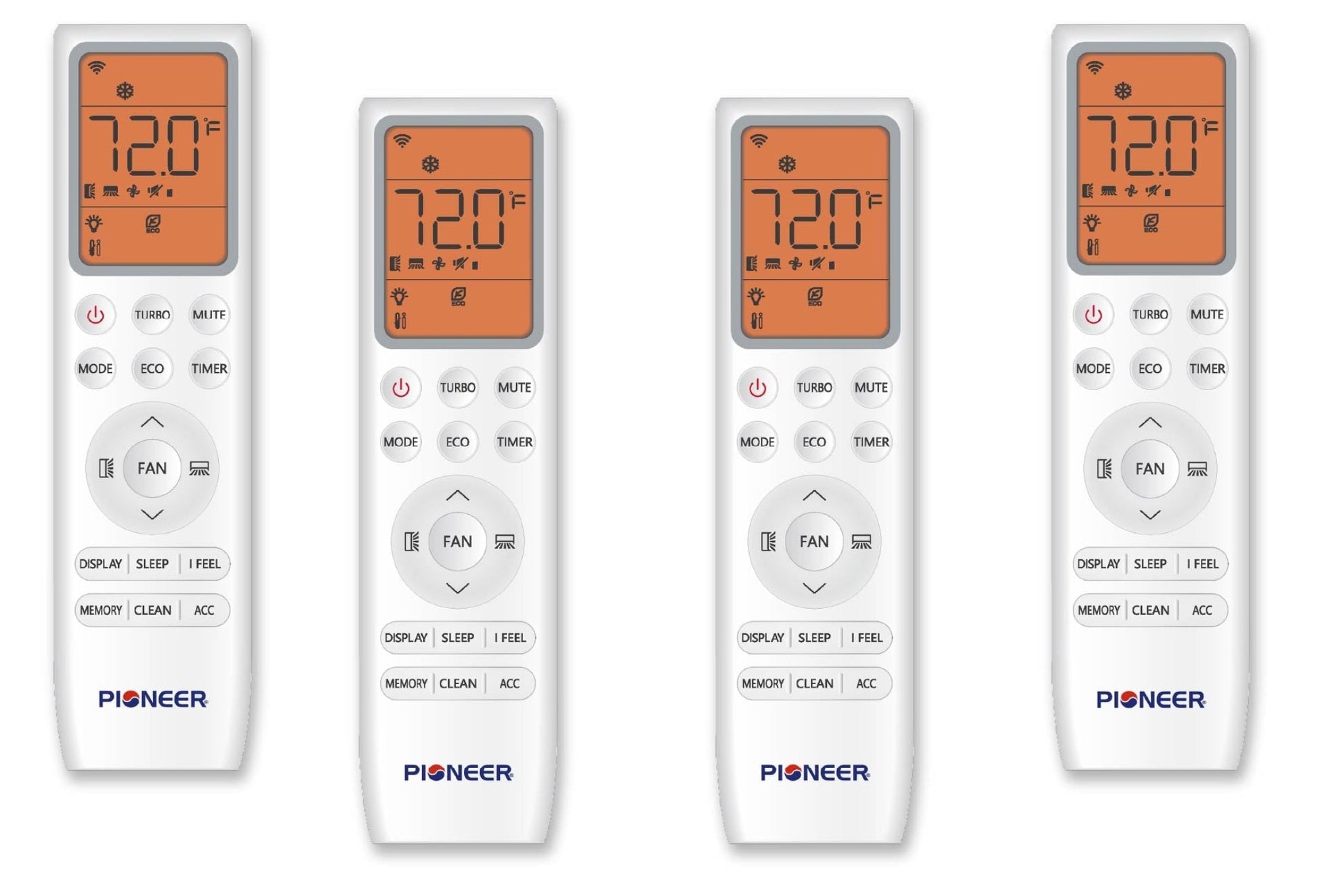

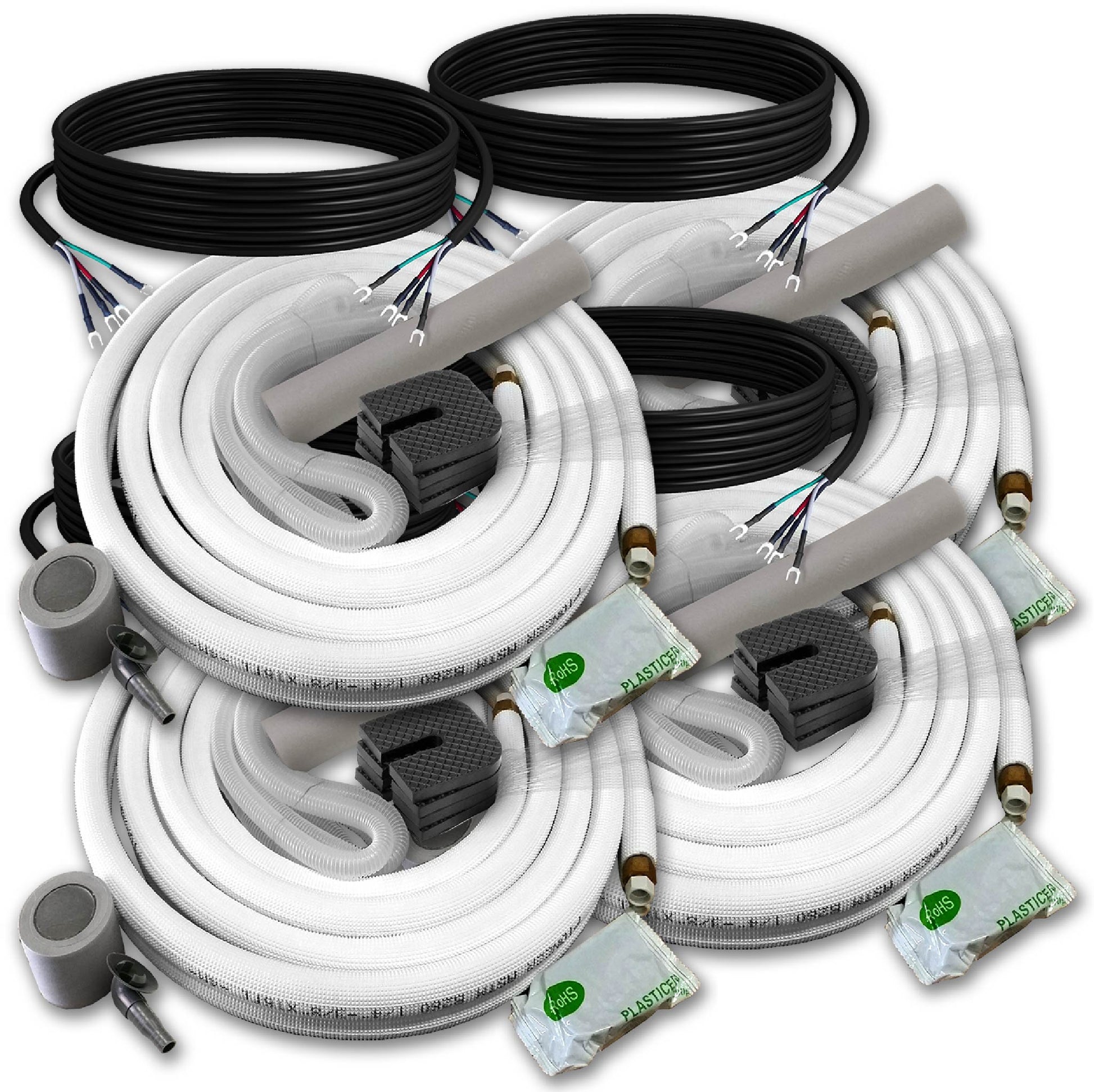

- Complete system set including: indoor (fan coil) section, outdoor (condenser) section, wireless remote controller with wi-fi, insulated flared line set with other installation accessories
- Unsurpassed support hotline covering installation, use, troubleshooting, warranty and parts issues
- Ultra low ambient system can heat with high capacity at -13°F ambient outdoor temperatures
- Pre-charged with eco-friendly R454-B refrigerant to support total combined attached lineset lengths up to 100 ft long
- Pioneer is the best choice for pros and homeowners with the highest ratings for consumer satisfaction
- Certified by: ETL, AHRI, DOE for safety, performance and efficiency
- Built with the latest technologies using pulse width modulation driven DC inverter compressor and variable speed DC inverter fan motors for high performance and low power consumption
System Manuals
What Our Experts Think
-
36,000 BTU (3-ton) quad split system ideal for large multi-zone spaces.
-
22.5 SEER Energy-Star rating ensures high energy efficiency and lower operating costs.
-

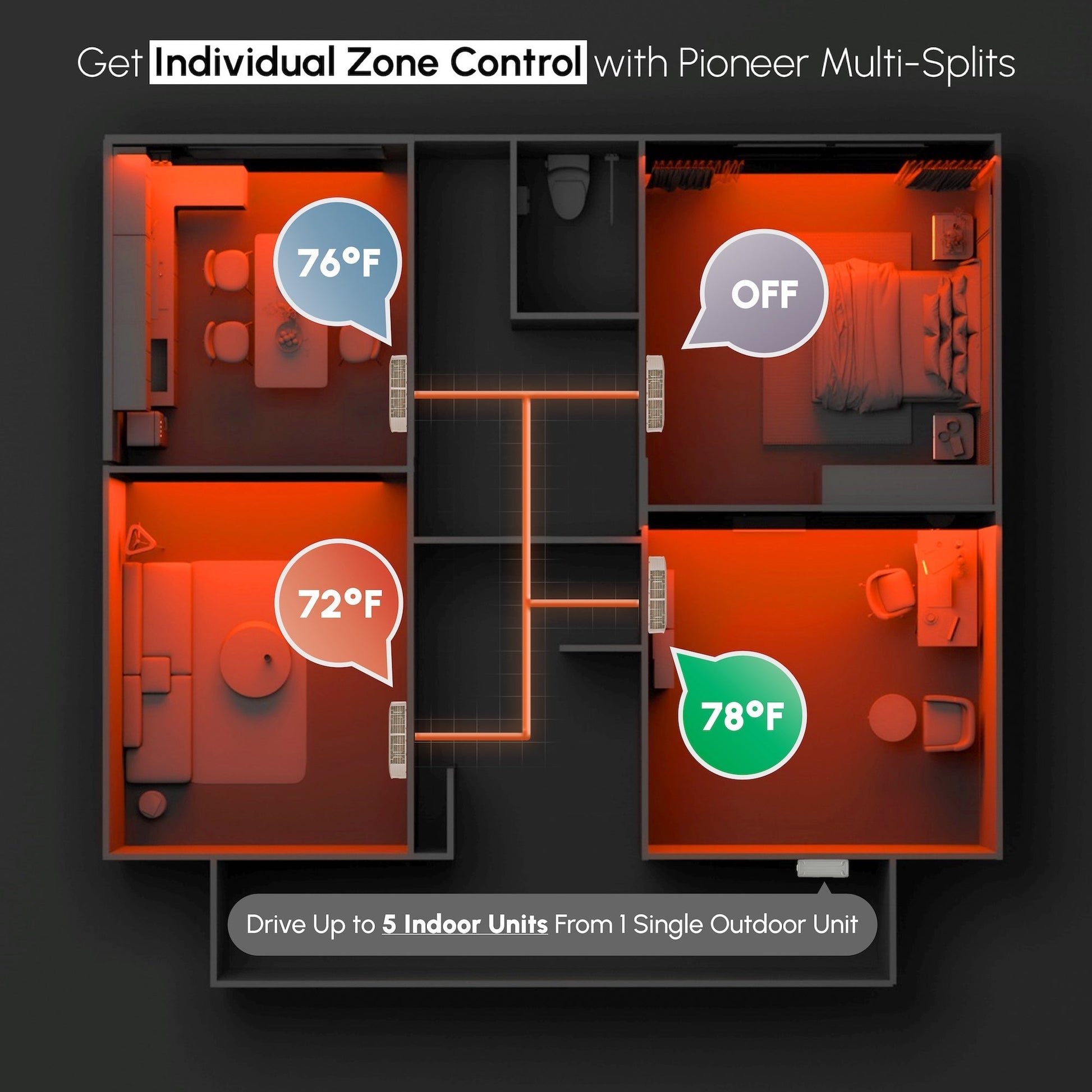

Supports 4 independent zones for customized heating and cooling.
-

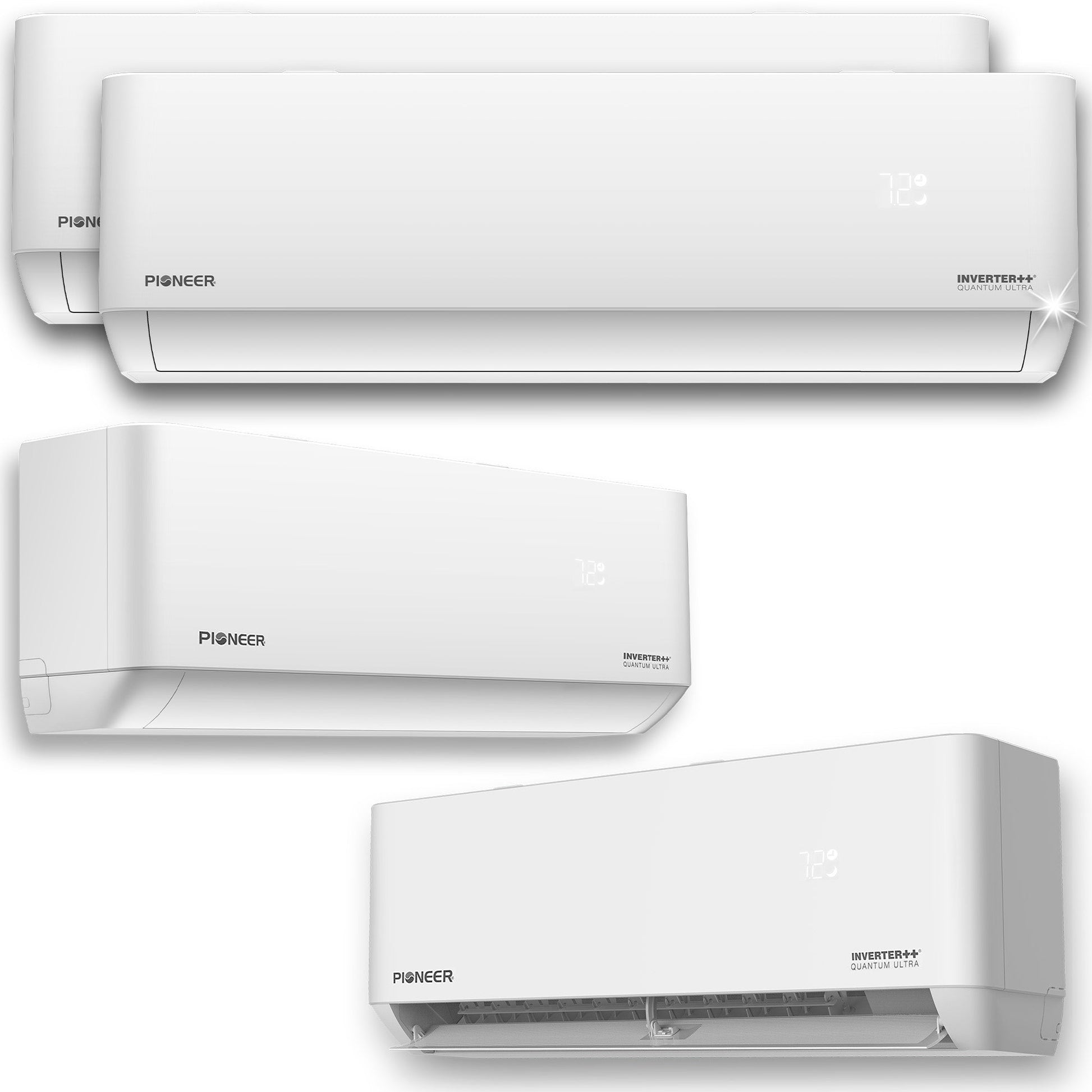

Wall-mounted units save floor space while providing consistent comfort.
-
Wi-Fi enabled for remote control and smart-home integration.
Q&A
Q: How many zones does this system support?
A: It supports 4 separate zones, each with individual wall-mounted units.
Q: Is it energy efficient?
A: Yes, the system has a 22.5 SEER Energy-Star rating.
Q: Can it be controlled remotely?
A: Yes, Wi-Fi connectivity allows full control via smartphone or smart-home apps.
Maintenance Tips
-
Clean air filters every 4–6 weeks for optimal airflow.
-
Wipe wall-mounted units regularly to prevent dust buildup.
-
Ensure outdoor condenser is free of debris for peak performance.
-
Schedule professional servicing annually to maintain efficiency and longevity.
