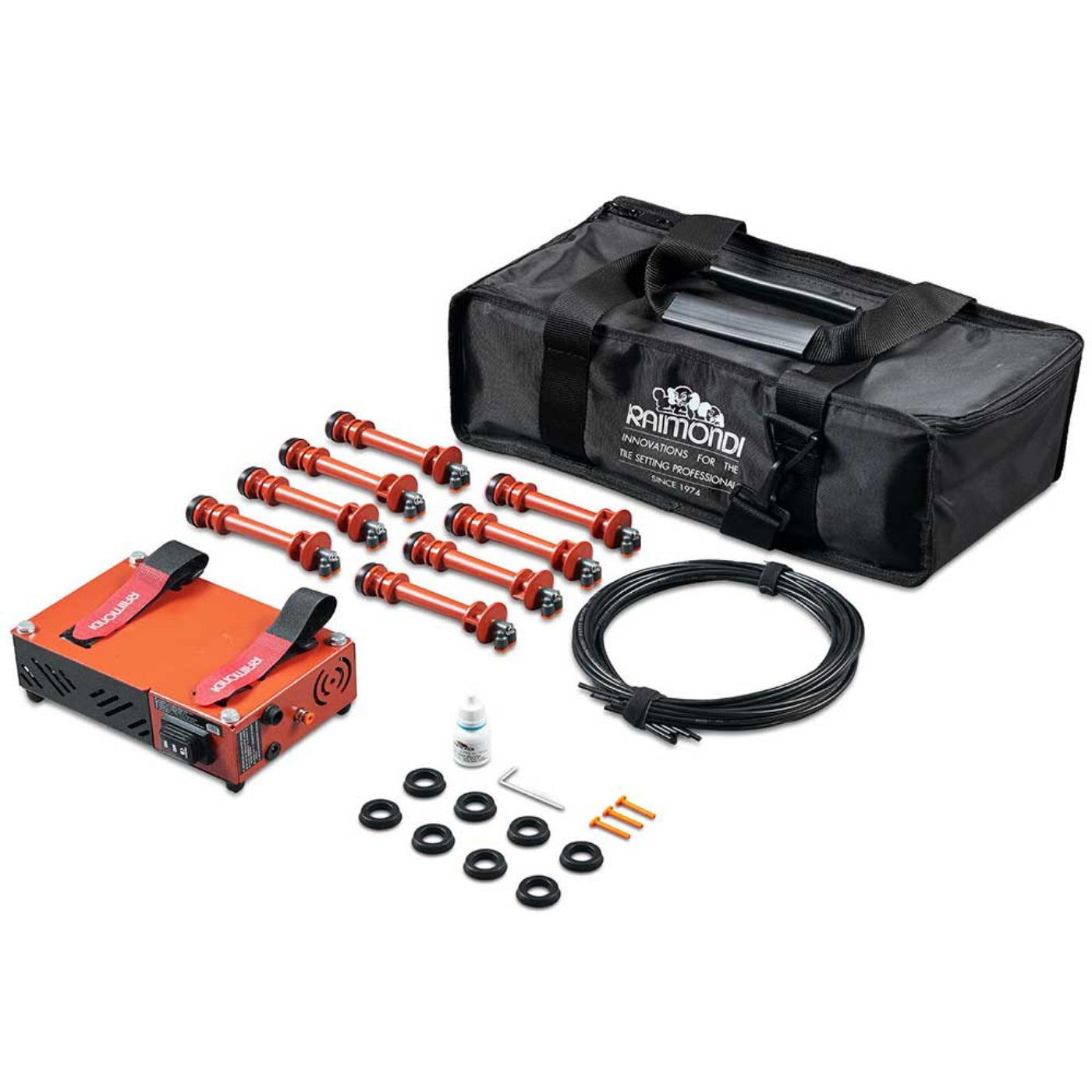

Raimondi EASY-MOVE Power Vacuum Kit - TCLFPVKIT
Features
- Vacuum circuit device engages up to eight (8) suction cups simultaneously
- Works with any version of the EASY-MOVE and any version of the vacuum suction cups
- Can be secured onto the Easy-Move frame
- Battery powered device 38.5 Vh
- Long working span and long life
- Connect each suction cup handle with the wire, itself connected to the power vacuum motor
- Replace the vacuum suction cup pumping button with the power kit version
- Push a button and the vacuum levels will raise on all suction cups connected to the circuit
- Should a cup loose pressure the remaining cups will stay engaged
What our Experts Think
-
Ultimate Vacuum Efficiency: Battery‑powered vacuum circuit engages up to 8 suction cups simultaneously with one button, cutting setup time vs manual pumps.
-
Designed for Easy‑Move Frames: Works with any version of Raimondi EASY‑MOVE handling systems equipped with vacuum suction cups.
-
Reliable Suction Integrity: If one cup loses adhesion or a line is damaged, the rest stay engaged — enhancing safety during lifting and placement.
-
Compact & Lightweight: At ~2.7 kg (6.4 lbs), the kit mounts easily on the frame without reducing maneuverability.
-
Complete Accessory Set: Includes vacuum nozzles, polyamide piping, protective carry bag, and service/maintenance kit — ready for jobsite use.
-
Professional Performance: Experts recommend it for large format tile handling workflows where fast, uniform suction engagement enhances productivity.
Q&A
Q: What is this product?
A: A professional power vacuum kit designed for safe handling and lifting of large-format tiles.
Q: What is its lifting capacity?
A: Can lift heavy tiles up to 330 lbs (150 kg) with strong suction and stability.
Q: Is it portable?
A: Yes, lightweight and easy to transport on-site or in workshops.
Q: What materials is it compatible with?
A: Suitable for ceramic, porcelain, glass, and natural stone tiles.
Q: Who is this tool ideal for?
A: Professional tilers, contractors, and installers handling large or heavy tiles safely and efficiently.
Maintenance Tips
- Wipe exterior and attachments with a soft, damp cloth after use.
- Empty and clean the dust container regularly to maintain suction.
- Inspect hoses and seals for cracks or leaks before each use.
- Lubricate moving parts as recommended in the user manual.
- Store in a dry area to prevent moisture damage and ensure long-lasting performance.
