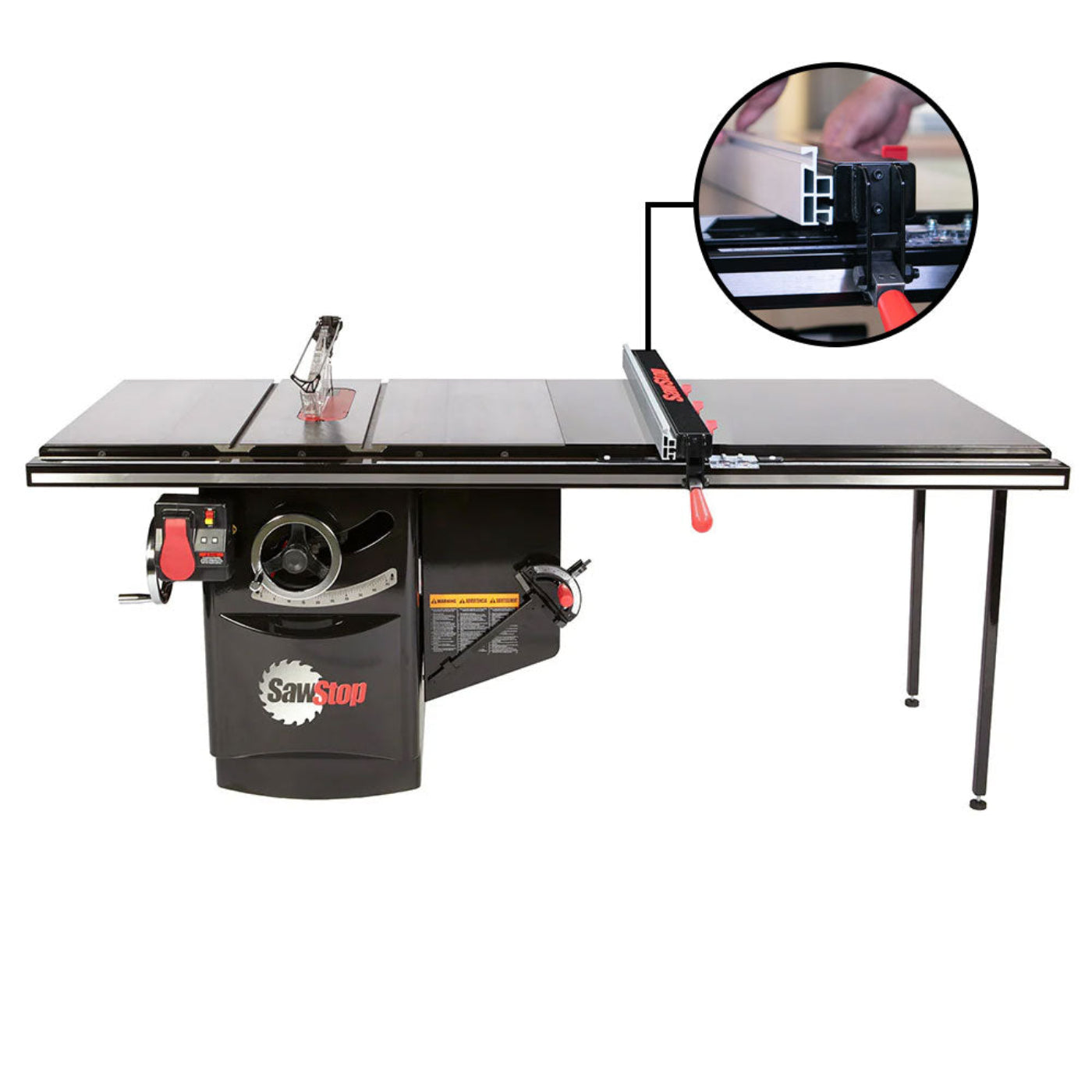

SawStop 3HP, 1ph, 230v Industrial Cabinet Saw w/52" T-Glide Advance Fence, Rails & Extension Table - ICS31230-ATGI52
The SawStop Industrial Cabinet Saw is the definition of industrial grade. This 3hp cabinet saw is the heaviest, most powerful and highest quality 10" cabinet saw available. The 1-phase, 230v motor configuration with a 52" Industrial T-Glide Fence Assembly offers the durability, versatility, and the peace of mind only SawStop's patented safety system can provide.
The heart of any SawStop Saw is the skin contact detection. The blade carries a small electrical signal that is continuously monitored by a digital signal processor. The signal changes when it comes in contact with skin since the human body is conductive. This triggers the quick release aluminum brake. A heavy-duty spring forces the brake into the teeth of the spinning blade, stopping it instantly.
Multi-v-ribbed belts transfer motor power and provide more torque with less vibration. SawStop engineers have meticulously designed the under table assemblies for maximum performance. A gas piston carries the weight of the internal mechanism, allowing the operator to effortlessly raise or lower the blade. Additionally, the trunnions and motor are perfectly balanced for precise tilt adjustments.
The 52" Industrial T-Glide Advance Rip Fence delivers accuracy, versatility, ease of use, and safety like no other rip fence on the market. It uses a Hi-Low aluminum face made for use in three positions: high (standard), low, and as an L-fence. A dovetailed-shaped groove allows you to mount feather boards, sacrificial fences, jigs, and other accessories.
Pair with the optional Mobile Base to maximize flexibility without forfeiting a reliably solid cutting surface!
All SawStop Industrial Cabinet Saws come with a 2-year warranty, as well as a 5-year motor warranty.
Only ships to continental 48 states - Not available for express or overnight shipping
Features
- Durable craftmanship and thoughtful details combine for consistent, reliable performance in the most demanding industrial environments
- Largest table surface of any SawStop saw
- Cast iron trunnion
- Over-built arbor for strength and stability
- Bearings up to 50% larger than other saws
- SawStop Safety System stops on contact with skin (within 5 milliseconds!)
- 52" Industrial T-Glide Advance Fence System
Specifications
| Motor: 60Hz, TEFC, 3HP, 1 phase, 230v, 13A |
| Overall dimensions (W x D x H): 85-1/4" x 36-1/2" x 34" |
| Cabinet footprint (W x D): 20" x 25" |
| Cast iron table (W x D): 24" x 30" |
| Cast iron table (w/ extension wings): 44" x 30" |
| Extension table (W x D): 40" x 30" |
| Approximate assembled weight: 685 lbs. |
| Approximate weight - table saw only: 530 lbs. |
| Blade: 40-tooth Titanium, 5/8" arbor |
| Blade diameter: 10" |
| Blade tilt: Left |
| Blade kerf: 0.118" (3mm) |
| Blade plate thickness: 0.078" (2mm) |
| Max. depth of cut, blade at 0º: 3-1/8" |
| Max. depth of cut, blade at 45º: 2-1/4" |
| Max. rip, right of blade: 52-1/2" |
| Max. rip, left of blade: 12-1/2" |
| Dado diameter: 8" (requires a separate brake cartridge and insert) |
| Dado max. width: 13/16" |
| Arbor diameter at blade: 5/8" |
| Main bearing size: 62 mm OD x 30 mm ID |
| Second bearing size: 52 mm OD x 25 mm ID |
| Table in front of blade (max. elevation): 10-3/4" |
| Table behind blade (max. elevation): 10" |
| Arbor Runout: 0.001" Maximum allowable runout |
| Table flatness measured diagonally: 0.010" Maximum gap |
| Belts: 2 V-ribbed belts |
| Blade alignment with miter slot: 0.010" Maximum displacement |
| Deviation of miter gauge indexing stops from actual: +/- 0.25º |
| Alignment between splitter and blade: 0.010" Maximum difference |
| Miter slots T-shaped: 3/4" at top, 1" at bottom, 3/8" deep |
| Miter slots center: 11-1/8" center-to-center |
| Miter slots info: 5-1/2" (arbor flange to center of right slot) |
| Dust collection port diameter: 4" |
| Dust collection blade guard: polycarbonate, extends only 1-3/16" to right of blade |
| Blade guard (dust collection) port diameter: 1-1/2" Outside, 1-1/4" Inside |
| Insert: zero clearance, phenolic core, melamine surfaces |
| Hand wheels: 8" diameter, cast iron w/ chrome handle |
| Riving knife / splitter thickness: 0.090" (2.3 mm) |
Includes
- (2) Cast Iron Extension Wings
- (1) Miter Gauge
- (1) Dust Collection Blade Guard
- (1) Riving Knife
- (2) Blade Wrenches
- (1) Push Stick
- (1) 10" Blade
- (1) Standard Brake Cartridge
- (1) Owner's Manual
- (2) Hardware Packs
- (1) 3 mm Hex key
- (1) 5 mm Hex key
- (1) 8 mm Hex key
- (1) Blade Spacing Adjustment Guide
What Our Experts Think
-
3HP, single‑phase 230V motor provides strong, reliable cutting performance
-
52" T‑Glide Advance Fence delivers precise, smooth rip cuts
-
Rails & extension table included expand work surface and support workflow
-
Heavy‑duty cabinet design minimizes vibration for cleaner, accurate cuts
-
Engineered for professional and industrial use with durability and precision
Q&A
-
Q: What power does this saw require?
A: 3HP, single‑phase, 230V electrical service.
-
Q: What rip capacity does it offer?
A: 52" with the T‑Glide Advance Fence.
-
Q: Are rails and extension table included?
A: Yes, both included.
-
Q: Is it suitable for industrial use?
A: Yes, built for heavy‑duty professional shop environments.
Maintenance Tips
-
Keep the table surface clean and waxed
-
Check blade and arbor alignment regularly
-
Clean dust collection ports frequently
-
Inspect fence calibration periodically
-
Tighten hardware as needed for accuracy and safety
