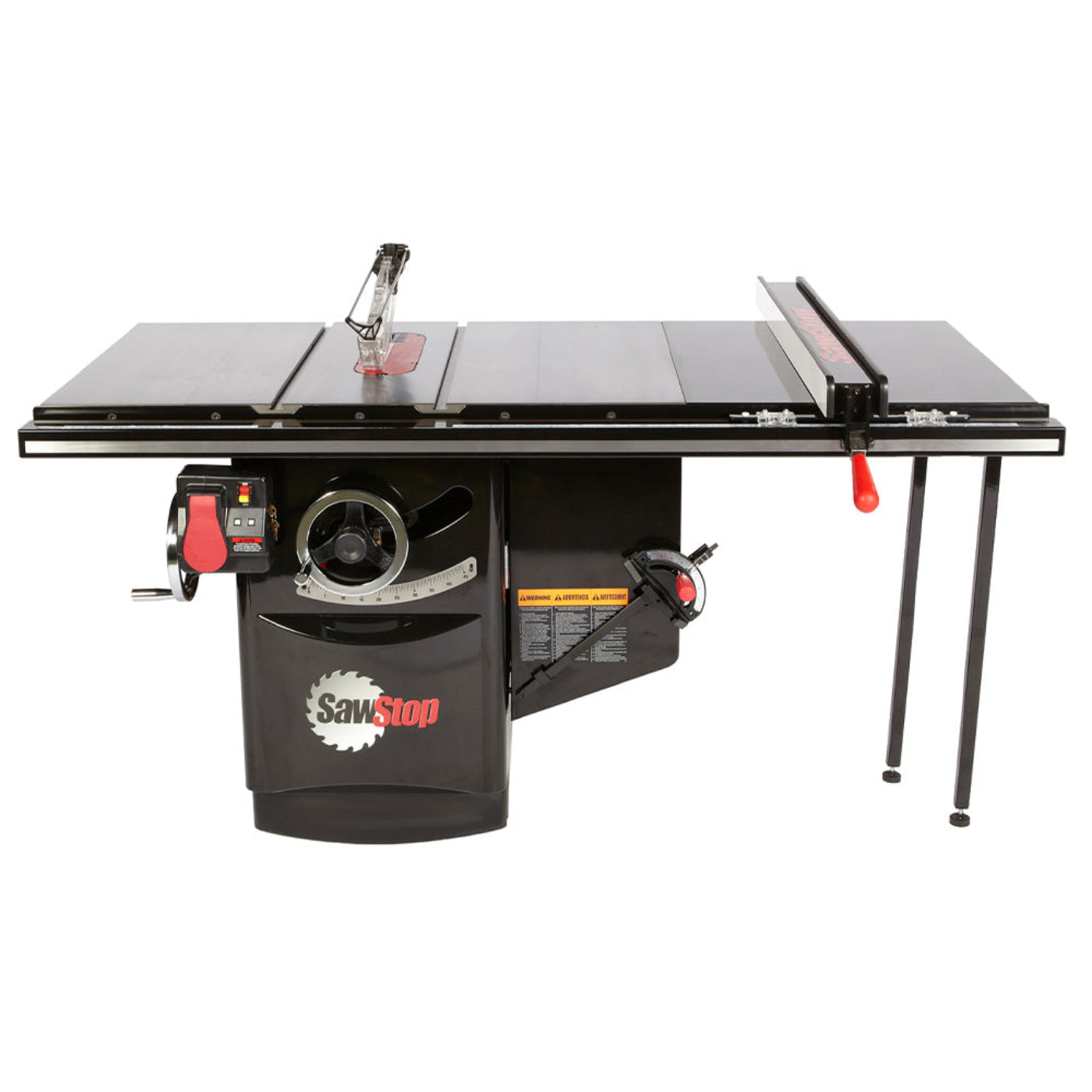

SawStop 5HP, 3ph, 230v Industrial Cabinet Saw w/36" T-Glide Fence System, Rails & Extension Table (old)
The SawStop Industrial Cabinet Saw is the definition of industrial grade. This 5hp cabinet saw is the heaviest, most powerful and highest quality 10" cabinet saw available. The 3-phase, 230v motor configuration with a 36" Industrial T-Glide Fence Assembly offers the durability, versatility, and the peace of mind only SawStop's patented safety system can provide.
The heart of any SawStop Saw is the skin contact detection. The blade carries a small electrical signal that is continuously monitored by a digital signal processor. The signal changes when it comes in contact with skin since the human body is conductive. This triggers the quick release aluminum brake. A heavy-duty spring forces the brake into the teeth of the spinning blade, stopping it instantly.
Multi-v-ribbed belts transfer motor power and provide more torque with less vibration. SawStop engineers have meticulously designed the under table assemblies for maximum performance. A gas piston carries the weight of the internal mechanism, allowing the operator to effortlessly raise or lower the blade. Additionally, the trunnions and motor are perfectly balanced for precise tilt adjustments.
SawStop's Industrial T-Glide Fence, made of durable steel, glides smoothly over the saw. It is infinitely adjustable and locks down solid. Multiple guide plates and the adjustable rail prevent rough/jerky movements commonly found with other fences.
Pair with the optional to maximize flexibility without forfeiting a reliably solid cutting surface!
All SawStop Industrial Cabinet Saws come with a 2-year warranty, as well as a 5-year motor warranty.
Features
- Durable craftmanship and thoughtful details combine for consistent, reliable performance in the most demanding industrial environments
- Largest table surface of any SawStop saw
- Cast iron trunnion
- Over-built arbor for strength and stability
- Bearings up to 50% larger than other saws
- SawStop Safety System stops on contact with skin (within 5 milliseconds!)
- 36" Industrial T-Glide Fence System provides smooth operation, precision measurement and sure lockdown without deflection
Specs
Motor: 60Hz, TEFC, 5HP, 3 phase, 230v, 12A
Overall saw dimensions: 69-1/4" W x 36-1/2" D x 34" H
Cabinet footprint: 20" W x 25" D
Cast iron table: 24" W x 30" D
Cast iron table (w/ extension wings): 44" W x 30" D
Extension wings: 10" W x 30" D each
Extension table: 24" W x 30" D
Approximate assembled weight: 635 lbs.
Approximate weight - table saw only: 530 lbs.
Blade: 40-tooth Titanium, 5/8" arbor
Blade diameter: 10"
Blade tilt: Left
Blade kerf: 0.118" (3mm)
Blade plate thickness: 0.078" (2mm)
Max. depth of cut, blade at 0º: 3-1/8"
Max. depth of cut, blade at 45º: 2-1/4"
Max. rip, right of blade: 36-1/2" (w/ optional 36" rails)
Max. rip, left of blade: 12-1/2"
Dado diameter: 8" (requires a separate brake cartridge and insert)
Dado max. width: 13/16"
Arbor diameter at blade: 5/8"
Main bearing size: 62 mm OD x 30 mm ID
Second bearing size: 52 mm OD x 25 mm ID
Table in front of blade (max. elevation): 10-3/4"
Table behind blade (max. elevation): 10"
Arbor Runout: 0.001" Maximum allowable runout
Table flatness measured diagonally: 0.010" Maximum gap
Belts: 2 V-ribbed belts
Blade alignment with miter slot: 0.010" Maximum displacement
Deviation of miter gauge indexing stops from actual: +/- 0.25º
Alignment between splitter and blade: 0.010" Maximum difference
Miter slots T-shaped: 3/4" at top, 1" at bottom, 3/8" deep
Miter slots center: 11-1/8" center-to-center
Miter slots info: 5-1/2" (arbor flange to center of right slot)
Dust collection port diameter: 4"
Dust collection blade guard: polycarbonate, extends only 1-3/16" to right of blade
Blade guard (dust collection) port diameter: 1-1/2" Outside, 1-1/4" Inside
Insert: zero clearance, phenolic core, melamine surfaces
Hand wheels: 8" diameter, cast iron w/ chrome handle
Riving knife / splitter thickness: 0.090" (2.3 mm)
What Our Experts Think
-
SawStop 5 HP, 3‑Phase, 230 V Industrial Cabinet Saw w/ 36″ T‑Glide Fence System, Rails & Extension Table (Old Model) — industrial‑grade cabinet saw built for maximum cutting power, precision, and long‑term reliability.
-
5 HP 3‑phase motor delivers smooth, continuous torque for ripping thick hardwoods, sheet goods, and heavy stock with ease.
-
36″ Professional T‑Glide Fence System offers rigid alignment, smooth travel, and stable support for accurate, repeatable wide cuts.
-
Heavy‑duty rails & extension table expand support area for long boards and large panels — improving control and workflow.
-
Combines SawStop’s signature blade‑contact safety technology with robust, shop‑ready construction for professional shops and production environments.
Q&A
-
What is this saw best for?
Heavy‑duty ripping, crosscutting, bevels, and dado work with professional accuracy.
-
How powerful is it?
A 5 HP 3‑phase motor delivers strong, continuous cutting torque ideal for heavy materials and frequent use.
-
What makes the 36″ T‑Glide fence beneficial?
Rigid alignment and smooth fence travel make wide, repeatable cuts easier and more accurate.
-
Is it suitable for production use?
Yes — engineered for continuous, demanding workloads in busy shops and industrial settings.
Maintenance Tips
-
Clean the tabletop, rails, and fence after each use to remove dust and debris.
-
Check blade alignment and fence calibration regularly to maintain cut accuracy.
-
Replace blades appropriate to material and cut type; dull blades reduce quality and strain the motor.
-
Inspect belts, bearings, and drive components periodically; service or replace as needed for smooth operation
