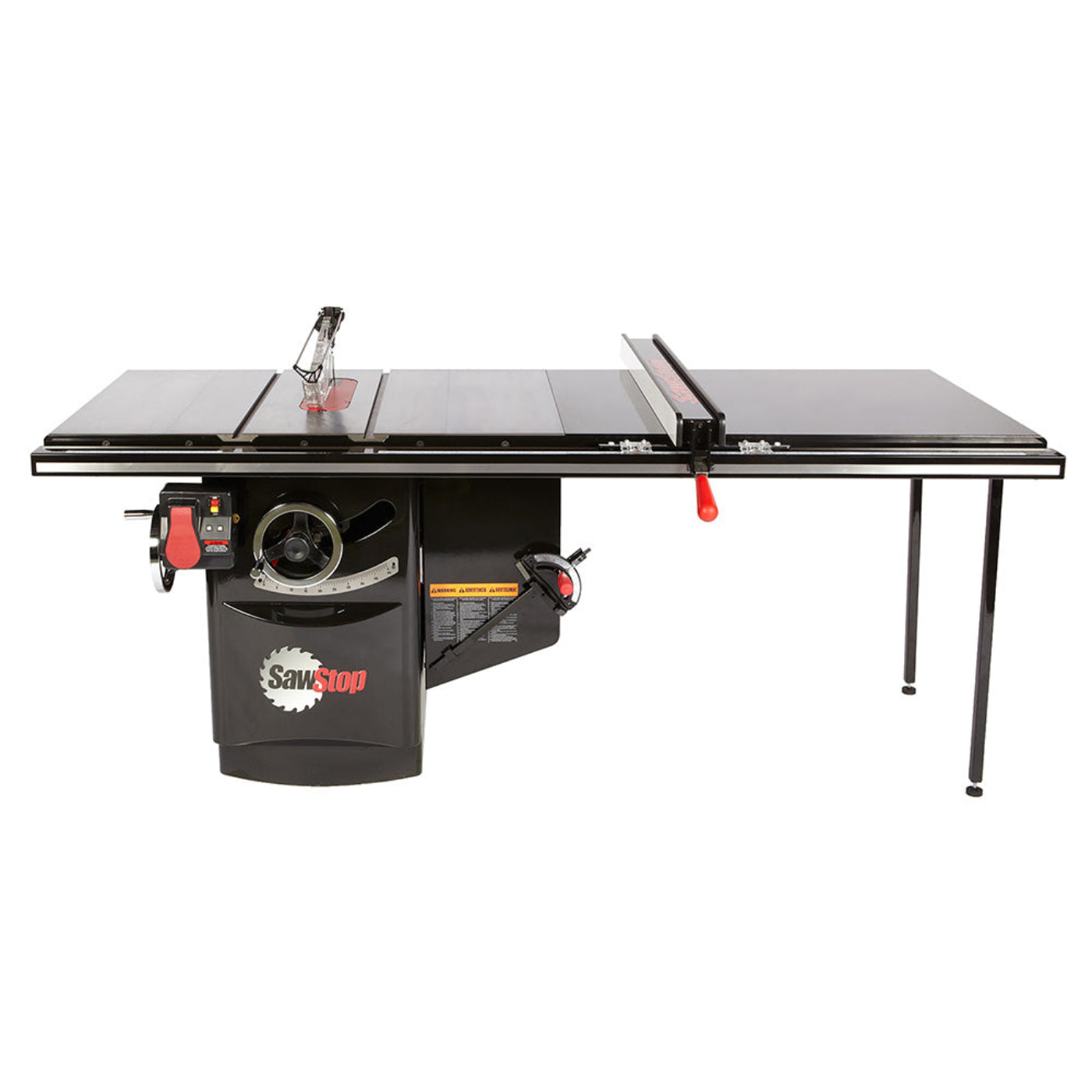

SawStop 5HP, 3ph, 230v Industrial Cabinet Saw w/52" T-Glide Fence System, Rails & Extension Table
The SawStop Industrial Cabinet Saw is the definition of industrial grade. This 5hp cabinet saw is the heaviest, most powerful and highest quality 10" cabinet saw available. The 3-phase, 230v motor configuration with a 52" Industrial T-Glide Fence Assembly offers the durability, versatility, and the peace of mind only SawStop's patented safety system can provide.
The heart of any SawStop Saw is the skin contact detection. The blade carries a small electrical signal that is continuously monitored by a digital signal processor. The signal changes when it comes in contact with skin since the human body is conductive. This triggers the quick release aluminum brake. A heavy-duty spring forces the brake into the teeth of the spinning blade, stopping it instantly.
Multi-v-ribbed belts transfer motor power and provide more torque with less vibration. SawStop engineers have meticulously designed the under table assemblies for maximum performance. A gas piston carries the weight of the internal mechanism, allowing the operator to effortlessly raise or lower the blade. Additionally, the trunnions and motor are perfectly balanced for precise tilt adjustments.
SawStop's Industrial T-Glide Fence, made of durable steel, glides smoothly over the saw. It is infinitely adjustable and locks down solid. Multiple guide plates and the adjustable rail prevent rough/jerky movements commonly found with other fences.
Pair with the optional to maximize flexibility without forfeiting a reliably solid cutting surface!
All SawStop Industrial Cabinet Saws come with a 2-year warranty, as well as a 5-year motor warranty.
Features
- Durable craftmanship and thoughtful details combine for consistent, reliable performance in the most demanding industrial environments
- Largest table surface of any SawStop saw
- Cast iron trunnion
- Over-built arbor for strength and stability
- Bearings up to 50% larger than other saws
- SawStop Safety System stops on contact with skin (within 5 milliseconds!)
- 52" Industrial T-Glide Fence System provides smooth operation, precision measurement and sure lockdown without deflection
Specs
Motor: 60Hz, TEFC, 5HP, 3 phase, 230v, 12A
Overall saw dimensions: 85-1/4" W x 36-1/2" D x 34" H
Cabinet footprint: 20" W x 25" D
Cast iron table: 24" W x 30" D
Cast iron table (w/ extension wings): 44" W x 30" D
Extension wings: 10" W x 30" D each
Extension table: 40" W x 30" D
Approximate assembled weight: 685 lbs.
Approximate weight - table saw only: 530 lbs.
Blade: 40-tooth Titanium, 5/8" arbor
Blade diameter: 10"
Blade tilt: Left
Blade kerf: 0.118" (3mm)
Blade plate thickness: 0.078" (2mm)
Max. depth of cut, blade at 0º: 3-1/8"
Max. depth of cut, blade at 45º: 2-1/4"
Max. rip, right of blade: 52-1/2" (w/ optional 52" rails)
Max. rip, left of blade: 12-1/2"
Dado diameter: 8" (requires a separate brake cartridge and insert)
Dado max. width: 13/16"
Arbor diameter at blade: 5/8"
Main bearing size: 62 mm OD x 30 mm ID
Second bearing size: 52 mm OD x 25 mm ID
Table in front of blade (max. elevation): 10-3/4"
Table behind blade (max. elevation): 10"
Arbor Runout: 0.001" Maximum allowable runout
Table flatness measured diagonally: 0.010" Maximum gap
Belts: 2 V-ribbed belts
Blade alignment with miter slot: 0.010" Maximum displacement
Deviation of miter gauge indexing stops from actual: +/- 0.25º
Alignment between splitter and blade: 0.010" Maximum difference
Miter slots T-shaped: 3/4" at top, 1" at bottom, 3/8" deep
Miter slots center: 11-1/8" center-to-center
Miter slots info: 5-1/2" (arbor flange to center of right slot)
Dust collection port diameter: 4"
Dust collection blade guard: polycarbonate, extends only 1-3/16" to right of blade
Blade guard (dust collection) port diameter: 1-1/2" Outside, 1-1/4" Inside
Insert: zero clearance, phenolic core, melamine surfaces
Hand wheels: 8" diameter, cast iron w/ chrome handle
Riving knife / splitter thickness: 0.090" (2.3 mm)
What Our Experts Think
-
SawStop 5 HP, 3‑Phase, 230 V Industrial Cabinet Saw w/ 52″ T‑Glide Fence System, Rails & Extension Table — elite industrial cabinet saw engineered for exceptional power, precision, and reliability in demanding woodworking environments.
-
5 HP 3‑phase motor delivers robust, continuous torque for heavy ripping, crosscuts, bevels, and dado work through dense hardwoods, sheet goods, and thick stock with smooth performance and minimal strain.
-
52″ Professional T‑Glide Fence System provides rigid, long‑reach support, ultra‑smooth travel, and stable alignment — ideal for large panels, wide stock, and repeatable setups where accuracy matters most.
-
Heavy‑duty rails & extension table significantly expand material support, improving control and workflow efficiency on long or oversized workpieces.
-
Built with SawStop’s signature blade‑contact safety technology plus industrial‑grade construction, blending maximum performance with elevated jobsite safety.
Q&A
-
What is this saw best for?
Heavy‑duty ripping, crosscutting, bevel cuts, dadoes, and precision work on wide boards, large panels, and dense materials.
-
How powerful is the motor?
The 5 HP 3‑phase motor provides continuous, professional‑level power for demanding cuts and frequent use.
-
What makes the 52″ T‑Glide fence special?
It offers extended reach, strong support, and ultra‑smooth adjustment for large stock and repeatable accuracy.
-
Is it suited for industrial or production use?
Yes — engineered for continuous, heavy‑duty performance in professional and industrial woodworking shops.
Maintenance Tips
-
Clean the tabletop, rails, and fence after each use to remove dust, debris, and buildup for improved accuracy and longevity.
-
Check blade alignment and fence calibration regularly to maintain square, precise cuts.
-
Replace blades appropriate to material and application; dull blades reduce cut quality and stress the motor.
-
Inspect belts, bearings, and drive components periodically; service or replace worn parts for smooth, quiet operation.
-
Keep dust collection ports and guards clean to preserve airflow, visibility, and overall shop safety
