SawStop 5HP, 3ph, 480v Industrial Cabinet Saw w/52" T-Glide Fence System, Rails & Extension Table

SawStop 5HP, 3ph, 480v Industrial Cabinet Saw w/52" T-Glide Fence System, Rails & Extension Table

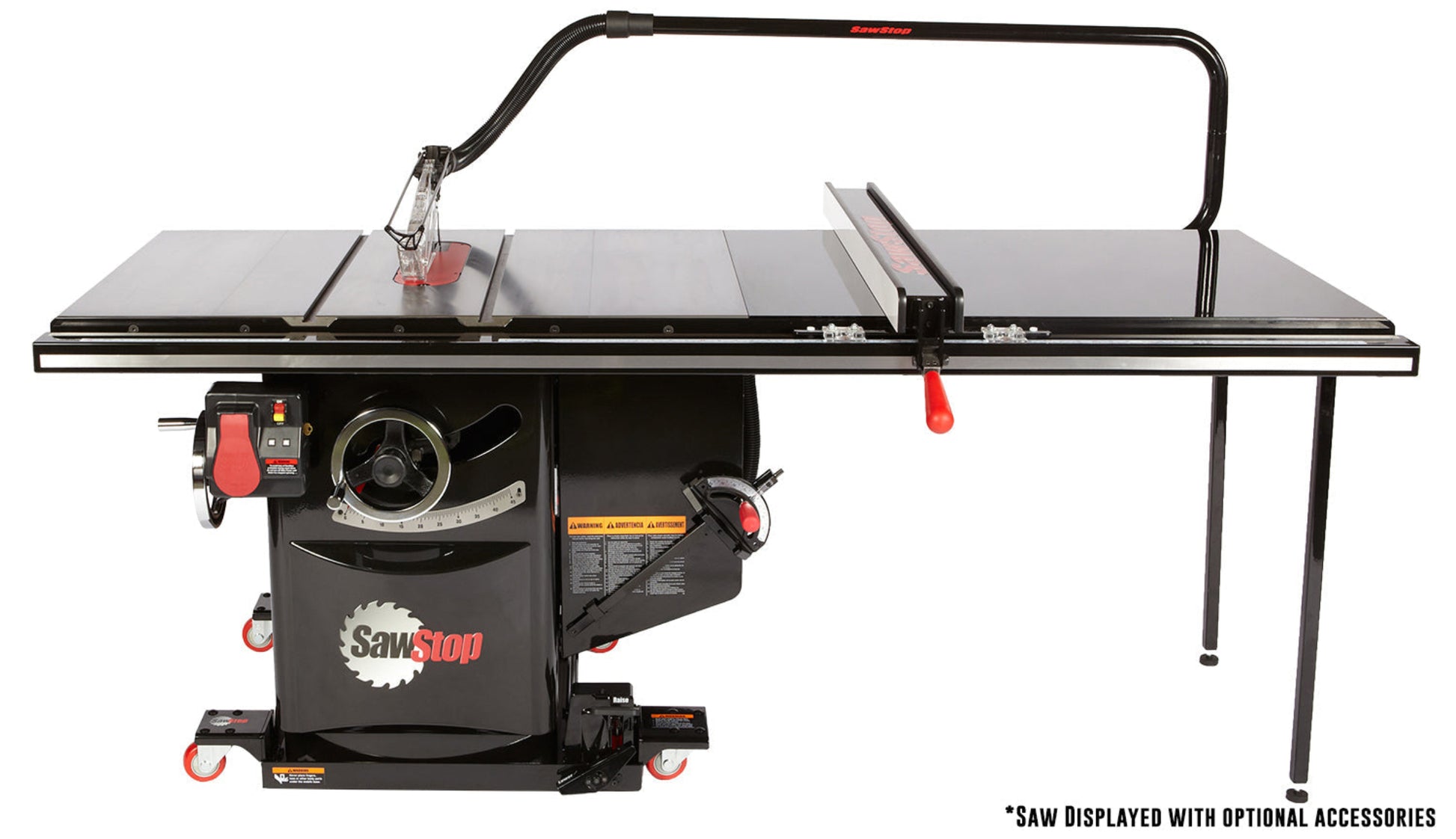

The SawStop Industrial Cabinet Saw is the definition of industrial grade. This 5hp cabinet saw is the heaviest, most powerful and highest quality 10" cabinet saw available. The 3-phase, 480v motor configuration with a 52" Industrial T-Glide Fence Assembly offers the durability, versatility, and the peace of mind only SawStop's patented safety system can provide.

The heart of any SawStop Saw is the skin contact detection. The blade carries a small electrical signal that is continuously monitored by a digital signal processor. The signal changes when it comes in contact with skin since the human body is conductive. This triggers the quick release aluminum brake. A heavy-duty spring forces the brake into the teeth of the spinning blade, stopping it instantly.

Multi-v-ribbed belts transfer motor power and provide more torque with less vibration. SawStop engineers have meticulously designed the under table assemblies for maximum performance. A gas piston carries the weight of the internal mechanism, allowing the operator to effortlessly raise or lower the blade. Additionally, the trunnions and motor are perfectly balanced for precise tilt adjustments.

SawStop's Industrial T-Glide Fence, made of durable steel, glides smoothly over the saw. It is infinitely adjustable and locks down solid. Multiple guide plates and the adjustable rail prevent rough/jerky movements commonly found with other fences.

Pair with the optional  to maximize flexibility without forfeiting a reliably solid cutting surface!

All SawStop Industrial Cabinet Saws come with a 2-year warranty, as well as a 5-year motor warranty.

Specs

Motor: 60Hz, TEFC, 5HP, 3 phase, 480v, 5.8A
Overall saw dimensions: 85-1/4" W x 36-1/2" D x 34" H
Cabinet footprint: 20" W x 25" D
Cast iron table: 24" W x 30" D
Cast iron table (w/ extension wings): 44" W x 30" D
Extension wings: 10" W x 30" D each
Extension table: 40" W x 30" D
Approximate assembled weight: 685 lbs.
Approximate weight - table saw only: 530 lbs.

Blade: 40-tooth Titanium, 5/8" arbor
Blade diameter: 10"
Blade tilt: Left
Blade kerf: 0.118" (3mm)
Blade plate thickness: 0.078" (2mm)
Max. depth of cut, blade at 0º: 3-1/8"
Max. depth of cut, blade at 45º: 2-1/4"
Max. rip, right of blade: 52-1/2" (w/ optional 52" rails)
Max. rip, left of blade: 12-1/2"

Dado diameter: 8" (requires a separate brake cartridge and insert)
Dado max. width: 13/16"
Arbor diameter at blade: 5/8"
Main bearing size: 62 mm OD x 30 mm ID
Second bearing size: 52 mm OD x 25 mm ID
Table in front of blade (max. elevation): 10-3/4"
Table behind blade (max. elevation): 10"
Arbor Runout: 0.001" Maximum allowable runout
Table flatness measured diagonally: 0.010" Maximum gap
Belts: 2 V-ribbed belts

Blade alignment with miter slot: 0.010" Maximum displacement
Deviation of miter gauge indexing stops from actual: +/- 0.25º
Alignment between splitter and blade: 0.010" Maximum difference
Miter slots T-shaped: 3/4" at top, 1" at bottom, 3/8" deep
Miter slots center: 11-1/8" center-to-center
Miter slots info: 5-1/2" (arbor flange to center of right slot)

Dust collection port diameter: 4"
Dust collection blade guard: polycarbonate, extends only 1-3/16" to right of blade
Blade guard (dust collection) port diameter: 1-1/2" Outside, 1-1/4" Inside
Insert: zero clearance, phenolic core, melamine surfaces
Hand wheels: 8" diameter, cast iron w/ chrome handle
Riving knife / splitter thickness: 0.090" (2.3 mm)

What Our Experts Think

• SawStop 5 HP, 3‑Phase, 480 V Industrial Cabinet Saw w/ 52″ T‑Glide Fence System, Rails & Extension Table — top‑tier industrial cabinet saw engineered for maximum power, precision, and long‑term reliability in demanding production shops.

• 5 HP 3‑phase 480 V motor delivers continuous high torque for ripping thick hardwoods, sheet goods, and dense materials with smooth, consistent performance.

• 52″ Professional T‑Glide Fence System offers rigid support, ultra‑smooth travel, and precise alignment — ideal for large stock, repeatable cuts, and pro‑level workflow efficiency.

• Heavy‑duty rails & extension table expand support surface area, improving control and material handling on long and wide workpieces.

• Combines SawStop’s signature blade‑contact safety technology with industrial‑grade components for safer, dependable performance where accuracy and productivity matter most.

Q&A

1. What is this saw best for?
   Heavy‑duty ripping, crosscutting, bevels, dadoes, and large‑panel work with professional‑grade accuracy and repeatability.

2. How powerful is the motor?
   The 5 HP 3‑phase, 480 V motor provides continuous high torque suited for demanding cuts and frequent use in industrial environments.

3. What makes the 52″ T‑Glide fence special?
   It offers extended reach, stable, rigid alignment, and ultra‑smooth adjustment, ideal for cutting large panels and precision repeat setups.

4. Is it suitable for production or industrial use?
   Yes — engineered for continuous, heavy‑duty performance in professional woodworking and production workflows.

Maintenance Tips

• Clean the tabletop, rails, and fence after each use to remove dust and debris and maintain cut accuracy.

• Check blade alignment and fence calibration regularly to ensure square, precise cuts.

• Replace blades matched to the material and cutting task; dull blades degrade finish quality and strain the motor.

• Inspect belts, bearings, and drive components periodically; service or replace worn parts to preserve smooth, quiet operation.

• Keep dust collection ports and guards clean to maintain airflow, visibility, and overall jobsite safety
