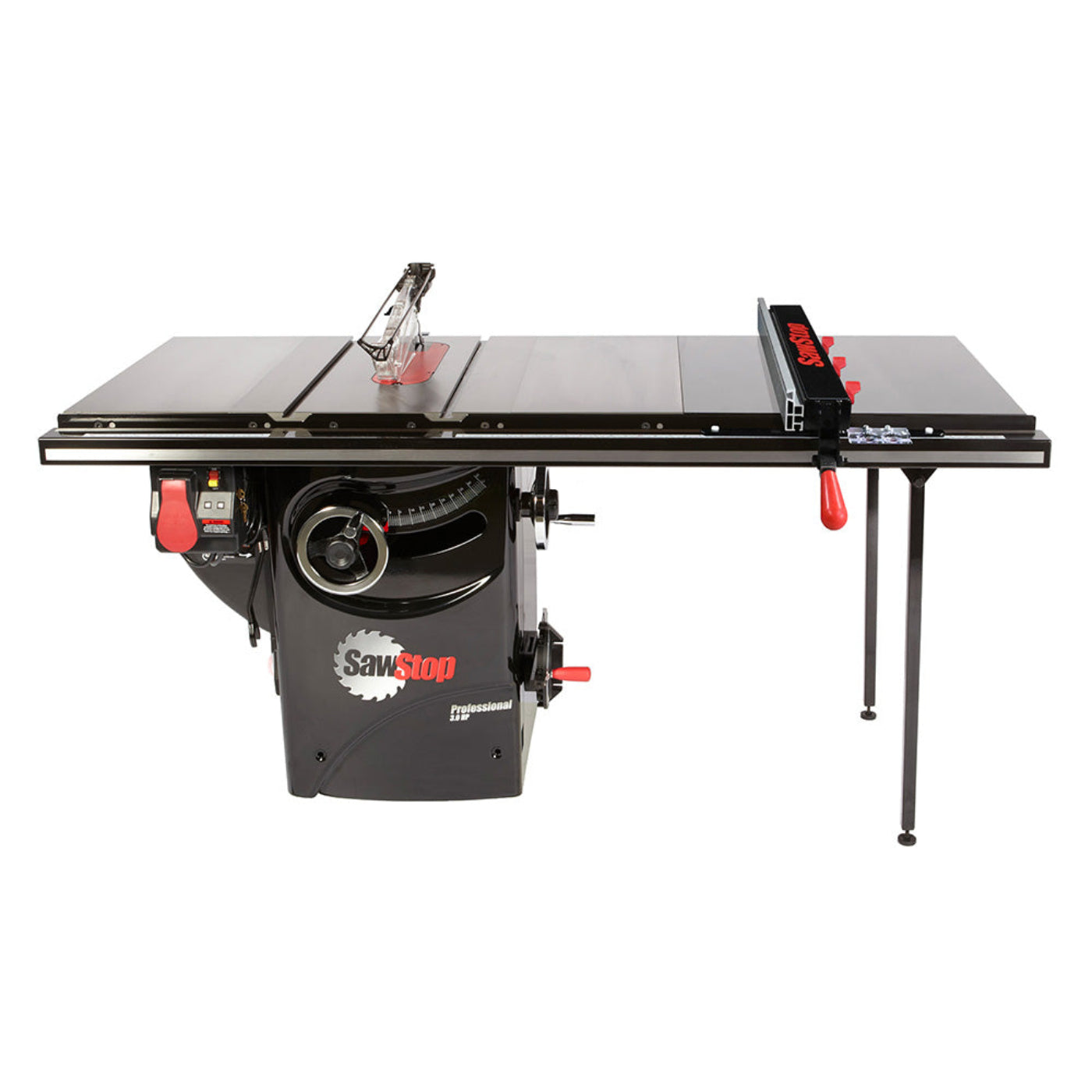

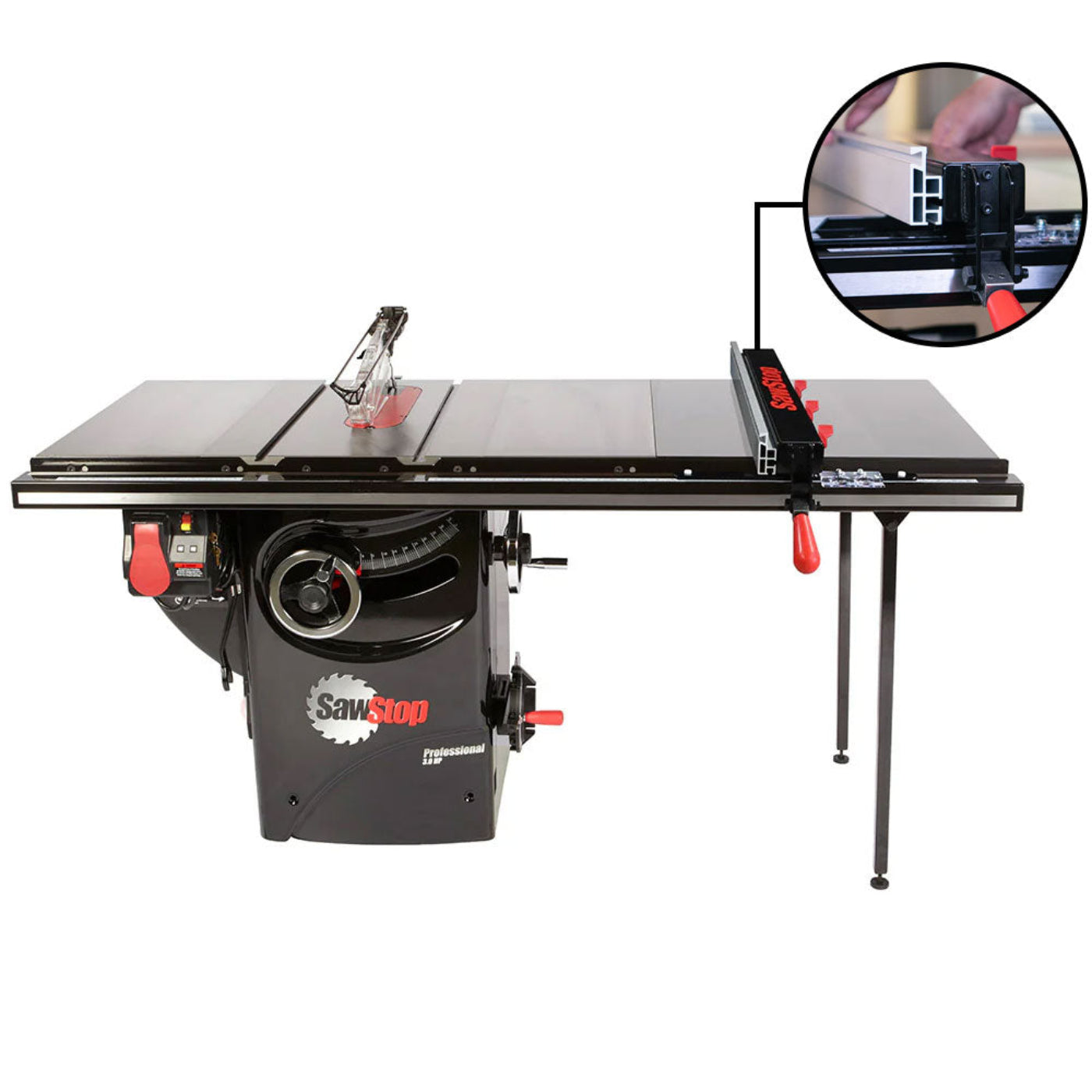

SawStop 3HP Professional Cabinet Saw w/36" T-Glide Advance Fence, Rails & Extension Table - PCS31230-ATGP36
The SawStop Professional Cabinet Saw (PCS) combines SawStop’s patented safety system with class-leading quality and performance, making it ideal for avid hobbyists and small shop professionals. In addition to unmatched safety and dust collection, this 3hp table saw offers many other features including convenience, precision engineering, and durability that make it the right saw to get the job done.
The heart of any SawStop Saw is the skin contact detection. The blade carries a small electrical signal that is continuously monitored by a digital signal processor. The signal changes when it comes in contact with skin since the human body is conductive. This triggers the quick release aluminum brake. A heavy-duty spring forces the brake into the teeth of the spinning blade, stopping it instantly.

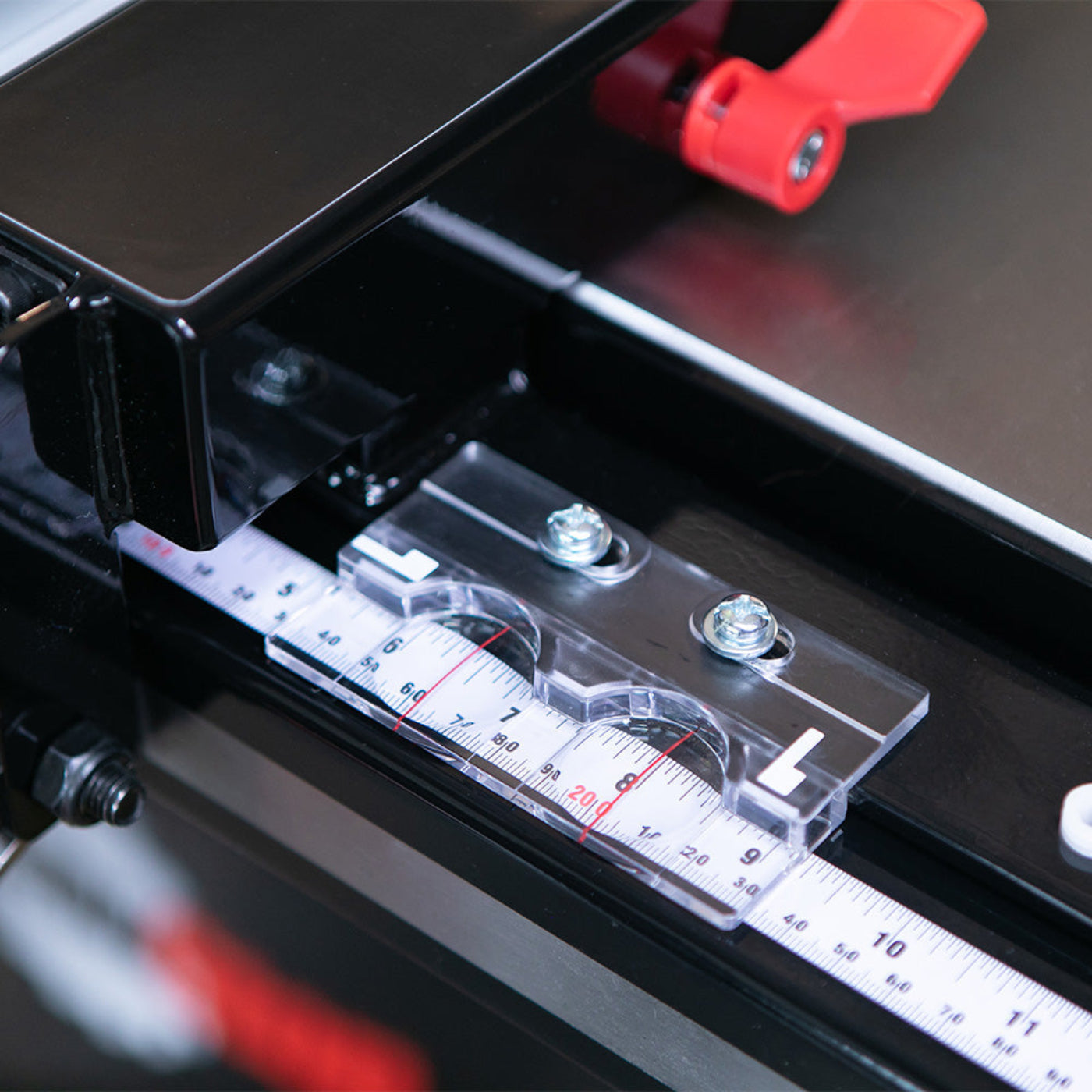

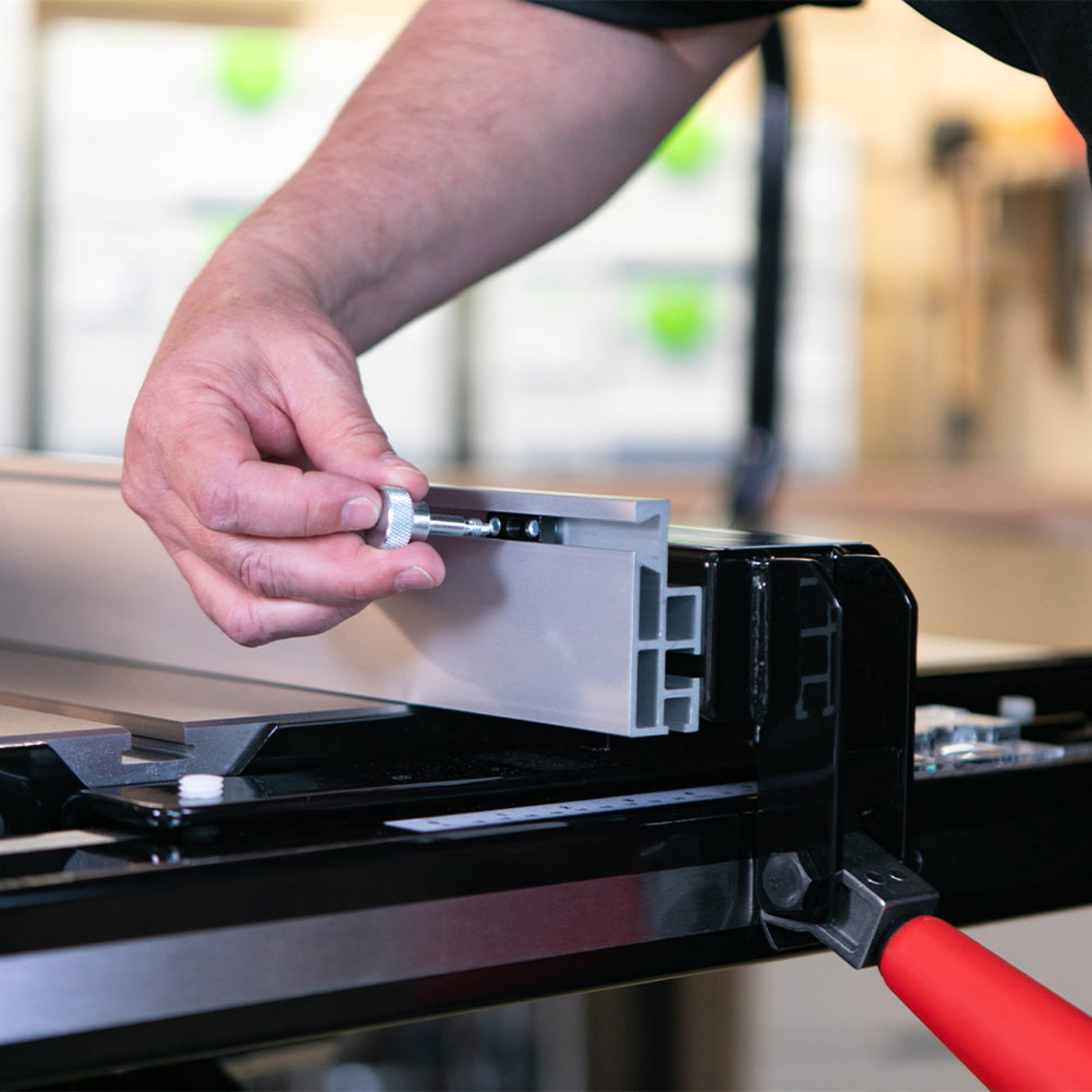

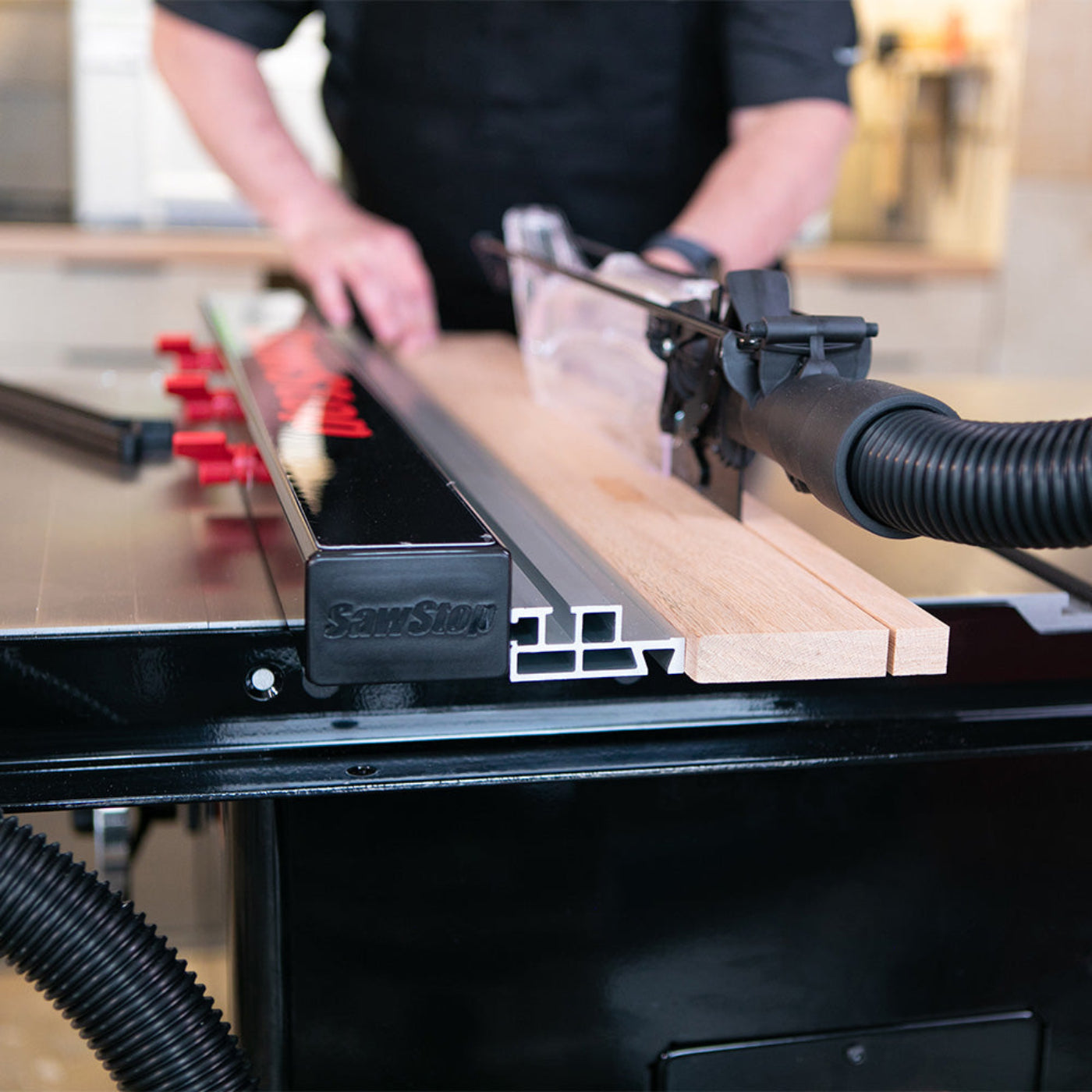

The 36" Professional T-Glide Advance Rip Fence delivers accuracy, versatility, ease of use, and safety like no other rip fence on the market. It uses a Hi-Low aluminum face made for use in three positions: high (standard), low, and as an L-fence. A dovetailed-shaped groove allows you to mount feather boards, sacrificial fences, jigs, and other accessories.
The Professional Cabinet Saw’s true vertical gas assisted elevation system makes raising and lowering the blade a breeze. The trunnions and motor are perfectly balanced for precise tilt adjustments, providing consistent and accurate blade alignments at all elevations. Not only does this improve the accuracy of your cuts, it also reduces the risk of binding and kickback.
Made of a solid piece of cast iron, SawStop tables are sturdy and machined ground to the tightest tolerances. Additionally, the beveled edges of the tables prevent scratching of delicate surfaces. The poly-v-ribbed belts transfer more power to the blade for better cuts with less vibration. The powder-coated steel cabinet resists rust and corrosion to ensure life-long reliability.
The SawStop Professional Cabinet Saw is built to work with any kind of wood for any kind of cut, including rips, crosscuts, angled cuts, beveled cuts, wide cuts, and narrow cuts. Designed by woodworkers to provide extraordinary safety, quality, and performance that truly sets it apart from other table saws, the PCS is truly unmatched.
Want to make your saw mobile? Add the optional Mobile Base.
All SawStop Professional Cabinet Saws come with a 2-year warranty.
Only ships to continental 48 states - Not available for express or overnight shipping
Features
- Ideal for cabinet shops, artisan woodworkers, and hobbyists

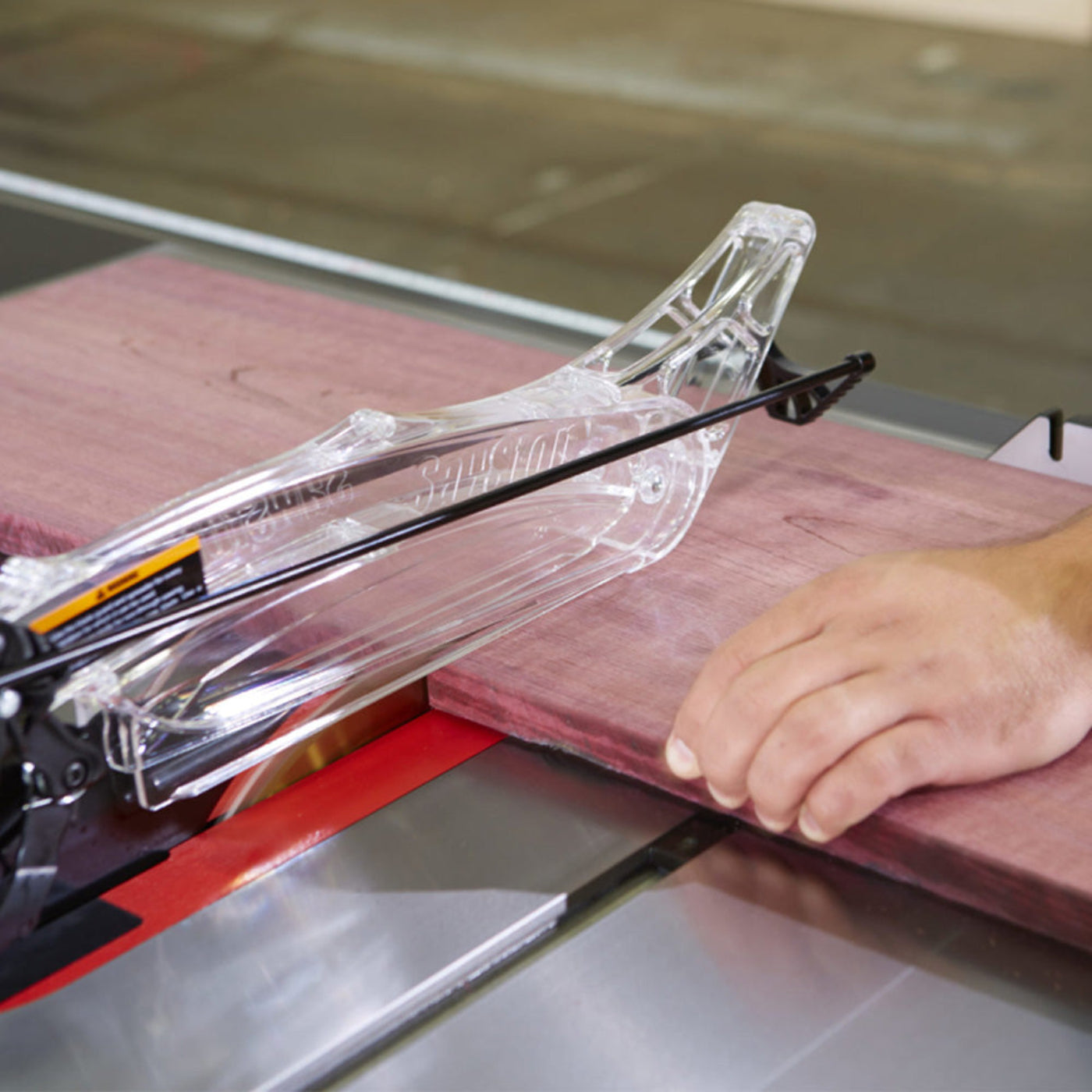

- Low-profile blade guard combines protection and dust collection while providing exceptional visibility
- Riving knife minimizes kickback and delivers protection during non-through cuts
- Unique quick release Zero Clearance Insert enables tool-free access to the saw cavity and blade guard clamp
- Changing the blade and switching between the blade guard and riving knife is fast and simple
- Anti-kickback pawls provide additional safety and can be tucked away when cutting wood with delicate surfaces
- Diagnostic self check runs continuously to ensure all systems are ready to detect an accident
- Safety bypass switch allows you to cut conductive material without activating the safety system
- Large start/stop paddle provides hands-free shutoff, allowing you to safely stop the blade even when both hands are occupied
- Blade guard captures dust in a chamber that surrounds the blade and channels particles to a port at the end of the blade
- 36" Professional T-Glide Advance Fence System
Specifications
| Motor: 60Hz, TEFC, 3HP, 1-phase, 230v, 13A, Plug: NEMA 6-15P w/9' cord |
| Overall saw dimension: 85-1/4" W x 33" D x 34" H |
| Cabinet footprint: 19-3/8″ W x 19-3/8″ D |
| Cast iron table: 20″ W x 27″ D |
| Extension wings: 12″ W x 27″ D each |
| Cast iron table w/ extension wings: 44" W x 27" D |
| Extension table: 23-3/4" W x 27" D |
| Assembled weight: 426 lbs. |
| Weight - table saw only: 335 lbs. |
| Blade: 40-tooth, prof. grade, 5/8″ arbor |
| Blade diameter: 10″ |
| Blade tilt: Left |
| Blade kerf: 0.118" (3 mm) |
| Blade plate thickness: 0.078" (2 mm) |
| Max. depth of cut, blade at 0º: 3-1/8" |
| Max depth of cut, blade at 45º: 2-1/4" |
| Max. rip, right of blade: 36" (w/rails) |
| Max. rip, left of blade: 12" |
| Dado diameter: 8" (requires 8R3 brake, Dado insert) |
| Dado max. width: 13/16" |
| Arbor diameter at blade: 5/8" |
| Main bearing size: 62 mm OD x 30 mm ID |
| Second bearing size: 52 mm OD x 25 mm ID |
| Table in front of blade (max. elevation): 10-1/4" |
| Table behind blade (max. elevation): 7-1/2" |
| Arbor runout: 0.001" maximum allowable runout |
| Table flatness measured diagonally: 0.010" maximum gap |
| Blade alignment with miter slot: 0.010" maximum displacement |
| Deviation of miter gauge indexing stops from actual: +/- 0.25 degrees |
| Alignment between splitter and blade: 0.010" maximum difference |
| Miter slots T-Shaped: 3/4" at top, 1" at bottom, 3/8" deep |
| Miter slots center: 11-1/8" center-to-center |
| Miter Slots info: 5-1/2" (arbor flange to center of right slot) |
| Dust collection port diameter: 4" |
| Riving knife / splitter thickness: 0.090" (2.3 mm) |
| Dust collection blade guard: polycarbonate, extends 1-3/16" right of blade |
| Blade guard (dust collection) port diameter: 1-1/2" Outside, 1-1/4" Inside |
| Insert: zero clearance, phenolic core, melamine surfaces |

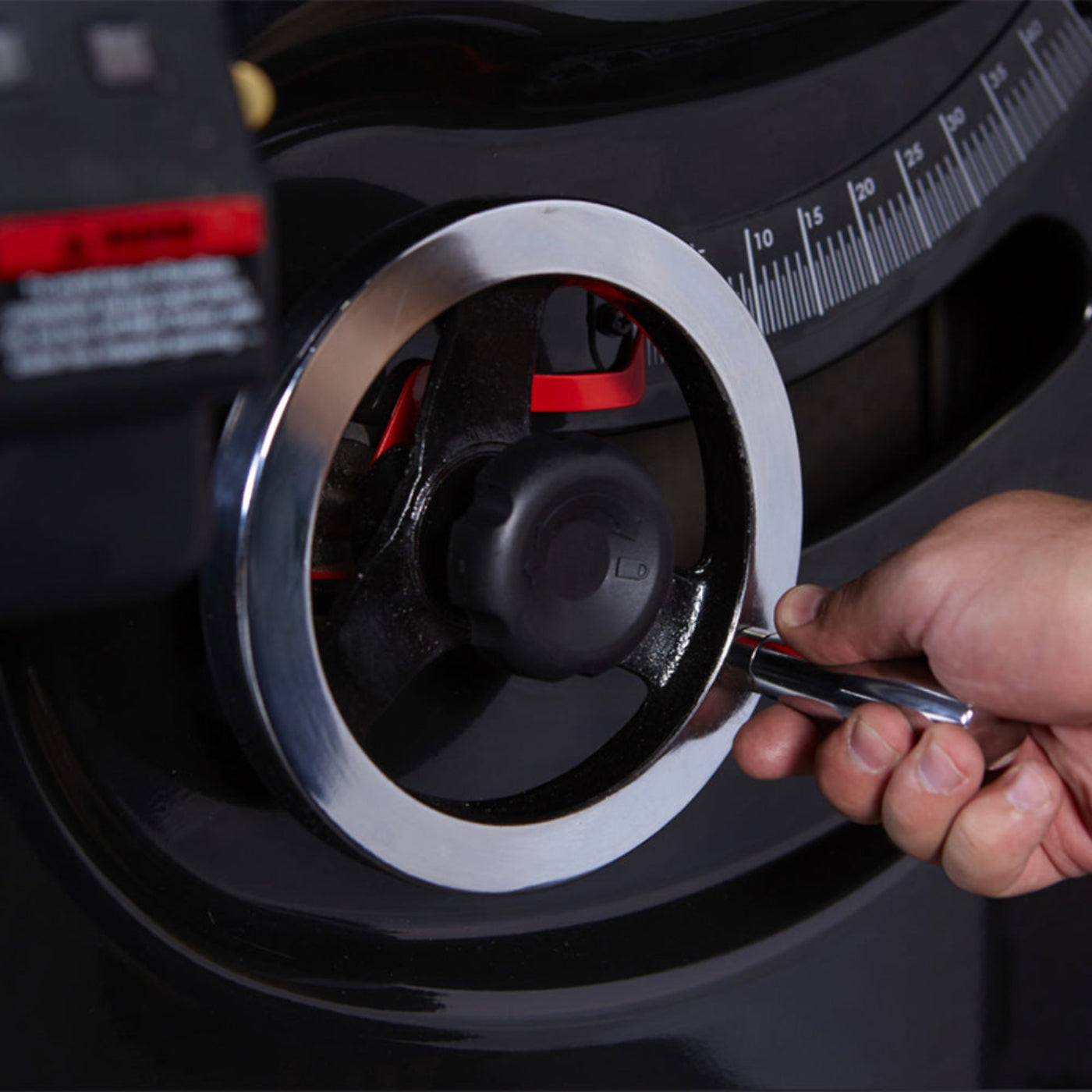

| Hand wheels: 7" diameter, cast iron w/ chrome handle |
| Belts: 2 V-ribbed belts - arbor b. static dissipative |
Includes
- (2) Cast Iron Extension Wings
- (1) Miter Gauge
- (1) Dust Collection Blade Guard
- (1) Riving Knife
- (2) Blade Wrenches
- (1) Push Stick
- (1) 10" Blade
- (1) Standard Brake Cartridge
- (1) Owner’s Manual
- (2) Hardware Packs
- (1) 3 mm Hex Key
- (1) 5 mm Hex Key
- (1) 8 mm Hex Key
- (1) Blade Spacing Adjustment Gauge
What Our Experts Think
-
3HP motor delivers robust, professional‑grade cutting power
-
36" T‑Glide Advance Fence ensures smooth, precise rip cuts
-
Rails & extension table included for enhanced workflow support
-
Rigid cabinet build minimizes vibration for cleaner cuts
-
Perfect for serious workshops needing performance and accuracy
Q&A
-
Q: What power does this saw require?
A: 3HP, typically 230V (confirm onsite).
-
Q: What rip capacity does it offer?
A: 36" with T‑Glide Advance Fence.
-
Q: Are rails and extension table included?
A: Yes, both included for expanded work support.
-
Q: Is this saw suited for professional use?
A: Yes, designed for high‑volume shop environments.
Maintenance Tips
-
Keep table surface clean and waxed
-
Check blade alignment and arbor regularly
-
Clean dust collection ports frequently
-
Inspect fence calibration periodically
-
Tighten hardware as needed for accuracy
