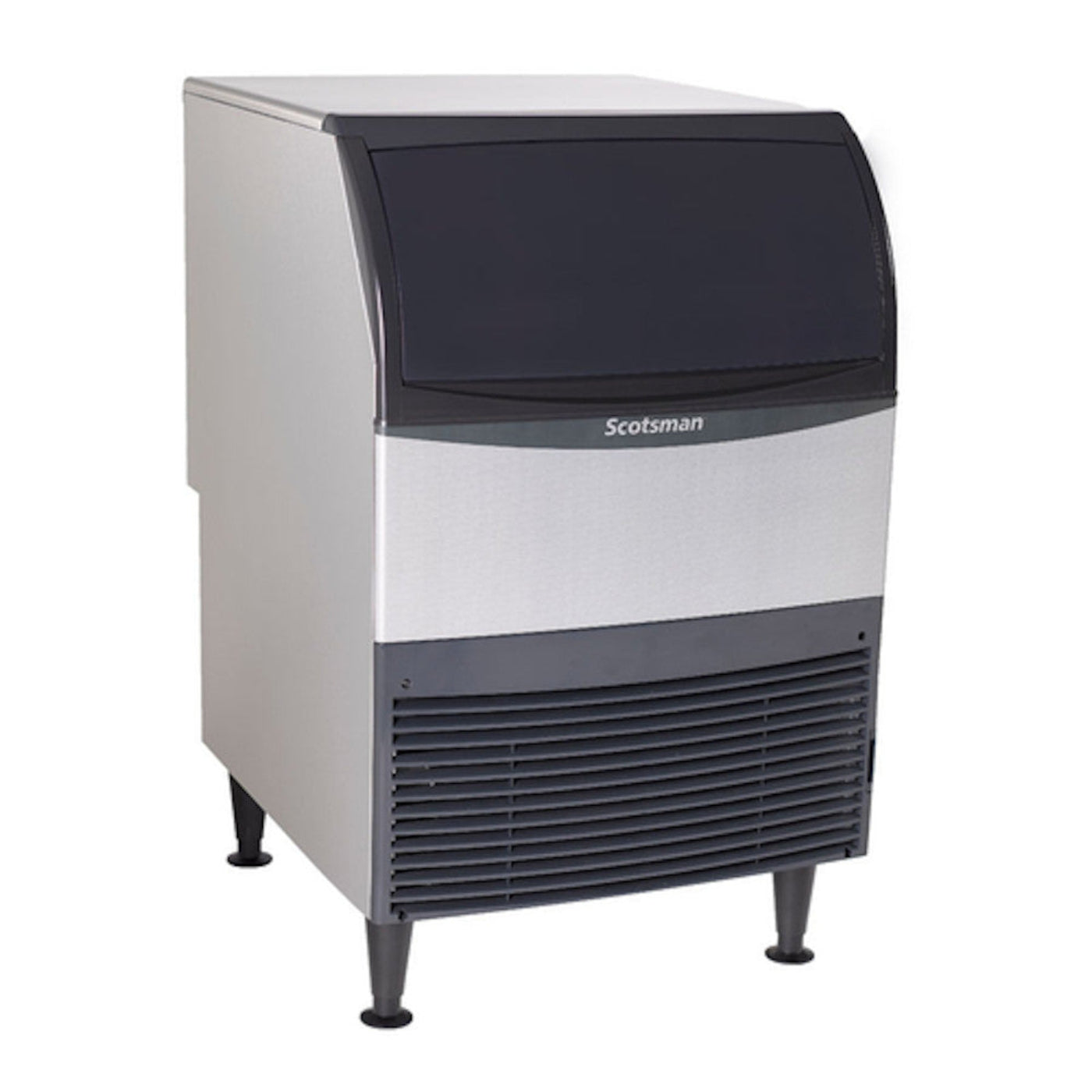

Scotsman UC2024 Undercounter Ice Machine 230-lb Production Cube Ice Maker with Bin - SCUC2024SA1

Scotsman UC2024 Undercounter Ice Machine 230-lb Production Cube Ice Maker with Bin - SCUC2024SA1

The Scotsman UC2024MA-1 Prodigy 230-lb Production Medium Cube Ice Maker With Bin features up to 230 lbs production per 24 hours and a 80-lb capacity ice storage bin. Air-cooled operation and an efficient self-contained condenser unit. Auto-Alert indicator lights. Front removable air filter. A durable and attractive stainless steel finish. This air-cooled ice machine produces slow-melting medium cubes. 6" legs and ice scoop included. R-134a refrigerant, 115v/60/1-ph

This UC2024MA-1 Prodigy 150-lb Production Medium Cube Ice Maker With Bin measures 39"H x 24"W x 28.4"D

Features

• Product Features:
• Construction: All external panel components are crafted for optimal aesthetic appeal through superior fit and finish. Front removable air filter. Preventative maintenance is simpler than ever with easily-removed door, top panel and storage bin allowing clear access to all internal components and a diagnostic code display insuring the right fix the first time.
• Ease Of Use: AutoAlert control panel can communicate operating status and signal when it's time to descale, sanitize and more - making upkeep easier.
• Environmentally Friendly: Prodigy undercounter cubers use significantly less energy and water than other cube ice machines, exceeding Federal energy efficiency regulations.

Specifications

What our Experts Think

• Efficient Ice Production: Capable of producing up to 227 lbs of small cube ice per day under optimal conditions (70°F air and 50°F water temperatures), with an AHRI-certified production rate of 174 lbs at 90°F air and 70°F water temperatures.

• Ample Storage Capacity: Features an integrated storage bin that holds up to 80 lbs of ice, ensuring a steady supply during peak periods

• Space-Saving Design: With a compact footprint of 24" width x 28.5" depth x 39" height, this undercounter unit is ideal for establishments with limited space.

• Front-Breathing System: The front-breathing design eliminates the need for side clearance, allowing for flexible placement in tight spaces.

• User-Friendly Features: Equipped with an ergonomic slide-back door for easy access to ice, and a removable external air filter for straightforward maintenance.

• Durable Construction: Built with heavy-duty, rust-free front panels and corrosion-resistant aluminum alloy side panels, ensuring longevity and reliability.

• Energy Efficiency: Utilizes non-ozone depleting R-134A refrigerant and meets U.S. federal energy efficiency requirements, making it an environmentally friendly choice.

Q&A

Q: What is the daily ice production capacity of the Scotsman UC2024SA-1? A: The Scotsman UC2024SA-1 can produce up to 227 pounds of small cube ice per day under optimal conditions (70°F air and 50°F water temperatures).

Q: What is the storage capacity of the built-in ice bin? A: The integrated storage bin can hold up to 80 pounds of ice, ensuring an ample supply during peak usage.

Q: What are the dimensions of the Scotsman UC2024SA-1? A: The unit measures 24 inches in width, 28.5 inches in depth, and 39 inches in height

Q: What type and size of ice does this machine produce? A: The UC2024SA-1 produces small cube ice, each measuring 7/8 inch x 7/8 inch x 3/8 inch, ideal for a variety of beverage applications

Q: Is the Scotsman UC2024SA-1 energy efficient? A: Yes, the machine meets U.S. federal energy efficiency requirements and utilizes non-ozone-depleting R-134A refrigerant, making it environmentally friendly

Q: What are the electrical requirements for this ice machine? A: The UC2024SA-1 operates on a 115-volt, 60 Hz, single-phase electrical supply.

Q: What features contribute to the ease of maintenance for this machine? A: The machine includes a removable external air filter for easy cleaning and a unit-specific QR code that provides quick access to service manuals, cleaning guides, and warranty information.

Q: Is the Scotsman UC2024SA-1 suitable for tight spaces? A: Yes, its compact 24-inch width and front-breathing design allow placement in narrow areas without requiring side clearance.

Q: What is included with the purchase of this ice machine? A: The UC2024SA-1 comes with an ice scoop, adjustable legs, and a power cord with a NEMA 5-15P plug for straightforward installation.

Maintenance Tips

• Biannual Cleaning: Clean and sanitize the ice-making system at least every six months to prevent mineral scale buildup and ensure optimal performance.

• Condenser Maintenance: Regularly inspect and clean the condenser coils to maintain efficient operation.

• Water Quality Management: Use a water filtration system to minimize mineral deposits and enhance ice quality.

• Routine Inspections: Periodically check for unusual noises, reduced ice production, or changes in ice quality, and address issues promptly.

• Professional Servicing: Schedule annual professional maintenance to ensure all components function correctly and to extend the machine's lifespan.
