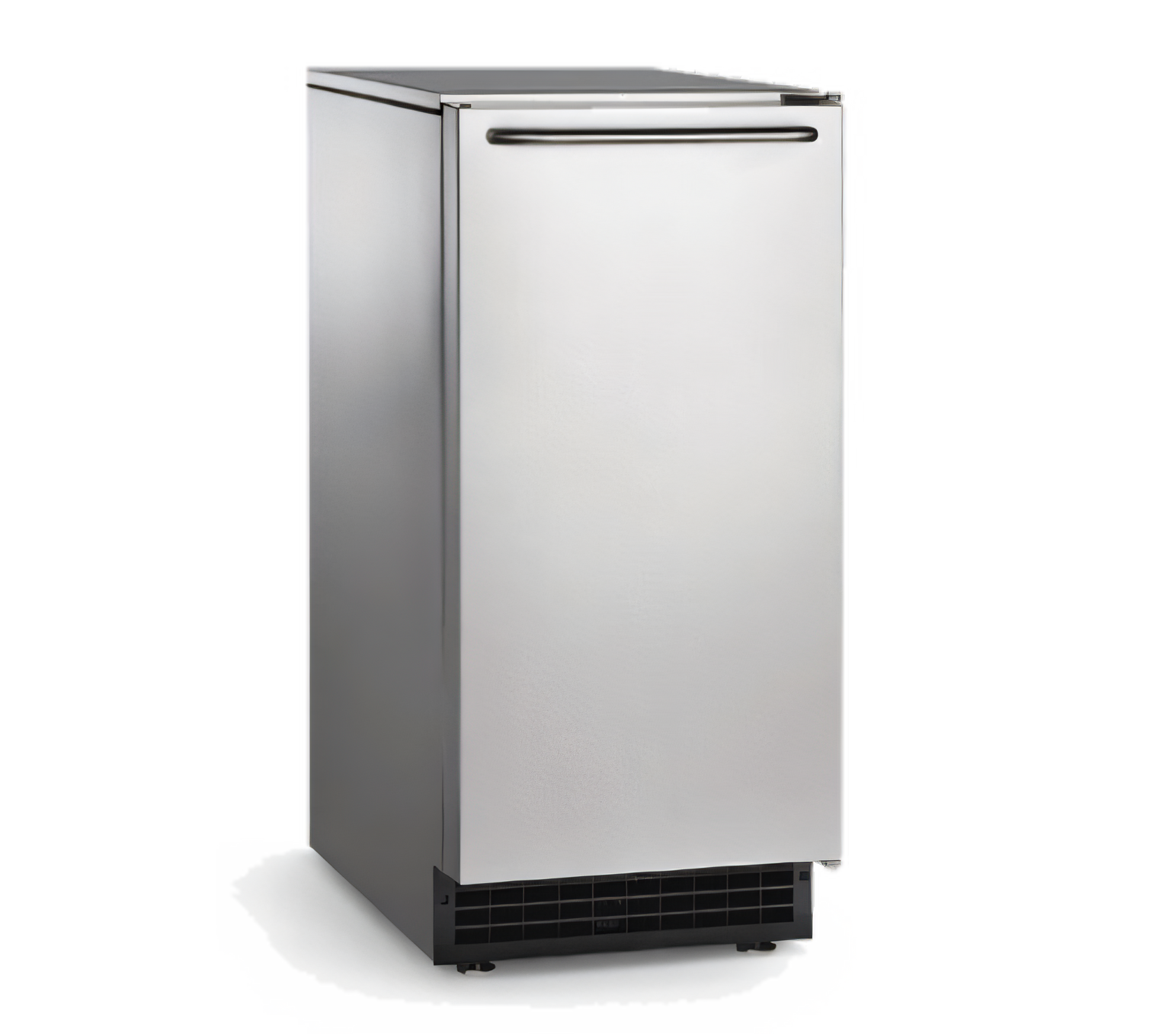

Scotsman CU50PA-1 Ice Machines - CU50PA-1

Scotsman CU50PA-1 Ice Machines -  CU50PA-1

Undercounter Ice Maker With Bin, Gourmet Cube, 1" x 1.13" x 1.25" cube size, air-cooled, 15" width, self-contained condenser, production capacity up to 64 lb/24 hours at 70°/50° (44 lb certified at 90°/70°), 26 lb ice storage capacity, horizontal evaporator, unit specific QR code, built in pump drain, reversible door, stainless steel exterior, 1" adjustable legs, includes power cord with NEMA 5-15P plug, 115v/60/1-ph, 5.0 amps, NSF, cULus, engineered and assembled in USA

Specifications

What our Experts Think

• High Production Capacity: Produces up to 65 lbs of gourmet ice per day, with a 26 lb storage capacity, making it ideal for small to medium-sized establishments.

• Compact Design: With a 15" width, it fits easily into tight spaces, perfect for undercounter installation in bars, cafes, or offices.

• Gourmet Ice Quality: Creates crystal-clear, slow-melting ice cubes (1" x 1⅛" x 1¼"), enhancing the presentation and quality of beverages.

• Built-In Drain Pump: Features a built-in pump with a 10' drain tube, simplifying installation and eliminating the need for gravity drainage.

• Water Quality Sensor: Detects hard water conditions and purges the system, extending the time between cleanings and ensuring consistently high-quality ice.

• User-Friendly Control Panel: Includes a control panel that displays operational status and maintenance alerts, making it easy to monitor and maintain.

• Durable Construction: Built with stainless steel, providing durability and ease of cleaning, ideal for frequent commercial use.

• Outdoor Approval: UL approved for outdoor use, offering flexibility for various installation settings.

Q&A

Q: What is the ice production capacity of the Scotsman CU50PA-1?
A: The Scotsman CU50PA-1 produces up to 65 lbs (29.5 kg) of gourmet ice per day.

Q: What are the dimensions of the CU50PA-1?
A: The unit measures 14-7/8" (W) x 22" (D) x 34-3/8" (H), including 1" adjustable legs.

Q: What type of ice does the CU50PA-1 produce?
A: It produces gourmet cube ice measuring 1" x 1-1/8" x 1-3/4".

Q: What is the storage capacity of the CU50PA-1?
A: The CU50PA-1 has a built-in storage bin with a 26 lb (11.8 kg) capacity.

Q: Is the CU50PA-1 suitable for undercounter installation?
A: Yes, its compact design and front-breathing airflow make it ideal for undercounter placement.

Q: What type of condenser does the CU50PA-1 use?
A: The CU50PA-1 features a self-contained air-cooled condenser for efficient cooling.

Q: What is the voltage requirement for the CU50PA-1?
A: The unit operates on 115V, 60Hz, single-phase electrical supply.

Q: Is the CU50PA-1 energy-efficient?
A: Yes, it uses R-134A refrigerant and has an energy-efficient design.

Q: Does the CU50PA-1 comply with safety standards?
A: Yes, it is UL listed and NSF certified, ensuring it meets industry standards for safety and performance.

Q: Is the CU50PA-1 made in the USA?
A: Yes, it is designed, engineered, and assembled in the USA.

Q: What is the warranty on the CU50PA-1?
A: The CU50PA-1 comes with a 1-year parts and labor warranty on all components and a 5-year parts warranty on the compressor and condenser.

Q: Does the CU50PA-1 include accessories?
A: Yes, it includes an ice scoop, 1" adjustable legs, and a power cord with NEMA 5-15P plug for quick installation.

Maintenance Tips

• Clean the Ice Storage Bin: Remove all ice and clean the bin's interior, including the polyethylene liner and stainless steel bottom, with warm, soapy water. Rinse thoroughly and sanitize using a food-safe sanitizer.

• Clean the Exterior: Wipe down the stainless steel surfaces with a cleaner to remove fingerprints, dust, and grease.

• Clean the Air Filter: Remove and clean the air filter by vacuuming or washing with warm water and mild detergent. Ensure it's completely dry before reinsertion.

• Clean the Condenser: Remove the front panel and kickplate. Vacuum the surface of the condenser fins and carefully brush off any loose dirt. If grease is imbedded, use coil cleaner to wash it out.

• Descale the Ice Machine: Mix 8 oz of Scotsman Ice Machine Scale Remover with warm water. Pour the solution into the reservoir and operate the machine for about 30 minutes. Drain the solution and rinse thoroughly with hot water.

• Sanitize the Water System: After descaling, sanitize the water system following the manufacturer's instructions.
