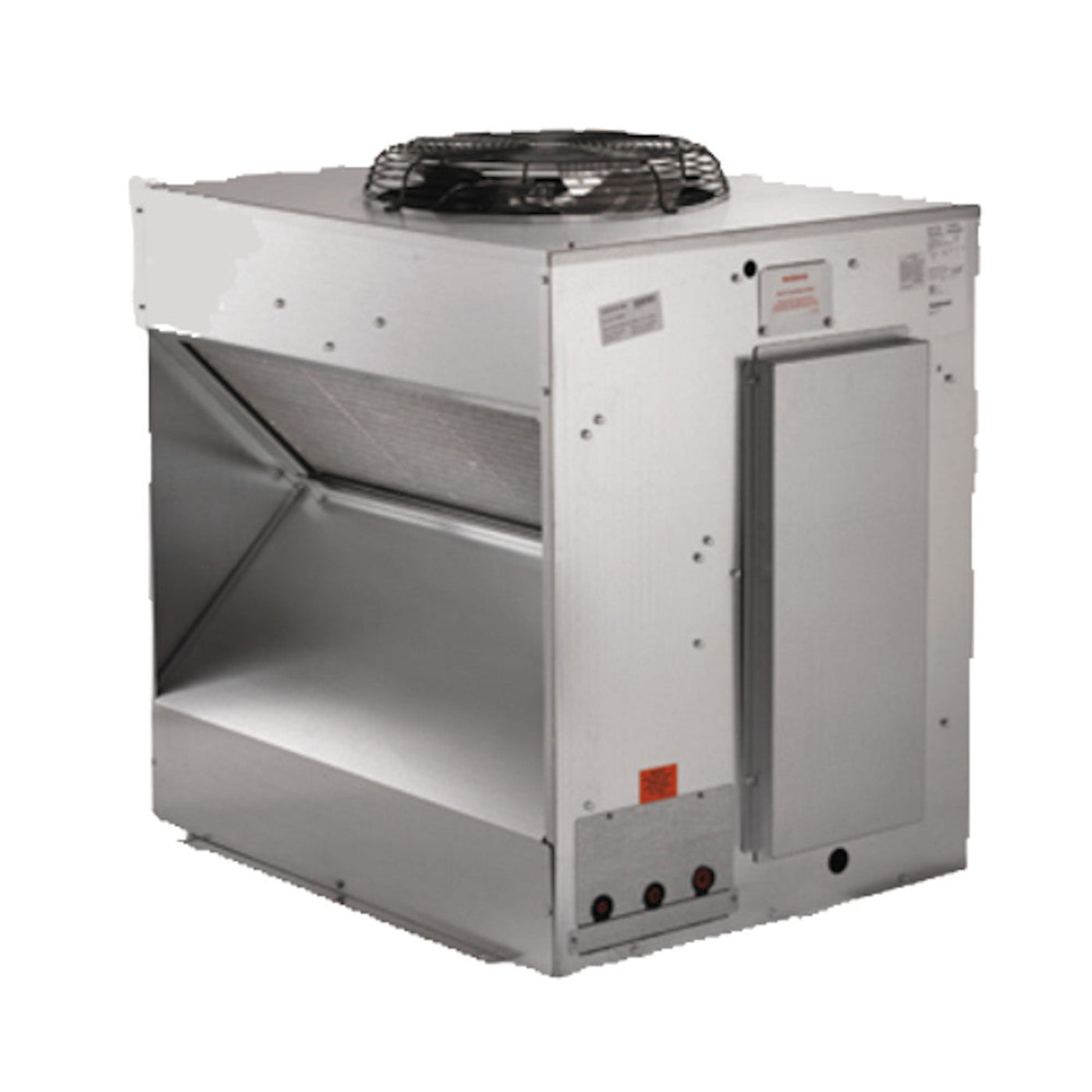

Scotsman ECC1410-32 Single Phase Remote Condenser for Prodigy Eclipse Ice Machines - 1030-1425 lb. - SCECC141032
This Scotsman ECC1410-32 Remote Condenser is energy efficient, durable, and easy to use. Its energy efficient components save you money on utility costs, while its corrosion resistant design increases its expected lifetime. It has a handy one-piece design for easy installation and access to components for servicing. It maximizes ice production by blowing heat away from the ice machine and minimizing its air conditioning load. This ECC1410-32 allows for quiet operation and is able to operate in a wide range (-20°F to 120°F) of outdoor temperatures.
Features
- Remote condensing unit
- Designed for Prodigy Eclipse Ice Machines
- Energy efficient components save money on utility costs
- Better corrosion resistance increases life of unit
- One piece design makes installation and service easier
- Maximizes ice production by dissipating heat away from ice machine
- Minimizes air conditioning load
- Allows for quiet operation in dining and working environments
- Able to operate in wide outdoor temperature range from -20°F to 120°F
Specifications
| Model |
ECC1410-32 |
| Ice Production Capacity |
1030-1425 lbs per 24 hours |
| Electrical Information |
208-230 Volts, 60 Hz, Single Phase, 14.5 Amps |
| Warranty |
3-year parts and labor |
| Dimensions (H x W x D) |
39.75" H x 39.09" W x 32.06" D |
| Approximate Weight |
310 lbs |
| Certifications |
cULus |
What our Experts Think
-
High Ice Production Capacity: Supports ice machines producing up to 1,425 lbs of ice per day, ensuring a consistent and ample ice supply for commercial operations
-
Energy Efficiency: Incorporates energy-efficient components that help reduce utility costs by effectively dissipating heat away from the ice machine.
-
Durable Construction: Built with corrosion-resistant materials to enhance durability and extend the unit's lifespan, even in demanding environments.
-
Flexible Installation: Operates efficiently in outdoor temperatures ranging from -20°F to 120°F, providing versatility in placement.
-
Reduced Noise Levels: By relocating the condenser unit outdoors, it minimizes noise within dining and working areas, contributing to a more pleasant environment.
-
Simplified Installation and Maintenance: Features a one-piece design that streamlines installation and servicing processes.
Q&A
Q: What is the Scotsman ECC1410-32 Remote Condensing Unit?
A: The Scotsman ECC1410-32 is a remote condensing unit designed to work with Prodigy® Eclipse® ice machines, facilitating efficient ice production by dissipating heat away from the ice maker, thereby reducing indoor noise and heat accumulation.
Q: What is the ice production capacity of this unit?
A: When paired with compatible Prodigy Eclipse ice machines, the ECC1410-32 supports ice production ranging from 1,030 to 1,425 pounds per 24 hours, depending on the specific ice maker model used.
Q: What are the electrical specifications for the ECC1410-32?
A: This unit operates on 208-230 volts, 60 Hz, single-phase power, drawing 14.5 amps.
Q: What are the dimensions and weight of the unit?
A: The ECC1410-32 measures 39.09 inches in width, 32.06 inches in depth, and 39.75 inches in height, with a shipping weight of approximately 310 pounds.
Q: What is the operating temperature range for this condenser unit?
A: The ECC1410-32 is designed to operate in outdoor temperatures ranging from -20°F to 120°F, making it suitable for various climates.
Q: Is the Scotsman ECC1410-32 energy-efficient?
A: Yes, the unit features energy-efficient components that help reduce utility costs by minimizing energy consumption during operation.
Q: What certifications does the ECC1410-32 hold?
A: The unit is cULus certified, ensuring compliance with recognized safety and quality standards.
Q: What warranty is provided with this unit?
A: Scotsman offers a 3-year parts and labor warranty on all components of the ECC1410-32, providing assurance of its durability and reliability.
Q: Is the ECC1410-32 suitable for indoor installation?
A: No, this remote condensing unit is designed for outdoor installation, allowing heat and noise to be dissipated away from indoor areas, thereby enhancing the comfort of dining and working environments.
Maintenance Tips
-
Power Off: Disconnect power to the condensing unit.
-
Access Components: Remove the top panel to access internal components.
-
Inspect Fan Blade: Ensure the fan blade is not cracked and is free from debris.
-
Clean Condenser Coils: Use a soft brush or vacuum to remove dirt and debris from the condenser coils. For embedded grease, apply a coil cleaner as per the manufacturer's instructions.
-
Reassemble: Replace the top panel and reconnect the power supply.
