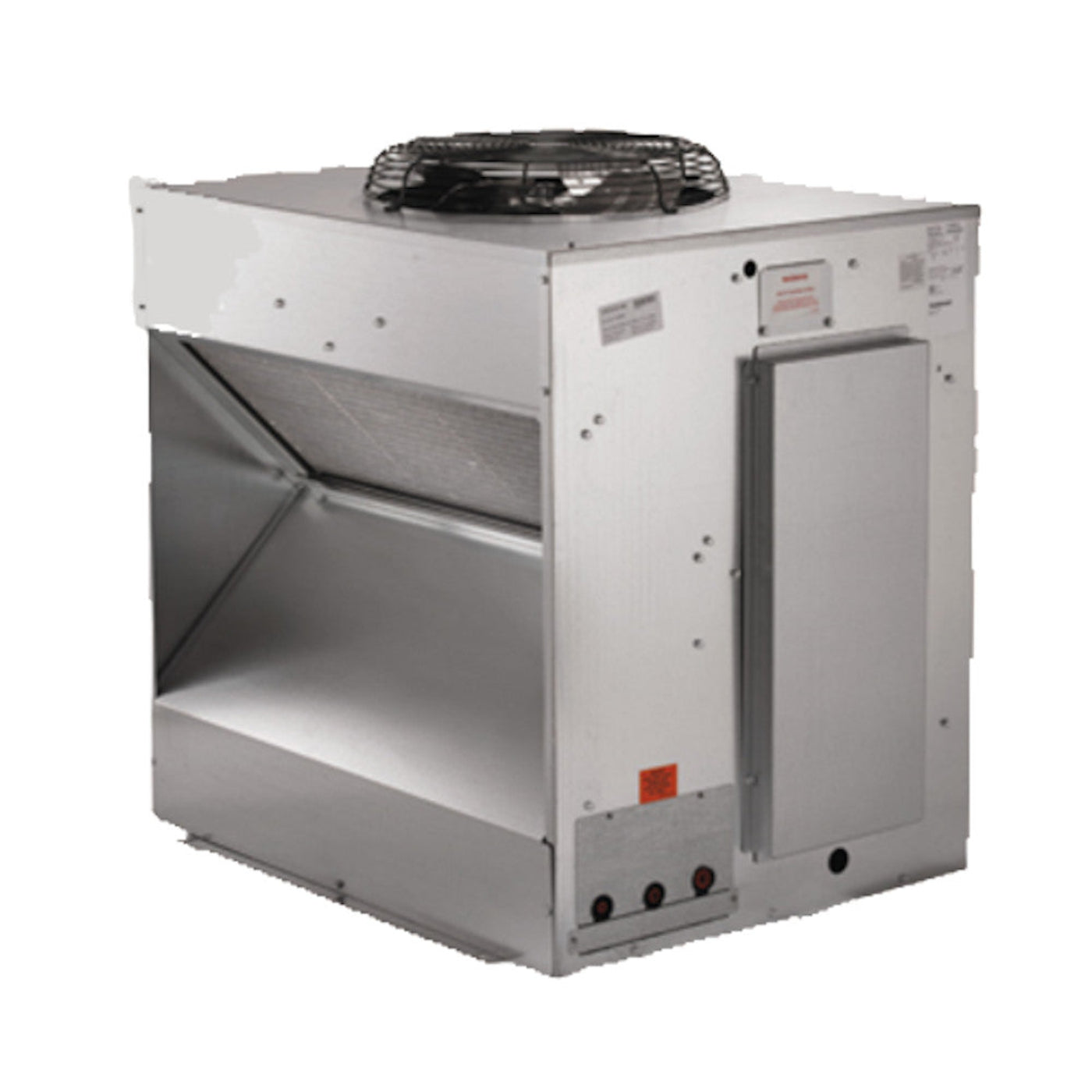

Scotsman ECC1800-3 Three Phase Remote Condenser for Prodigy Eclipse Ice Machines - 1775 lb. - SCECC18003
This Scotsman ECC1800-3 Remote Condenser is energy efficient, durable, and easy to use. Its energy efficient components save you money on utility costs, while its corrosion resistant design increases its expected lifetime. It has a handy one-piece design for easy installation and access to components for servicing. It maximizes ice production by blowing heat away from the ice machine and minimizing its air conditioning load. This ECC1800-3 allows for quiet operation and is able to operate in a wide range (-20°F to 120°F) of outdoor temperatures.
Features
- Remote condensing unit
- Designed for Prodigy Eclipse Ice Machines
- Energy efficient components save money on utility costs
- Better corrosion resistance increases life of unit
- One piece design makes installation and service easier
- Maximizes ice production by dissipating heat away from ice machine
- Minimizes air conditioning load
- Allows for quiet operation in dining and working environments
- Able to operate in wide outdoor temperature range from -20°F to 120°F
Specifications
| Model |
ECC1800-3 |
| Production Capacity |
1775 lbs / 24 hours |
| Electrical Information |
Volts: 208-230 |
| Hz: 60 |
|
| Phase: 3 |
|
| Amps: 19.0 |
|
| Warranty |
3-year parts and labor |
| Dimensions (H x W x D) |
39.75" H x 39.09" W x 32.06" D |
| Approximate Weight |
310 lbs. |
| Certifications |
cULus |
What our Experts Think
-
High Ice Production Capacity: Produces up to 1,775 lbs of ice per 24 hours, ensuring a consistent and ample ice supply for demanding environments.
-
Energy-Efficient Operation: Incorporates energy-efficient components that help reduce utility costs without compromising performance.
-
Durable Construction: Built with materials resistant to rust, ensuring longevity and reliable operation in various settings.
-
Flexible Installation: Designed for outdoor installation, capable of operating in temperatures ranging from -20°F to 120°F, providing flexibility in placement.
-
Simplified Maintenance: Features a one-piece design that streamlines both installation and maintenance processes, minimizing downtime.
-
Electrical Specifications: Operates on a 208-230V/60Hz/3-phase electrical system, drawing 19.0 amps, suitable for commercial electrical setups.
-
Certifications: Holds cULus certification, meeting rigorous safety and quality standards for commercial equipment
Q&A
Q: What is the Scotsman ECC1800-3 Remote Condensing Unit?
A: The Scotsman ECC1800-3 is a remote air-cooled condensing unit designed for use with Prodigy® Eclipse® ice makers, capable of producing up to 1,775 pounds of ice per 24 hours.
Q: What are the electrical requirements for this unit?
A: It operates on 208-230 volts, 60 Hz, three-phase power, drawing 19.0 amps.
Q: What are the dimensions and weight of the ECC1800-3?
A: The unit measures 39.09 inches in width, 32.06 inches in depth, and 39.75 inches in height, with a weight of 310 pounds.
Q: What warranty does the ECC1800-3 come with?
A: It includes a 3-year parts and labor warranty on all components.
Q: Is the ECC1800-3 certified for safety and quality?
A: Yes, the unit is cULus certified, meeting recognized safety standards for both the U.S. and Canada.
Maintenance Tips
-
Condenser Coil Cleaning
-
Periodically inspect and clean the condenser coil to remove dust and debris, ensuring efficient heat dissipation.
-
Environmental Considerations
-
Ensure the unit operates within the outdoor temperature range of -20°F to 120°F for optimal performance.
-
Electrical Components
-
Regularly inspect electrical connections for wear or corrosion, ensuring all are secure to prevent operational issues.
