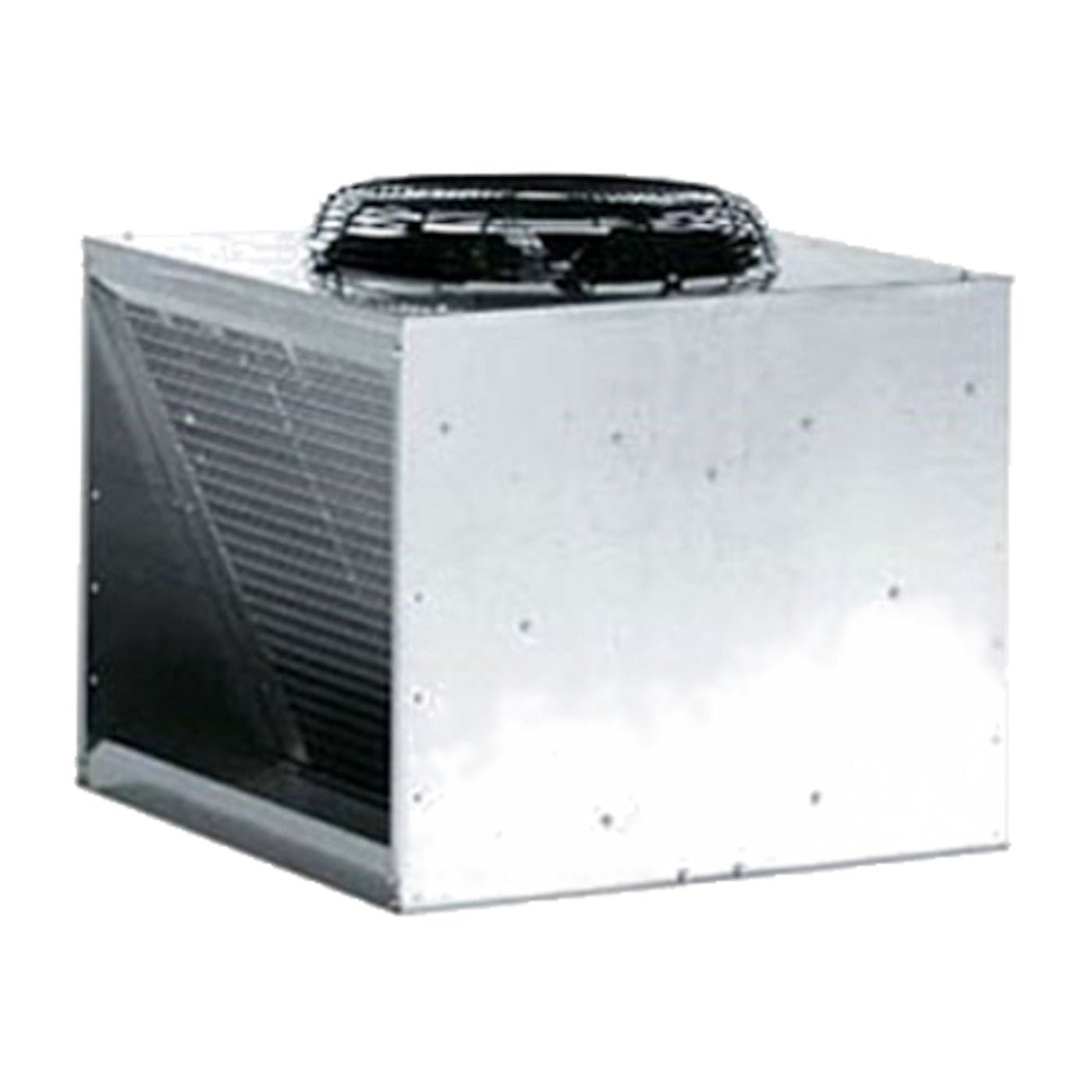

Scotsman ERC611-32 Outdoor Remote Condenser - 208-230 Volts - SCERC61132
This Scotsman ERC611-32 Remote Condenser is designed for outdoor installation. Because of its outdoor design, it operates in a wide range (-20ºF to 120ºF) of outside temperatures. It has a heavy-duty galvanized steel construction that is completely corrosion resistant. This increases its durability and longevity. This ERC611-32 Remote Condenser has thermally protected fan motors and PVC coated steel fan guards. It maximizes ice production by keeping heat away from the ice machine and by minimizing its air conditioning load.
Features
- Designed for outdoor installation
- For use with C1448xR and C2148xR
- Operates in wide outdoor temperature range from -20ºF to 120ºF
- Heavy gauge galvanized steel for corrosion resistance
- Thermally protected fan motors
- PVC coated steel fan guards
- Direct drive fan blades
- Standard Aero-Quip fittings
- Maximizes ice production by dissipating heat away from ice machine
- Minimizes air conditioning load
Specifications
| Model |
ERC611-32 |
| Voltage |
208-230 V |
| Frequency |
60 Hz |
| Phase |
Single |
| Amps |
1.9 A |
| Warranty |
3-year parts & labor, 5-year condenser parts |
| Dimensions (H x W x D) |
38.47" H x 29.5" W x 37.79" D |
| Approximate Weight |
140 lbs. |
| Certifications |
cULus |
What our Experts Think
-
Efficient Heat Dissipation: Designed to relocate heat away from the ice machine, enhancing ice production efficiency and reducing indoor cooling loads.
-
Outdoor Installation Ready: Built to operate in ambient temperatures ranging from -20°F to 120°F, ensuring reliable performance in diverse climates.
-
Durable Construction: Features a heavy-gauge galvanized steel finish, providing robust resistance to corrosion and extending the unit's lifespan.
-
Thermal Protection: Equipped with thermally protected fan motors and PVC-coated steel fan guards, enhancing safety and durability
-
Compatibility: Designed for seamless integration with Scotsman models MC1848xR, MC2148xR, C1848xR, C2148xR, F2330R, and N2030R, offering versatile application options.
-
Electrical Specifications: Operates on 208-230V/60Hz/1-phase power, with a minimal current draw of 1.9 amps, promoting energy efficiency.
Q&A
Q: What is the Scotsman ERC611-32 Outdoor Remote Condenser?
A: The Scotsman ERC611-32 is a remote refrigeration condenser designed for outdoor installation. It efficiently dissipates heat away from compatible ice machines, enhancing ice production and reducing indoor cooling loads.
Q: Which ice machine models are compatible with the ERC611-32?
A: This condenser is designed for use with Scotsman ice machine models C1848xR and C2148xR.
Q: What are the operating temperature parameters for the ERC611-32?
A: The unit operates effectively in outdoor temperatures ranging from -20°F to 120°F.
Q: What are the electrical specifications of the ERC611-32?
A: The condenser operates on 208-230 volts, 60 Hz, single-phase power, drawing approximately 1.9 amps.
Q: What are the dimensions and weight of the ERC611-32?
A: The unit measures 37.75 inches in width, 29.5 inches in depth, and 38.47 inches in height.
Q: What materials are used in the construction of the ERC611-32?
A: The condenser is constructed with heavy-gauge galvanized steel for corrosion resistance and durability.
Q: Where can I purchase the Scotsman ERC611-32 Outdoor Remote Condenser?
A: The ERC611-32 is available through authorized dealers such as KaTom Restaurant Supply, RestaurantSupply.com, and WebstaurantStore.
Maintenance Tips
-
Regular Cleaning: Periodically inspect and clean the condenser coils to remove dirt, leaves, and other debris. This ensures efficient heat dissipation and optimal performance.
-
Fan Maintenance: Check the fan blades and motors for signs of wear or damage. Ensure that the PVC-coated steel fan guards are intact and free from obstructions to maintain proper airflow.
-
Inspect Electrical Components: Regularly examine electrical connections and wiring for signs of wear or corrosion. Ensure that the unit operates within the specified voltage range (208-230V) and amperage (3.8 amps) to prevent electrical issues.
-
Monitor Operating Temperatures: The condenser is designed to operate in outdoor temperatures ranging from -20°F to 120°F. Ensure that the installation environment remains within this range to maintain efficiency and prevent damage.
-
Structural Integrity: Inspect the heavy-gauge galvanized steel housing for signs of corrosion or damage. Address any issues promptly to protect internal components and prolong the unit's lifespan.
-
Professional Servicing: Schedule annual maintenance with a certified technician to perform comprehensive inspections and address any potential issues before they escalate.
