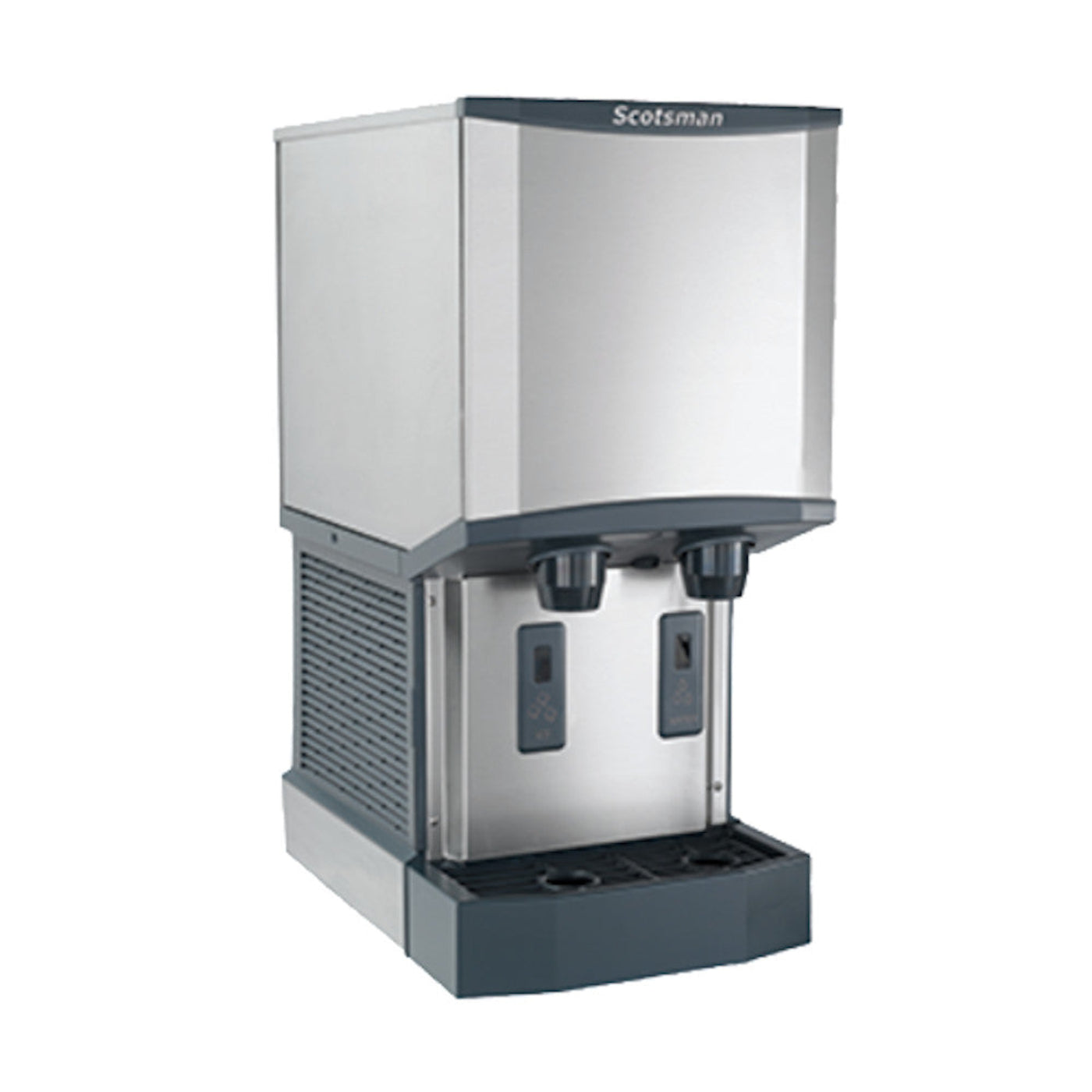

Scotsman HID312A-1 Meridian Touchless Nugget Ice Maker & Water Dispenser - SCHID312A
The Scotsman HID312A-1 Meridian Air-Cooled 260-lb Production Ice Machine and Water Dispenser features up to 260 lb ice production per 24 hours and 12 lb. ice bin storage capacity. Water and ice dispenser with H2 Nugget Ice. Air cooled operation and self contained condenser. Durable and attractive stainless steel exterior. External air filter and AnION antimicrobial protection. R-134a refrigerant. 115V/60/1-ph, 7.0 amps. CULus.
This HID312A-1 Meridian Air-Cooled 260-lb Production Ice Machine and Water Dispenser measures 35"H x 16.25"W x 24.38"D
Free Shipping (not including lift gate or residential charges).
Features
- Scotsman HID312A-1 Meridian Air-Cooled 260-lb Production Ice Machine and Water Dispenser
- Max Fuse Size or HACR Circuit Breaker: 15
- Bin Capacity: 12 lb
- Total Load Amps: 7.0 lb
- Dimensions: 35"H x 16.25"W x 24.38"D
- Weight: 183
- Product Features:
-
The Meridian Difference: Smarter construction, durable stainless steel evaporator and exterior panels. Greaseless bearings for reduced maintenance. Larger sink opening and dispensing area. Antimicrobial AquaArmor with AgION is molded into key components. Space-maximizing design features the industry's smallest operational footprint relative to capacity. Featuring specially designed contoured sides for enhanced breathability and an external air filter. More convenient front access - removable front panels allow ease of access and service to all key internal components. Including a removable storage bin for better cleaning and maintenance access. Enhanced service features - intuitive LED diagnostic lights reduce service time. Unit specific QR code for quick access to service manuals and warranty history. Convenient USB drive that allows for fast software updates. New removable sink and grill provide maximum access for ease of cleaning. Energy and Water efficient. Quieter operation.
What our Experts Think
-
High Ice Production: Produces up to 260 lbs of chewable H² nugget ice per day, ideal for healthcare facilities, restaurants, and offices.
-
Space-Saving Design: Features a compact countertop footprint (16.25" W x 24.38" D x 35" H) with a 12 lb storage bin, maximizing space without sacrificing capacity.
-
Touch-Free Operation: Equipped with infrared sensors for touchless dispensing of ice and water, enhancing hygiene and convenience.
-
Easy Maintenance: Designed with removable components (bin, spouts, air filter, sink, and grill) and front-access panels for straightforward cleaning and servicing.
-
Antimicrobial Protection: Incorporates AgION antimicrobial compounds molded into key components to inhibit the growth of bacteria, mold, and algae, ensuring safe ice production.
-
Energy and Water Efficiency: Utilizes electronic controls and a highly effective compressor, making it up to 15% more efficient than competitors, reducing operational costs
-
Enhanced Service Features: Includes LED diagnostic lights, a USB port for software updates, and a unit-specific QR code for easy access to service manuals and warranty information.
Q&A
Q: What is the Scotsman HID312A-1 Meridian Touchless Nugget Ice Maker & Water Dispenser?
A: The Scotsman HID312A-1 is a countertop ice and water dispenser that produces up to 260 pounds of nugget ice daily. It features touchless dispensing, enhancing hygiene by minimizing contact.
Q: What are the dimensions and storage capacity of the HID312A-1?
A: This unit measures 16.25 inches in width, 24.38 inches in depth, and 35 inches in height. It has a storage capacity of 12 pounds of ice.
Q: How does the touchless dispensing system work?
A: The HID312A-1 utilizes infrared sensors to dispense ice and water without physical contact, reducing the risk of contamination.
Q: What are the energy and water consumption rates of this dispenser?
A: It consumes approximately 4.9 kWh of energy and 12 gallons of water per 100 pounds of ice produced.
Q: What type of ice does the HID312A-1 produce?
A: The dispenser produces chewable nugget ice, favored in healthcare and hospitality settings for its soft texture.
Q: What maintenance features does the HID312A-1 offer?
A: It includes removable components like the bin, spouts, air filter, sink, and grill for easy cleaning. Additionally, sealed, maintenance-free bearings enhance reliability.
Q: What are the electrical requirements for this dispenser?
A: The HID312A-1 operates on 115 volts, 60 Hz, single-phase power, drawing 7 amps. It comes with a 7.5-foot power cord with a NEMA 5-15P plug
Maintenance Tips
-
Regular Cleaning: Clean and sanitize the machine as per the manufacturer's instructions. Empty and discard the ice bin, and monitor the water supply for any changes.
-
Air Filter Maintenance: The removable air filter is located on the outside of the machine and can be accessed by opening the front panels. Regularly clean the air filter to ensure optimal airflow and efficiency.
-
Drip Tray Care: The large, removable drip tray with a built-in drain should be cleaned regularly to prevent spills and maintain hygiene
-
Ice Bin Inspection: Regularly inspect the ice storage bin for cleanliness and signs of wear. The bin should be emptied, cleaned, and sanitized periodically to ensure a clean ice supply.
-
Component Checks: Ensure that all components, including the dispensing mechanism and sensors, are functioning correctly. Address any issues promptly to maintain efficient operation.
-
Professional Servicing: Schedule regular maintenance with a certified technician to inspect internal components and address potential issues before they escalate.
